YAMAHA MT-01 2009 Owner's Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3 cap as shown in illustration “A”,
turn the adjusting bolt in direction
(b) until the alignment marks
match.
To set the standard setting, turn
the adjusting bolt 7 complete turns
in direction (b), making sure the
alignment marks match.b. If the alignment mark on the ad-
justing bolt is positioned before the
alignment mark on the front fork
cap as shown in illustration “B”,
turn the adjusting bolt in direction
(b) until the alignment marks
match.To set the standard setting, turn
the adjusting bolt 6 complete turns
in direction (b), making sure the
alignment marks match.
1. Spring preload adjusting bolt
2. Alignment marks
21
(b)
(a)
È
1. Spring preload adjusting bolt
2. Alignment marks
1
(b)
(a) 2
1. Spring preload adjusting bolt
2. Alignment marks
1. Spring preload adjusting bolt
2. Alignment marks
1
(b)
(a) 2
É
1
(b)
(a) 2
U5YUE5E0.book Page 17 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3To increase the spring preload and
thereby hardening it, turn the ad-
justing bolt in direction (a) from the
standard setting, making sure to
turn the bolt complete turns so that
the alignment marks match.
To decrease the spring preload
and thereby softening it, turn the
adjusting bolt in direction (b) from
the standard setting, making sure
to turn the bolt complete turns so
that the alignment marks match.
TIPDue to small differences in production,
the positions of the alignment marks on
the front fork caps may not exactly
match the illustrations.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting bolt on each fork
leg in direction (a). To decrease the re-
bound damping force and thereby soft-
en the rebound damping, turn the
adjusting bolt on each fork leg in direc-
tion (b).Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting bolt on
each fork leg in direction (a). To de-
crease the compression damping force
and thereby soften the compression
damping, turn the adjusting bolt on
each fork leg in direction (b).
Spring preload setting:
Minimum (soft):
7 complete turns in direction (b)
from the standard setting
Standard:
See explanations above.
Maximum (hard):
6 complete turns in direction (a)
from the standard setting
1. Rebound damping force adjusting boltRebound damping setting:
Minimum (soft):
17 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting bolt fully turned in
direction (a)1
(b)
(a)
1. Compression damping force adjusting boltCompression damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting bolt fully turned in
direction (a)
(b)(a)
1
U5YUE5E0.book Page 18 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
TIPAlthough the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary.
EAU48080
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing nut, a rebound damping force ad-
justing knob and a compression
damping force adjusting screw.NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.Spring preload
Adjust the spring preload as follows.
1. Loosen the locknut.2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting nut in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting nut in
direction (b).


Use the special wrench,
which was handed out sepa-
rately at the purchase of the
vehicle, to make the adjust-
ment.


Attach the extension bar,
which is included in the own-
er's tool kit, to the special
wrench.


The spring preload setting is
determined by measuring dis-
tance A, shown in the illustra-
tion. The longer distance A is,
the lower the spring preload;
the shorter distance A is, the
higher the spring preload.
1. Spring preload adjusting nut
2. Locknut
12
U5YUE5E0.book Page 19 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
33. Tighten the locknut to the specified
torque. NOTICE: Always tighten
the locknut against the adjust-
ing nut, and then tighten the
locknut to the specified torque.
[ECA10121]
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting knob in direction
(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting knob in di-
rection (b).Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
in direction (a). To decrease the com-
pression damping force and thereby
soften the compression damping, turn
the adjusting screw in direction (b).
1. Special wrench
2. Extension bar
1. Distance A
(a)
(b)
12
1
Spring preload:
Minimum (soft):
Distance A = 165 mm (6.50 in)
Standard:
Distance A = 160 mm (6.30 in)
Maximum (hard):
Distance A = 152 mm (5.98 in)
Tightening torque:
Locknut:
25 Nm (2.5 m·kgf, 18 ft·lbf)
1. Rebound damping force adjusting knobRebound damping setting:
Minimum (soft):
23 click(s) in direction (b)*
Standard:
18 click(s) in direction (b)*
Maximum (hard):
13 click(s) in direction (b)*
* With the adjusting knob fully turned
in direction (a)
(b)
(a)1
U5YUE5E0.book Page 20 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-21
3
TIPTo obtain a precise adjustment, it is ad-
visable to check the actual total number
of clicks or turns of each damping force
adjusting mechanism. This adjustment
range may not exactly match the spec-
ifications listed due to small differences
in production.
WARNING
EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

Do not tamper with or attempt to
open the cylinder assembly.


Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.


Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.


Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
EAU36700
Luggage strap holders There are four luggage strap holders on
the bottom of the seat. To use the strap
holders, remove the seat, unhook the
straps from the hooks, and then install
the seat with the straps hanging out
from under the seat. (See page 3-16.)
1. Compression damping force adjusting screwCompression damping setting:
Minimum (soft):
18 click(s) in direction (b)*
Standard:
13 click(s) in direction (b)*
Maximum (hard):
8 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1 (b)(a)
1. Hook
2. Luggage strap holder
U5YUE5E0.book Page 21 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
EAU15281
EXUP system This model is equipped with Yamaha’s
EXUP (EXhaust Ultimate Power valve)
system. This system boosts engine
power by means of a valve that regu-
lates the diameter of the exhaust pipe.
The EXUP system valve is constantly
adjusted in accordance with the engine
speed by a computer-controlled servo-
motor.NOTICE
ECA10191


The EXUP system has been set
and extensively tested at the
Yamaha factory. Changing
these settings without sufficient
technical knowledge may result
in poor performance of or dam-
age to the engine.


If the EXUP system cannot be
heard when the main switch is
turned on, have a Yamaha deal-
er check it.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
U5YUE5E0.book Page 22 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-23
3
EAU44892
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
U5YUE5E0.book Page 23 Tuesday, March 17, 2009 9:02 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-24
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U5YUE5E0.book Page 24 Tuesday, March 17, 2009 9:02 AM

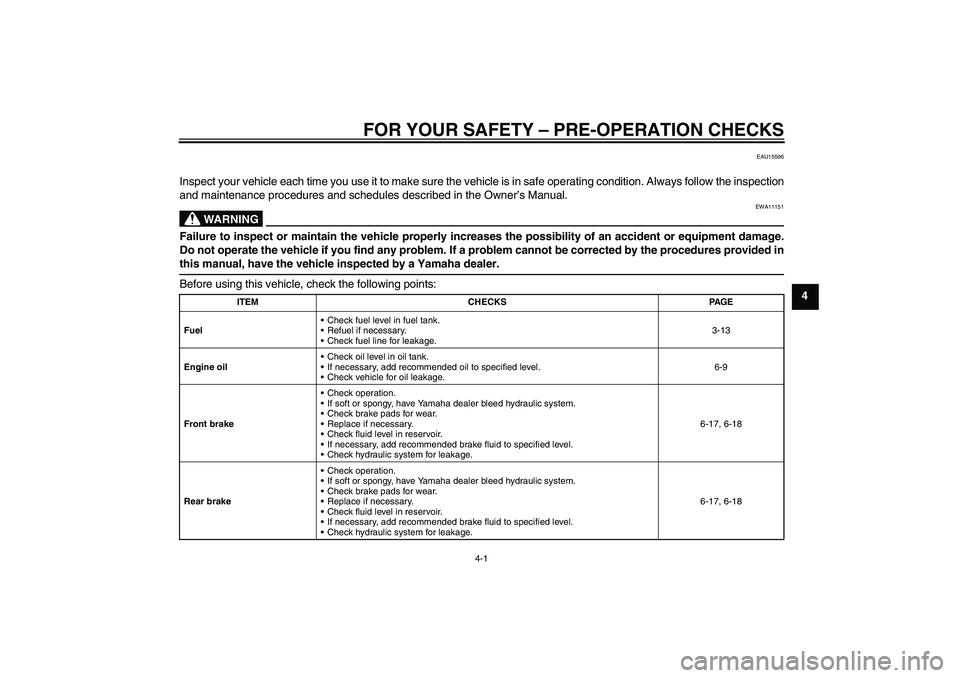

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-13
Engine oilCheck oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
U5YUE5E0.book Page 1 Tuesday, March 17, 2009 9:02 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
ClutchCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check hydraulic system for leakage.6-16
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-13, 6-21
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-19, 6-20
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-14, 6-16
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-22
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-22
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-23
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switch Check operation of ignition circuit cut-off system.
If system is not working correctly, have Yamaha dealer check vehicle.3-22 ITEM CHECKS PAGE
U5YUE5E0.book Page 2 Tuesday, March 17, 2009 9:02 AM
