TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function display ......................3-5
Anti-theft alarm (optional) ...............3-9
Handlebar switches ........................3-9
Clutch lever ...................................3-11
Shift pedal .....................................3-11
Brake lever ...................................3-12
Brake pedal ..................................3-12
Fuel tank cap ................................3-13
Fuel ...............................................3-13
Fuel tank breather/overflow
hose ..........................................3-15
Catalytic converters ......................3-15
Seat ..............................................3-16
Adjusting the front fork ..................3-16
Adjusting the shock absorber
assembly ...................................3-19
Luggage strap holders ..................3-21
EXUP system ...............................3-22
Sidestand ......................................3-22Ignition circuit cut-off system ........ 3-23
FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing the
cowling ........................................ 6-7
Checking the spark plugs ............... 6-8
Engine oil and oil filter cartridge ..... 6-9
Air filter element ........................... 6-13
Checking the throttle cable free
play ........................................... 6-13
Valve clearance ............................ 6-13
Tires ............................................. 6-14
Cast wheels .................................. 6-16Clutch lever .................................. 6-16
Adjusting the rear brake light
switch ....................................... 6-17
Checking the front and rear brake
pads .......................................... 6-17
Checking the brake fluid level ...... 6-18
Changing the brake and clutch
fluids ......................................... 6-19
Drive chain slack .......................... 6-19
Cleaning and lubricating the drive
chain ......................................... 6-20
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-21
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-22
Checking and lubricating the
sidestand .................................. 6-23
Checking the front fork ................. 6-23
Checking the steering .................. 6-24
Checking the wheel bearings ....... 6-24
Battery ......................................... 6-25
Replacing the fuses ..................... 6-26
Replacing a headlight bulb .......... 6-27
Tail/brake light ............................. 6-29
Replacing a turn signal light
bulb ........................................... 6-29U5YUE5E0.book Page 1 Tuesday, March 17, 2009 9:02 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. License plate light (page 6-30)
2. Tail/brake light (page 6-29)
3. Rear brake fluid reservoir (page 6-18)
4. Owner’s tool kit (page 6-1)
5. Luggage strap holder (page 3-21)
6. Fuse box (page 6-26)
7. Fuel injection system fuse (page 6-26)
8. Main fuse (page 6-26)9. Battery (page 6-25)
10.Headlight (page 6-27)
11.Brake pedal (page 3-12)
12.Rear brake light switch (page 6-17)
U5YUE5E0.book Page 2 Tuesday, March 17, 2009 9:02 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
ClutchCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check hydraulic system for leakage.6-16
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-13, 6-21
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-19, 6-20
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-14, 6-16
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-22
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-22
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-23
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switch Check operation of ignition circuit cut-off system.
If system is not working correctly, have Yamaha dealer check vehicle.3-22 ITEM CHECKS PAGE
U5YUE5E0.book Page 2 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU36771
TIP

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
21*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
22 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
23Engine oil filter car-
tridgeReplace.√√√
24*Front and rear brake
switchesCheck operation.√√√√√√
25Moving parts and
cablesLubricate.√√√√√
26*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U5YUE5E0.book Page 5 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
EAU22272
Adjusting the rear brake light
switch The rear brake light, which is activated
by the brake pedal, should come on just
before braking takes effect. If neces-
sary, adjust the rear brake light switch
as follows.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU43062
Front brake pads
The front brake calipers are equipped
with two sets of brake pads.
Each front brake pad is provided with
one or two wear indicator grooves,
which allow you to check the brake pad
wear without having to disassemble the
brake. To check the brake pad wear,
check the wear indicator grooves. If a
brake pad has worn to the point that awear indicator groove almost appears,
have a Yamaha dealer replace the
brake pads as a set.
EAU46291
Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator groove
1. Brake pad wear indicator groove
1
1
U5YUE5E0.book Page 17 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6 b. Install the bulb by turning it
clockwise.
c. Connect the headlight coupler.
2. Install the headlight unit by install-
ing the bolts.
3. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]
1. Headlight coupler
2. Headlight bulb
1. Screw
U5YUE5E0.book Page 29 Tuesday, March 17, 2009 9:02 AM

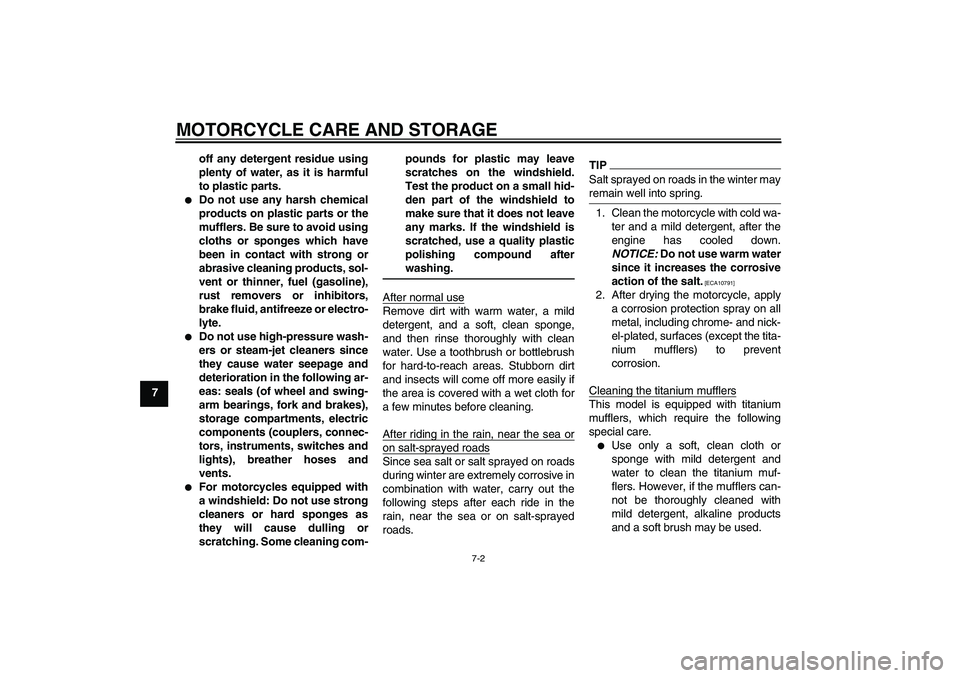

MOTORCYCLE CARE AND STORAGE
7-2
7off any detergent residue using
plenty of water, as it is harmful
to plastic parts.


Do not use any harsh chemical
products on plastic parts or the
mufflers. Be sure to avoid using
cloths or sponges which have
been in contact with strong or
abrasive cleaning products, sol-
vent or thinner, fuel (gasoline),
rust removers or inhibitors,
brake fluid, antifreeze or electro-
lyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
storage compartments, electric
components (couplers, connec-
tors, instruments, switches and
lights), breather hoses and
vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
TIPSalt sprayed on roads in the winter may
remain well into spring.1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10791]
2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces (except the tita-
nium mufflers) to prevent
corrosion.
Cleaning the titanium mufflersThis model is equipped with titanium
mufflers, which require the following
special care.

Use only a soft, clean cloth or
sponge with mild detergent and
water to clean the titanium muf-
flers. However, if the mufflers can-
not be thoroughly cleaned with
mild detergent, alkaline products
and a soft brush may be used.
U5YUE5E0.book Page 2 Tuesday, March 17, 2009 9:02 AM

MOTORCYCLE CARE AND STORAGE
7-3
7


Never use compounds or other
special treatments to clean the tita-
nium mufflers, as they will remove
the finish on the outer surface of
the mufflers.


Even the smallest amounts of oil,
such as from oily towels or finger-
prints, will leave stains on the tita-
nium mufflers, which can be
removed with a mild detergent.


Note that the thermally induced
discoloring of the portion of the ex-
haust pipe leading into the titanium
mufflers is normal and cannot be
removed.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts.4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11131
Contaminants on the brakes or tires
can cause loss of control.

Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-
nering behavior.
NOTICE
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP

Consult a Yamaha dealer for ad-
vice on what products to use.


Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
U5YUE5E0.book Page 3 Tuesday, March 17, 2009 9:02 AM

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 51.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 3
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
ECU fuse:
10.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
U5YUE5E0.book Page 3 Tuesday, March 17, 2009 9:02 AM

INDEXAAir filter element .................................... 6-13
Anti-theft alarm (optional)........................ 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-25
Brake and clutch fluids, changing ......... 6-19
Brake and clutch levers, checking and
lubricating ........................................... 6-22
Brake and shift pedals, checking and
lubricating ........................................... 6-22
Brake fluid level, checking .................... 6-18
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converters .............................. 3-15
Clutch lever .................................. 3-11, 6-16
Cowling, removing and installing ............ 6-7DDimmer switch ...................................... 3-10
Drive chain, cleaning and lubricating .... 6-20
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-9
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-22FFront and rear brake pads, checking .... 6-17
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-23Fuel....................................................... 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather/overflow hose ......... 3-15
Fuel tank cap ........................................ 3-13
Fuses, replacing ................................... 6-26
HHandlebar switches ................................ 3-9
Hazard switch ....................................... 3-10
Headlight bulb, replacing ...................... 6-27
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-23
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-30
Luggage strap holders .......................... 3-21MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-5NNeutral indicator light .............................. 3-4PParking ................................................... 5-4Part locations .......................................... 2-1
Pass switch ........................................... 3-10
RRear brake light switch, adjusting ......... 6-17SSafety information ................................... 1-1
Seat ....................................................... 3-16
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-19
Sidestand .............................................. 3-22
Sidestand, checking and lubricating...... 6-23
Spark plugs, checking ............................. 6-8
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-24
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-32TTail/brake light ....................................... 6-29
Throttle cable free play, checking ......... 6-13
Throttle grip and cable, checking and
lubricating ........................................... 6-21
Tires ...................................................... 6-14
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-33
Troubleshooting chart ........................... 6-34
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-29
Turn signal switch ................................. 3-10VValve clearance..................................... 6-13
Vehicle identification number .................. 9-1
U5YUE5E0.book Page 1 Tuesday, March 17, 2009 9:02 AM
