Periodic maintenance an d a djustment
6-31
6
EAU59881
Replacin g the hea dlig ht bul bThis model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10651
Take care not to d amage the follow-
in g parts:
 Hea dlig ht bul b
Do not touch the g lass part of
the hea dlig ht bul b to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the b ulb, an d the bul b life will
b e ad versely affected . Thor-
ou ghly clean off any dirt an d fin-
g erprints on the head lig ht bul b
usin g a cloth moistened with al-
cohol or thinner.
 Hea dlig ht lens
Do not affix any type of tinted
film or stickers to the hea dlig ht
lens.
Do not use a hea dlig ht bul b of a
watta ge hi gher than specifie d.

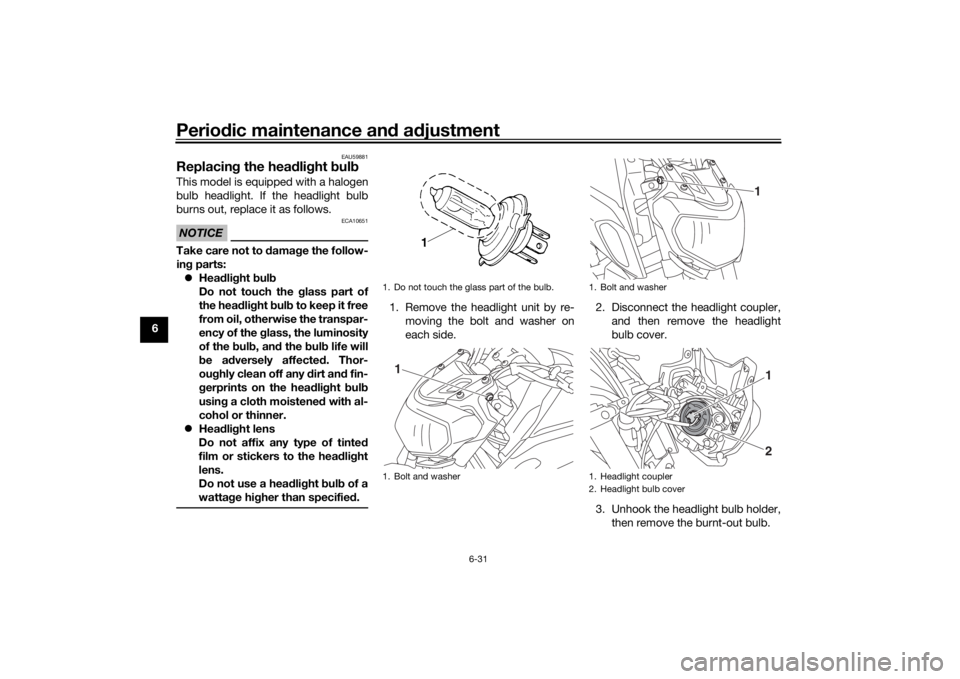

1. Remove the headlight unit by re-
moving the bolt and washer on
each side. 2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder, then remove the burnt-out bulb.1. Do not touch the glass part of the bulb.
1. Bolt and washer
1
1. Bolt and washer
1. Headlight coupler
2. Headlight bulb cover
112
UB4CE0E0.book Page 31 Monday, December 11, 2017 3:53 PM

Periodic maintenance an d a djustment
6-32
6
4. Place a new headlight bulb into
position, then secure it with the
bulb holder.
5. Install the headlight bulb cover, then connect the coupler.
6. Install the headlight unit as shown, and then install the washer and
bolt on each side. 7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU83660
Replacin g an auxiliary lig ht
b ul bThis model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the headlight unit. (See page 6-31.)
2. Remove the auxiliary light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out of the socket.

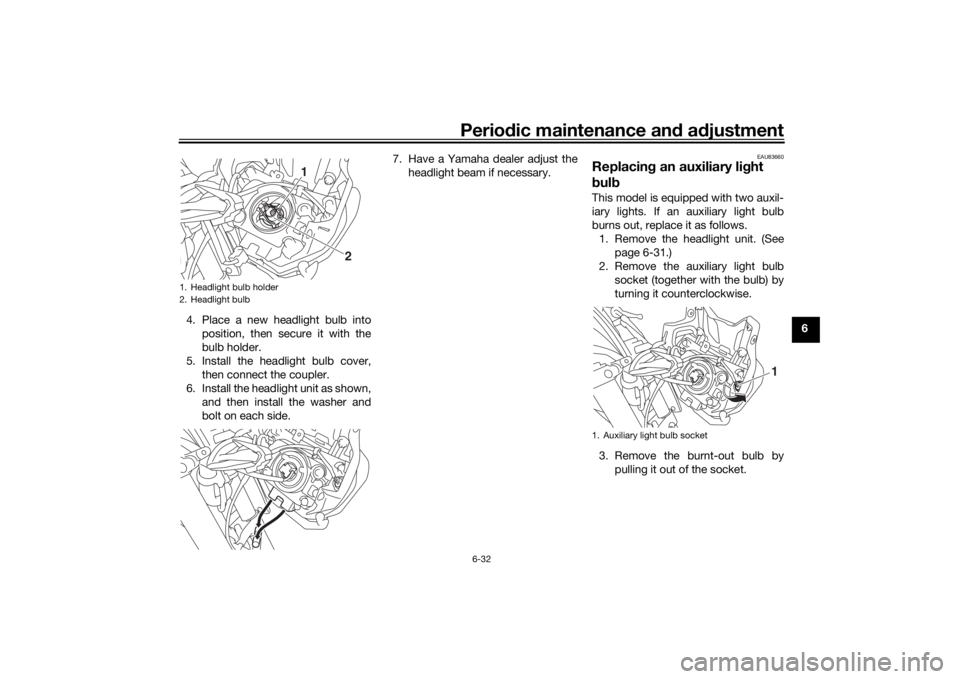

1. Headlight bulb holder
2. Headlight bulb
1
2
1. Auxiliary light bulb socket
1
UB4CE0E0.book Page 32 Monday, December 11, 2017 3:53 PM

Periodic maintenance an d a djustment
6-33
6 4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the headlight unit.
EAU70540
Brake/tail li ghtThis model is equipped with an LED-
type brake/tail light.
If the brake/tail light does not come on,
have a Yamaha dealer check it.
EAU24205
Replacin g a turn si gnal li ght
b ul b1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by pushing it in and turning it coun-
terclockwise.
1. Auxiliary light bulb
1

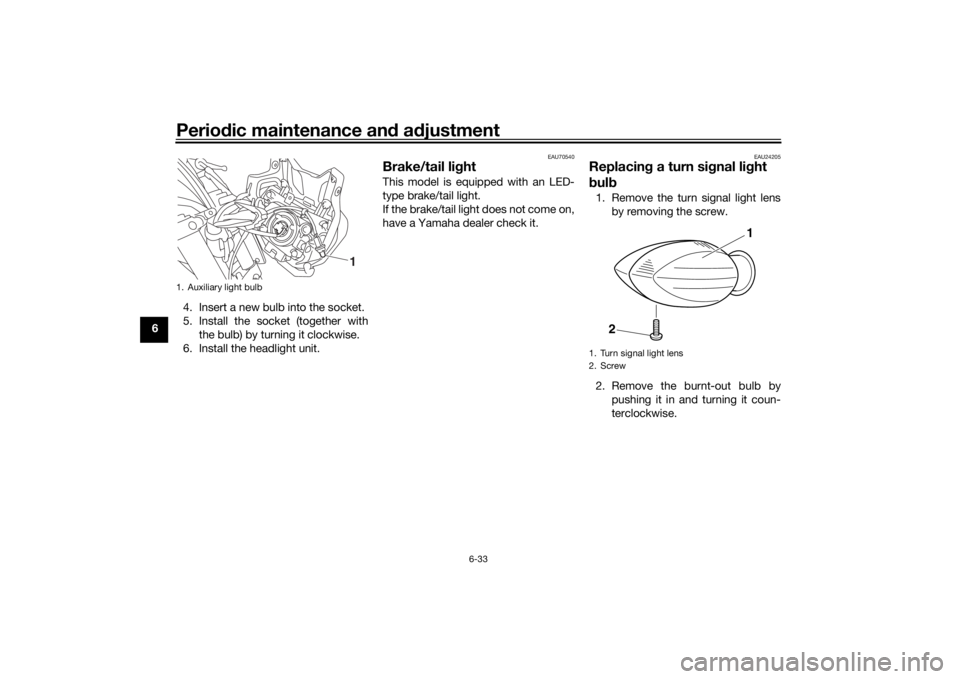

1. Turn signal light lens
2. Screw
1
2
UB4CE0E0.book Page 33 Monday, December 11, 2017 3:53 PM

Specifications
8-3
8
Bulb watta ge:Headlight:
H4, 60.0 W/55.0 W
Brake/tail light:
LED
Front turn signal light: 10.0 W
Rear turn signal light: 10.0 W
Auxiliary light:
5.0 W
License plate light: 5.0 W
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED
Oil pressure warning light: LED
Turn signal indicator light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
ABS warning light:
LED
Immobilizer system indicator light: LEDFuse(s):Main fuse:
30.0 A Auxiliary fuse:
2.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 10.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse:
10.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
20.0 A
Backup fuse: 7.5 A
Backup fuse 2: 10.0 A
UB4CE0E0.book Page 3 Monday, December 11, 2017 3:53 PM
