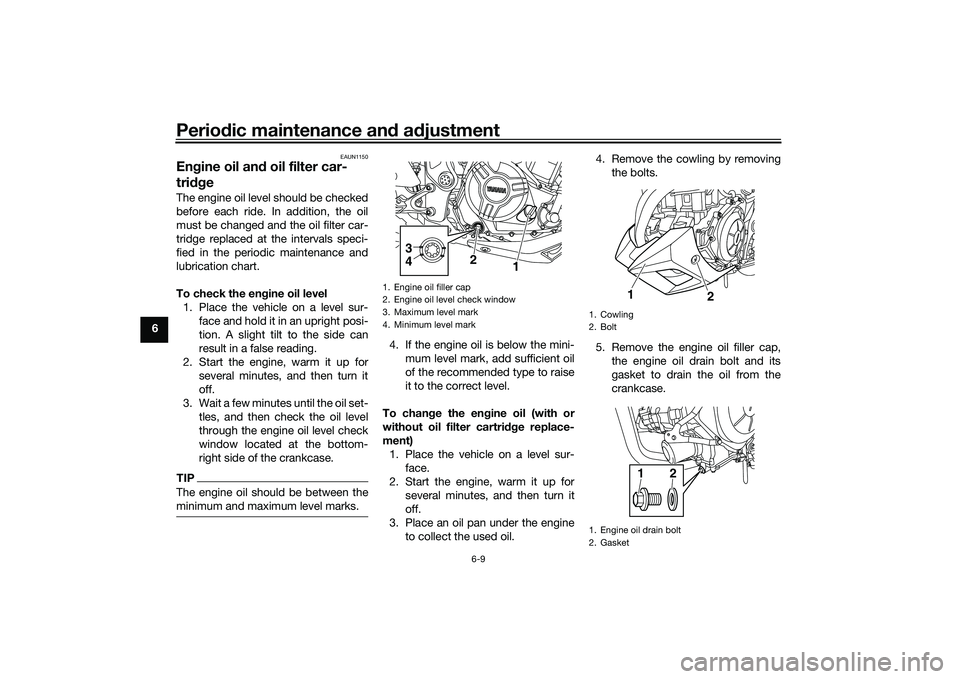

Periodic maintenance and adjustment
6-9
6
EAUN1150
Engine oil and oil filter car-
tridgeThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the engine oil level check
window located at the bottom-
right side of the crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.4. Remove the cowling by removing
the bolts.
5. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.1. Engine oil filler cap
2. Engine oil level check window
3. Maximum level mark
4. Minimum level mark
3
4
1 2
1. Cowling
2. Bolt
1. Engine oil drain bolt
2. Gasket
1
2
12
UB04E0E0.book Page 9 Wednesday, September 2, 2015 3:51 PM

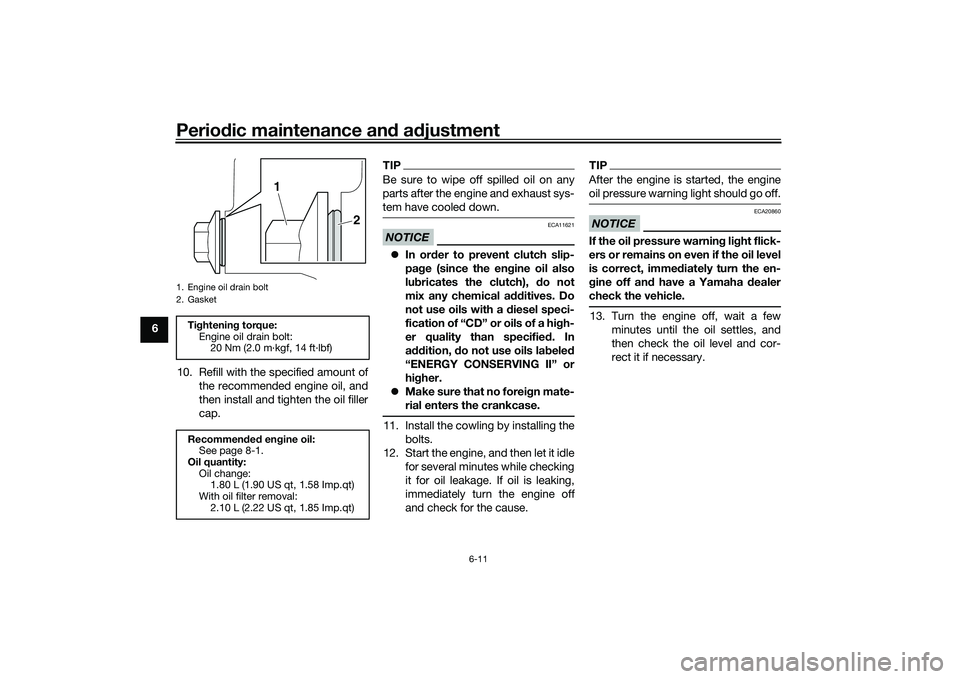

Periodic maintenance and adjustment
6-11
6
10. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11621
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-
rial enters the crankcase.11. Install the cowling by installing the
bolts.
12. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
TIPAfter the engine is started, the engine
oil pressure warning light should go off.NOTICE
ECA20860
If the oil pressure warning light flick-
ers or remains on even if the oil level
is correct, immediately turn the en-
gine off and have a Yamaha dealer
check the vehicle.13. Turn the engine off, wait a few
minutes until the oil settles, and
then check the oil level and cor-
rect it if necessary.
1. Engine oil drain bolt
2. GasketTightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Oil change:
1.80 L (1.90 US qt, 1.58 Imp.qt)
With oil filter removal:
2.10 L (2.22 US qt, 1.85 Imp.qt)
2
1
UB04E0E0.book Page 11 Wednesday, September 2, 2015 3:51 PM

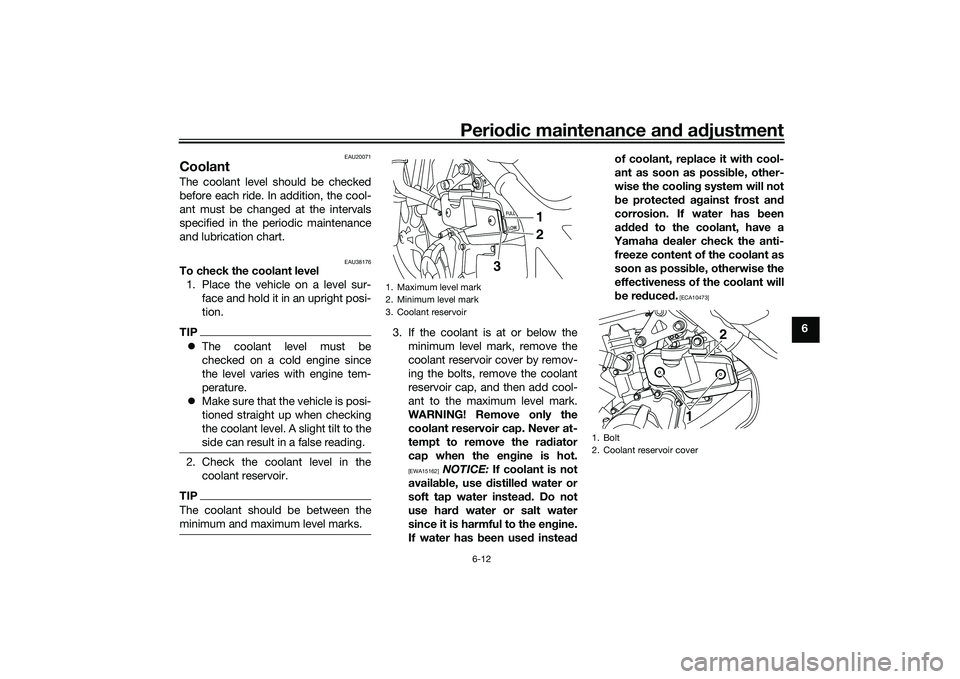

Periodic maintenance and adjustment
6-12
6
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU38176
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the coolant
reservoir cap, and then add cool-
ant to the maximum level mark.
WARNING! Remove only the
coolant reservoir cap. Never at-
tempt to remove the radiator
cap when the engine is hot.
[EWA15162]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used insteadof coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
1. Maximum level mark
2. Minimum level mark
3. Coolant reservoir
1
2
3
1. Bolt
2. Coolant reservoir cover
2
1
UB04E0E0.book Page 12 Wednesday, September 2, 2015 3:51 PM

10-1
10

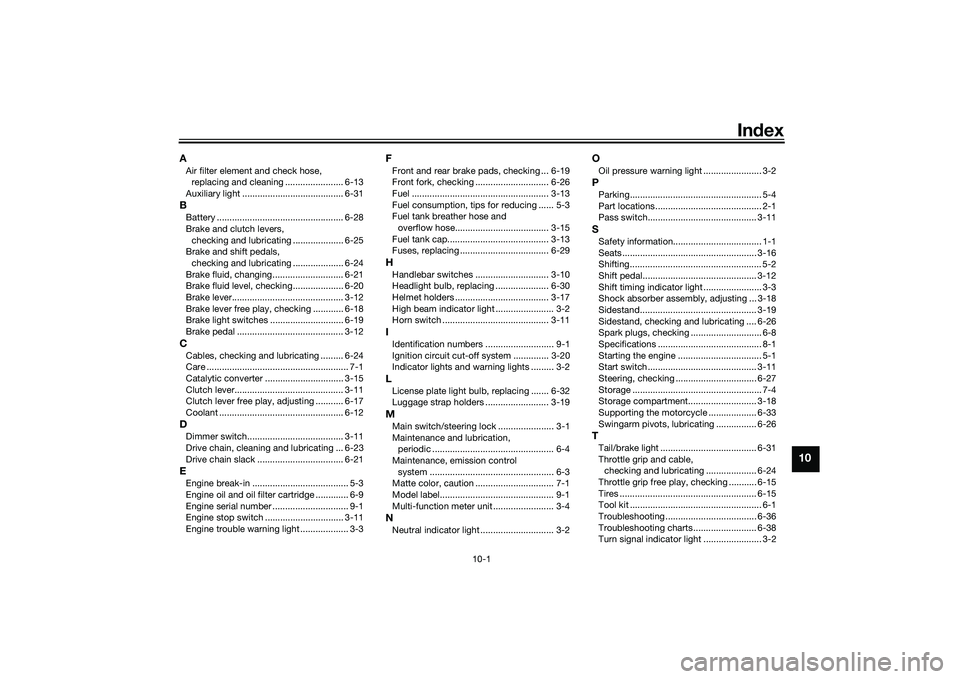

Index
AAir filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light ........................................ 6-31BBattery .................................................. 6-28
Brake and clutch levers,
checking and lubricating .................... 6-25
Brake and shift pedals,
checking and lubricating .................... 6-24
Brake fluid, changing............................ 6-21
Brake fluid level, checking.................... 6-20
Brake lever............................................ 3-12
Brake lever free play, checking ............ 6-18
Brake light switches ............................. 6-19
Brake pedal .......................................... 3-12CCables, checking and lubricating ......... 6-24
Care ........................................................ 7-1
Catalytic converter ............................... 3-15
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-17
Coolant ................................................. 6-12DDimmer switch...................................... 3-11
Drive chain, cleaning and lubricating ... 6-23
Drive chain slack .................................. 6-21EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-9
Engine serial number .............................. 9-1
Engine stop switch ............................... 3-11
Engine trouble warning light ................... 3-3
FFront and rear brake pads, checking ... 6-19
Front fork, checking ............................. 6-26
Fuel ...................................................... 3-13
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather hose and
overflow hose..................................... 3-15
Fuel tank cap........................................ 3-13
Fuses, replacing ................................... 6-29HHandlebar switches ............................. 3-10
Headlight bulb, replacing ..................... 6-30
Helmet holders ..................................... 3-17
High beam indicator light ....................... 3-2
Horn switch .......................................... 3-11IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-20
Indicator lights and warning lights ......... 3-2LLicense plate light bulb, replacing ....... 6-32
Luggage strap holders ......................... 3-19MMain switch/steering lock ...................... 3-1
Maintenance and lubrication,
periodic ................................................ 6-4
Maintenance, emission control
system ................................................. 6-3
Matte color, caution ............................... 7-1
Model label............................................. 9-1
Multi-function meter unit ........................ 3-4NNeutral indicator light ............................. 3-2
OOil pressure warning light ....................... 3-2PParking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch........................................... 3-11SSafety information................................... 1-1
Seats ..................................................... 3-16
Shifting.................................................... 5-2
Shift pedal............................................. 3-12
Shift timing indicator light ....................... 3-3
Shock absorber assembly, adjusting ... 3-18
Sidestand.............................................. 3-19
Sidestand, checking and lubricating .... 6-26
Spark plugs, checking ............................ 6-8
Specifications ......................................... 8-1
Starting the engine ................................. 5-1
Start switch ........................................... 3-11
Steering, checking ................................ 6-27
Storage ................................................... 7-4
Storage compartment........................... 3-18
Supporting the motorcycle ................... 6-33
Swingarm pivots, lubricating ................ 6-26TTail/brake light ...................................... 6-31
Throttle grip and cable,
checking and lubricating .................... 6-24
Throttle grip free play, checking ........... 6-15
Tires ...................................................... 6-15
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-38
Turn signal indicator light ....................... 3-2
