turn signal YAMAHA MT-25 2016 Owners Manual

Table of contents
Replacing a turn signal
light bulb ....................................6-31

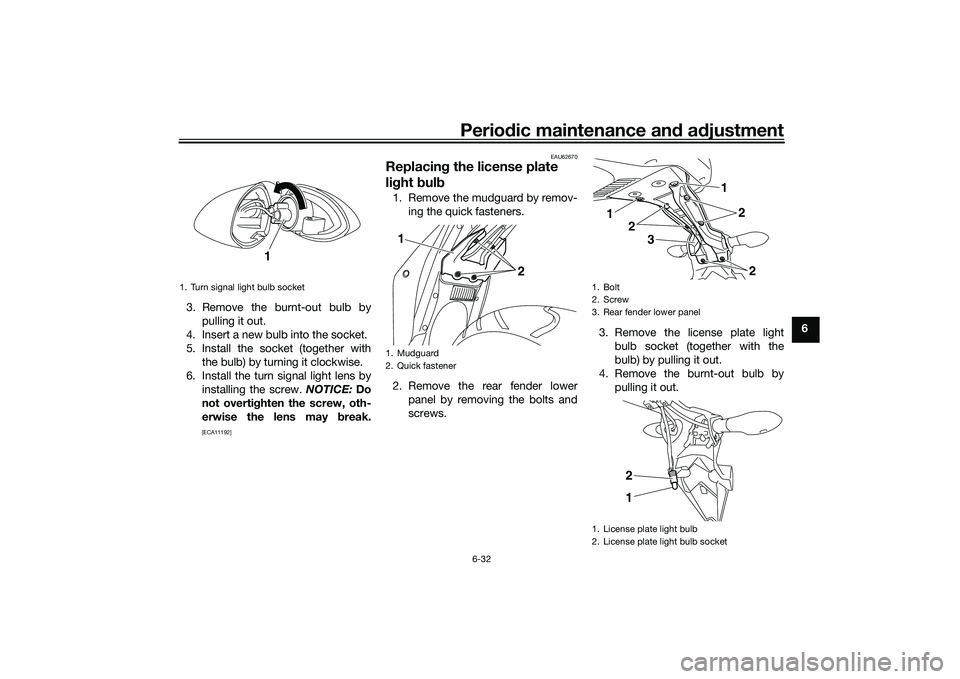

Replacing the license plate
light bulb ....................................6-32
Supporting the motorcycle............6-33
Front wheel....................................6-34
Rear wheel.....................................6-35
Troubleshooting ............................6-36
Troubleshooting charts .................6-38
Motorcycle care and storage..........7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-4
Specifications....................................8-1
Consumer information.....................9-1
Identification numbers .....................9-1
Index................................................10-1
UB04E0E0.book Page 2 Wednesday, September 2, 2015 3:51 PM

Safety information
1-2
1 Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
• Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified oper-
ators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your motorcycle
where there is no traffic until you
have become thoroughly famil-
iar with the motorcycle and all of
its controls.
Many accidents have been
caused by error of the motorcycle
operator. A typical error made by
the operator is veering wide on a
turn due to excessive speed or un-
dercornering (insufficient lean an-
gle for the speed).
• Always obey the speed limit and
never travel faster than warrant-
ed by road and traffic condi-
tions.• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.
Never ride under the influence of
alcohol or other drugs.
This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.Protective Apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
Always wear an approved helmet.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective
in preventing or reducing abra-
sions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause
burns.
A passenger should also observe
the above precautions.
UB04E0E0.book Page 2 Wednesday, September 2, 2015 3:51 PM

Safety information
1-5
1operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to page
6-15 for tire specifications and more in-
formation on replacing your tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.
Remove all loose items from the
motorcycle.Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce exces-
sively during transport.
UB04E0E0.book Page 5 Wednesday, September 2, 2015 3:51 PM

Instrument and control functions
3-2
3 To unlock the steering
1. Insert the key.
2. With the key in the “LOCK” posi-
tion, push the key in and turn it
to “ ”.
EAU49398
Indicator lights and warning
lights
EAU11022
Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU62530
Oil pressure warning light “ ”
This warning light comes on if the en-
gine oil pressure is low.
The electrical circuit of the warning
light can be checked by turning the key
to “ ”. The warning light should come
on and remain on until the engine is
started.
If the warning light does not come on
initially when the key is turned to “ ”,
have a Yamaha dealer check the elec-
trical circuit.NOTICE
ECA21210
If the warning light comes on when
the engine is running, stop the en-
gine immediately and check oil level.
If the oil level is below the minimum
level, add sufficient oil of the recom-
mended t y p e t o r a i s e i t u p t o t h e c o r -
rect level. If the oil pressure warning
light remains on even if the oil level
1. Push.
2. Turn.12
1. Neutral indicator light Ž
2. High beam indicator light Ž
3. Turn signal indicator light Ž
4. Shift timing indicator light
5. Oil pressure warning light Ž
6. Engine trouble warning light Ž
6
5
3
1
2
4
UB04E0E0.book Page 2 Wednesday, September 2, 2015 3:51 PM

Instrument and control functions
3-10
3 To adjust the brightness
1. Push the “RES” button to select
the desired shift indicator light
brightness level.
2. Push the “SEL” button to confirm
the selected brightness level. The
display exits the shift timing light
control mode and returns to the
standard multi-function display
mode.
Self-diagnosis device
This model is equipped with a self-di-
agnosis device for various electrical
circuits.If a problem is detected in any of those
circuits, the engine trouble warning
light will come on and the display will
indicate an error code.
NOTICE
ECA11591
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
EAU1234H
Handlebar switchesLeft
Right
1. Engine trouble warning light “ ”
2. Error code display
2
1
1.
2. Dimmer switch / Ž
3. Turn signal switch / Ž
4. Horn switch Ž
1. Engine stop switch / Ž
2. Start switch Ž
4312
21
UB04E0E0.book Page 10 Wednesday, September 2, 2015 3:51 PM

Instrument and control functions
3-11
3
EAU12361
Pass switch “PASS”
Press this switch to flash the headlight.
EAU62540
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.TIPWhen the switch is set to low beam,
only the right headlight bulb comes on.
When the switch is set to high beam,
both headlight bulbs come on.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12661
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU62500
The engine trouble warning light will
come on when the key is turned to “ ”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-20.)1. Clutch lever1
UB04E0E0.book Page 11 Wednesday, September 2, 2015 3:51 PM

Periodic maintenance and adjustment
6-30
6
If a fuse is blown, replace it as follows.1. Turn the key to “ ” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
3. Turn the key to “ ” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU68470
Replacing the headlight bulbThis model is equipped with halogen
bulb headlight. If a headlight bulb
burns out, have a Yamaha dealer re-
place it and, if necessary, adjust the
headlight beam.NOTICE
ECA17871
Headlight lens:
Do not affix any type of tinted film or
stickers to the headlight lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Fuse box
1. Ignition fuse
2. Signaling system fuse
3. Backup fuse (for clock)
4. Headlight fuse
5. Radiator fan motor fuse
6. Spare fuse
16
12345
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Radiator fan motor fuse:
7.5 A
Backup fuse:
7.5 A
UB04E0E0.book Page 30 Wednesday, September 2, 2015 3:51 PM

Periodic maintenance and adjustment
6-31
6
EAU44941
Auxiliary lightThis model is equipped with an LED-
type auxiliary light.
If the auxiliary light does not come on,
have a Yamaha dealer check it.
EAU24182
Tail/brake lightThis model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU62590
Replacing a turn signal light
bulb1. Remove the turn signal light lens
by removing the screw.
2. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
1. Auxiliary light
1 1
1. Turn signal light lens
2. Screw
1
2
UB04E0E0.book Page 31 Wednesday, September 2, 2015 3:51 PM

Periodic maintenance and adjustment
6-32
6 3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the turn signal light lens by
installing the screw. NOTICE: Do
not overtighten the screw, oth-
erwise the lens may break.
[ECA11192]EAU62670
Replacing the license plate
light bulb1. Remove the mudguard by remov-
ing the quick fasteners.
2. Remove the rear fender lower
panel by removing the bolts and
screws.3. Remove the license plate light
bulb socket (together with the
bulb) by pulling it out.
4. Remove the burnt-out bulb by
pulling it out.
1. Turn signal light bulb socket
1
1. Mudguard
2. Quick fastener
1
2
1. Bolt
2. Screw
3. Rear fender lower panel
1. License plate light bulb
2. License plate light bulb socket
3
2
1
2
2 121
UB04E0E0.book Page 32 Wednesday, September 2, 2015 3:51 PM

Specifications
8-2
8
6th:
0.920 (23/25)
Chassis:Frame type:
Diamond
Caster angle:
25.0 °
Trail:
95 mm (3.7 in)Front tire:Type:
Tubeless
Size:
110/70-17M/C (54S)
Manufacturer/model:
IRC/RX-01FRear tire:Type:
Tubeless
Size:
140/70-17M/C (66S)
Manufacturer/model:
IRC/RX-01RLoading:Maximum load:
160 kg (353 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measured on cold
tires):1 person:
Front:
200 kPa (2.00 kgf/cm2, 29 psi)Rear:
225 kPa (2.25 kgf/cm2, 33 psi)
2 persons:
Front:
200 kPa (2.00 kgf/cm2, 29 psi)
Rear:
225 kPa (2.25 kgf/cm2, 33 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT2.75Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT4.00Front brake:Type:
Hydraulic single disc brake
Specified brake fluid:
DOT 4Rear brake:Type:
Hydraulic single disc brake
Specified brake fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring:
Coil spring
Shock absorber:
Hydraulic damperWheel travel:
130 mm (5.1 in)
Rear suspension:Type:
Swingarm
Spring:
Coil spring
Shock absorber:
Hydraulic damper
Wheel travel:
125 mm (4.9 in)Electrical system:System voltage:
12 V
Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GTZ8V
Voltage, capacity:
12 V, 7.0 Ah (10 HR)Headlight:Bulb type:
Halogen bulbBulb wattage × quantity:Headlight:
H4, 60.0 W/55.0 W x 1
Brake/tail light:
LED
Front turn signal light:
10.0 W × 2
UB04E0E0.book Page 2 Wednesday, September 2, 2015 3:51 PM
