Instrument and control functions
3-7
3
TRIP F
→ TRIP 1 → TRIP 2 → OIL TRIP
→ V-BELT TRIP → F/ECO → AVE
F/ECO → ODO → TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second.
TIP If you do not reset the fuel reserve
tripmeter manually, it resets itself
automatically and the display re-
turns to the prior mode after refu-
eling and traveling 5 km (3 mi).
 If you do not reset tripmeters 1
and 2, they will reset to 0 and con-
tinue counting after 9999.9 has
been reached.
 The odometer will lock at 999999
and cannot be reset.
Instantaneous fuel consumption
mo de
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”, and either “MPG” or
“L/100 km” (for the UK).  “km/L”: The distance that can be
traveled on 1.0 L of fuel under the
current riding conditions is shown.
 “L/100 km”: The amount of fuel
necessary to travel 100 km under
the current riding conditions is
shown.
 “MPG”: The distance that can be
traveled on 1.0 lmp. gal of the fuel
under the current riding conditions
is shown. To switch between the instantaneous
fuel consumption display settings,
push the “SELECT” button for one sec-
ond.
TIP
If traveling at speeds under 10
km/h (6 mi/h), “_ _._” is displayed.
 When MPG is selected, no units
indicator will be displayed.Avera ge fuel consumption mo de
This display shows the average fuel
consumption since it was last reset.
The average fuel consumption display
can be set to either “km/L” or “L/100
km”, and either “MPG” or “L/100 km”
(for the UK).

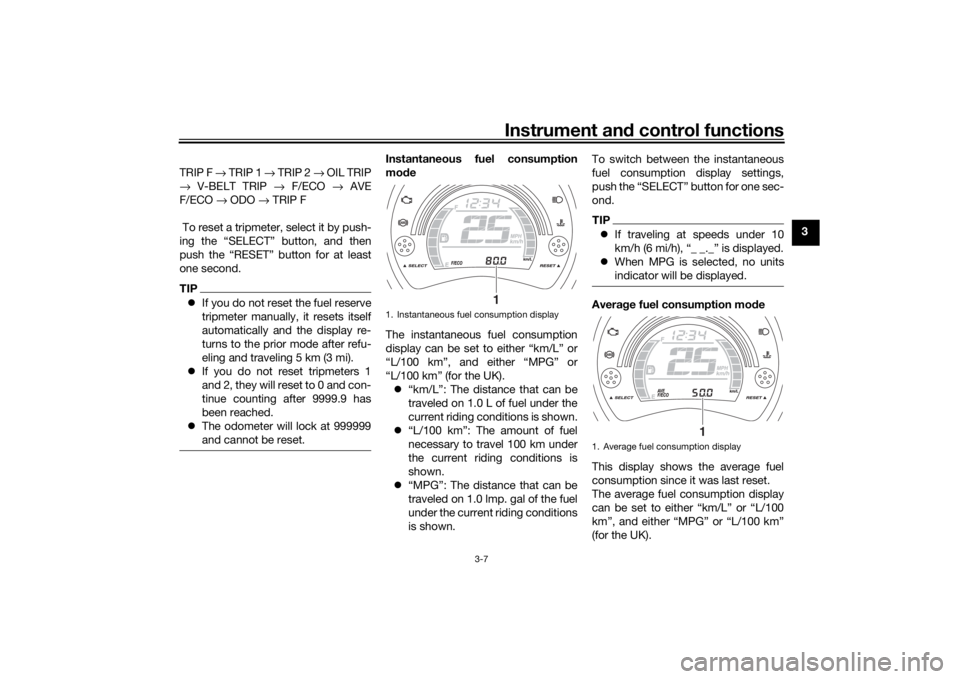

1. Instantaneous fuel consumption display
1
1. Average fuel consumption display
1
U2DSE0E0.book Page 7 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-8
3 
“km/L”: The average distance that
can be traveled on 1.0 L of fuel is
shown.
 “L/100 km”: The average amount
of fuel necessary to travel 100 km
is shown.
 “MPG”: The average distance that
can be traveled on 1.0 lmp. gal of
fuel under the current riding condi-
tions is shown.
To switch between the average fuel
consumption display settings, push
the “SELECT” button for one second.
To reset the average fuel consumption,
push the “RESET” button for at least
one second.
TIP After resetting the average fuel
consumption, “_ _._” will be
shown until the vehicle has trav-
eled 0.1 km (0.06 mi).
 When MPG is selected, no units
indicator will be displayed.
Oil chan ge tripmeter mo de
The oil change tripmeter shows the
distance traveled since it was last reset
(i.e., since the last oil change).
The oil change indicator “OIL” will flash
at the initial 1000 km (600 mi), then at
6000 km (3500 mi) and every 6000 km
(3500 mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset the
oil change tripmeter and the oil change
indicator. To reset them both, select
the oil change tripmeter, and then push
the “RESET” button for one second.
Then, while “OIL” and the oil change tripmeter are flashing, push the “RE-
SET” button for three seconds. The oil
change indicator will be reset.
If the engine oil is changed before the
oil change indicator comes on (i.e., be-
fore the periodic oil change interval has
been reached), the oil change tripmeter
must be reset for the next periodic oil
change to be indicated at the correct
time.
V-
belt replacement tripmeter mod e
The V-belt replacement tripmeter
shows the distance traveled since it
was last reset (i.e., since the last V-belt
replacement).1. Oil change indicator “OIL”
2. Oil change tripmeter
2
1
1. V-belt replacement indicator “V-BELT”
2. V-belt replacement tripmeter
2
1
U2DSE0E0.book Page 8 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-12
6 mix any chemical additives. Do
not use oils with a d
iesel speci-
fication of “CD” or oils of a hi gh-
er quality than specifie d. In
a ddition, do not use oils la beled
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the crankcase.
8. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
9. Turn the engine off, and then check the oil level and correct it if
necessary.
10. Reset the oil change tripmeter and oil change indicator “OIL”. (See
page 3-6 for reset procedures.)
EAU20067
Final transmission oilThe final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart. 1. Start the engine, warm up the final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center- stand.
3. Place an oil pan under the final transmission case to collect the
used oil.
4. Remove the final transmission oil filler cap and its O-ring from the fi-
nal transmission case. 5. Remove the final transmission oil
drain bolt and its gasket to drain
the oil from the final transmission
case.
1. Final transmission oil filler cap
2. O-ring
1. Final transmission oil drain bolt
2. Gasket
1
21
2
U2DSE0E0.book Page 12 Thursday, March 19, 2015 10:34 AM
