Instrument and control functions
3-4
3 b
le wheel lock during emer gency
b rakin g. Have a Yamaha d ealer
check the brake system an d electri-
cal circuits as soon as possi ble.
TIPThe ABS warning light may come on
while accelerating the engine with the
vehicle on its centerstand, but this
does not indicate a malfunction.
EAUN0981
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.The multi-function meter unit is
equipped with the following: 
a speedometer
 a clock
 a fuel meter
 an instantaneous fuel consump-
tion meter
 a multi-function display
TIPBe sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
 For the UK: To switch the speed-
ometer between km/h and MPH,
press the “SELECT” button for
one second when the multi-func-
tion meter is in odometer mode,
tripmeter 1, or tripmeter 2 mode .Speed ometer
The speedometer shows the vehicle’s
traveling speed.
1. Fuel meter
2. Clock
3. Speedometer
4. Instantaneous fuel consumption meter
5. “RESET” button
6. Multi-function display
7. “SELECT” button
2
3
1
4
6
7
5
U2DSE0E0.book Page 4 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-5
3
Clock
The clock uses a 12-hour time system.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flash- ing, push the “RESET” button to
set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it to start the clock. Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment and
fuel level warning indicator “ ” start
flashing, refuel as soon as possible.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, the fol-
lowing cycle is repeated until the
malfunction is corrected: fuel level seg-
ments and fuel level warning
indicator “ ” flash eight times, then go off for approximately 3 seconds. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Instantaneous fuel consumption
meter
This meter shows the instantaneous
fuel consumption.
Depending on the display setting se-
lected for the instantaneous fuel con-
sumption mode “F/ECO”, the
displayed segments increase or de-
crease.
 km/L and MPG (for the UK): The
number of segments displayed in-
creases the more efficiently the
vehicle is being operated.

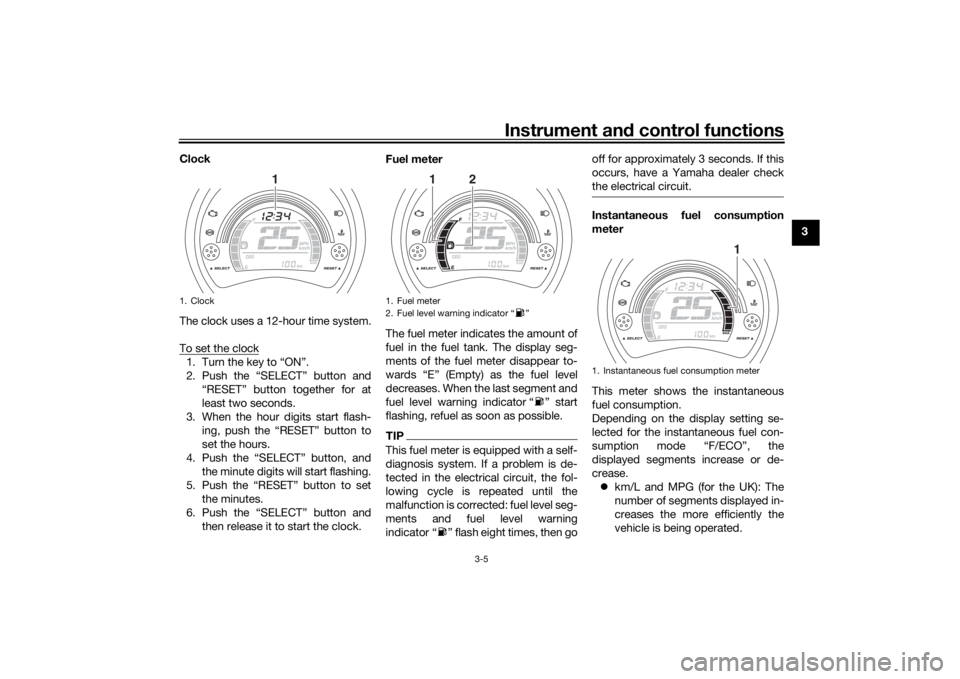

1. Clock
1
1. Fuel meter
2. Fuel level warning indicator “ ”
1
2
1. Instantaneous fuel consumption meter
1
