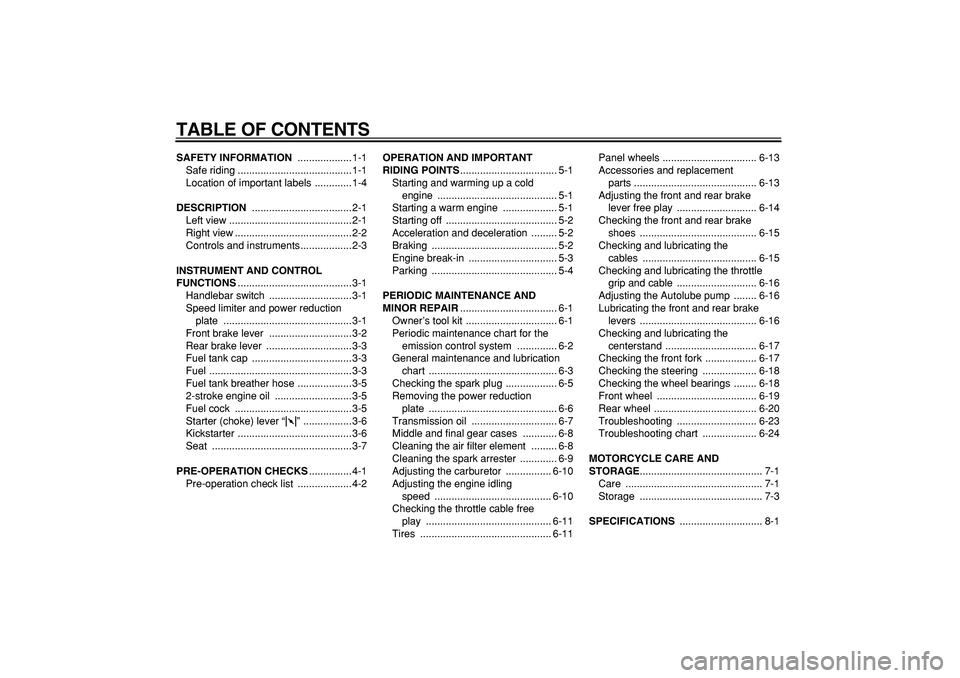

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Safe riding ........................................1-1
Location of important labels .............1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Handlebar switch .............................3-1
Speed limiter and power reduction
plate .............................................3-1
Front brake lever .............................3-2
Rear brake lever ..............................3-3
Fuel tank cap ...................................3-3
Fuel ..................................................3-3
Fuel tank breather hose ...................3-5
2-stroke engine oil ...........................3-5
Fuel cock .........................................3-5
Starter (choke) lever “
1
” .................3-6
Kickstarter ........................................3-6
Seat .................................................3-7
PRE-OPERATION CHECKS
...............4-1
Pre-operation check list ...................4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting and warming up a cold
engine .......................................... 5-1
Starting a warm engine ................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance chart for the
emission control system .............. 6-2
General maintenance and lubrication
chart ............................................. 6-3
Checking the spark plug .................. 6-5
Removing the power reduction
plate ............................................. 6-6
Transmission oil .............................. 6-7
Middle and final gear cases ............ 6-8
Cleaning the air filter element ......... 6-8
Cleaning the spark arrester ............. 6-9
Adjusting the carburetor ................ 6-10
Adjusting the engine idling
speed ......................................... 6-10
Checking the throttle cable free
play ............................................ 6-11
Tires .............................................. 6-11Panel wheels ................................. 6-13
Accessories and replacement
parts ........................................... 6-13
Adjusting the front and rear brake
lever free play ............................ 6-14
Checking the front and rear brake
shoes ......................................... 6-15
Checking and lubricating the
cables ........................................ 6-15
Checking and lubricating the throttle
grip and cable ............................ 6-16
Adjusting the Autolube pump ........ 6-16
Lubricating the front and rear brake
levers ......................................... 6-16
Checking and lubricating the
centerstand ................................ 6-17
Checking the front fork .................. 6-17
Checking the steering ................... 6-18
Checking the wheel bearings ........ 6-18
Front wheel ................................... 6-19
Rear wheel .................................... 6-20
Troubleshooting ............................ 6-23
Troubleshooting chart ................... 6-24
MOTORCYCLE CARE AND
STORAGE
........................................... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
SPECIFICATIONS
............................. 8-1

7-1
2
3
4
5
6
78
9

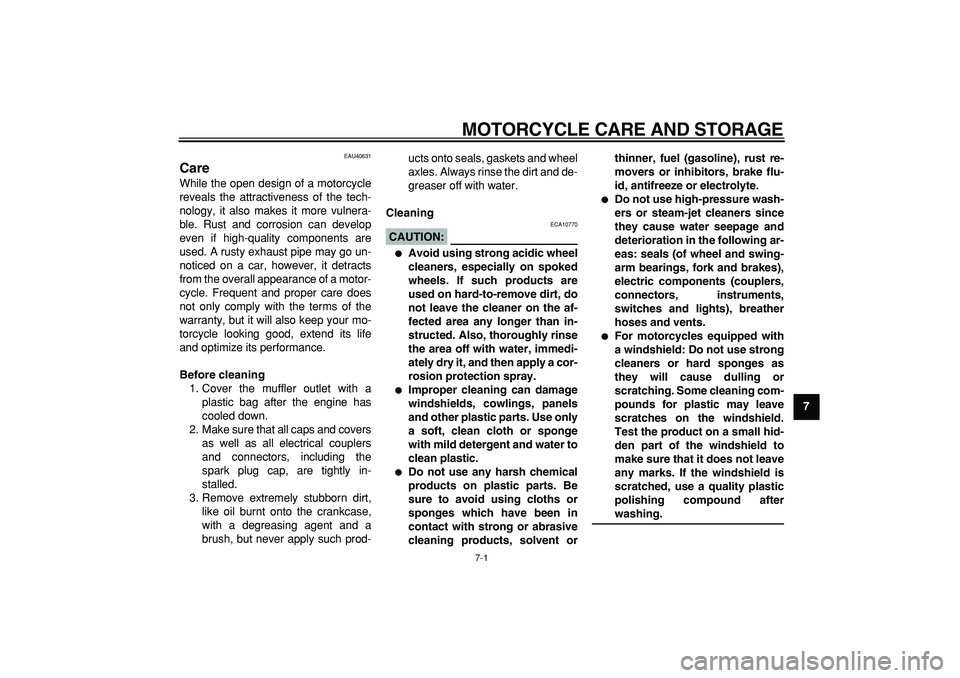

MOTORCYCLE CARE AND STORAGE
EAU40631
Care
While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
CAUTION:

ECA10770

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use only
a soft, clean cloth or sponge
with mild detergent and water to
clean plastic.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent orthinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
