PERIODIC MAINTENANCE AND ADJUSTMENT
7-2
7
EAU17311
Owner’s tool kit The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
U5PG8AE0.book Page 2 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-7
7To install the spark plug
1. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
2. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.3. Install the spark plug cap.
EAU41103
Removing the power reduc-
tion plate To obtain full engine performance ca-
pability, removing the power reduction
plate is required.
1. Remove the exhaust manifold by
removing the bolts. WARNING!
Always let the exhaust system
cool prior to touching exhaust
components.
[EWA14581]
2. Remove the gasket.
3. Remove the power reduction
plate.
TIPStore the power reduction plate with the
Owner’s Manual so that it is readily
available whenever you want to reduce
the engine power.4. Install the exhaust manifold and its
new gasket by installing the bolts,
and then tighten the bolts to the
specified torque.
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1. Exhaust manifold bolt
1
1. Exhaust manifold
2. Gasket
3. Power reduction plateTightening torque:
Exhaust manifold bolt:
9 Nm (0.9 m·kgf, 6.5 ft·lbf)1
23
U5PG8AE0.book Page 7 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
7
EAU40893
Transmission oil The transmission oil must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the transmission oil must be
changed at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Place the motorcycle on the cen-
terstand.
2. Place an oil pan under the trans-
mission to collect the used oil.
3. Remove the transmission oil filler
cap, the transmission oil drain bolt
and its gasket to drain the oil from
the transmission.4. Install the transmission oil drain
bolt and its new gasket, and then
tighten the bolt to the specified
torque.
5. Refill with the specified amount of
the recommended transmission
oil, and then install and tighten the
oil filler cap.
NOTICE
ECA10452


In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the transmission.
6. Start the engine, and then let it idle
for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cause.
1. Transmission oil filler cap
1
1. Transmission oil drain bolt
2. Gasket
Tightening torque:
Transmission oil drain bolt:
14 Nm (1.4 m·kgf, 10 ft·lbf)
Recommended transmission oil:
See page 9-1.
Oil change quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
12
U5PG8AE0.book Page 8 Thursday, April 8, 2010 8:37 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-19
73. Remove the axle nut and washer.
4. Pull the wheel axle out, and then
remove the wheel.
EAU41031
To install the front wheel
1. Install the brake shoe plate into the
wheel hub as shown.
2. Lift the wheel up between the fork
legs.TIPMake sure that the slot in the brake
shoe plate fits over the retainer on the
fork leg.
3. Insert the wheel axle from the right
side.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.
5. Connect the brake cable at the
wheel hub, and then install the
brake cable free play adjusting nut.
6. Adjust the brake lever free play.
(See page 7-14.)
7. Take the motorcycle off the center-
stand so that the front wheel is on
the ground.
1. Brake camshaft lever
2. Brake shoe plate
3. Washer
4. Axle nut
5. Brake cable
6. Brake lever free play adjusting nut
1. Wheel axle
5
6 13
4
2
1
1. RetainerTightening torque:
Axle nut:
40 Nm (4.0 m·kgf, 29 ft·lbf)
1
U5PG8AE0.book Page 19 Thursday, April 8, 2010 8:37 AM

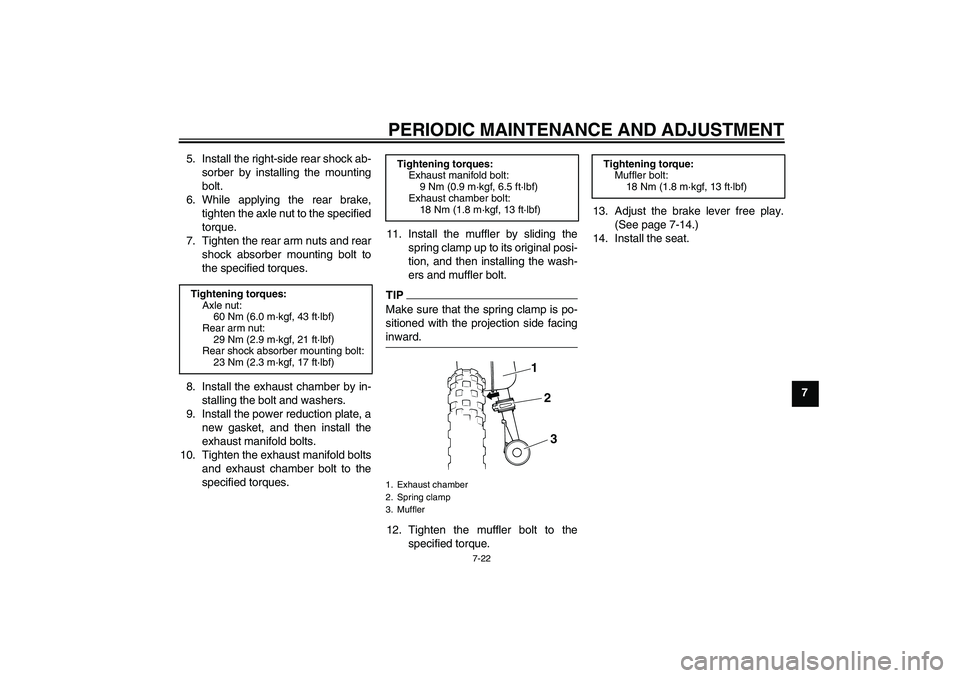

PERIODIC MAINTENANCE AND ADJUSTMENT
7-22
7 5. Install the right-side rear shock ab-
sorber by installing the mounting
bolt.
6. While applying the rear brake,
tighten the axle nut to the specified
torque.
7. Tighten the rear arm nuts and rear
shock absorber mounting bolt to
the specified torques.
8. Install the exhaust chamber by in-
stalling the bolt and washers.
9. Install the power reduction plate, a
new gasket, and then install the
exhaust manifold bolts.
10. Tighten the exhaust manifold bolts
and exhaust chamber bolt to the
specified torques.11. Install the muffler by sliding the
spring clamp up to its original posi-
tion, and then installing the wash-
ers and muffler bolt.
TIPMake sure that the spring clamp is po-
sitioned with the projection side facing
inward.12. Tighten the muffler bolt to the
specified torque.13. Adjust the brake lever free play.
(See page 7-14.)
14. Install the seat.
Tightening torques:
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)
Rear arm nut:
29 Nm (2.9 m·kgf, 21 ft·lbf)
Rear shock absorber mounting bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Tightening torques:
Exhaust manifold bolt:
9 Nm (0.9 m·kgf, 6.5 ft·lbf)
Exhaust chamber bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
1. Exhaust chamber
2. Spring clamp
3. Muffler
1
2
3
Tightening torque:
Muffler bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
