SPECIFICATIONS
9-2
9
Trail:
62.0 mm (2.44 in)Front tire:Type:
With tube
Size:
2.50-14 4PR
Manufacturer/model:
CHENG SHIN/KNOBBYRear tire:Type:
With tube
Size:
3.00-12 4PR
Manufacturer/model:
CHENG SHIN/KNOBBYLoading:Maximum rider weight:
40.0 kg (88 lb)Tire air pressure (measured on cold
tires):
Front:
100 kPa (1.00 kgf/cm², 15 psi)
Rear:
100 kPa (1.00 kgf/cm², 15 psi)
Front wheel:Wheel type:
Spoke wheel
Rim size:
14x1.40Rear wheel:Wheel type:
Spoke wheelRim size:
12x1.60
Front brake:Type:
Drum brake
Operation:
Right hand operationRear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
110.0 mm (4.33 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
95.0 mm (3.74 in)Electrical system:Ignition system:
CDI
U3RV8LE0.book Page 2 Tuesday, April 13, 2010 8:48 AM

CONSUMER INFORMATION
10-1
10
EAU40791
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26460
Model label
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
U3RV8LE0.book Page 1 Tuesday, April 13, 2010 8:48 AM

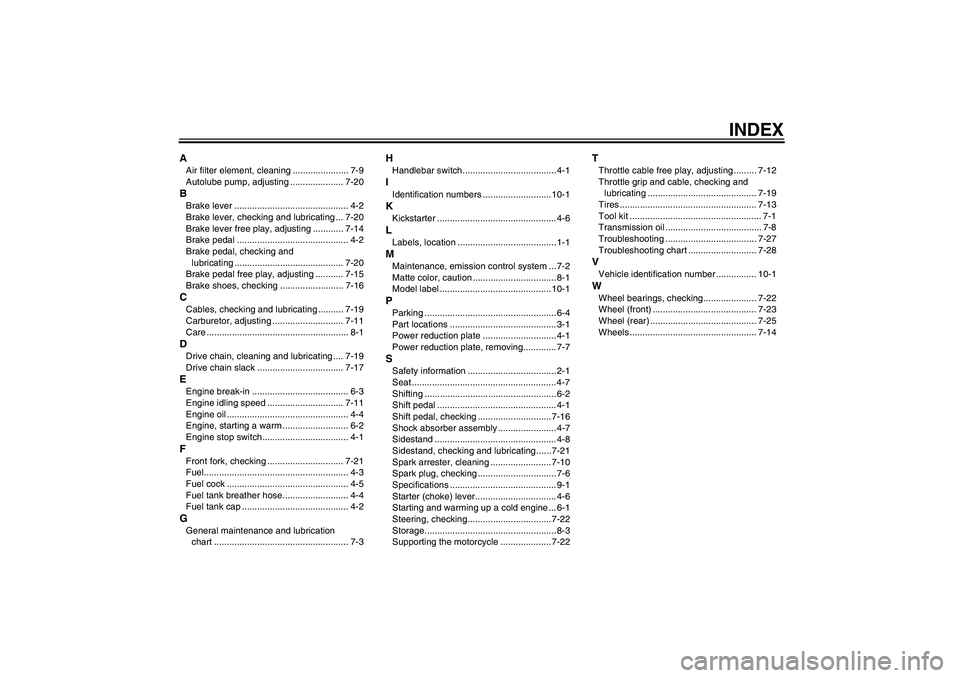

INDEX
AAir filter element, cleaning ...................... 7-9
Autolube pump, adjusting ..................... 7-20BBrake lever ............................................. 4-2
Brake lever, checking and lubricating ... 7-20
Brake lever free play, adjusting ............ 7-14
Brake pedal ............................................ 4-2
Brake pedal, checking and
lubricating ........................................... 7-20
Brake pedal free play, adjusting ........... 7-15
Brake shoes, checking ......................... 7-16CCables, checking and lubricating .......... 7-19
Carburetor, adjusting ............................ 7-11
Care ........................................................ 8-1DDrive chain, cleaning and lubricating .... 7-19
Drive chain slack .................................. 7-17EEngine break-in ...................................... 6-3
Engine idling speed .............................. 7-11
Engine oil ................................................ 4-4
Engine, starting a warm .......................... 6-2
Engine stop switch.................................. 4-1FFront fork, checking .............................. 7-21
Fuel......................................................... 4-3
Fuel cock ................................................ 4-5
Fuel tank breather hose.......................... 4-4
Fuel tank cap .......................................... 4-2GGeneral maintenance and lubrication
chart ..................................................... 7-3
HHandlebar switch..................................... 4-1IIdentification numbers ........................... 10-1KKickstarter ............................................... 4-6LLabels, location .......................................1-1MMaintenance, emission control system ... 7-2
Matte color, caution .................................8-1
Model label ............................................ 10-1PParking ....................................................6-4
Part locations .......................................... 3-1
Power reduction plate ............................. 4-1
Power reduction plate, removing............. 7-7SSafety information ...................................2-1
Seat ......................................................... 4-7
Shifting ....................................................6-2
Shift pedal ............................................... 4-1
Shift pedal, checking ............................. 7-16
Shock absorber assembly ....................... 4-7
Sidestand ................................................ 4-8
Sidestand, checking and lubricating...... 7-21
Spark arrester, cleaning ........................ 7-10
Spark plug, checking ...............................7-6
Specifications .......................................... 9-1
Starter (choke) lever................................ 4-6
Starting and warming up a cold engine ... 6-1
Steering, checking.................................7-22
Storage....................................................8-3
Supporting the motorcycle .................... 7-22
TThrottle cable free play, adjusting ......... 7-12
Throttle grip and cable, checking and
lubricating ........................................... 7-19
Tires ...................................................... 7-13
Tool kit .................................................... 7-1
Transmission oil ...................................... 7-8
Troubleshooting .................................... 7-27
Troubleshooting chart ........................... 7-28VVehicle identification number ................ 10-1WWheel bearings, checking..................... 7-22
Wheel (front) ......................................... 7-23
Wheel (rear) .......................................... 7-25
Wheels .................................................. 7-14
