Starting problems YAMAHA RHINO 660 2005 Owners Manual

8-133
EVU01540

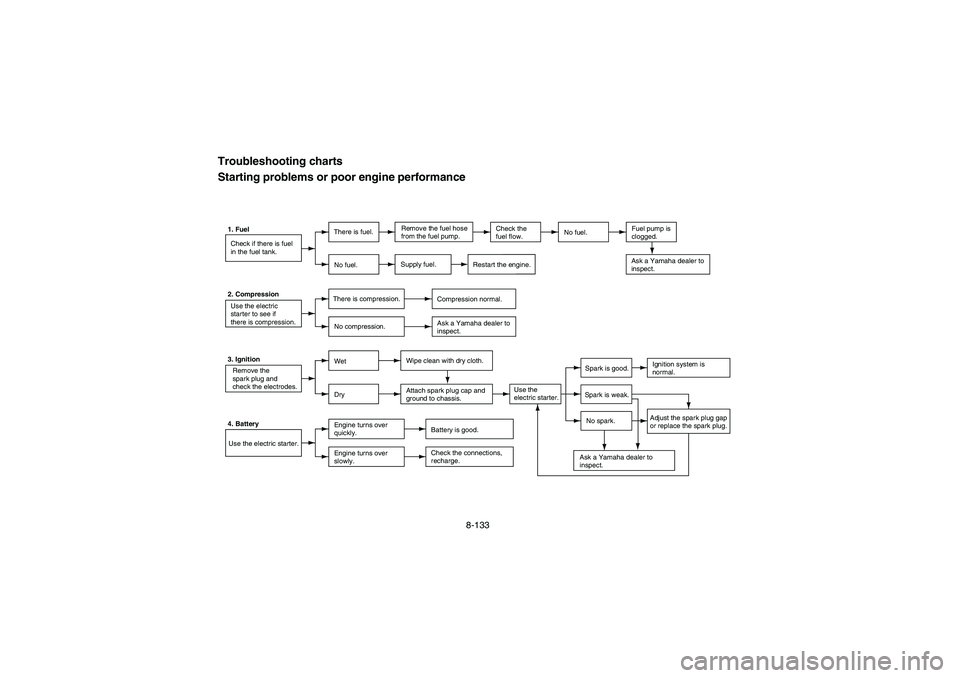

Troubleshooting charts
Starting problems or poor engine performance1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.
No fuel.Fuel pump is
clogged.
Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check the electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the connections,
recharge.Check the
fuel flow.
Remove the fuel hose
from the fuel pump.
Ask a Yamaha dealer to
inspect.
