coolant YAMAHA RHINO 660 2005 Owners Manual

EVU00050

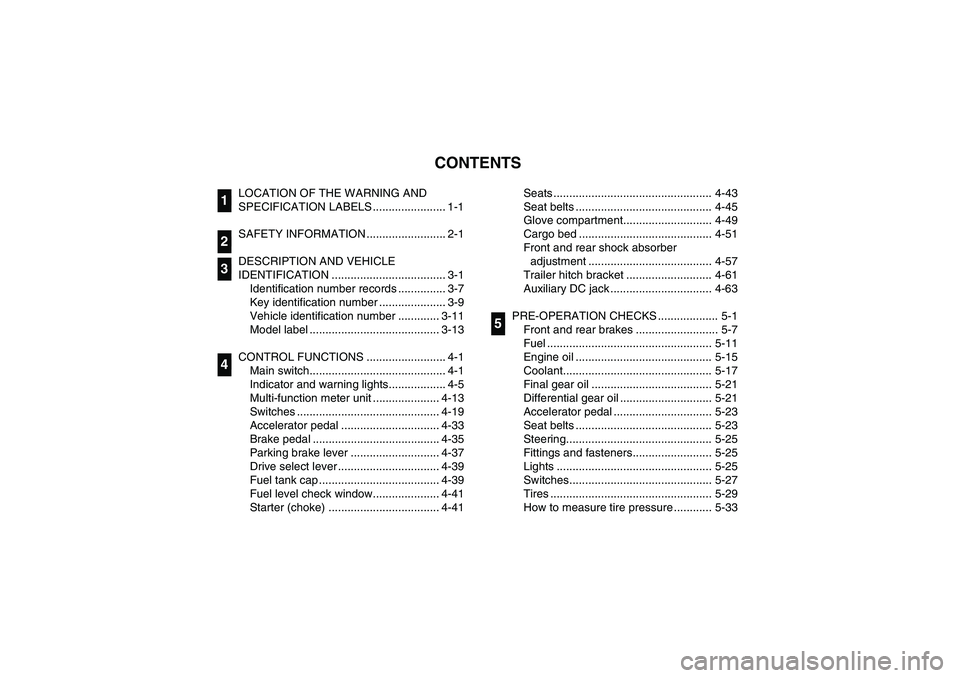

1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND VEHICLE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-7
Key identification number ..................... 3-9
Vehicle identification number ............. 3-11
Model label ......................................... 3-13
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-5
Multi-function meter unit ..................... 4-13
Switches ............................................. 4-19
Accelerator pedal ............................... 4-33
Brake pedal ........................................ 4-35
Parking brake lever ............................ 4-37
Drive select lever ................................ 4-39
Fuel tank cap ...................................... 4-39
Fuel level check window..................... 4-41
Starter (choke) ................................... 4-41
1234
Seats .................................................. 4-43
Seat belts ........................................... 4-45
Glove compartment............................ 4-49
Cargo bed .......................................... 4-51
Front and rear shock absorber
adjustment ....................................... 4-57
Trailer hitch bracket ........................... 4-61
Auxiliary DC jack ................................ 4-63
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Coolant............................................... 5-17
Final gear oil ...................................... 5-21
Differential gear oil ............................. 5-21
Accelerator pedal ............................... 5-23
Seat belts ........................................... 5-23
Steering.............................................. 5-25
Fittings and fasteners......................... 5-25
Lights ................................................. 5-25
Switches............................................. 5-27
Tires ................................................... 5-29
How to measure tire pressure ............ 5-33
5

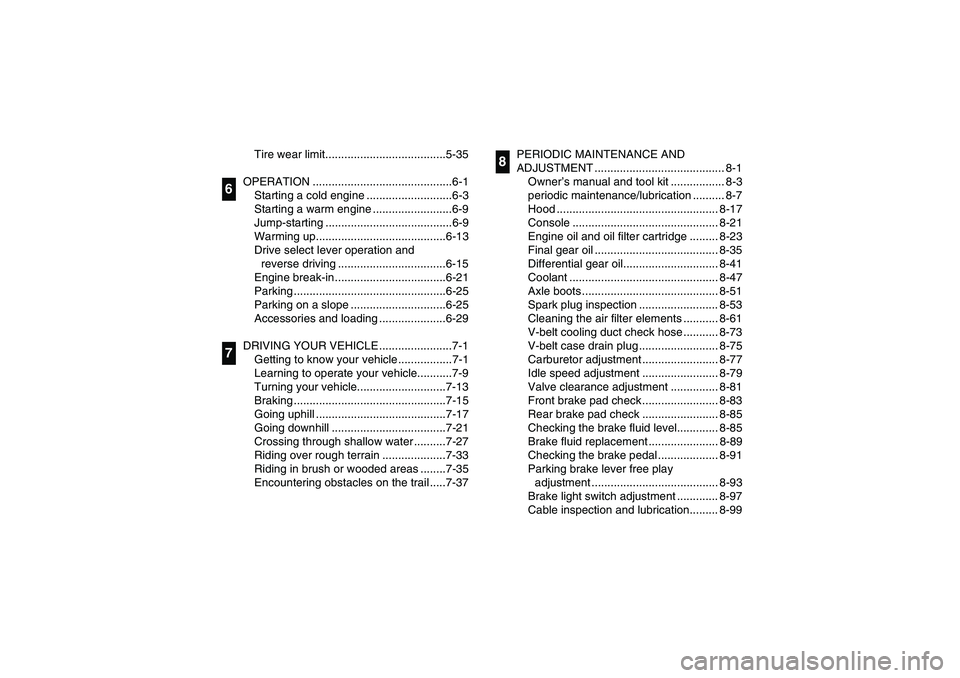

U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

Tire wear limit......................................5-35
OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Jump-starting ........................................6-9
Warming up.........................................6-13
Drive select lever operation and
reverse driving ..................................6-15
Engine break-in ...................................6-21
Parking ................................................6-25
Parking on a slope ..............................6-25
Accessories and loading .....................6-29
DRIVING YOUR VEHICLE .......................7-1
Getting to know your vehicle .................7-1
Learning to operate your vehicle...........7-9
Turning your vehicle............................7-13
Braking ................................................7-15
Going uphill .........................................7-17
Going downhill ....................................7-21
Crossing through shallow water ..........7-27
Riding over rough terrain ....................7-33
Riding in brush or wooded areas ........7-35
Encountering obstacles on the trail .....7-37
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
periodic maintenance/lubrication .......... 8-7
Hood ................................................... 8-17
Console .............................................. 8-21
Engine oil and oil filter cartridge ......... 8-23
Final gear oil ....................................... 8-35
Differential gear oil.............................. 8-41
Coolant ............................................... 8-47
Axle boots ........................................... 8-51
Spark plug inspection ......................... 8-53
Cleaning the air filter elements ........... 8-61
V-belt cooling duct check hose ........... 8-73
V-belt case drain plug ......................... 8-75
Carburetor adjustment ........................ 8-77
Idle speed adjustment ........................ 8-79
Valve clearance adjustment ............... 8-81
Front brake pad check ........................ 8-83
Rear brake pad check ........................ 8-85
Checking the brake fluid level............. 8-85
Brake fluid replacement ...................... 8-89
Checking the brake pedal ................... 8-91
Parking brake lever free play
adjustment ........................................ 8-93
Brake light switch adjustment ............. 8-97
Cable inspection and lubrication......... 8-99
8
U5UG61.book Page 2 Monday, September 6, 2004 9:00 AM

3-1
EVU00080
1-DESCRIPTION AND VEHICLE IDENTIFICATION
1. Headlights
2. Front shock absorber assembly adjusting ring
3. Brake fluid reservoir
4. Air filter elements (Engine and air intake duct)
5. V-belt case
6. Driver seat
7. Driver seat belt
8. Spark plug
9. Cargo bed
10. Tail/brake lights
11. Rear shock absorber assembly adjusting ring
12. Cargo bed release lever
13. Passenger seat belt
14. Passenger seat
15. Oil filter cartridge
16. Engine oil dipstick
17. Battery
18. Fuses
19. Coolant reservoir
20. Radiator cap
21. Fuel level check window
22. Fuel tank cap
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

4-5

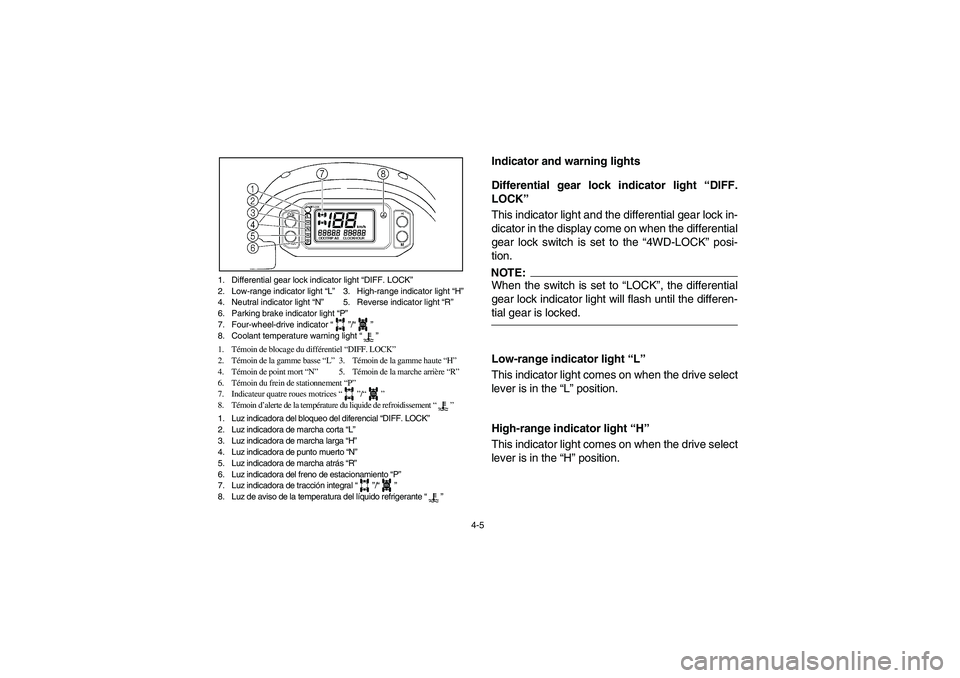

1. Differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. Four-wheel-drive indicator “”/“”
8. Coolant temperature warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur quatre roues motrices “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
1. Luz indicadora del bloqueo del diferencial “DIFF. LOCK”
2. Luz indicadora de marcha corta “L”
3. Luz indicadora de marcha larga “H”
4. Luz indicadora de punto muerto “N”
5. Luz indicadora de marcha atrás “R”
6. Luz indicadora del freno de estacionamiento “P”
7. Luz indicadora de tracción integral “”/“”
8. Luz de aviso de la temperatura del líquido refrigerante “”
DIFF.
LOCKDIFF.
LOCK
DIFF.
LOCK
EVU00150
Indicator and warning lights
EVU01130
Differential gear lock indicator light “DIFF.
LOCK”
This indicator light and the differential gear lock in-
dicator in the display come on when the differential
gear lock switch is set to the “4WD-LOCK” posi-
tion.NOTE:_ When the switch is set to “LOCK”, the differential
gear lock indicator light will flash until the differen-
tial gear is locked. _
EVU01140
Low-range indicator light “L”
This indicator light comes on when the drive select
lever is in the “L” position.
EVU01150
High-range indicator light “H”
This indicator light comes on when the drive select
lever is in the “H” position.
U5UG61.book Page 5 Monday, September 6, 2004 9:00 AM

4-7
1. Differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. Four-wheel-drive indicator “”/“”
8. Coolant temperature warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur quatre roues motrices “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
1. Luz indicadora del bloqueo del diferencial “DIFF. LOCK”
2. Luz indicadora de marcha corta “L”
3. Luz indicadora de marcha larga “H”
4. Luz indicadora de punto muerto “N”
5. Luz indicadora de marcha atrás “R”
6. Luz indicadora del freno de estacionamiento “P”
7. Luz indicadora de tracción integral “”/“”
8. Luz de aviso de la temperatura del líquido refrigerante “”
DIFF.
LOCKDIFF.
LOCK
DIFF.
LOCK
EVU00170
Neutral indicator light “N”
This indicator light comes on when the drive select
lever is in the “N” position.
EVU00160
Reverse indicator light “R”
This indicator light comes on when the drive select
lever is in the “R” reverse position. NOTE:_ If the indicator light flashes while riding, have a
Yamaha dealer check the speed sensor circuit._
EVU00210
Parking brake indicator light “P”
This indicator light comes on when the parking
brake is applied.
U5UG61.book Page 7 Monday, September 6, 2004 9:00 AM

4-9

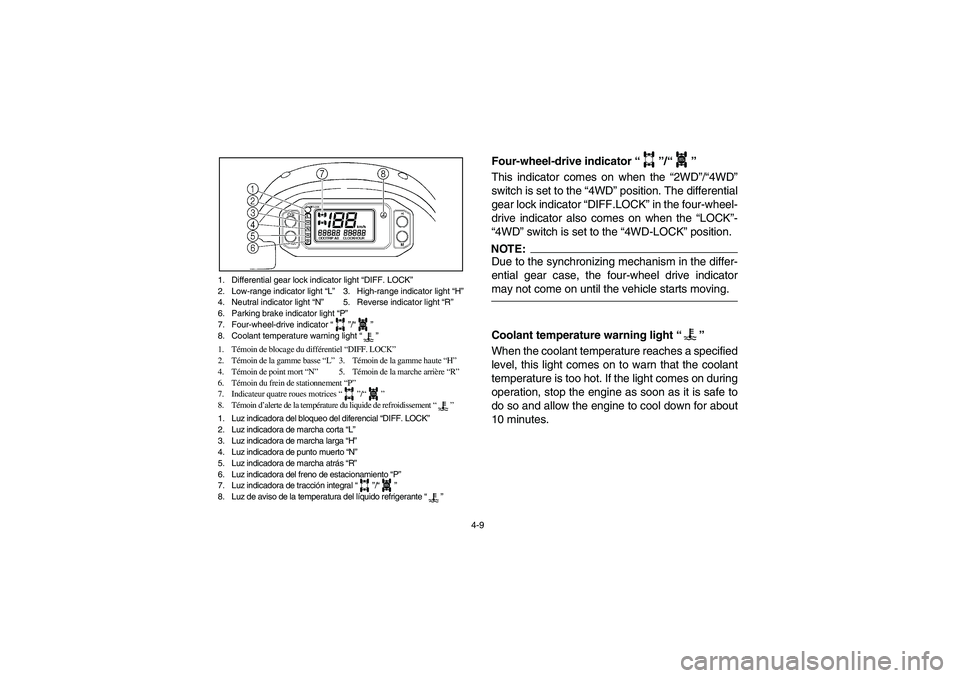

1. Differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”3. High-range indicator light “H”
4. Neutral indicator light “N”5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. Four-wheel-drive indicator “”/“”
8. Coolant temperature warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin de la gamme basse “L”3. Témoin de la gamme haute “H”
4. Témoin de point mort “N”5. Témoin de la marche arrière “R”
6. Témoin du frein de stationnement “P”
7. Indicateur quatre roues motrices “”/“”
8. Témoin d’alerte de la température du liquide de refroidissement “”
1. Luz indicadora del bloqueo del diferencial “DIFF. LOCK”
2. Luz indicadora de marcha corta “L”
3. Luz indicadora de marcha larga “H”
4. Luz indicadora de punto muerto “N”
5. Luz indicadora de marcha atrás “R”
6. Luz indicadora del freno de estacionamiento “P”
7. Luz indicadora de tracción integral “”/“”
8. Luz de aviso de la temperatura del líquido refrigerante “”
DIFF.
LOCKDIFF.
LOCK
DIFF.
LOCK
EVU01160
Four-wheel-drive indicator “”/“”
This indicator comes on when the “2WD”/“4WD”
switch is set to the “4WD” position. The differential
gear lock indicator “DIFF.LOCK” in the four-wheel-
drive indicator also comes on when the “LOCK”-
“4WD” switch is set to the “4WD-LOCK” position.NOTE:_ Due to the synchronizing mechanism in the differ-
ential gear case, the four-wheel drive indicator
may not come on until the vehicle starts moving. _
EVU00180
Coolant temperature warning light “”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
DIFF.
LOCK
U5UG61.book Page 9 Monday, September 6, 2004 9:00 AM

5-1
EVU01340

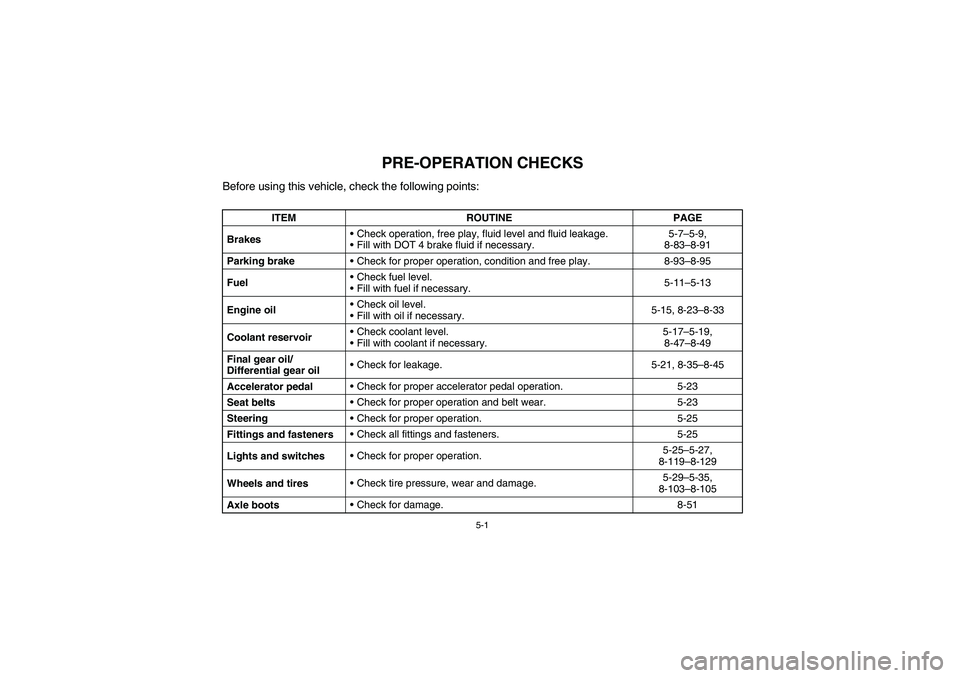

1-PRE-OPERATION CHECKS
Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-7–5-9,
8-83–8-91
Parking brakeCheck for proper operation, condition and free play. 8-93–8-95
FuelCheck fuel level.
Fill with fuel if necessary.5-11–5-13
Engine oilCheck oil level.
Fill with oil if necessary.5-15, 8-23–8-33
Coolant reservoirCheck coolant level.
Fill with coolant if necessary.5-17–5-19,
8-47–8-49
Final gear oil/
Differential gear oilCheck for leakage. 5-21, 8-35–8-45
Accelerator pedalCheck for proper accelerator pedal operation. 5-23
Seat beltsCheck for proper operation and belt wear. 5-23
SteeringCheck for proper operation. 5-25
Fittings and fastenersCheck all fittings and fasteners. 5-25
Lights and switchesCheck for proper operation.5-25–5-27,
8-119–8-129
Wheels and tiresCheck tire pressure, wear and damage.5-29–5-35,
8-103–8-105
Axle bootsCheck for damage. 8-51
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

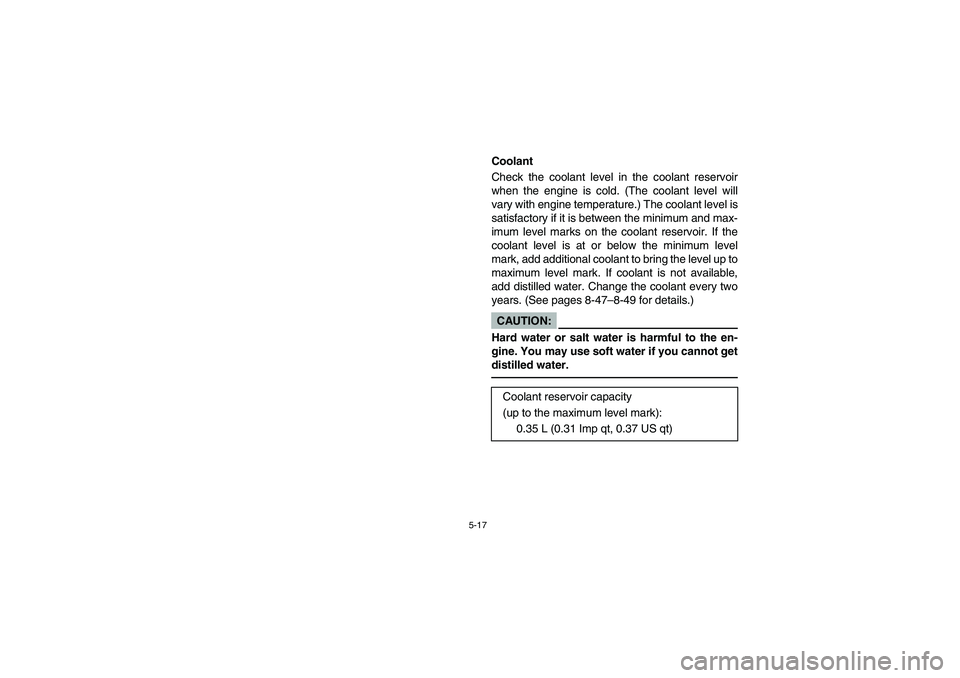

5-17
EVU01370
Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the minimum and max-
imum level marks on the coolant reservoir. If the
coolant level is at or below the minimum level
mark, add additional coolant to bring the level up to
maximum level mark. If coolant is not available,
add distilled water. Change the coolant every two
years. (See pages 8-47–8-49 for details.)CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _
Coolant reservoir capacity
(up to the maximum level mark):
0.35 L (0.31 Imp qt, 0.37 US qt)
U5UG61.book Page 17 Monday, September 6, 2004 9:00 AM

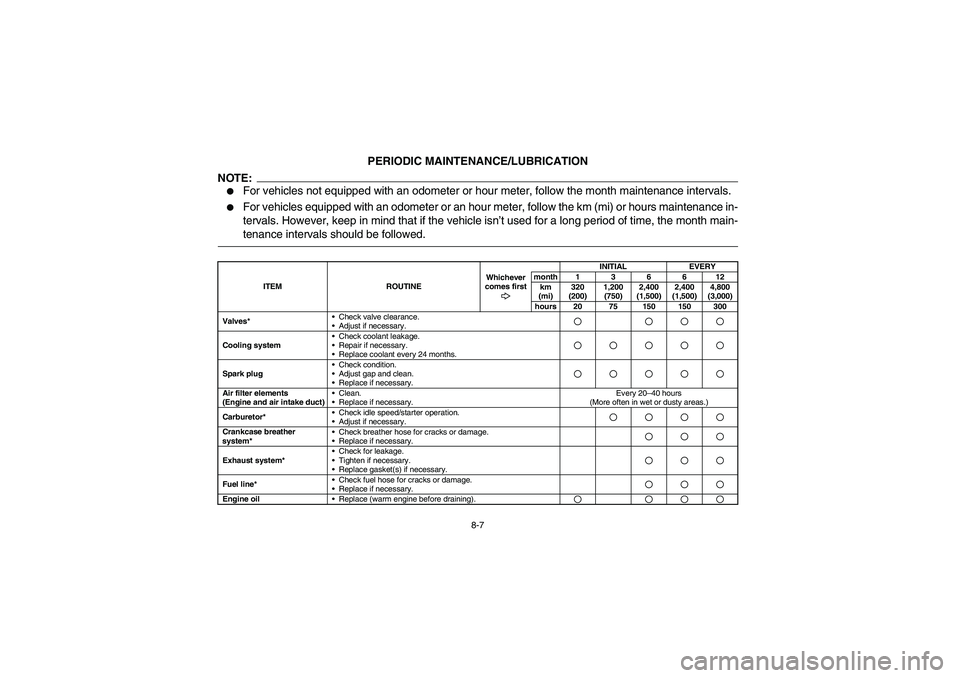

8-7
EVU00670
PERIODIC MAINTENANCE/LUBRICATION
NOTE:

For vehicles not equipped with an odometer or hour meter, follow the month maintenance intervals.


For vehicles equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance in-
tervals. However, keep in mind that if the vehicle isn’t used for a long period of time, the month main-
tenance intervals should be followed.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elements
(Engine and air intake duct)Clean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check idle speed/starter operation.
Adjust if necessary.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace (warm engine before draining).U5UG61.book Page 7 Monday, September 6, 2004 9:00 AM

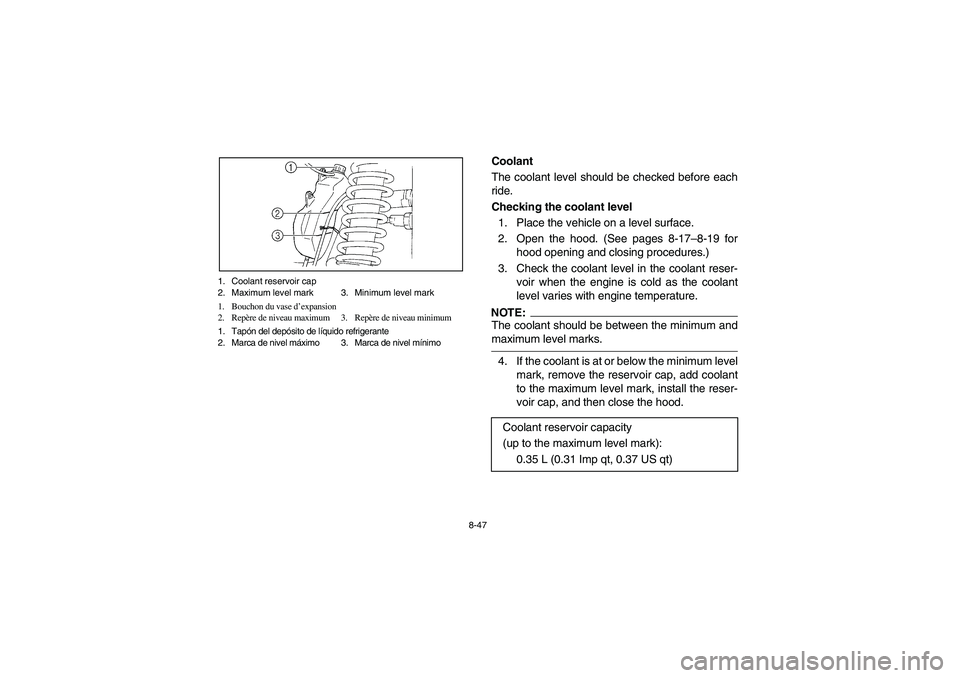

8-47 1. Coolant reservoir cap
2. Maximum level mark 3. Minimum level mark
1. Bouchon du vase d’expansion
2. Repère de niveau maximum 3. Repère de niveau minimum
1. Tapón del depósito de líquido refrigerante
2. Marca de nivel máximo 3. Marca de nivel mínimo
EVU00730
Coolant
The coolant level should be checked before each
ride.
Checking the coolant level
1. Place the vehicle on a level surface.
2. Open the hood. (See pages 8-17–8-19 for
hood opening and closing procedures.)
3. Check the coolant level in the coolant reser-
voir when the engine is cold as the coolant
level varies with engine temperature.NOTE:_ The coolant should be between the minimum and
maximum level marks. _4. If the coolant is at or below the minimum level
mark, remove the reservoir cap, add coolant
to the maximum level mark, install the reser-
voir cap, and then close the hood.
Coolant reservoir capacity
(up to the maximum level mark):
0.35 L (0.31 Imp qt, 0.37 US qt)
U5UG61.book Page 47 Monday, September 6, 2004 9:00 AM
