EVU00050
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND VEHICLE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-7
Key identification number ..................... 3-9
Vehicle identification number ............. 3-11
Model label ......................................... 3-13
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-5
Multi-function meter unit ..................... 4-13
Switches ............................................. 4-19
Accelerator pedal ............................... 4-33
Brake pedal ........................................ 4-35
Parking brake lever ............................ 4-37
Drive select lever ................................ 4-39
Fuel tank cap ...................................... 4-39
Fuel level check window..................... 4-41
Starter (choke) ................................... 4-41
1234
Seats .................................................. 4-43
Seat belts ........................................... 4-45
Glove compartment............................ 4-49
Cargo bed .......................................... 4-51
Front and rear shock absorber
adjustment ....................................... 4-57
Trailer hitch bracket ........................... 4-61
Auxiliary DC jack ................................ 4-63
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Coolant............................................... 5-17
Final gear oil ...................................... 5-21
Differential gear oil ............................. 5-21
Accelerator pedal ............................... 5-23
Seat belts ........................................... 5-23
Steering.............................................. 5-25
Fittings and fasteners......................... 5-25
Lights ................................................. 5-25
Switches............................................. 5-27
Tires ................................................... 5-29
How to measure tire pressure ............ 5-33
5
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

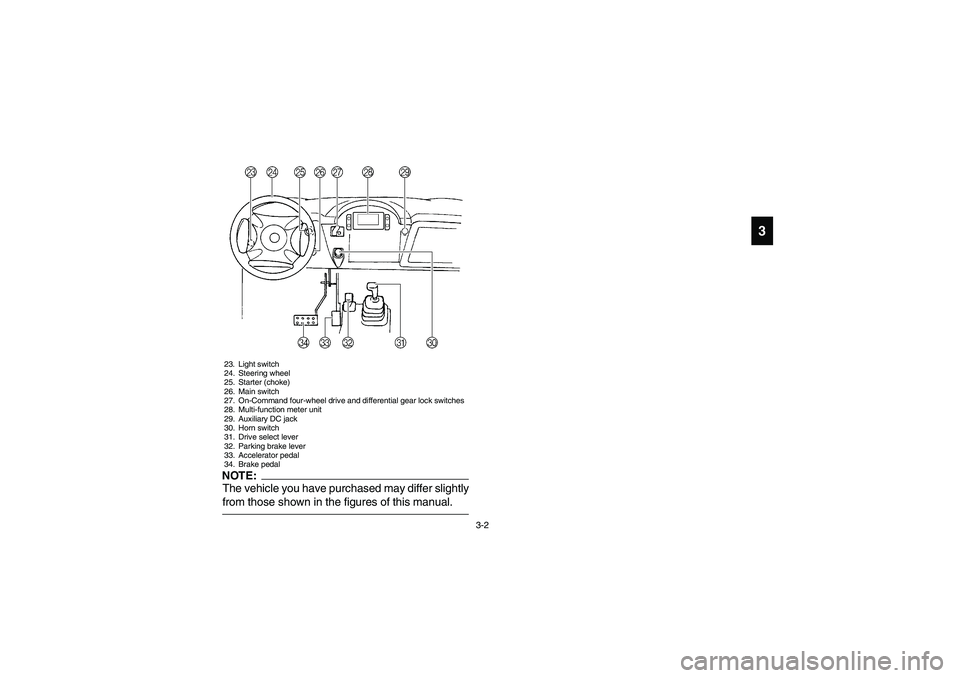

3-2
3
23. Light switch
24. Steering wheel
25. Starter (choke)
26. Main switch
27. On-Command four-wheel drive and differential gear lock switches
28. Multi-function meter unit
29. Auxiliary DC jack
30. Horn switch
31. Drive select lever
32. Parking brake lever
33. Accelerator pedal
34. Brake pedalNOTE:_ The vehicle you have purchased may differ slightly
from those shown in the figures of this manual. _ U5UG61.book Page 2 Monday, September 6, 2004 9:00 AM

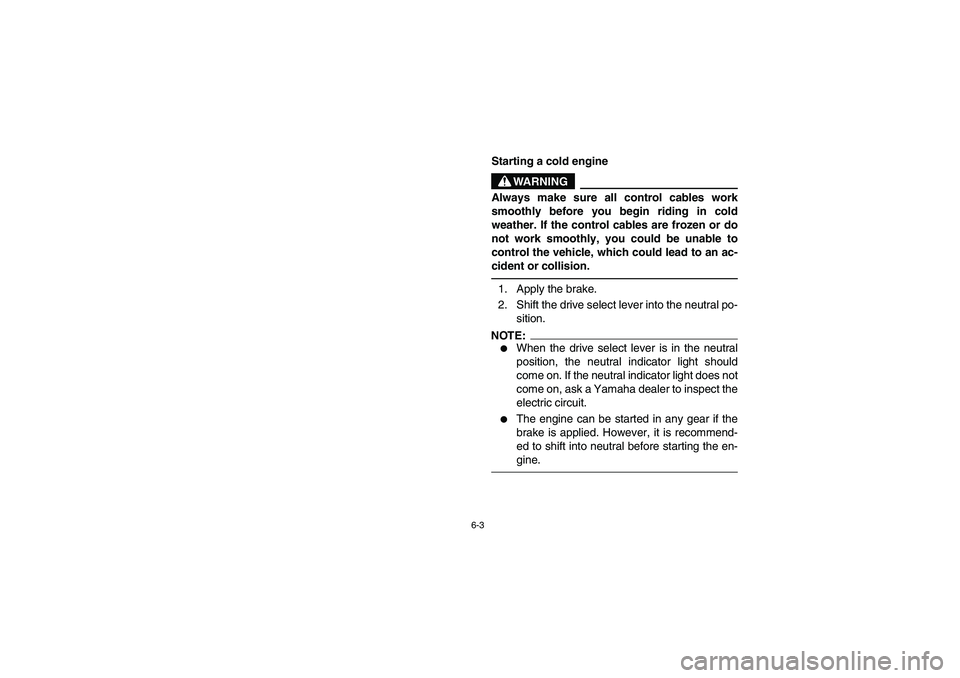

6-3
EVU01400
Starting a cold engine
WARNING
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the vehicle, which could lead to an ac-
cident or collision.1. Apply the brake.
2. Shift the drive select lever into the neutral po-
sition.NOTE:_

When the drive select lever is in the neutral
position, the neutral indicator light should
come on. If the neutral indicator light does not
come on, ask a Yamaha dealer to inspect the
electric circuit.


The engine can be started in any gear if the
brake is applied. However, it is recommend-
ed to shift into neutral before starting the en-
gine.
_
U5UG61.book Page 3 Monday, September 6, 2004 9:00 AM

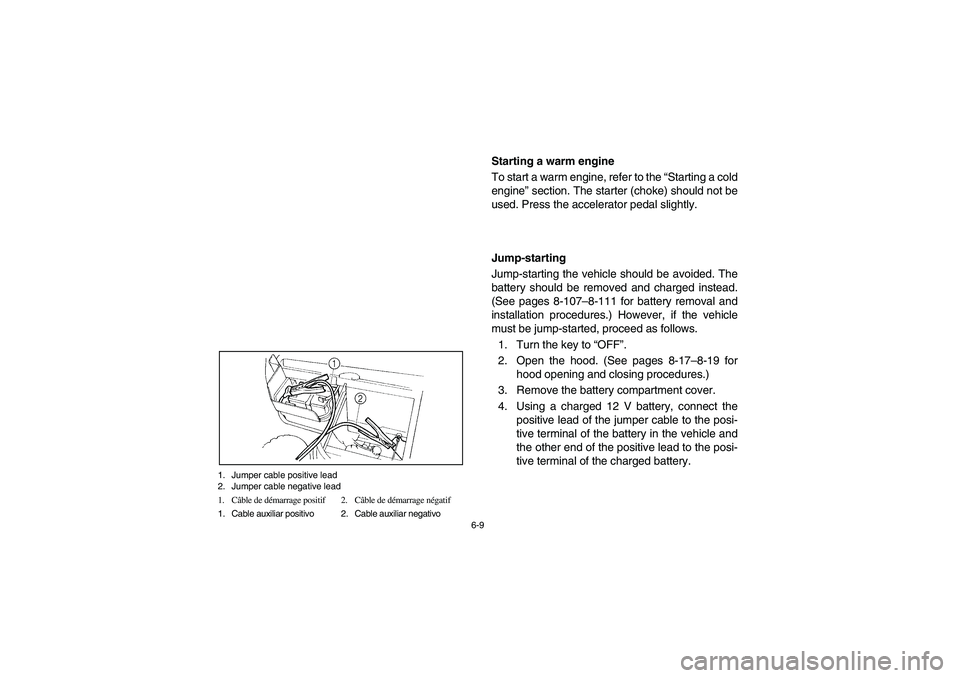

6-9 1. Jumper cable positive lead
2. Jumper cable negative lead
1. Câble de démarrage positif 2. Câble de démarrage négatif
1. Cable auxiliar positivo 2. Cable auxiliar negativo
EVU00550
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. Press the accelerator pedal slightly.
EVU00560
Jump-starting
Jump-starting the vehicle should be avoided. The
battery should be removed and charged instead.
(See pages 8-107–8-111 for battery removal and
installation procedures.) However, if the vehicle
must be jump-started, proceed as follows.
1. Turn the key to “OFF”.
2. Open the hood. (See pages 8-17–8-19 for
hood opening and closing procedures.)
3. Remove the battery compartment cover.
4. Using a charged 12 V battery, connect the
positive lead of the jumper cable to the posi-
tive terminal of the battery in the vehicle and
the other end of the positive lead to the posi-
tive terminal of the charged battery.
U5UG61.book Page 9 Monday, September 6, 2004 9:00 AM

8-7
EVU00670
PERIODIC MAINTENANCE/LUBRICATION
NOTE:

For vehicles not equipped with an odometer or hour meter, follow the month maintenance intervals.


For vehicles equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance in-
tervals. However, keep in mind that if the vehicle isn’t used for a long period of time, the month main-
tenance intervals should be followed.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elements
(Engine and air intake duct)Clean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check idle speed/starter operation.
Adjust if necessary.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace (warm engine before draining).U5UG61.book Page 7 Monday, September 6, 2004 9:00 AM

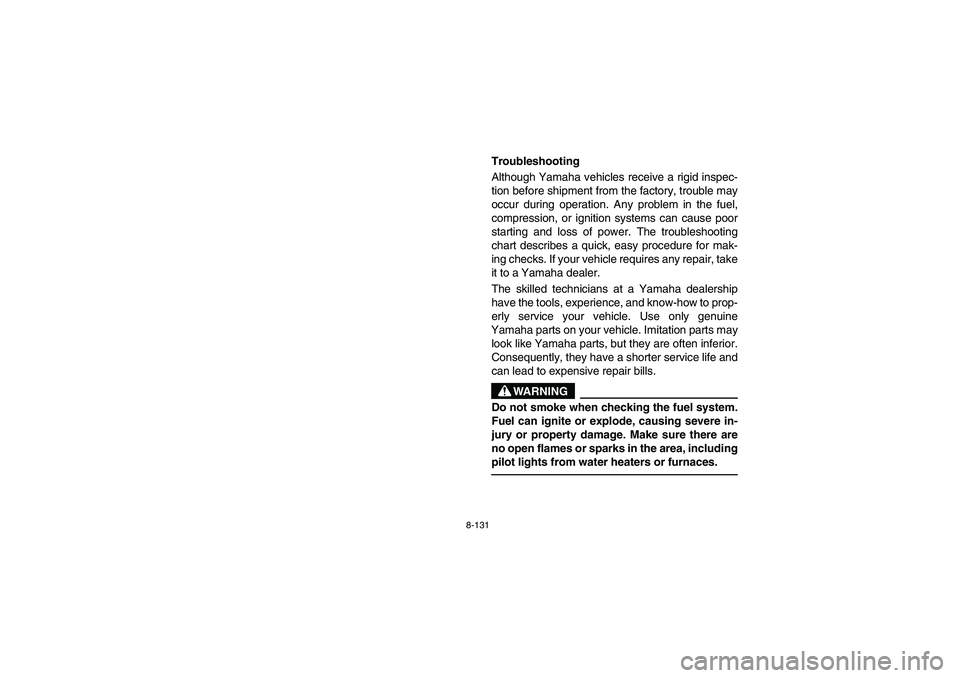

8-131
EVU01530
Troubleshooting
Although Yamaha vehicles receive a rigid inspec-
tion before shipment from the factory, trouble may
occur during operation. Any problem in the fuel,
compression, or ignition systems can cause poor
starting and loss of power. The troubleshooting
chart describes a quick, easy procedure for mak-
ing checks. If your vehicle requires any repair, take
it to a Yamaha dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your vehicle. Use only genuine
Yamaha parts on your vehicle. Imitation parts may
look like Yamaha parts, but they are often inferior.
Consequently, they have a shorter service life and
can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
