10-1
EVU01050

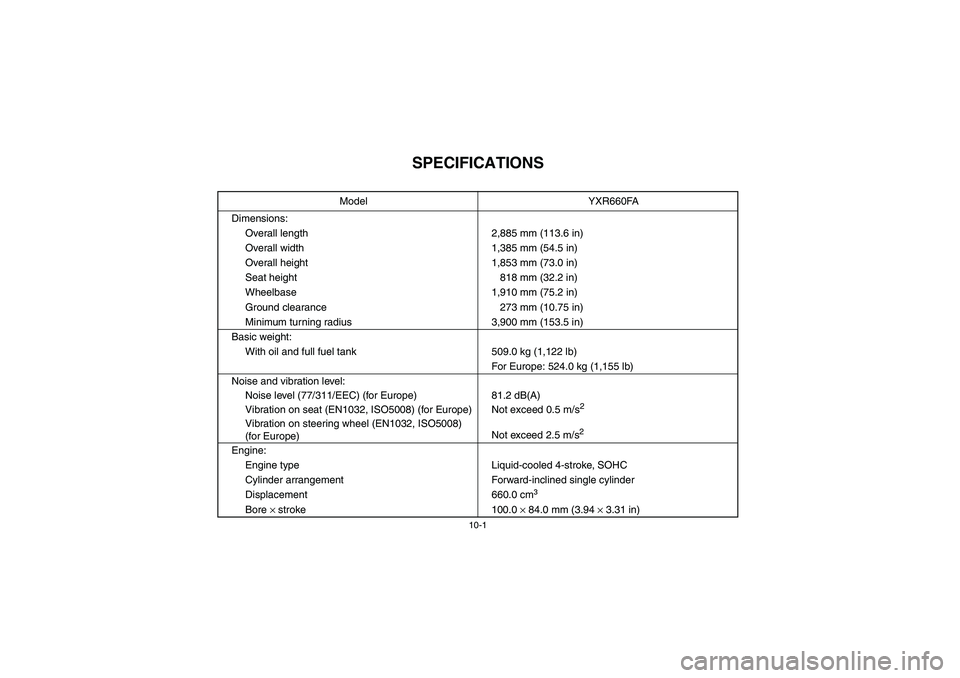

1-SPECIFICATIONS
Model YXR660FA
Dimensions:
Overall length 2,885 mm (113.6 in)
Overall width 1,385 mm (54.5 in)
Overall height 1,853 mm (73.0 in)
Seat height 818 mm (32.2 in)
Wheelbase 1,910 mm (75.2 in)
Ground clearance 273 mm (10.75 in)
Minimum turning radius 3,900 mm (153.5 in)
Basic weight:
With oil and full fuel tank 509.0 kg (1,122 lb)
For Europe: 524.0 kg (1,155 lb)
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 81.2 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Not exceed 0.5 m/s
2
Vibration on steering wheel (EN1032, ISO5008)
(for Europe)Not exceed 2.5 m/s
2
Engine:
Engine type Liquid-cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 660.0 cm
3
Bore
× stroke 100.0
× 84.0 mm (3.94
× 3.31 in)
