2-7

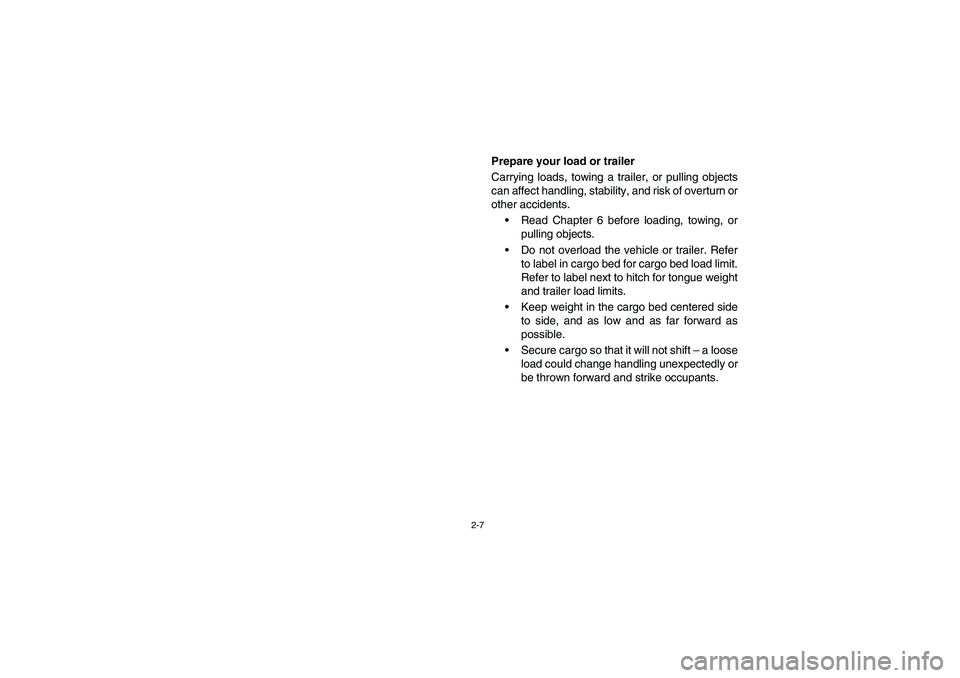

Prepare your load or trailer
Carrying loads, towing a trailer, or pulling objects
can affect handling, stability, and risk of overturn or
other accidents.
Read Chapter 6 before loading, towing, or
pulling objects.
Do not overload the vehicle or trailer. Refer
to label in cargo bed for cargo bed load limit.
Refer to label next to hitch for tongue weight
and trailer load limits.
Keep weight in the cargo bed centered side
to side, and as low and as far forward as
possible.
Secure cargo so that it will not shift – a loose
load could change handling unexpectedly or
be thrown forward and strike occupants.
EE.book Page 7 Tuesday, June 17, 2008 9:00 AM

6-25
EVU00630

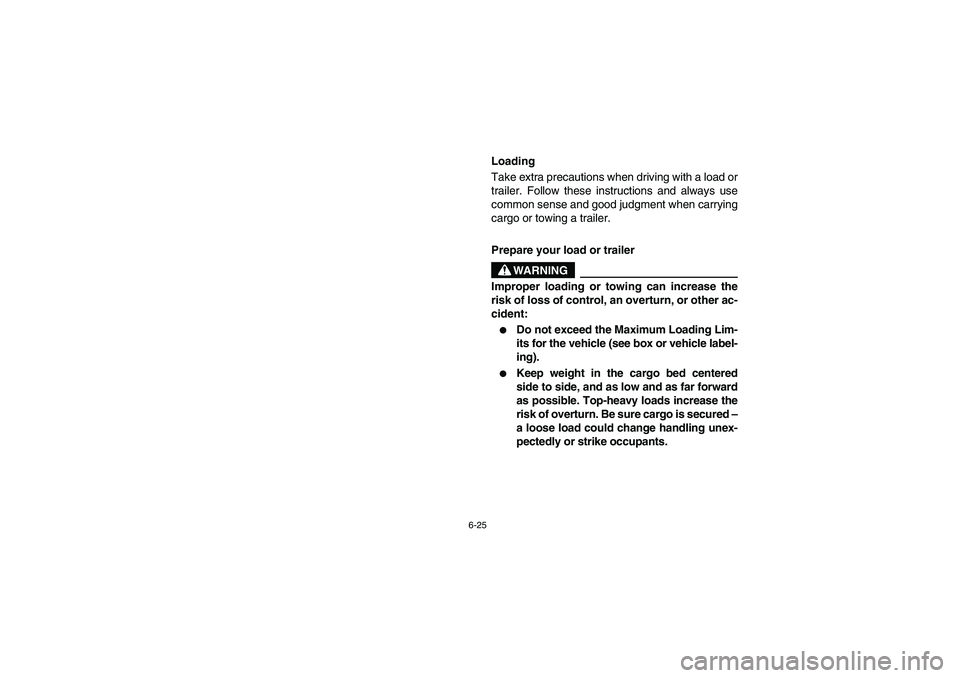

Loading
Take extra precautions when driving with a load or
trailer. Follow these instructions and always use
common sense and good judgment when carrying
cargo or towing a trailer.
Prepare your load or trailer
WARNING
Improper loading or towing can increase the
risk of loss of control, an overturn, or other ac-
cident:

Do not exceed the Maximum Loading Lim-
its for the vehicle (see box or vehicle label-
ing).


Keep weight in the cargo bed centered
side to side, and as low and as far forward
as possible. Top-heavy loads increase the
risk of overturn. Be sure cargo is secured –
a loose load could change handling unex-
pectedly or strike occupants.
EE.book Page 25 Tuesday, June 17, 2008 9:00 AM

6-27

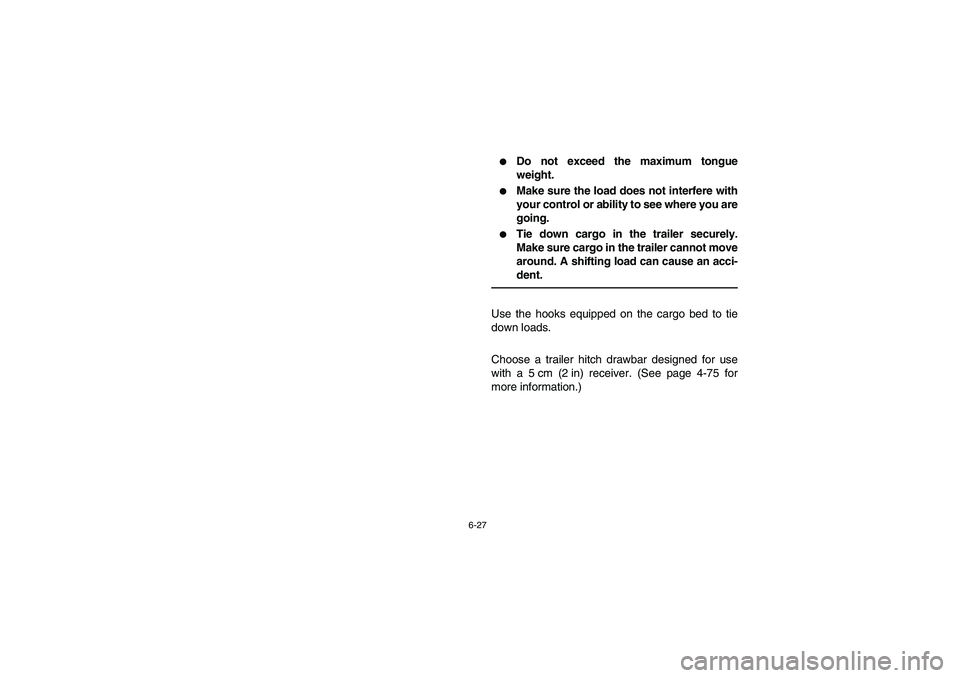

Do not exceed the maximum tongue
weight.


Make sure the load does not interfere with
your control or ability to see where you are
going.


Tie down cargo in the trailer securely.
Make sure cargo in the trailer cannot move
around. A shifting load can cause an acci-
dent.
Use the hooks equipped on the cargo bed to tie
down loads.
Choose a trailer hitch drawbar designed for use
with a 5 cm (2 in) receiver. (See page 4-75 for
more information.)
EE.book Page 27 Tuesday, June 17, 2008 9:00 AM

6-29
You can measure tongue weight with a bathroom
scale. Put the tongue of the loaded trailer on the
scale with the tongue at hitch height. Adjust the
load in the trailer, if necessary, to reduce the
weight on hitch. If you are carrying cargo and tow-
ing a trailer, include the tongue weight in the max-
imum vehicle load limit.
MAXIMUM LOADING LIMIT


Vehicle loading limit (total weight of
cargo, operator, passenger and
accessories and tongue weight):
359 kg (791 lb)


Cargo bed: 181 kg (400 lb)


Trailer hitch:
Pulling load (total weight of trailer and
cargo): 550 kg (1,212 lb)
Tongue weight (vertical weight on trailer
hitch point): 50 kg (110 lb)
EE.book Page 29 Tuesday, June 17, 2008 9:00 AM

6-31

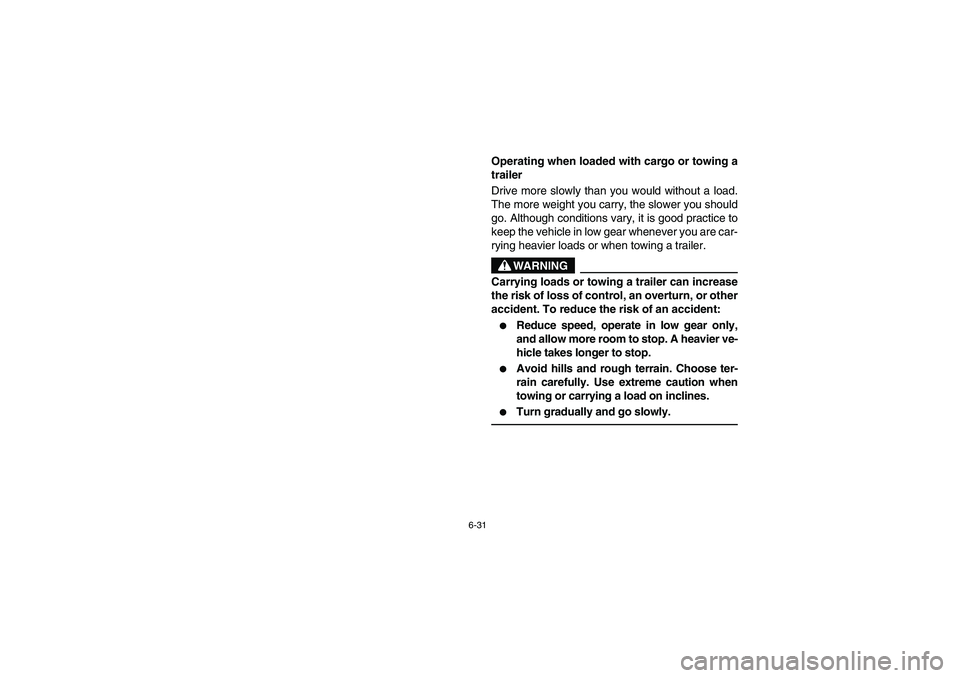

Operating when loaded with cargo or towing a
trailer
Drive more slowly than you would without a load.
The more weight you carry, the slower you should
go. Although conditions vary, it is good practice to
keep the vehicle in low gear whenever you are car-
rying heavier loads or when towing a trailer.
WARNING
Carrying loads or towing a trailer can increase
the risk of loss of control, an overturn, or other
accident. To reduce the risk of an accident:

Reduce speed, operate in low gear only,
and allow more room to stop. A heavier ve-
hicle takes longer to stop.


Avoid hills and rough terrain. Choose ter-
rain carefully. Use extreme caution when
towing or carrying a load on inclines.


Turn gradually and go slowly.
EE.book Page 31 Tuesday, June 17, 2008 9:00 AM

7-49

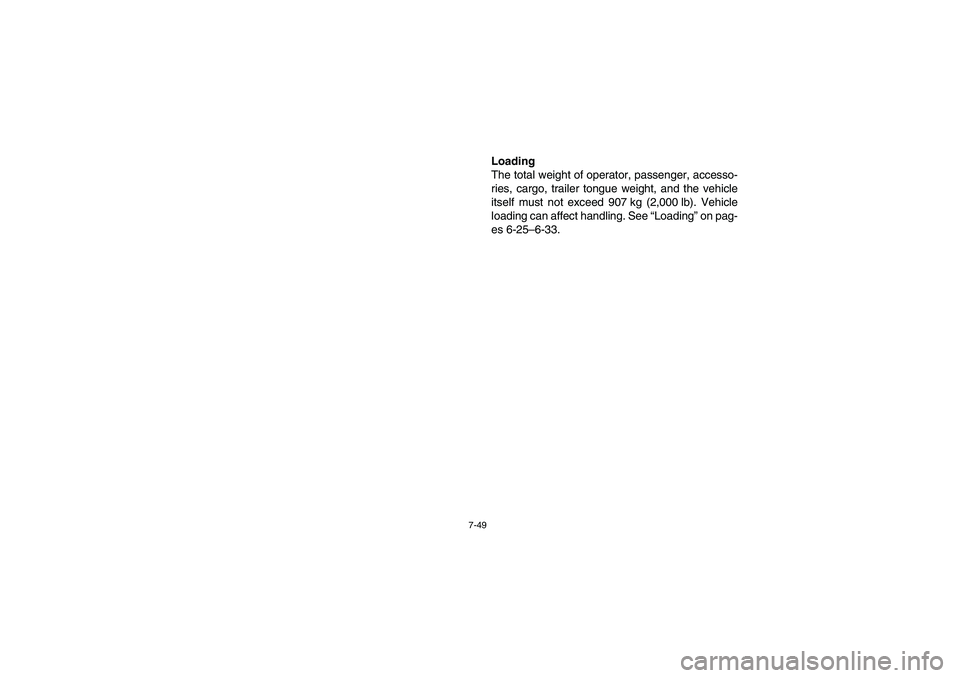

Loading
The total weight of operator, passenger, accesso-
ries, cargo, trailer tongue weight, and the vehicle
itself must not exceed 907 kg (2,000 lb). Vehicle
loading can affect handling. See “Loading” on pag-
es 6-25–6-33.
EE.book Page 49 Tuesday, June 17, 2008 9:00 AM

10-1
EVU01050

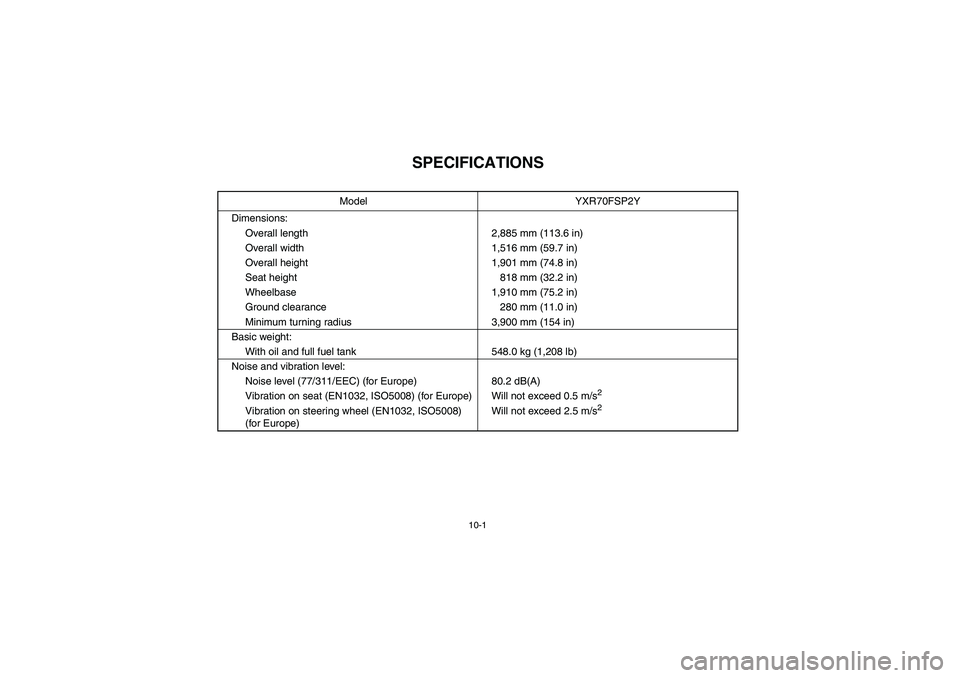

1 -SPECIFICATIONS
Model YXR70FSP2Y
Dimensions:
Overall length 2,885 mm (113.6 in)
Overall width 1,516 mm (59.7 in)
Overall height 1,901 mm (74.8 in)
Seat height 818 mm (32.2 in)
Wheelbase 1,910 mm (75.2 in)
Ground clearance 280 mm (11.0 in)
Minimum turning radius 3,900 mm (154 in)
Basic weight:
With oil and full fuel tank 548.0 kg (1,208 lb)
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 80.2 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Will not exceed 0.5 m/s
2
Vibration on steering wheel (EN1032, ISO5008)
(for Europe)Will not exceed 2.5 m/s
2
