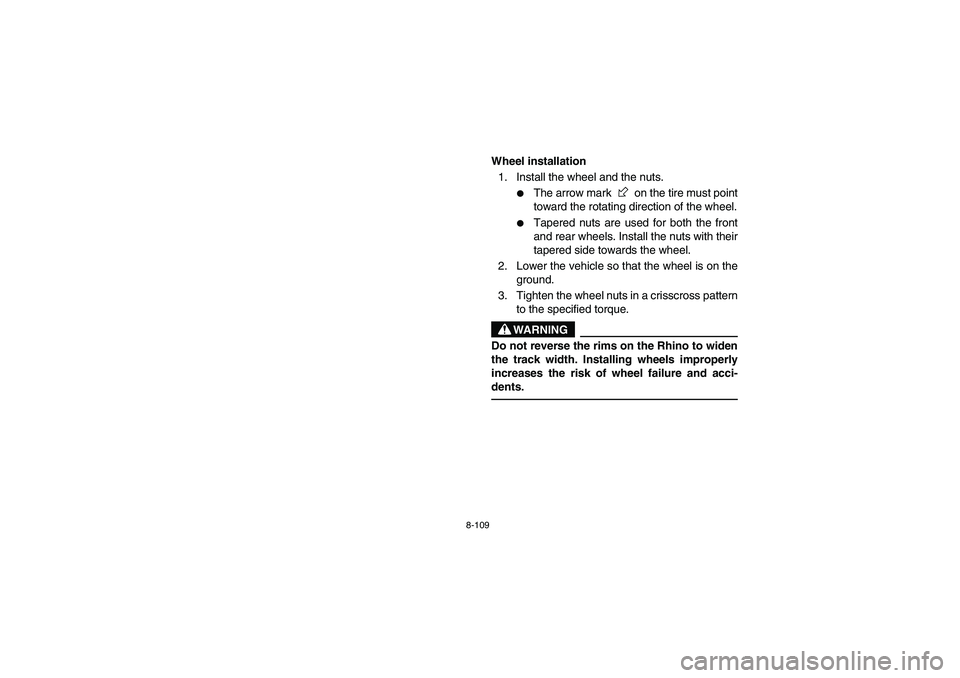

Wheel installation
1. Install the wheel and the nuts.


The arrow mark on the tire must point
toward the rotating direction of the wheel.


Tapered nuts are used for both the front
and rear wheels. Install the nuts with their
tapered side towards the wheel.
2. Lower the vehicle so that the wheel is on the
ground.
3. Tighten the wheel nuts in a crisscross pattern
to the specified torque.
WARNING
Do not reverse the rims on the Rhino to widen
the track width. Installing wheels improperly
increases the risk of wheel failure and acci-
dents.
EE.book Page 109 Monday, January 19, 2009 5:30 PM

10-1
EVU01050

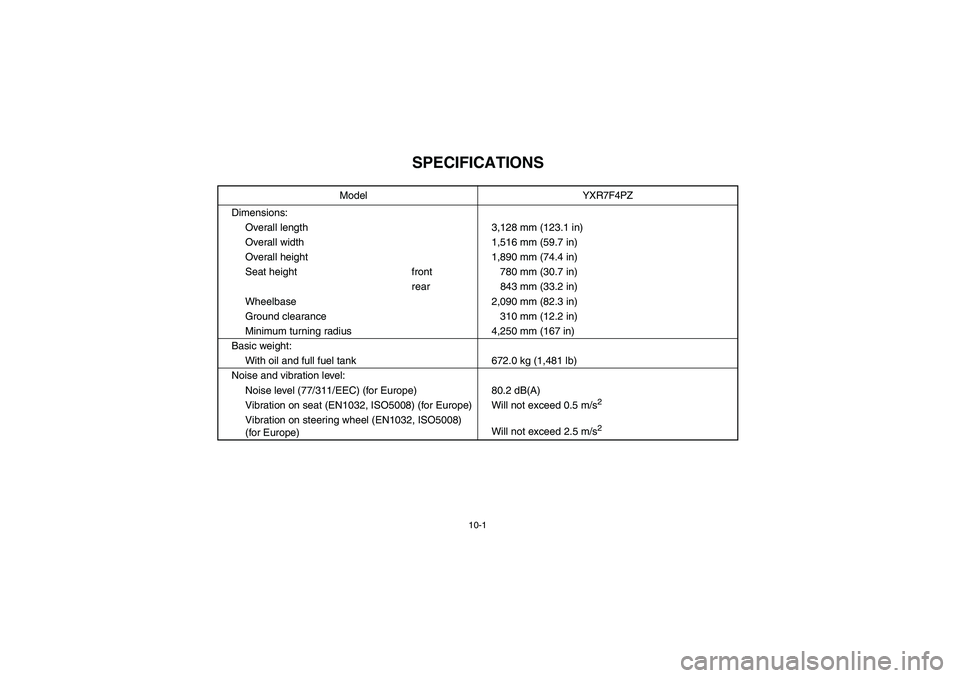

1 -SPECIFICATIONS
Model YXR7F4PZ
Dimensions:
Overall length 3,128 mm (123.1 in)
Overall width 1,516 mm (59.7 in)
Overall height 1,890 mm (74.4 in)
Seat height front 780 mm (30.7 in)
rear 843 mm (33.2 in)
Wheelbase 2,090 mm (82.3 in)
Ground clearance 310 mm (12.2 in)
Minimum turning radius 4,250 mm (167 in)
Basic weight:
With oil and full fuel tank 672.0 kg (1,481 lb)
Noise and vibration level:
Noise level (77/311/EEC) (for Europe) 80.2 dB(A)
Vibration on seat (EN1032, ISO5008) (for Europe) Will not exceed 0.5 m/s
2
Vibration on steering wheel (EN1032, ISO5008)
(for Europe)Will not exceed 2.5 m/s
2
