TABLE OF CONTENTSSAFETY INFORMATION................... 1-1
DESCRIPTION ................................... 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instrument s................. 2-3
INSTRUMENT AND CONTROL
FUNCTIONS ....................................... 3-1
Main switch/steering lock................. 3-1
Indicator lights and warning lights ... 3-2
Speedometer unit ............................ 3-3
Tachometer ..................................... 3-4
Handlebar switches ......................... 3-4
Clutch lever...................................... 3-5
Shift pedal....... ............................. .... 3-6
Brake lever ...................................... 3-6
Brake pedal ..................................... 3-6
Fuel tank cap ................................... 3-7
Fuel.................................................. 3-7
Fuel tank breather/o verflow hose .... 3-9
Catalytic converter ........................... 3-9
Fuel cock ....................................... 3-10
Kickstarter....... ............................. .. 3-10
Decompression lever ... .................. 3-11
Seat ............................................... 3-11
Adjusting the shock absorber assemblies ................................. 3-12
Sidestand....................................... 3-12
Ignition circuit cut-of f system ......... 3-13 FOR YOUR SAFETY –
PRE-OPERATION CHECKS
............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS ................................. 5-1
Starting the engine .......................... 5-1
Starting trouble ................................ 5-2
Shifting ............................................ 5-2
Tips for reducing fuel consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 6-1
Owner’s tool kit................................ 6-2
Periodic maintenance chart for the
emission control system .............. 6-3
General maintenance and lubrication chart ........................... 6-4
Removing and installing the panel ............................................ 6-7
Checking the spark plug.................. 6-8
Engine oil and oil filter element ....... 6-9
Replacing the air filter element...... 6-12
Checking the engine idling speed ......................................... 6-13
Checking the throttle grip free
play ............................................ 6-13
Valve clearance............................. 6-13
Tires .............................................. 6-14 Spoke wheels ................................ 6-16
Adjusting the clutch lever free
play ............................................. 6-16
Adjusting the brake lever free play ............................................. 6-17
Adjusting the brake pedal height and free play............................... 6-18
Checking the shift pedal ................ 6-19
Brake light switches ....................... 6-19
Checking the front brake pads and rear brake shoes ................ 6-20
Checking the brake fluid level ........ 6-20
Changing the brake fluid ............... 6-21
Drive chain slack............................ 6-22
Cleaning and lubricating the drive chain ........................................... 6-23
Checking and lubricating the
cables ......................................... 6-24
Checking and lubricating the throttle grip and cable ................. 6-24
Checking and lubricating the brake and clutch levers .............. 6-25
Checking and lubricating the
brake pedal................................. 6-25
Checking and lubricating the
centerstand and sidestand ......... 6-26
Lubricating the swingarm pivots .... 6-26
Checking the front fork................... 6-27
Checking the steering .................... 6-27
Checking the wheel bearings......... 6-28
Battery ........................................... 6-282RD-9-E0.book 1 ページ 2013年11月28日 木曜日 午後4時18分
Page 33 of 88

OPERATION AND IMPORTANT RIDING POINTS
5-2
1
2
3
456
7
8
9
10
11
12
Yamaha dealer to check the elec-
trical circuit.
3. Completely close the throttle and apply the decompression lever.
4. Slowly push the kickstarter lever down until the starting mark shows
on the kick indicator.
5. Release the decompression lever, release the kickstarter lever, and
then push the kickstarter lever
down forcefully to start the engine.
NOTICE
ECA11043
For maximum engine life, never ac-
celerate hard when the engine iscold!
EAU59470
Starting troubleIf the engine fails to start after 4 to 5
kicks, clear out the combustion cham-
ber with the following procedure.1. Turn the key to “OFF”.
2. While applying the decompression lever, fully open the throttle grip
and push the kickstarter lever
down 4 to 5 times.
3. Turn the key to “ON” and retry starting the engine.
EAU16672
ShiftingShifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel, and then slightly raise it.
1. Starting mark
2. Kick indicator
2
1
1. Shift pedal
2. Neutral position
1
2
1 3 4 5
N
2
2RD-9-E0.book 2 ページ 2013年11月28日 木曜日 午後4時18分
Page 39 of 88

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
1
2
3
4
567
8
9
10
11
12
EAU1770K
General maintenance an d lubrication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 Air filter element Replace. Every 20000 km (12500 mi)
2Clutch Check operation.
Adjust.
3 *Timing chain Check timing chain tensioner.
Adjust if necessary.
4 *Decompression
system Check operation.
Adjust or replace cable.
5 *Front brake Check operation, fluid level and
vehicle for fluid leakage.
Adjust brake lever free play.
Replace brake pads. Whenever worn to the limit
6 *Rear brake Check operation and adjust brake
pedal free play.
Replace brake shoes. Whenever worn to the limit
7 *Brake hose Check for cracks or damage.
Check for correct routing and
clamping.
Replace. Every 4 years
8 *Brake fluid Replace. Every 2 years
9 *Wheels Check runout, spoke tightness
and for damage.
Tighten spokes if necessary.
10 *Tires Check tread depth and for
damage.
Replace if necessary.
Check air pressure.
Correct if necessary.
2RD-9-E0.book 4 ページ 2013年11月28日 木曜日 午後4時18分
Page 74 of 88

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
1
2
3
4
56
7
8
9
10
11
12
EAU25852
TroubleshootingAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15142
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
2RD-9-E0.book 39 ページ 2013年11月28日 木曜日 午後4時18分
Page 80 of 88

8-1
1
2
3
4
5
6
78
9
10
11
12
SPECIFICATIONS
EAU5091H
Dimensions:Overall length: 2085 mm (82.1 in)
Overall width: 750 mm (29.5 in)
Overall height: 1095 mm (43.1 in)
Seat height:
785 mm (30.9 in)
Wheelbase: 1410 mm (55.5 in)
Ground clearance: 130 mm (5.1 in)
Minimum turning radius:
2400 mm (94.5 in)Weight:Curb weight:174 kg (384 lb)Engine:Engine type:Air cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement:
399 cm
3
Bore stroke:
87.0 67.2 mm (3.43 2.65 in)
Compression ratio: 8.50 : 1
Starting system:
Kickstarter
Lubrication system: Dry sump
Engine oil:Recommended brand:
YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter element replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter element replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:Regular unleaded gasoline (Gasohol (E10)
acceptable) Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
2.2 L (0.58 US gal, 0.48 Imp.gal)
Fuel injection:Throttle body:ID mark: 2RD1 00Spark plug(s):Manufacturer/model:
NGK/BPR6ES
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Clutch type: Wet, multiple-discTransmission:Primary reduction ratio:2.567 (77/30)
Final drive: Chain
Secondary reduction ratio:
2.947 (56/19)
Transmission type: Constant mesh 5-speed
Operation: Left foot operation
Gear ratio:
1st: 2.357 (33/14)
2nd:
1.556 (28/18)
3rd: 1.190 (25/21)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F

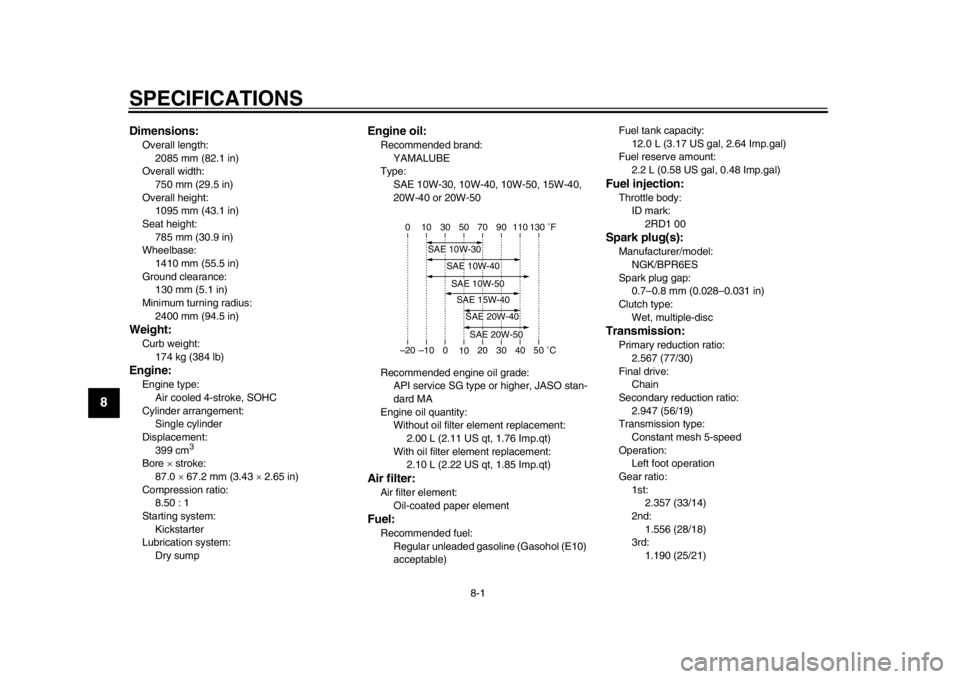

SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
