PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
1
2
3
4
567
8
9
10
11
12
4. Disconnect the battery coupler.
5. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
6. Connect the battery coupler.
7. Install the battery by installing the
battery band.
8. Install the seat.
9. Turn the key to “ON”.
10. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.

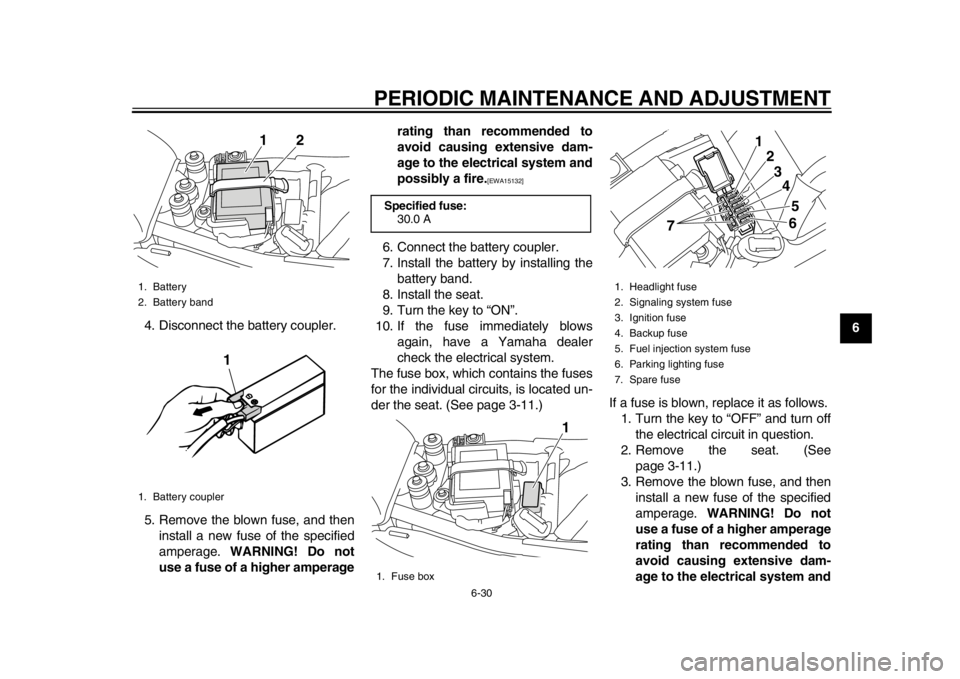

The fuse box, which contains the fuses
for the individual circuits, is located un-
der the seat. (See page 3-11.) If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the seat. (See page 3-11.)
3. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
1. Battery
2. Battery band
1. Battery coupler
12
1
Specified fuse: 30.0 A1. Fuse box
1
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Backup fuse
5. Fuel injection system fuse
6. Parking lighting fuse
7. Spare fuse
12
3 4
5
7
6
