1. Put the watercraft on land in a horizontal
position.
2. Open the flushing hose connector
cap1, and then insert the garden hose
adapter 2 into the flushing hose con-
nector 3 and turn it until it is securely
connected.
3. Connect the garden hose adapter to a
water tap using a hose.
4. Start the engine, and then immediately
turn the water supply on until water flows
out continually from the cooling water
pilot outlet.
5. Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn
the water supply off immediately and
repeat the above steps.
6. Turn the water supply off, and then force
the remaining water out from the cooling
passages by alternately squeezing, and
releasing the throttle lever for 10 to
15 seconds.
7. Stop the engine.
8. Remove the garden hose adapter and
secure the cap.
UF1N73.book Page 2 Monday, May 10, 2004 10:37 AM

4-3
E
EJU01299

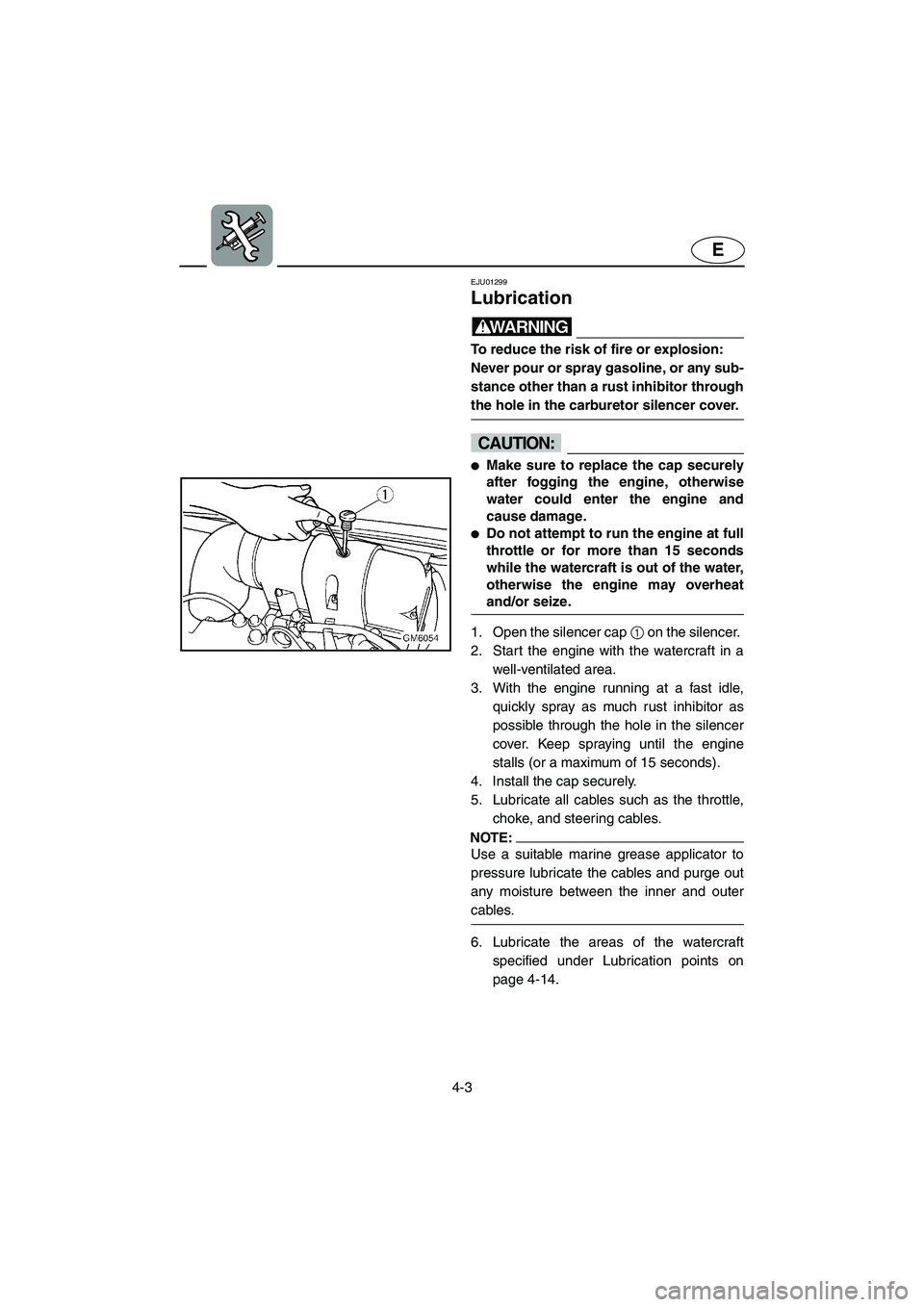

Lubrication
WARNING@ To reduce the risk of fire or explosion:
Never pour or spray gasoline, or any sub-
stance other than a rust inhibitor through
the hole in the carburetor silencer cover.
@
CAUTION:@
Make sure to replace the cap securely
after fogging the engine, otherwise
water could enter the engine and
cause damage.

Do not attempt to run the engine at full
throttle or for more than 15 seconds
while the watercraft is out of the water,
otherwise the engine may overheat
and/or seize.
@
1. Open the silencer cap 1 on the silencer.
2. Start the engine with the watercraft in a
well-ventilated area.
3. With the engine running at a fast idle,
quickly spray as much rust inhibitor as
possible through the hole in the silencer
cover. Keep spraying until the engine
stalls (or a maximum of 15 seconds).
4. Install the cap securely.
5. Lubricate all cables such as the throttle,
choke, and steering cables.
NOTE:@ Use a suitable marine grease applicator to
pressure lubricate the cables and purge out
any moisture between the inner and outer
cables.
@
6. Lubricate the areas of the watercraft
specified under Lubrication points on
page 4-14.
UF1N73.book Page 3 Monday, May 10, 2004 10:37 AM

4-4
E
EJU19640

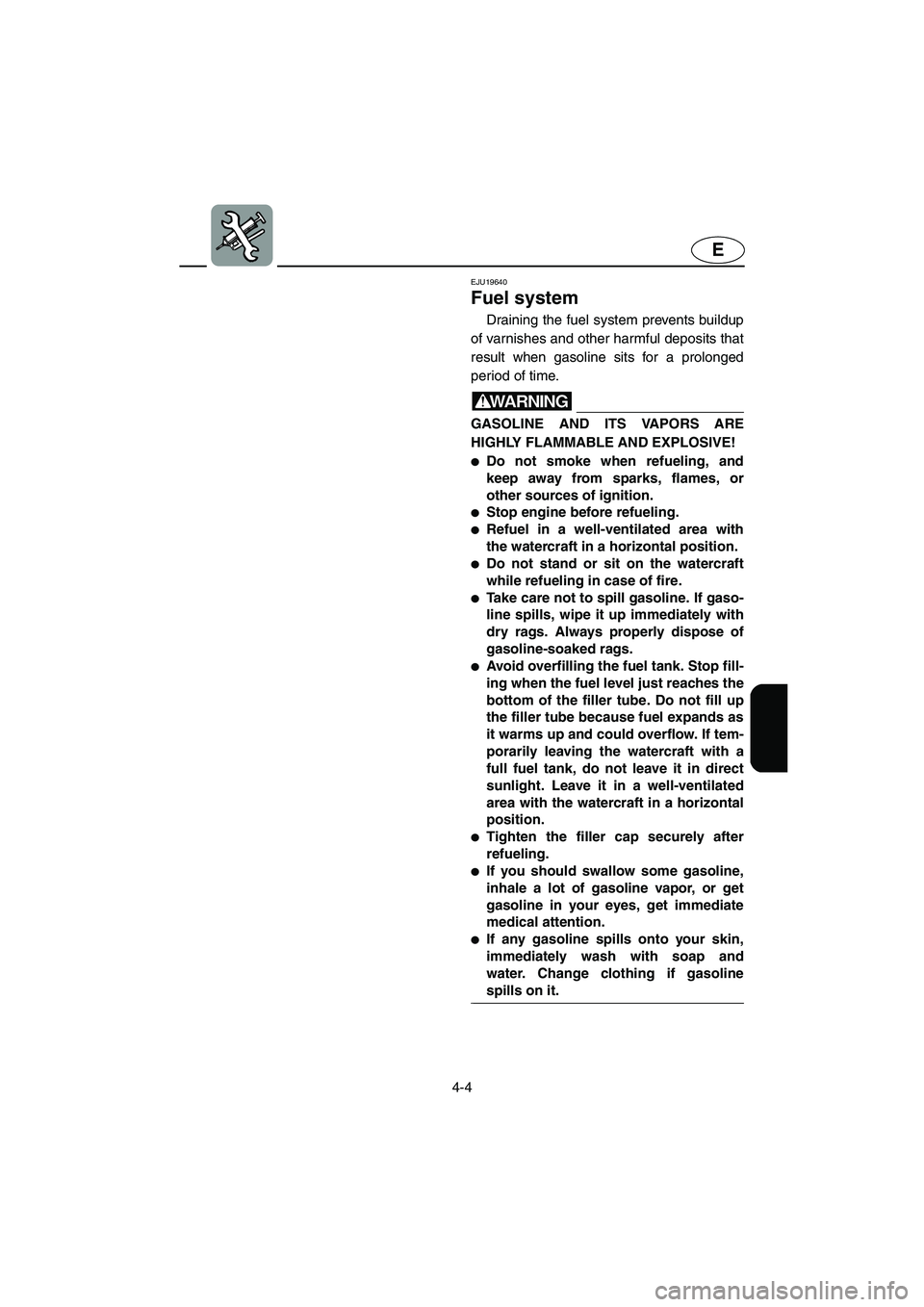

Fuel system
Draining the fuel system prevents buildup
of varnishes and other harmful deposits that
result when gasoline sits for a prolonged
period of time.
WARNING@ GASOLINE AND ITS VAPORS ARE
HIGHLY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and
keep away from sparks, flames, or
other sources of ignition.

Stop engine before refueling.

Refuel in a well-ventilated area with
the watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level just reaches the
bottom of the filler tube. Do not fill up
the filler tube because fuel expands as
it warms up and could overflow. If tem-
porarily leaving the watercraft with a
full fuel tank, do not leave it in direct
sunlight. Leave it in a well-ventilated
area with the watercraft in a horizontal
position.

Tighten the filler cap securely after
refueling.

If you should swallow some gasoline,
inhale a lot of gasoline vapor, or get
gasoline in your eyes, get immediate
medical attention.

If any gasoline spills onto your skin,
immediately wash with soap and
water. Change clothing if gasoline
spills on it.
@
UF1N73.book Page 4 Monday, May 10, 2004 10:37 AM

4-5
E

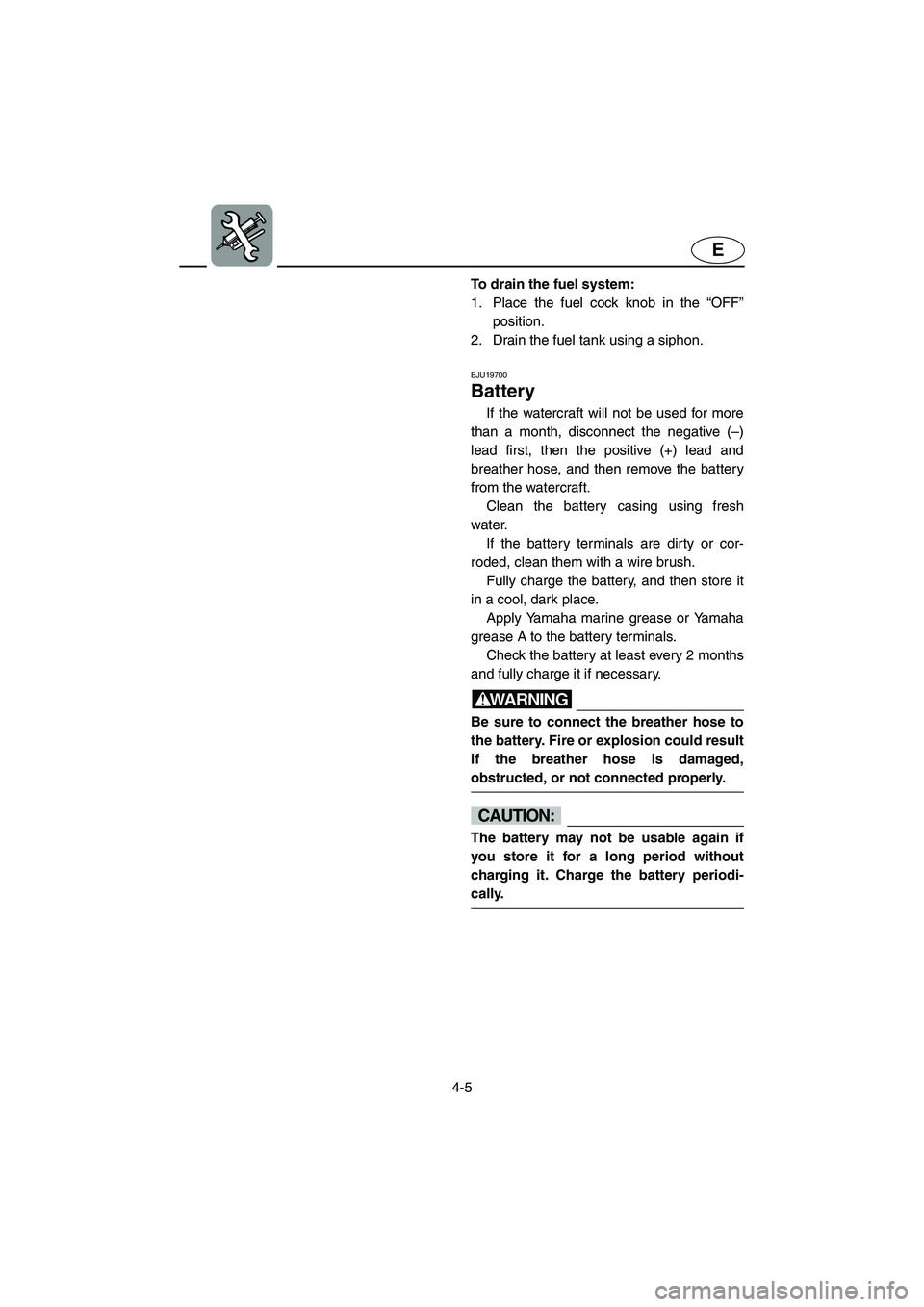

To drain the fuel system:
1. Place the fuel cock knob in the “OFF”
position.
2. Drain the fuel tank using a siphon.
EJU19700
Battery
If the watercraft will not be used for more
than a month, disconnect the negative (–)
lead first, then the positive (+) lead and
breather hose, and then remove the battery
from the watercraft.
Clean the battery casing using fresh
water.
If the battery terminals are dirty or cor-
roded, clean them with a wire brush.
Fully charge the battery, and then store it
in a cool, dark place.
Apply Yamaha marine grease or Yamaha
grease A to the battery terminals.
Check the battery at least every 2 months
and fully charge it if necessary.
WARNING@ Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@ The battery may not be usable again if
you store it for a long period without
charging it. Charge the battery periodi-
cally.
@
UF1N73.book Page 5 Monday, May 10, 2004 10:37 AM

4-6
E

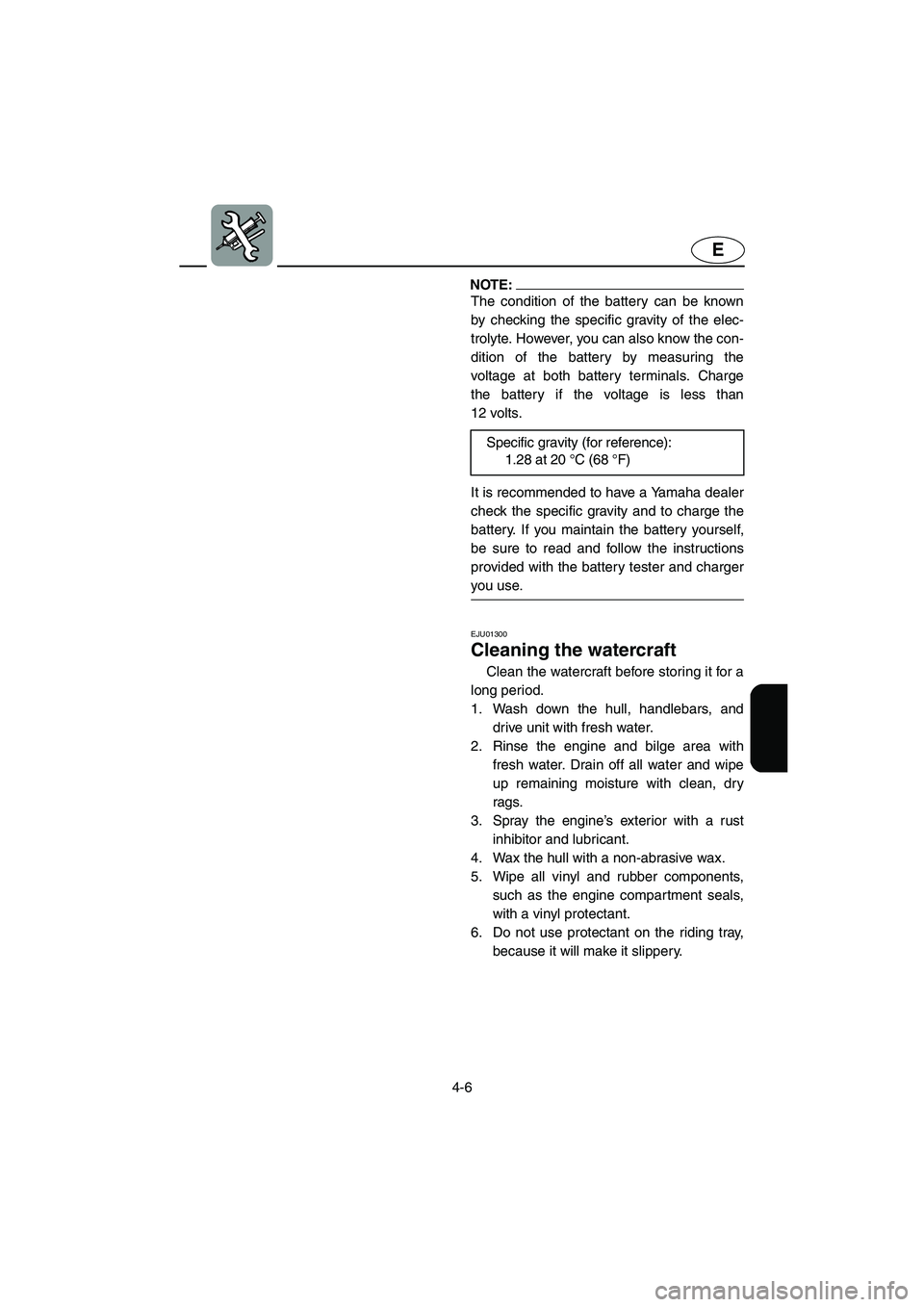

NOTE:@ The condition of the battery can be known
by checking the specific gravity of the elec-
trolyte. However, you can also know the con-
dition of the battery by measuring the
voltage at both battery terminals. Charge
the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and to charge the
battery. If you maintain the battery yourself,
be sure to read and follow the instructions
provided with the battery tester and charger
you use.
@
EJU01300
Cleaning the watercraft
Clean the watercraft before storing it for a
long period.
1. Wash down the hull, handlebars, and
drive unit with fresh water.
2. Rinse the engine and bilge area with
fresh water. Drain off all water and wipe
up remaining moisture with clean, dry
rags.
3. Spray the engine’s exterior with a rust
inhibitor and lubricant.
4. Wax the hull with a non-abrasive wax.
5. Wipe all vinyl and rubber components,
such as the engine compartment seals,
with a vinyl protectant.
6. Do not use protectant on the riding tray,
because it will make it slippery. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
UF1N73.book Page 6 Monday, May 10, 2004 10:37 AM

4-7
E
EJU01094

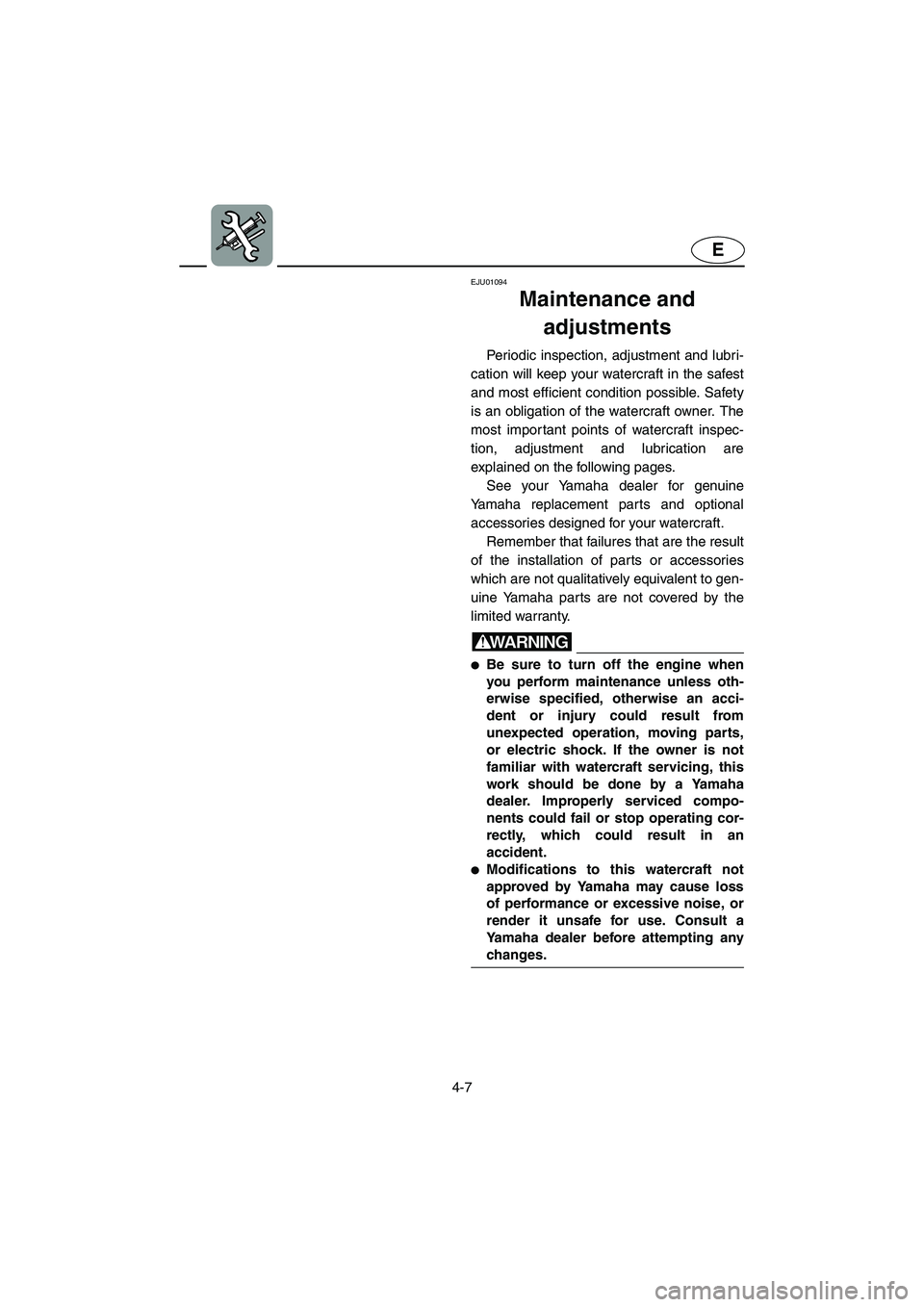

Maintenance and
adjustments
Periodic inspection, adjustment and lubri-
cation will keep your watercraft in the safest
and most efficient condition possible. Safety
is an obligation of the watercraft owner. The
most important points of watercraft inspec-
tion, adjustment and lubrication are
explained on the following pages.
See your Yamaha dealer for genuine
Yamaha replacement parts and optional
accessories designed for your watercraft.
Remember that failures that are the result
of the installation of parts or accessories
which are not qualitatively equivalent to gen-
uine Yamaha parts are not covered by the
limited warranty.
WARNING@
Be sure to turn off the engine when
you perform maintenance unless oth-
erwise specified, otherwise an acci-
dent or injury could result from
unexpected operation, moving parts,
or electric shock. If the owner is not
familiar with watercraft servicing, this
work should be done by a Yamaha
dealer. Improperly serviced compo-
nents could fail or stop operating cor-
rectly, which could result in an
accident.

Modifications to this watercraft not
approved by Yamaha may cause loss
of performance or excessive noise, or
render it unsafe for use. Consult a
Yamaha dealer before attempting any
changes.
@
UF1N73.book Page 7 Monday, May 10, 2004 10:37 AM

4-8
E
EJU01301

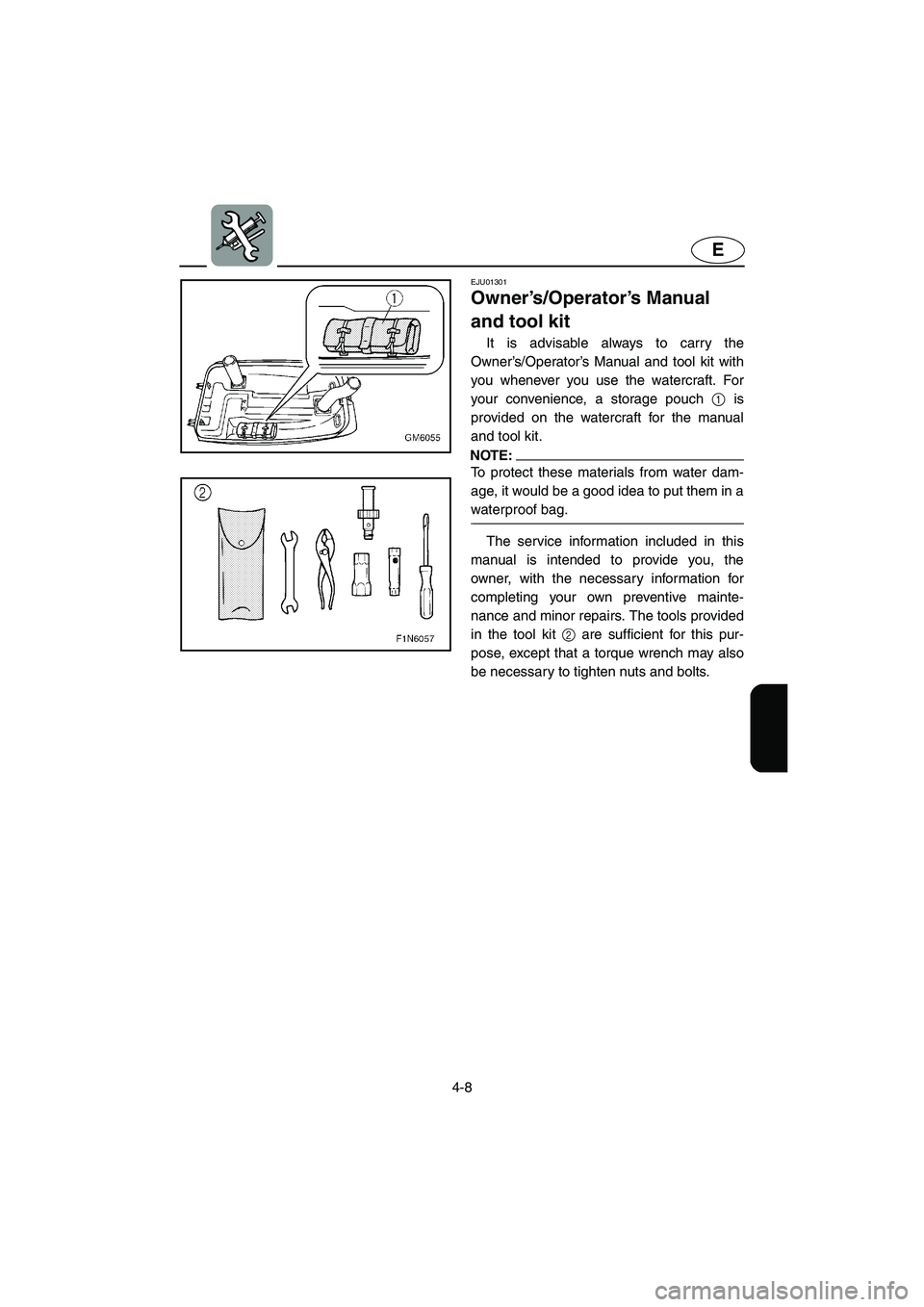

Owner’s/Operator’s Manual
and tool kit
It is advisable always to carry the
Owner’s/Operator’s Manual and tool kit with
you whenever you use the watercraft. For
your convenience, a storage pouch 1 is
provided on the watercraft for the manual
and tool kit.
NOTE:@ To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
@
The service information included in this
manual is intended to provide you, the
owner, with the necessary information for
completing your own preventive mainte-
nance and minor repairs. The tools provided
in the tool kit 2 are sufficient for this pur-
pose, except that a torque wrench may also
be necessary to tighten nuts and bolts.
UF1N73.book Page 8 Monday, May 10, 2004 10:37 AM

4-9
E
EJU01355

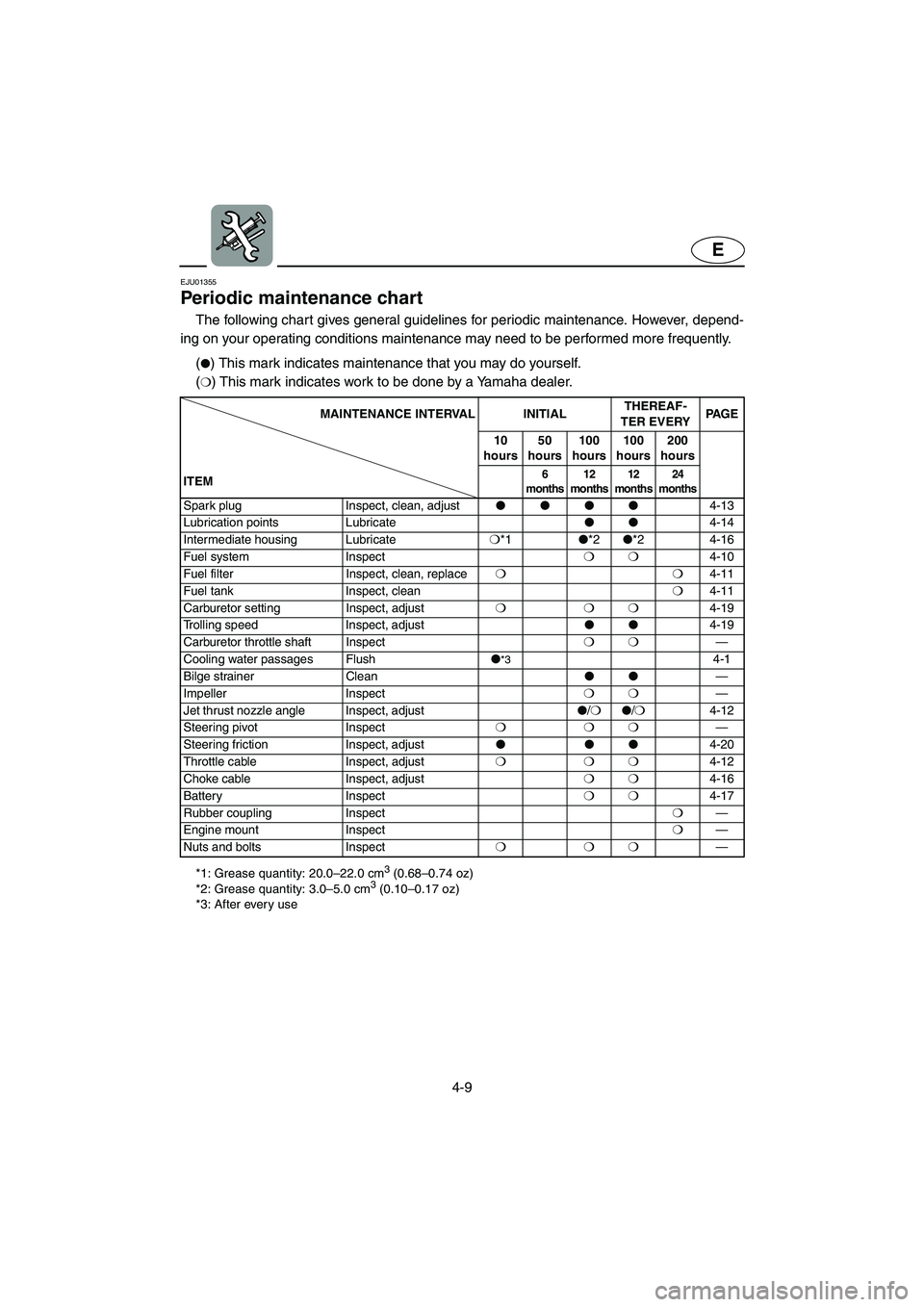

Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
*1: Grease quantity: 20.0–22.0 cm3 (0.68–0.74 oz)
*2: Grease quantity: 3.0–5.0 cm3 (0.10–0.17 oz)
*3: After every use
(
) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
MAINTENANCE INTERVAL INITIALTHEREAF-
TER EVERYPA G E
10
hours50
hours100
hours 100
hours 200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust




4-13
Lubrication points Lubricate


4-14
Intermediate housing Lubricate❍
*1

*2

*2 4-16
Fuel system Inspect❍❍
4-10
Fuel filter Inspect, clean, replace❍❍
4-11
Fuel tank Inspect, clean❍
4-11
Carburetor setting Inspect, adjust❍❍❍
4-19
Trolling speed Inspect, adjust


4-19
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush

*34-1
Bilge strainer Clean


—
Impeller Inspect❍❍
—
Jet thrust nozzle angle Inspect, adjust

/❍

/❍
4-12
Steering pivot Inspect❍❍❍
—
Steering friction Inspect, adjust



4-20
Throttle cable Inspect, adjust❍❍❍
4-12
Choke cable Inspect, adjust ❍❍
4-16
Battery Inspect❍❍
4-17
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
UF1N73.book Page 9 Monday, May 10, 2004 10:37 AM

4-10
E
EJU01383

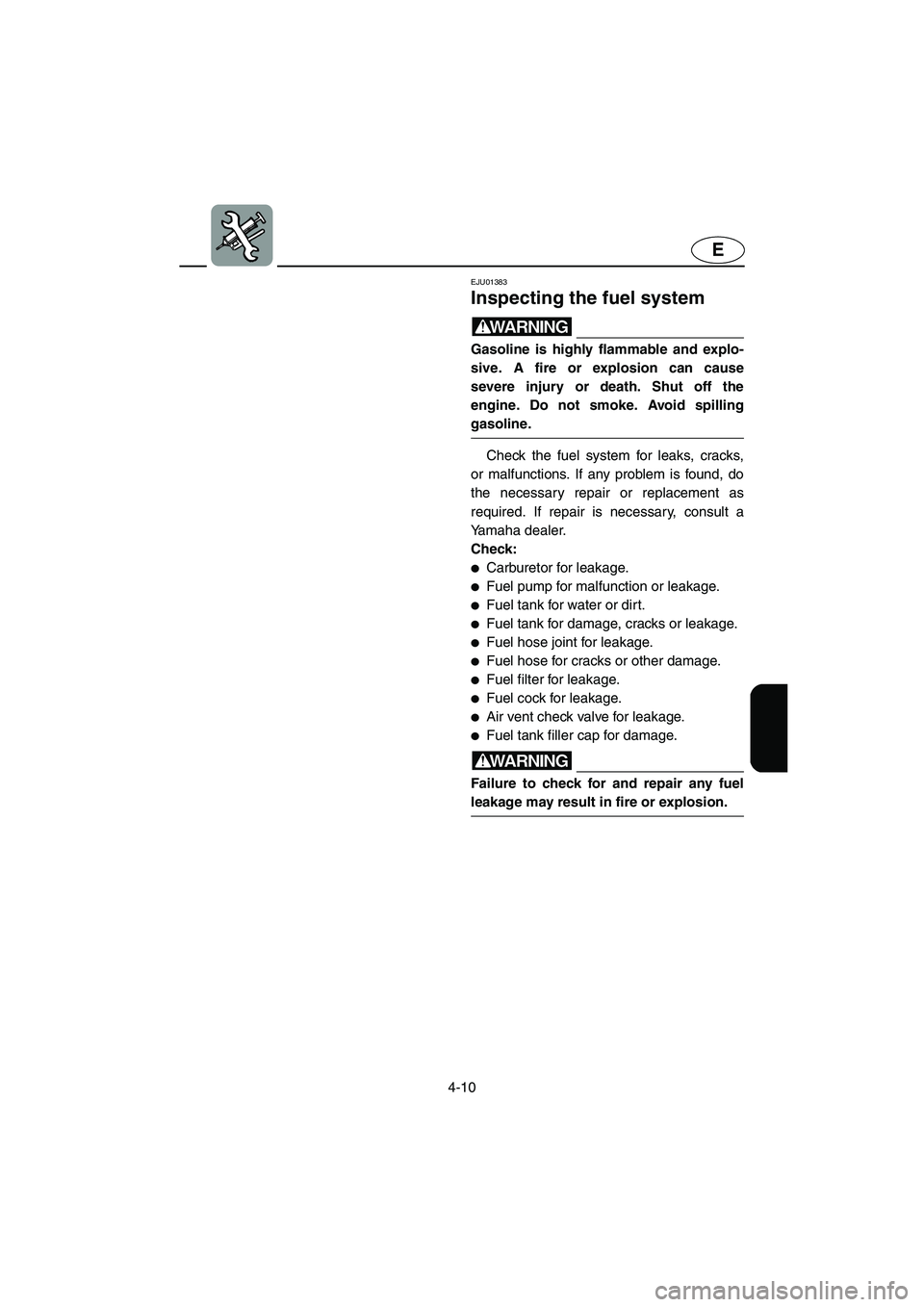

Inspecting the fuel system
WARNING@ Gasoline is highly flammable and explo-
sive. A fire or explosion can cause
severe injury or death. Shut off the
engine. Do not smoke. Avoid spilling
gasoline.
@
Check the fuel system for leaks, cracks,
or malfunctions. If any problem is found, do
the necessary repair or replacement as
required. If repair is necessary, consult a
Yamaha dealer.
Check:

Carburetor for leakage.

Fuel pump for malfunction or leakage.

Fuel tank for water or dirt.

Fuel tank for damage, cracks or leakage.

Fuel hose joint for leakage.

Fuel hose for cracks or other damage.

Fuel filter for leakage.

Fuel cock for leakage.

Air vent check valve for leakage.

Fuel tank filler cap for damage.
WARNING@ Failure to check for and repair any fuel
leakage may result in fire or explosion.
@
UF1N73.book Page 10 Monday, May 10, 2004 10:37 AM

4-11
E
EJU01953

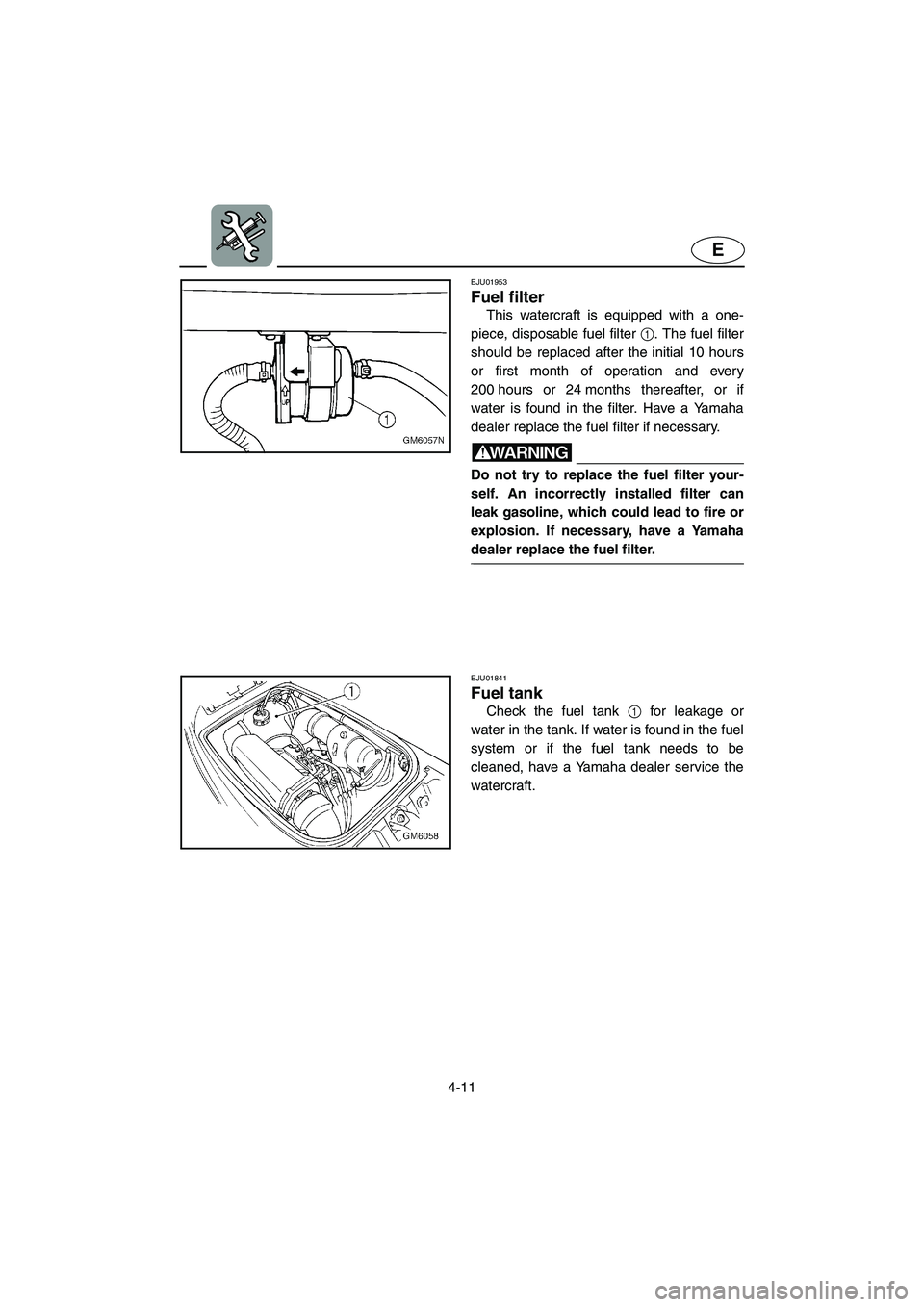

Fuel filter
This watercraft is equipped with a one-
piece, disposable fuel filter 1. The fuel filter
should be replaced after the initial 10 hours
or first month of operation and every
200 hours or 24 months thereafter, or if
water is found in the filter. Have a Yamaha
dealer replace the fuel filter if necessary.
WARNING@ Do not try to replace the fuel filter your-
self. An incorrectly installed filter can
leak gasoline, which could lead to fire or
explosion. If necessary, have a Yamaha
dealer replace the fuel filter.
@
EJU01841
Fuel tank
Check the fuel tank 1 for leakage or
water in the tank. If water is found in the fuel
system or if the fuel tank needs to be
cleaned, have a Yamaha dealer service the
watercraft.
UF1N73.book Page 11 Monday, May 10, 2004 10:37 AM
