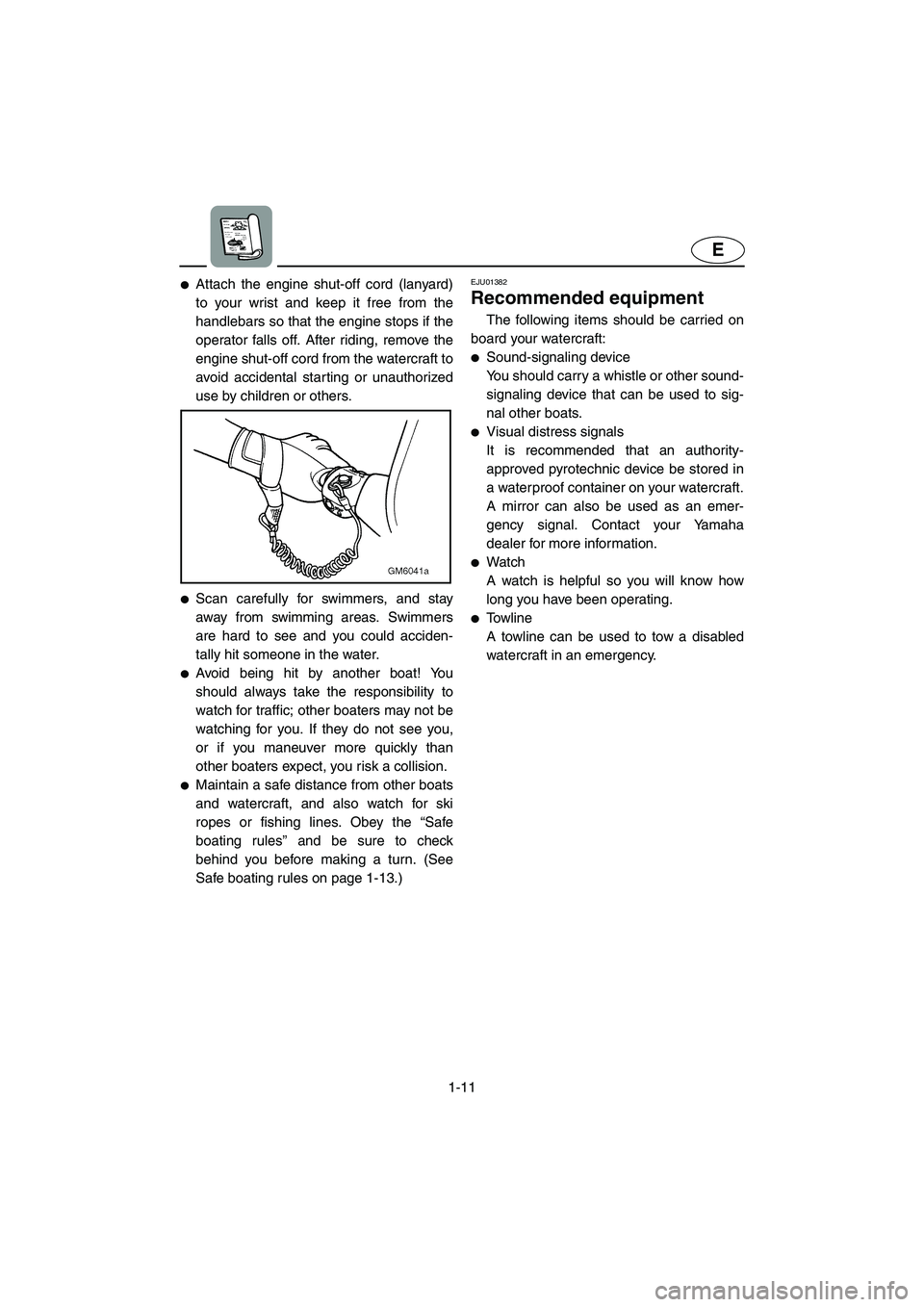

1-11
E

Attach the engine shut-off cord (lanyard)
to your wrist and keep it free from the
handlebars so that the engine stops if the
operator falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.

Scan carefully for swimmers, and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.

Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or if you maneuver more quickly than
other boaters expect, you risk a collision.

Maintain a safe distance from other boats
and watercraft, and also watch for ski
ropes or fishing lines. Obey the “Safe
boating rules” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-13.)
EJU01382
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.

Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.

Watch
A watch is helpful so you will know how
long you have been operating.

Towline
A towline can be used to tow a disabled
watercraft in an emergency.
E_F1N-70.book Page 11 Tuesday, April 26, 2005 12:03 PM

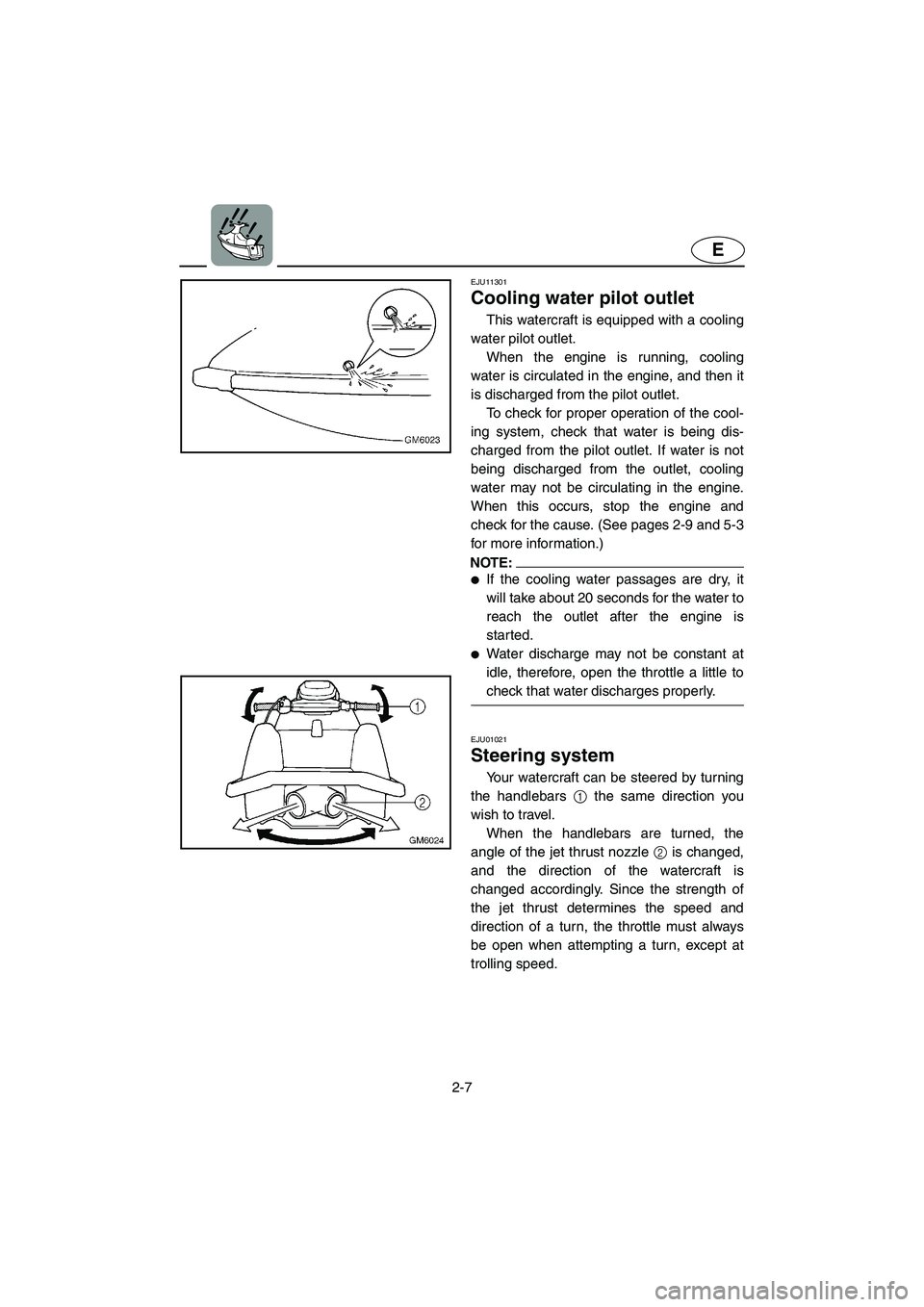

2-7
E
EJU11301
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlet.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlet.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlet. If water is not
being discharged from the outlet, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and
check for the cause. (See pages 2-9 and 5-3
for more information.)
NOTE:@
If the cooling water passages are dry, it
will take about 20 seconds for the water to
reach the outlet after the engine is
started.

Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.
@
EJU01021
Steering system
Your watercraft can be steered by turning
the handlebars 1 the same direction you
wish to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed,
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
direction of a turn, the throttle must always
be open when attempting a turn, except at
trolling speed.
E_F1N-70.book Page 7 Tuesday, April 26, 2005 12:03 PM

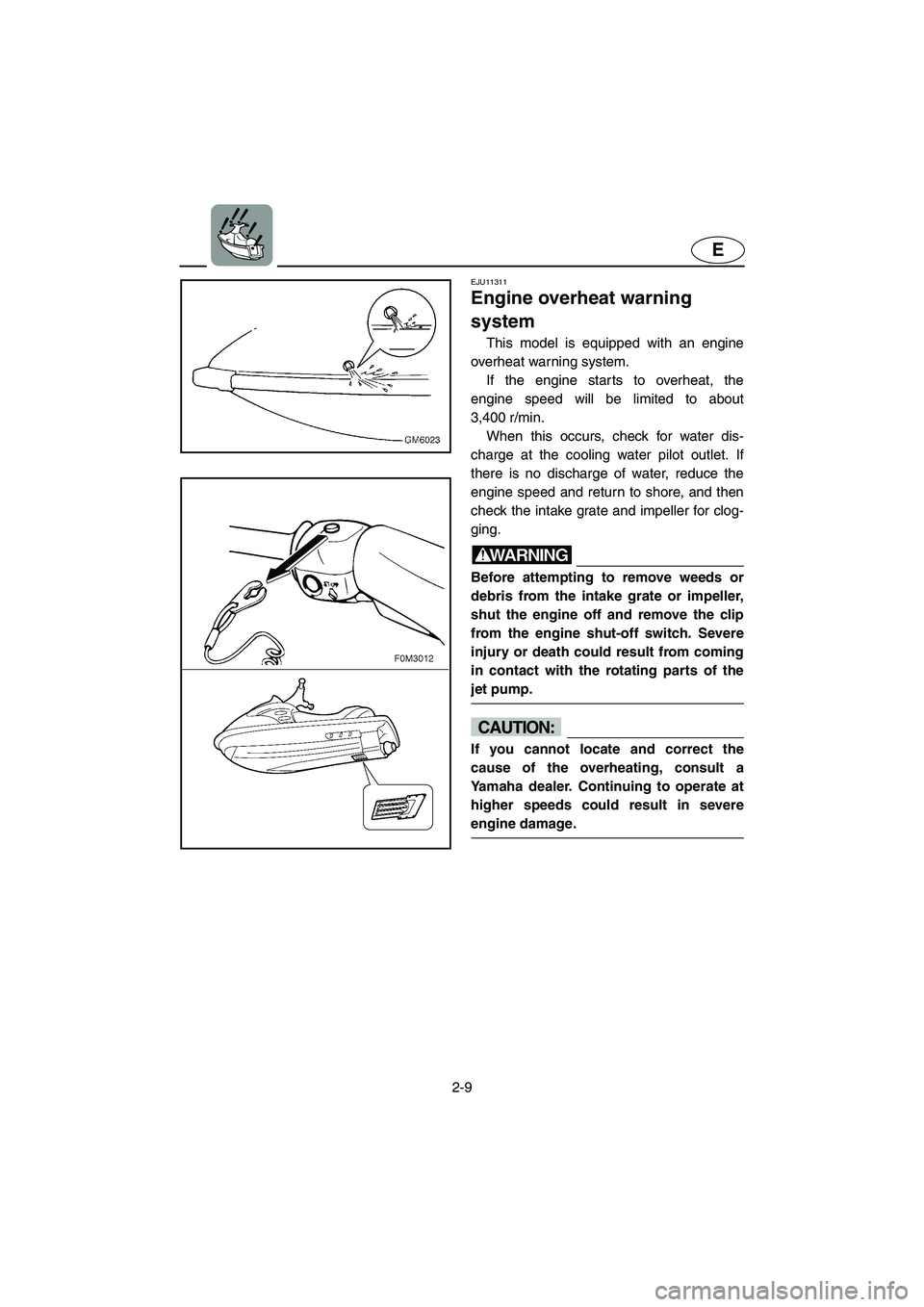

2-9
E
EJU11311
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the
engine speed will be limited to about
3,400 r/min.
When this occurs, check for water dis-
charge at the cooling water pilot outlet. If
there is no discharge of water, reduce the
engine speed and return to shore, and then
check the intake grate and impeller for clog-
ging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@ If you cannot locate and correct the
cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe
engine damage.
@
E_F1N-70.book Page 9 Tuesday, April 26, 2005 12:03 PM

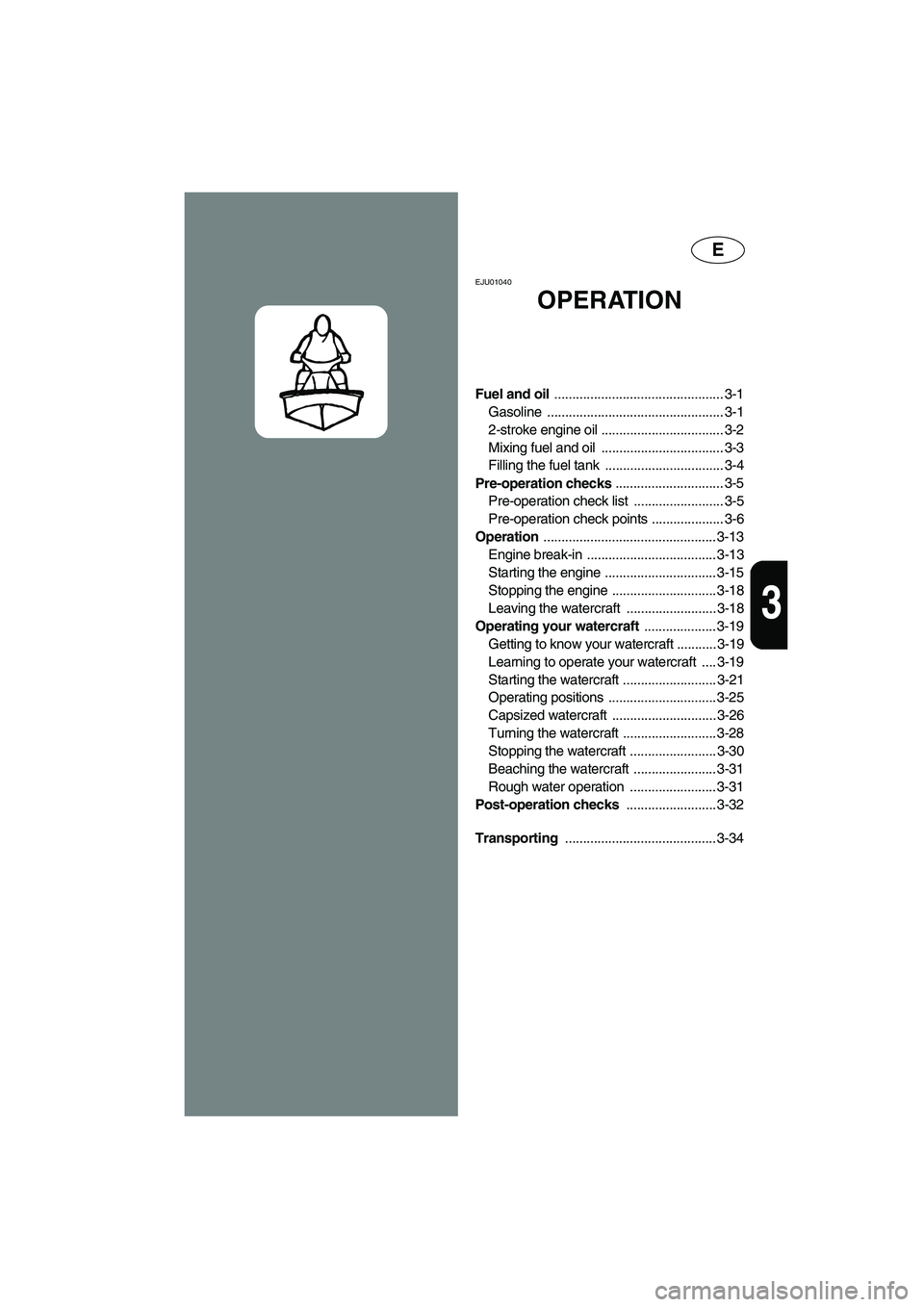

E
3
EJU01040
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
2-stroke engine oil .................................. 3-2
Mixing fuel and oil .................................. 3-3
Filling the fuel tank ................................. 3-4
Pre-operation checks .............................. 3-5
Pre-operation check list ......................... 3-5
Pre-operation check points .................... 3-6
Operation ................................................ 3-13
Engine break-in .................................... 3-13
Starting the engine ............................... 3-15
Stopping the engine ............................. 3-18
Leaving the watercraft ......................... 3-18
Operating your watercraft .................... 3-19
Getting to know your watercraft ........... 3-19
Learning to operate your watercraft .... 3-19
Starting the watercraft .......................... 3-21
Operating positions .............................. 3-25
Capsized watercraft ............................. 3-26
Turning the watercraft .......................... 3-28
Stopping the watercraft ........................ 3-30
Beaching the watercraft ....................... 3-31
Rough water operation ........................ 3-31
Post-operation checks ......................... 3-32
Transporting .......................................... 3-34
E_F1N-70.book Page 1 Tuesday, April 26, 2005 12:03 PM

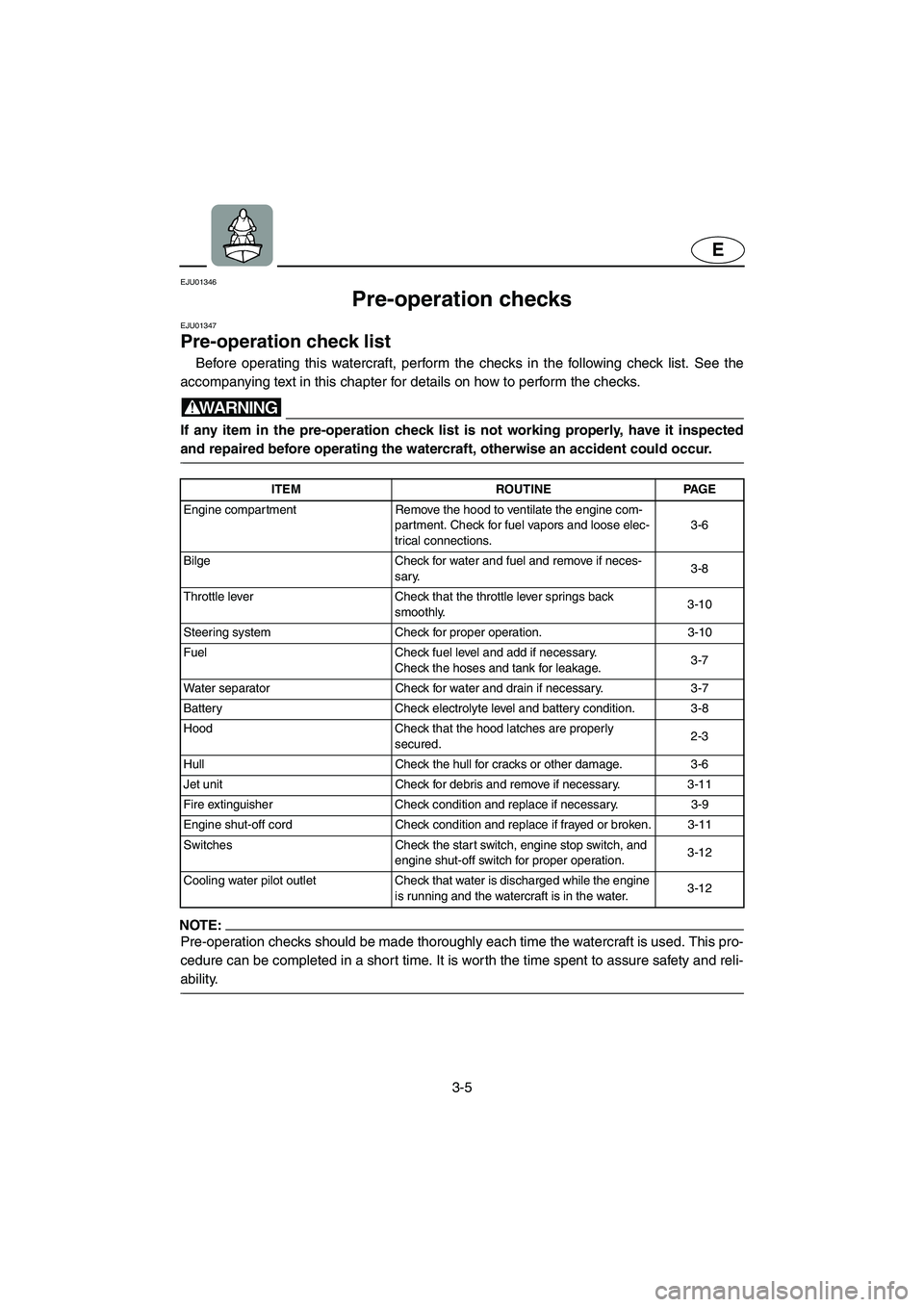

3-5
E
EJU01346
Pre-operation checks
EJU01347
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compar tment Remove the hood to ventilate the engine com-
partment. Check for fuel vapors and loose elec-
trical connections.3-6
Bilge Check for water and fuel and remove if neces-
sary.3-8
Throttle lever Check that the throttle lever springs back
smoothly.3-10
Steering system Check for proper operation. 3-10
Fuel Check fuel level and add if necessary.
Check the hoses and tank for leakage.3-7
Water separator Check for water and drain if necessary. 3-7
Battery Check electrolyte level and battery condition. 3-8
Hood Check that the hood latches are properly
secured.2-3
Hull Check the hull for cracks or other damage. 3-6
Jet unit Check for debris and remove if necessary. 3-11
Fire extinguisher Check condition and replace if necessary. 3-9
Engine shut-off cord Check condition and replace if frayed or broken. 3-11
Switches Check the start switch, engine stop switch, and
engine shut-off switch for proper operation.3-12
Cooling water pilot outlet Check that water is discharged while the engine
is running and the watercraft is in the water.3-12
E_F1N-70.book Page 5 Tuesday, April 26, 2005 12:03 PM

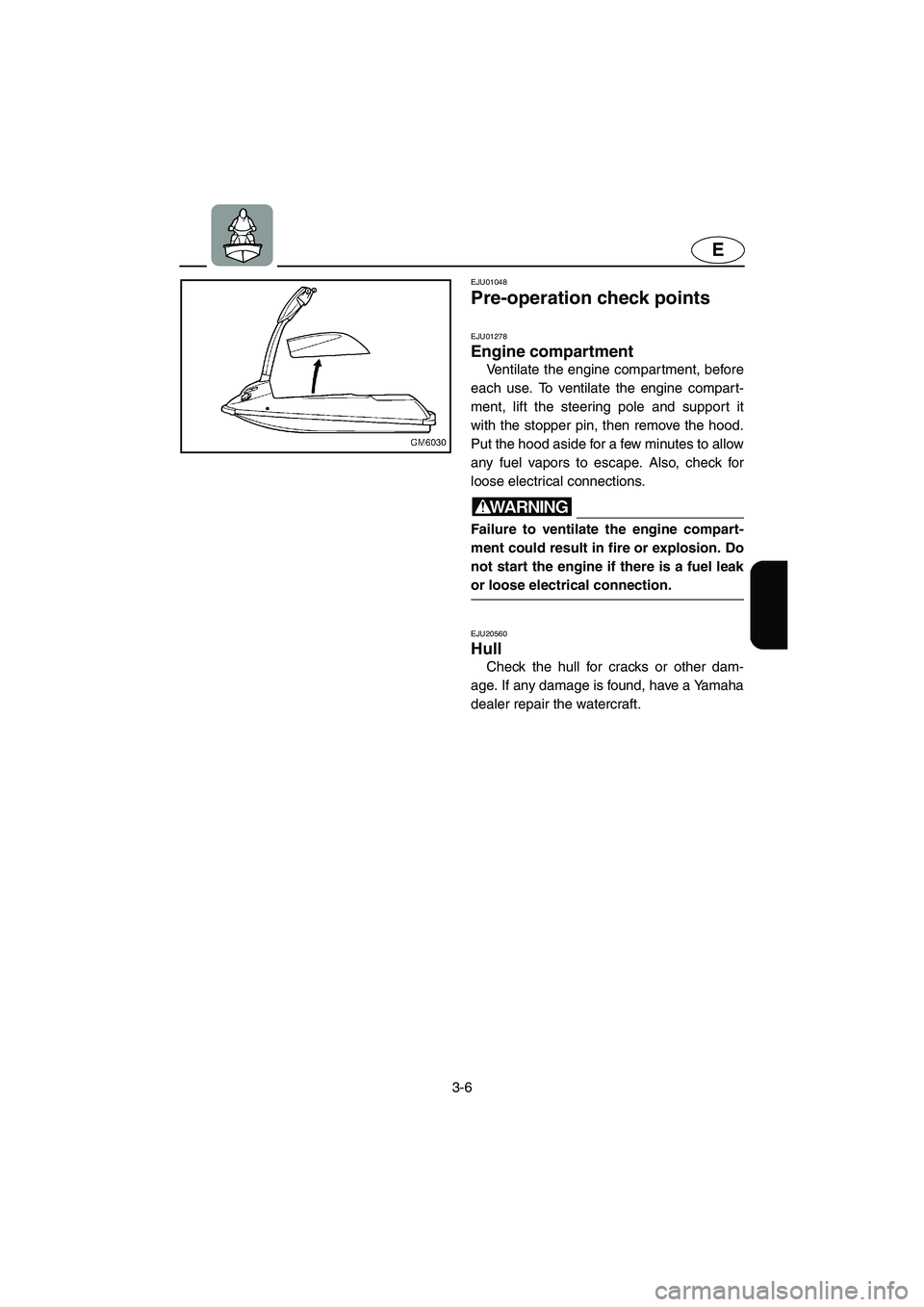

3-6
E
EJU01048
Pre-operation check points
EJU01278
Engine compartment
Ventilate the engine compartment, before
each use. To ventilate the engine compart-
ment, lift the steering pole and support it
with the stopper pin, then remove the hood.
Put the hood aside for a few minutes to allow
any fuel vapors to escape. Also, check for
loose electrical connections.
WARNING@ Failure to ventilate the engine compart-
ment could result in fire or explosion. Do
not start the engine if there is a fuel leak
or loose electrical connection.
@
EJU20560
Hull
Check the hull for cracks or other dam-
age. If any damage is found, have a Yamaha
dealer repair the watercraft.
E_F1N-70.book Page 6 Tuesday, April 26, 2005 12:03 PM

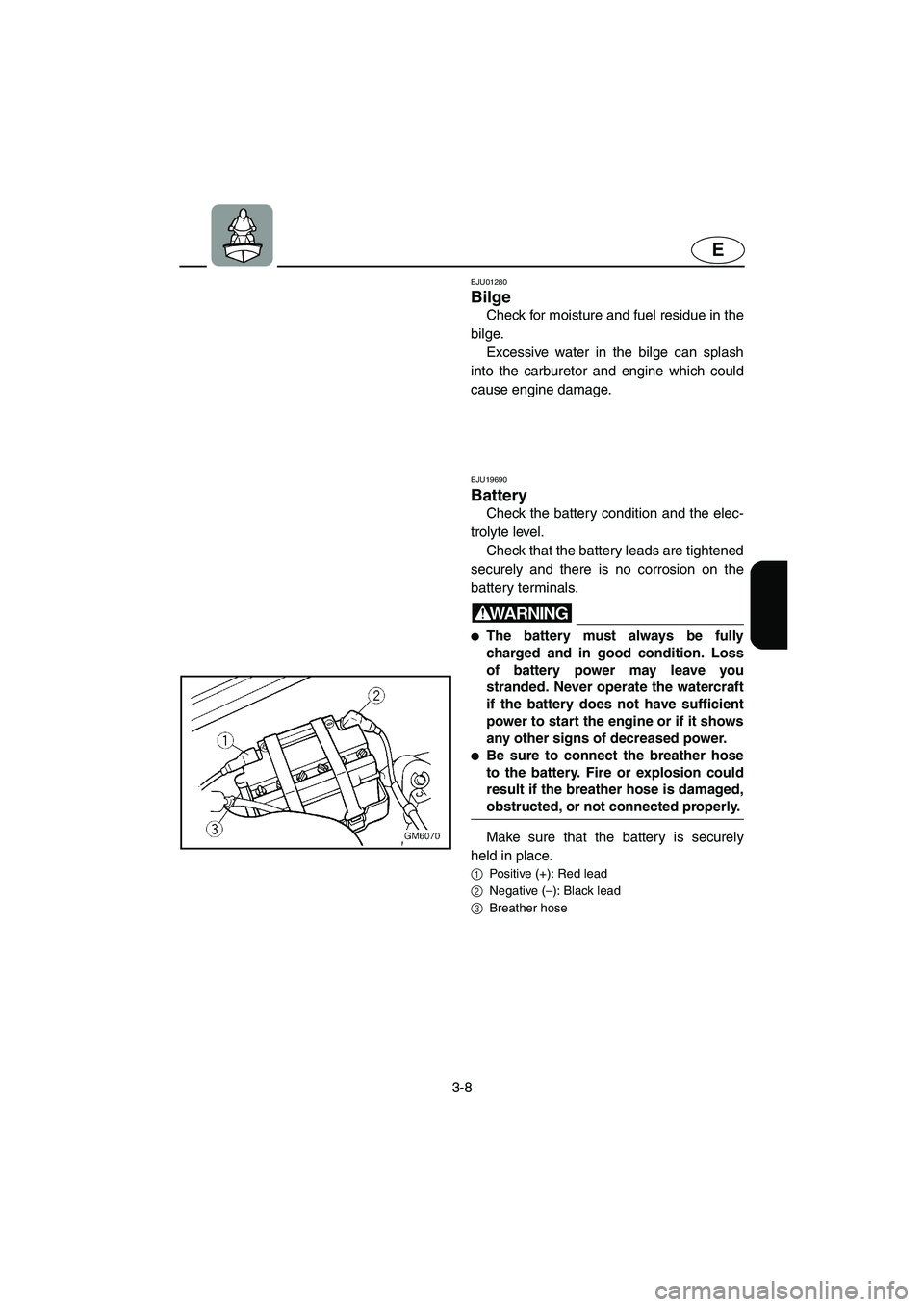

3-8
E
EJU01280
Bilge
Check for moisture and fuel residue in the
bilge.
Excessive water in the bilge can splash
into the carburetor and engine which could
cause engine damage.
EJU19690
Battery
Check the battery condition and the elec-
trolyte level.
Check that the battery leads are tightened
securely and there is no corrosion on the
battery terminals.
WARNING@
The battery must always be fully
charged and in good condition. Loss
of battery power may leave you
stranded. Never operate the watercraft
if the battery does not have sufficient
power to start the engine or if it shows
any other signs of decreased power.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
Make sure that the battery is securely
held in place.
1
Positive (+): Red lead
2
Negative (–): Black lead
3
Breather hose
E_F1N-70.book Page 8 Tuesday, April 26, 2005 12:03 PM

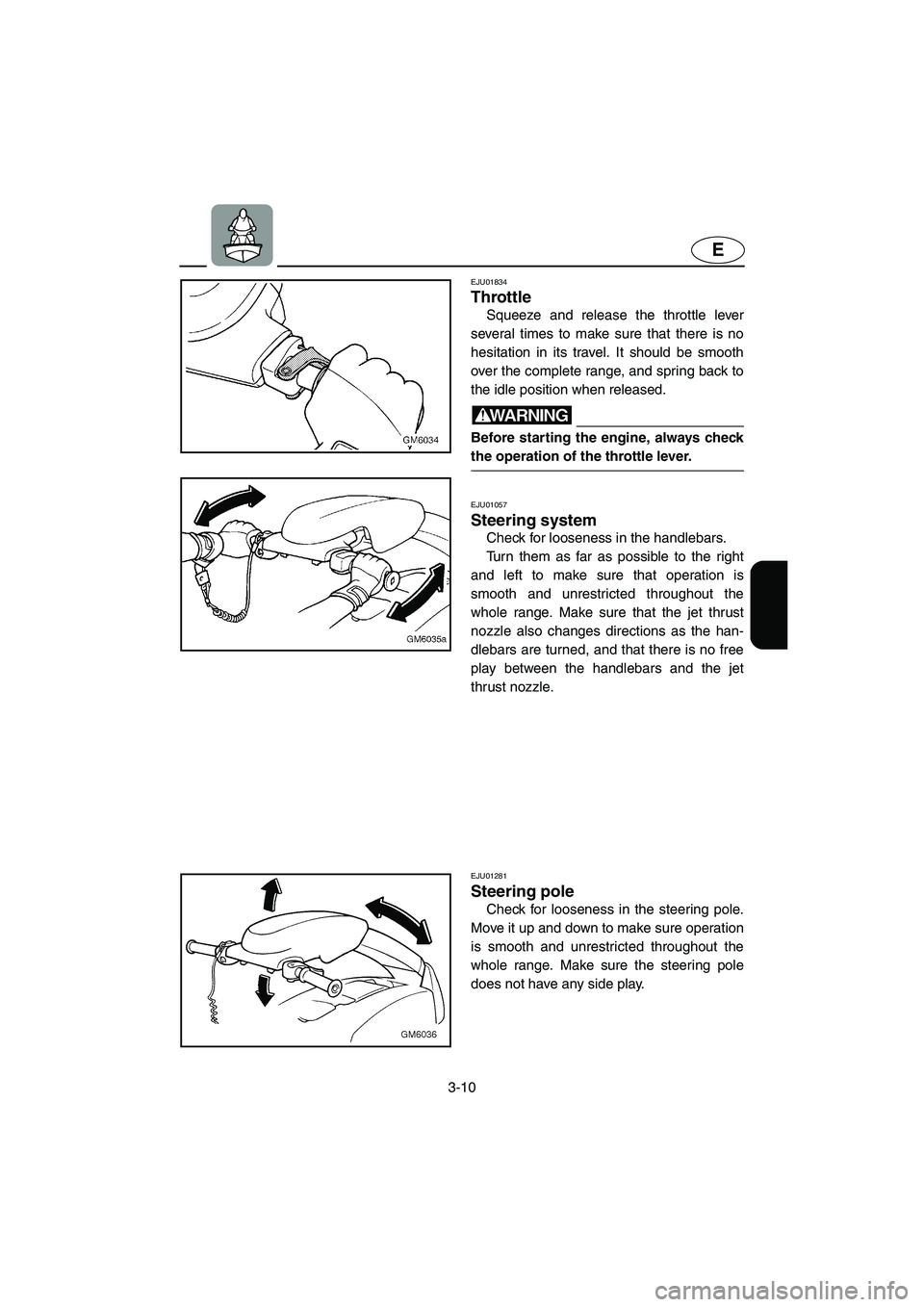

3-10
E
EJU01834
Throttle
Squeeze and release the throttle lever
several times to make sure that there is no
hesitation in its travel. It should be smooth
over the complete range, and spring back to
the idle position when released.
WARNING@ Before starting the engine, always check
the operation of the throttle lever.
@
EJU01057
Steering system
Check for looseness in the handlebars.
Turn them as far as possible to the right
and left to make sure that operation is
smooth and unrestricted throughout the
whole range. Make sure that the jet thrust
nozzle also changes directions as the han-
dlebars are turned, and that there is no free
play between the handlebars and the jet
thrust nozzle.
EJU01281
Steering pole
Check for looseness in the steering pole.
Move it up and down to make sure operation
is smooth and unrestricted throughout the
whole range. Make sure the steering pole
does not have any side play.
E_F1N-70.book Page 10 Tuesday, April 26, 2005 12:03 PM

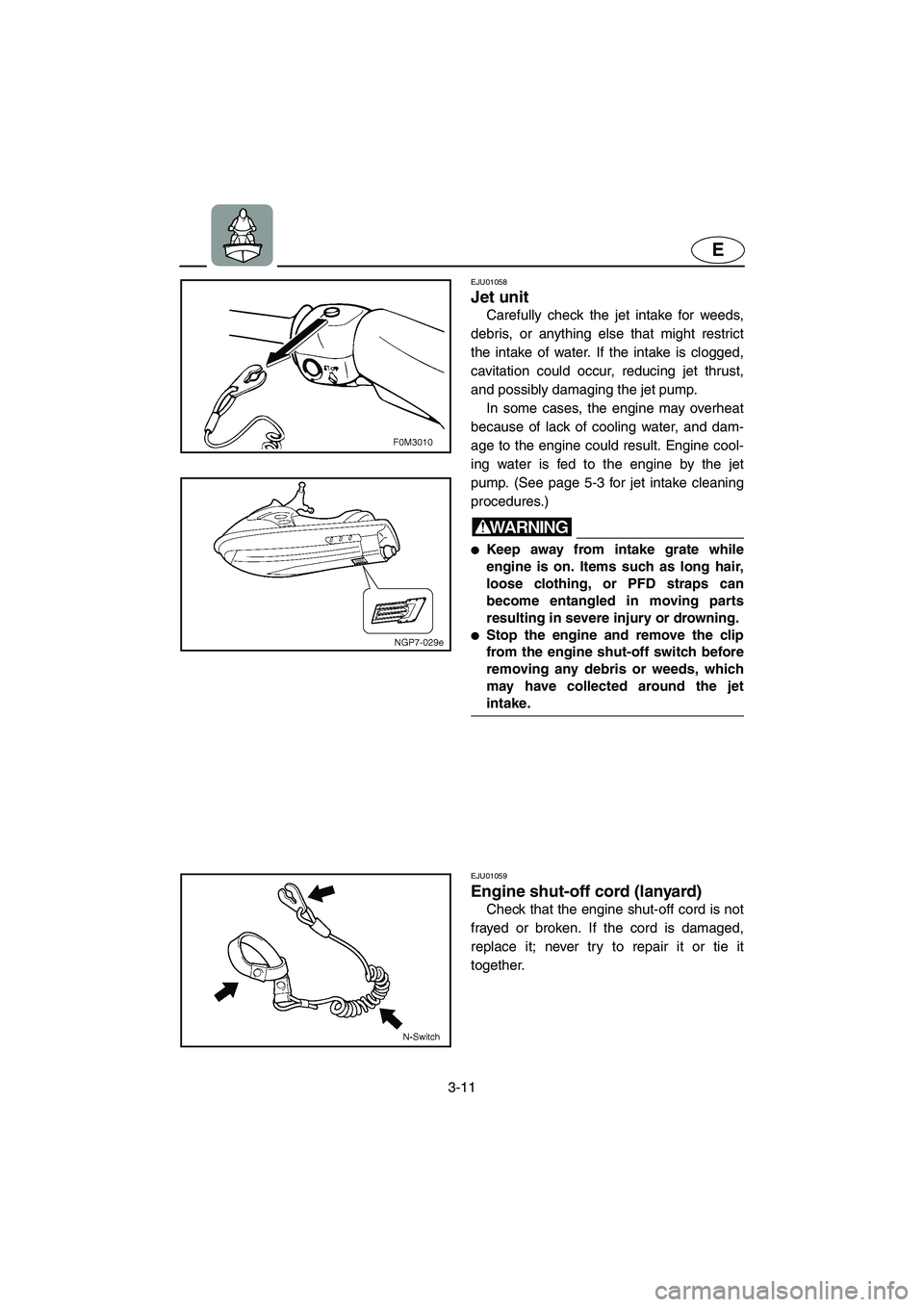

3-11
E
EJU01058
Jet unit
Carefully check the jet intake for weeds,
debris, or anything else that might restrict
the intake of water. If the intake is clogged,
cavitation could occur, reducing jet thrust,
and possibly damaging the jet pump.
In some cases, the engine may overheat
because of lack of cooling water, and dam-
age to the engine could result. Engine cool-
ing water is fed to the engine by the jet
pump. (See page 5-3 for jet intake cleaning
procedures.)
WARNING@
Keep away from intake grate while
engine is on. Items such as long hair,
loose clothing, or PFD straps can
become entangled in moving parts
resulting in severe injury or drowning.

Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet
intake.
@
EJU01059
Engine shut-off cord (lanyard)
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged,
replace it; never try to repair it or tie it
together.
E_F1N-70.book Page 11 Tuesday, April 26, 2005 12:03 PM

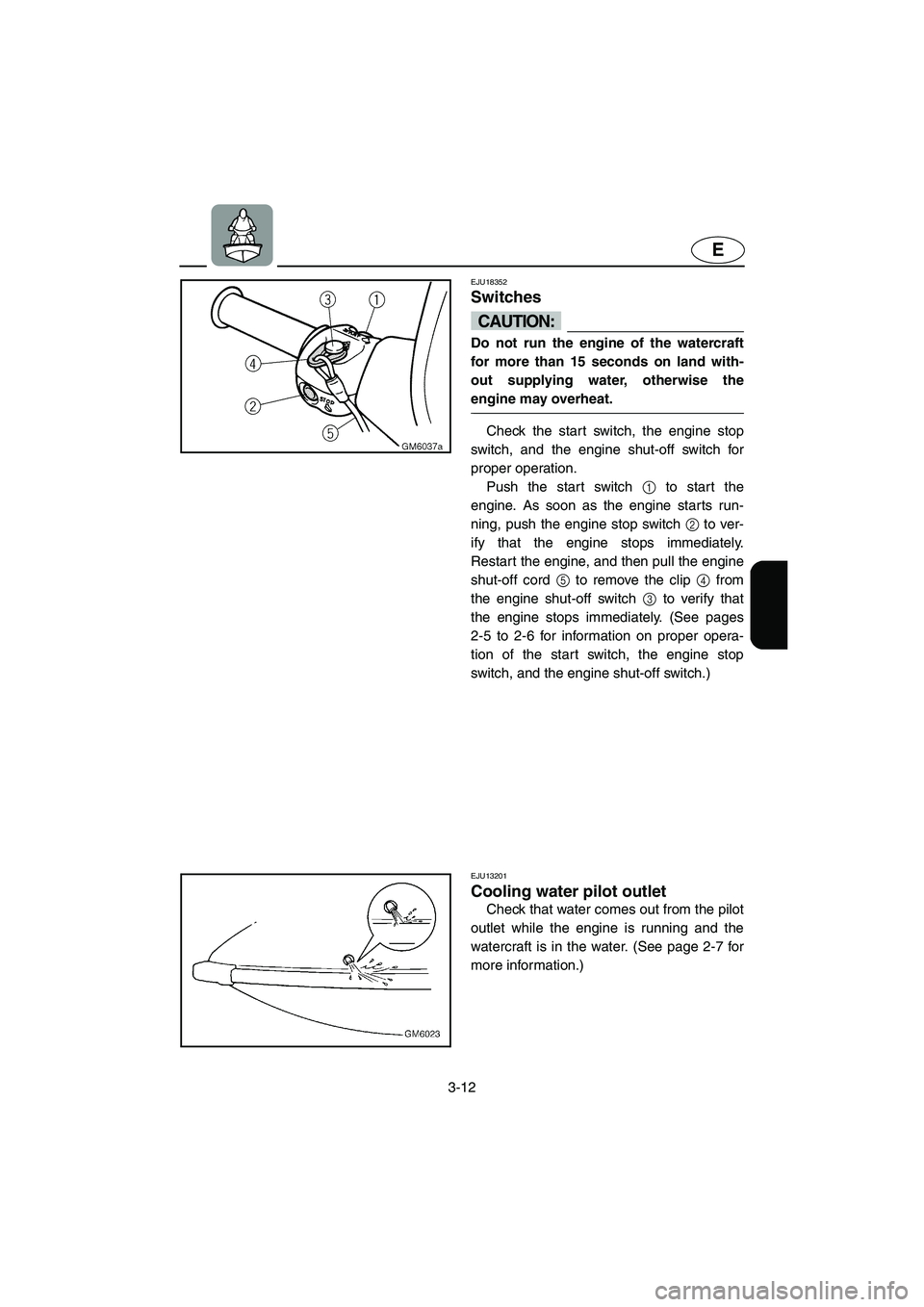

3-12
E
EJU18352
Switches
CAUTION:@ Do not run the engine of the watercraft
for more than 15 seconds on land with-
out supplying water, otherwise the
engine may overheat.
@
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch 1 to start the
engine. As soon as the engine starts run-
ning, push the engine stop switch 2 to ver-
ify that the engine stops immediately.
Restart the engine, and then pull the engine
shut-off cord 5 to remove the clip 4 from
the engine shut-off switch 3 to verify that
the engine stops immediately. (See pages
2-5 to 2-6 for information on proper opera-
tion of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU13201
Cooling water pilot outlet
Check that water comes out from the pilot
outlet while the engine is running and the
watercraft is in the water. (See page 2-7 for
more information.)
E_F1N-70.book Page 12 Tuesday, April 26, 2005 12:03 PM
