YAMAHA SUV 1200 2003 Owners Manual

4-8
E
EJU01875

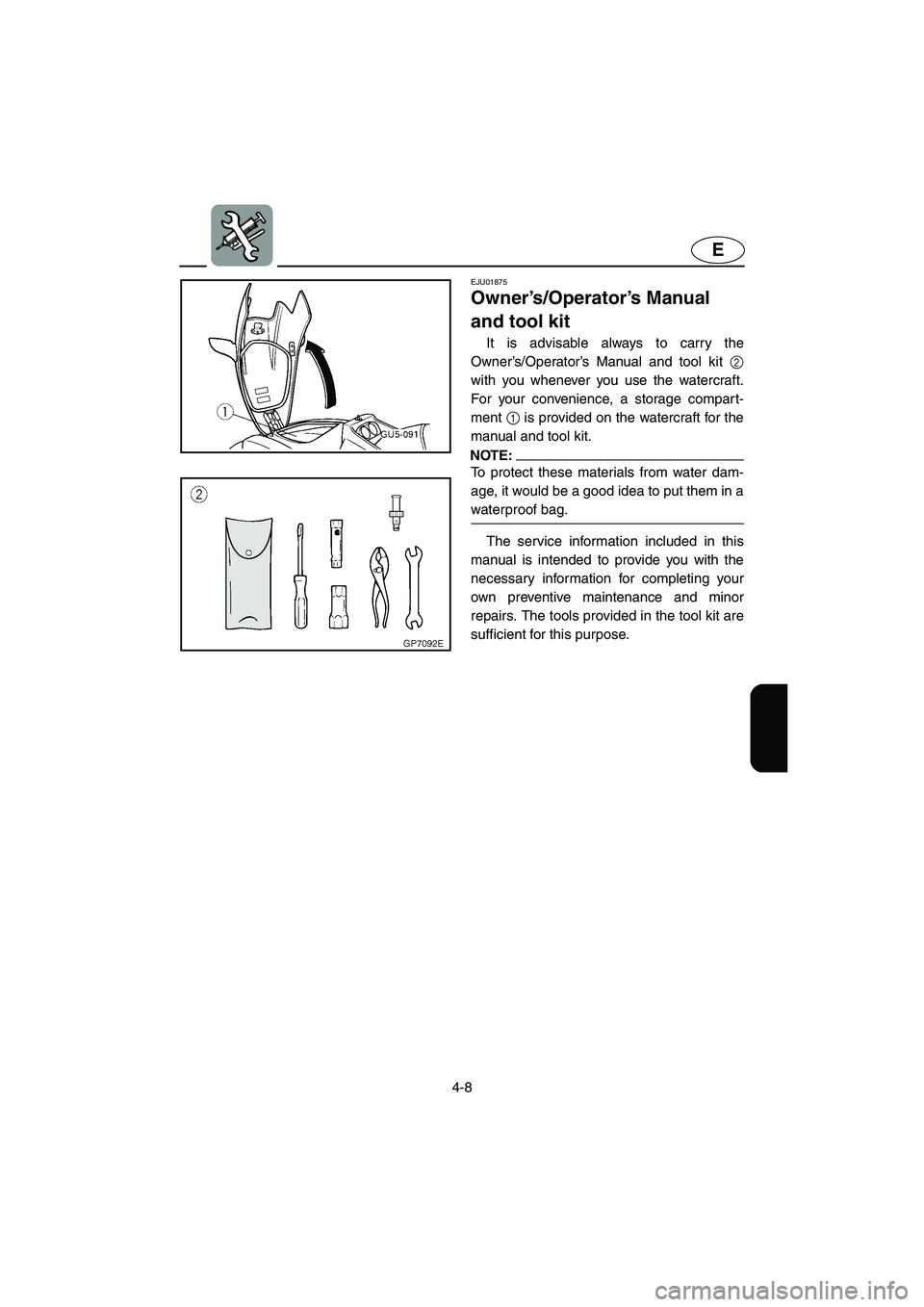

Owner’s/Operator’s Manual
and tool kit
It is advisable always to carry the
Owner’s/Operator’s Manual and tool kit 2
with you whenever you use the watercraft.
For your convenience, a storage compart-
ment 1 is provided on the watercraft for the
manual and tool kit.
NOTE:@ To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
@
The service information included in this
manual is intended to provide you with the
necessary information for completing your
own preventive maintenance and minor
repairs. The tools provided in the tool kit are
sufficient for this purpose.
UGU572.book Page 8 Wednesday, August 28, 2002 1:31 PM

4-9
E
EJU01355
Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
(

) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
*1: Grease capacity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease capacity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: Grease capacity: 8.0 cm3 (0.27 oz)
*4: Grease capacity: 2.0 cm3 (0.07 oz)
*5: After every use
*6: Before every use
*7: Inspect fluid level before every use
MAINTENANCE INTERVAL
INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust




4-15
Lubrication points Lubricate


4-16
Intermediate housing Lubricate❍
*1

*2

*2 4-19
Starter motor idle gear Lubricate❍
*3

*4

*4 4-19
Fuel system Inspect❍❍
4-10
Fuel filter Check, clean, replace❍❍
4-11
Fuel tank Clean❍
4-11
Oil injection system Inspect, clean❍❍
—
Carburetor setting Inspect, adjust❍❍❍
4-22
Trolling speed Inspect, adjust


4-22
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush

*5 4-1
Water inlet strainer Inspect, clean❍❍
—
Bilge strainer Clean


—
Impeller Inspect

*6❍❍
5-4
Jet thrust nozzle angle Inspect


4-13
Steering master Inspect❍❍❍
—
QSTS mechanism Inspect

*6❍❍
4-14
Shift cable and mechanism Inspect, adjust

*6❍❍
4-13
Throttle lever Check operation

*6 4-13
Throttle cable Inspect, adjust


4-13
Choke knob Check operation

*6 4-19
Choke cable Inspect, adjust❍❍
4-19
Stern drain plugs Inspect, replace

*6❍❍
3-7
Battery Inspect

*7❍❍
4-20
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
UGU572.book Page 9 Wednesday, August 28, 2002 1:31 PM

4-10
E
EJU01383

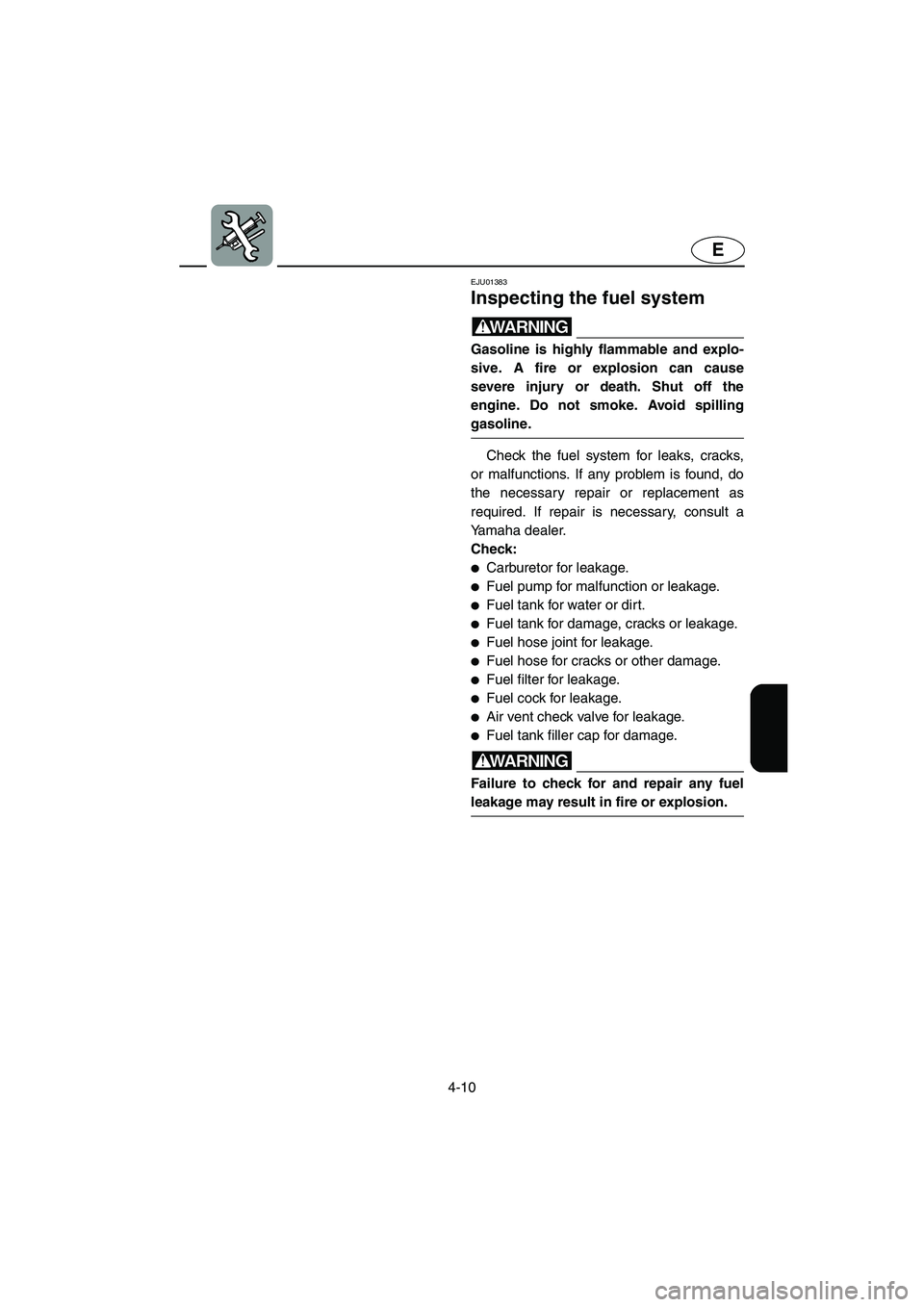

Inspecting the fuel system
WARNING@ Gasoline is highly flammable and explo-
sive. A fire or explosion can cause
severe injury or death. Shut off the
engine. Do not smoke. Avoid spilling
gasoline.
@
Check the fuel system for leaks, cracks,
or malfunctions. If any problem is found, do
the necessary repair or replacement as
required. If repair is necessary, consult a
Yamaha dealer.
Check:

Carburetor for leakage.

Fuel pump for malfunction or leakage.

Fuel tank for water or dirt.

Fuel tank for damage, cracks or leakage.

Fuel hose joint for leakage.

Fuel hose for cracks or other damage.

Fuel filter for leakage.

Fuel cock for leakage.

Air vent check valve for leakage.

Fuel tank filler cap for damage.
WARNING@ Failure to check for and repair any fuel
leakage may result in fire or explosion.
@
UGU572.book Page 10 Wednesday, August 28, 2002 1:31 PM

4-11
E
EJU01953

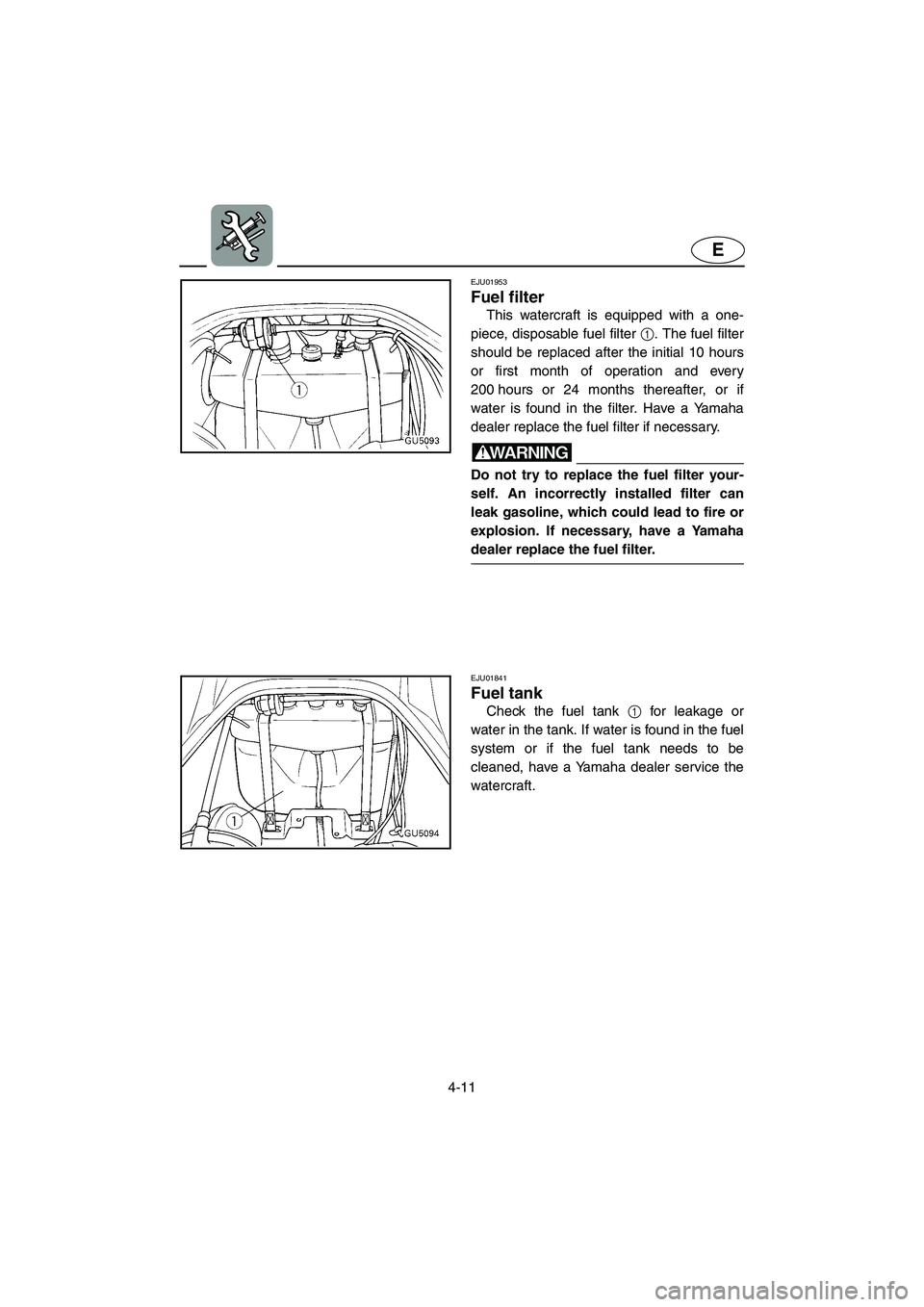

Fuel filter
This watercraft is equipped with a one-
piece, disposable fuel filter 1. The fuel filter
should be replaced after the initial 10 hours
or first month of operation and every
200 hours or 24 months thereafter, or if
water is found in the filter. Have a Yamaha
dealer replace the fuel filter if necessary.
WARNING@ Do not try to replace the fuel filter your-
self. An incorrectly installed filter can
leak gasoline, which could lead to fire or
explosion. If necessary, have a Yamaha
dealer replace the fuel filter.
@
EJU01841
Fuel tank
Check the fuel tank 1 for leakage or
water in the tank. If water is found in the fuel
system or if the fuel tank needs to be
cleaned, have a Yamaha dealer service the
watercraft.
UGU572.book Page 11 Wednesday, August 28, 2002 1:31 PM

4-12
E
EJU01100
Inspecting the oil injection
system
Check the oil injection system for leakage,
cracks, or malfunctions. If necessary, have a
Yamaha dealer repair the oil injection sys-
tem.
Check:

Oil tank for damage, cracks or leakage.

Oil tank for water or dirt.

Oil hose and joint for damage or cracks.

Oil filter for dirt.

Oil pump for leakage.
EJU01101
Oil tank
Check the oil tank for leakage or water in
the tank. If water is found in the oil injection
system or if the oil tank needs to be cleaned
have a Yamaha dealer service the water-
craft.
EJU01102
Oil filter
Check the oil filter 1 for dirt and clogs. If
the oil filter is clogged, remove it from the oil
tank together with the oil level sender and
clean it.
UGU572.book Page 12 Wednesday, August 28, 2002 1:31 PM

4-13
E
EJU01897
Inspecting the jet thrust nozzle
angle
Check for smooth operation of the handle-
bars and jet thrust nozzle.
Turn the handlebars as far as possible to
the right and left and check that the distance
between the jet thrust nozzle and the
bracket of the reverse gate are equal on
right and left sides.
If steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU01852
Inspecting the shift cable
Place the shift lever in the reverse posi-
tion.
Make sure that the reverse gate makes
contact with the stopper 1 on the bracket,
and that the arm 2 makes contact with the
reverse gate.
If the reverse gate does not reach the cor-
rect positions, have a Yamaha dealer ser-
vice it.
EJU01104
Inspecting and adjusting the
throttle cable
Check that the throttle cable moves back
to the set position smoothly and that free
play is within specification.
1. Squeeze and release the throttle lever. If
the lever does not return smoothly, have
a Yamaha dealer service it.
2. Adjust free play a by loosening the lock-
nut 1 and turning the adjuster 2. Distance A and B: A = B
Throttle lever free play:
4–7 mm (0.16–0.28 in)
UGU572.book Page 13 Wednesday, August 28, 2002 1:31 PM

4-14
E
EJU01842

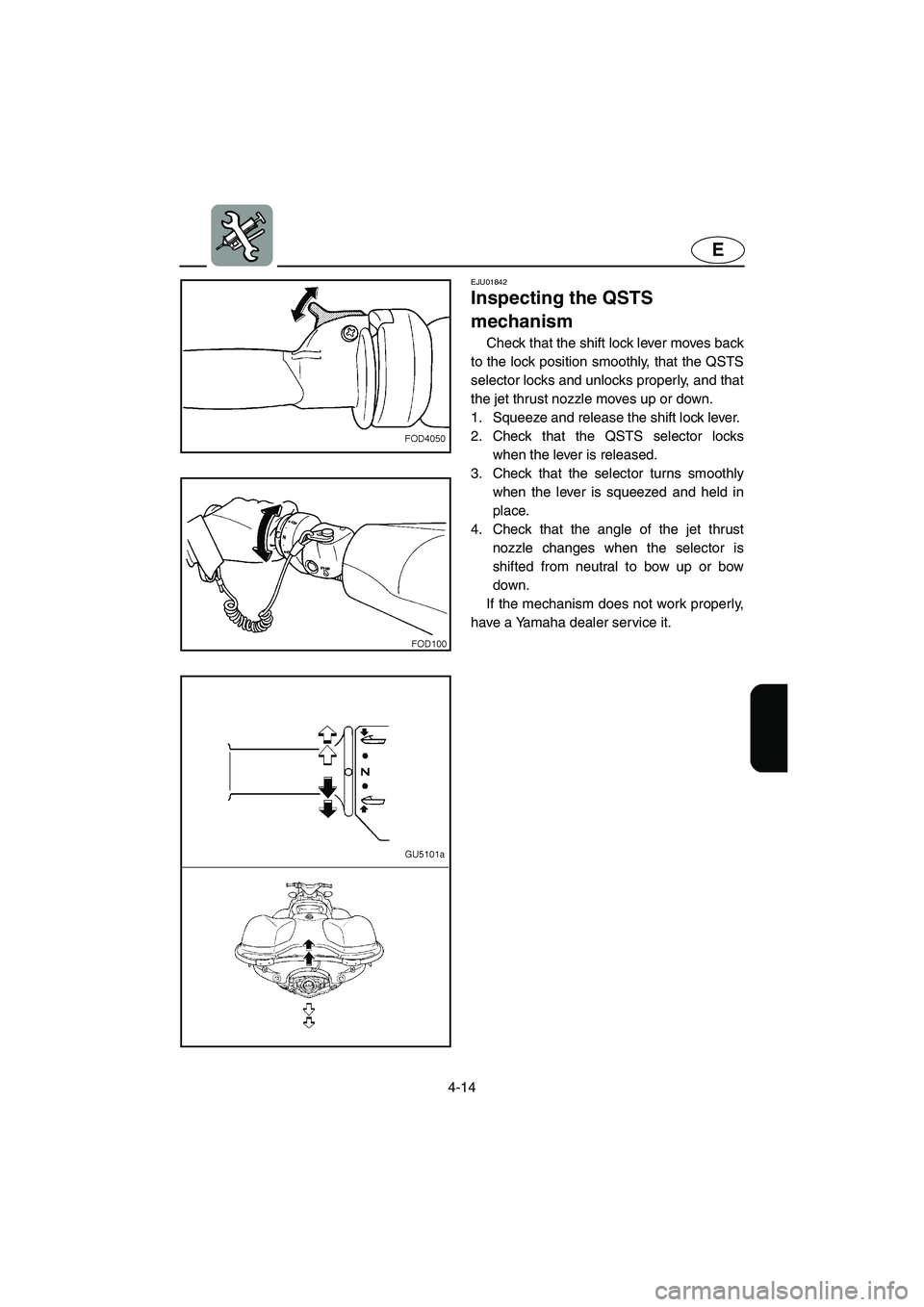

Inspecting the QSTS
mechanism
Check that the shift lock lever moves back
to the lock position smoothly, that the QSTS
selector locks and unlocks properly, and that
the jet thrust nozzle moves up or down.
1. Squeeze and release the shift lock lever.
2. Check that the QSTS selector locks
when the lever is released.
3. Check that the selector turns smoothly
when the lever is squeezed and held in
place.
4. Check that the angle of the jet thrust
nozzle changes when the selector is
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
UGU572.book Page 14 Wednesday, August 28, 2002 1:31 PM

4-15
E
EJU01342

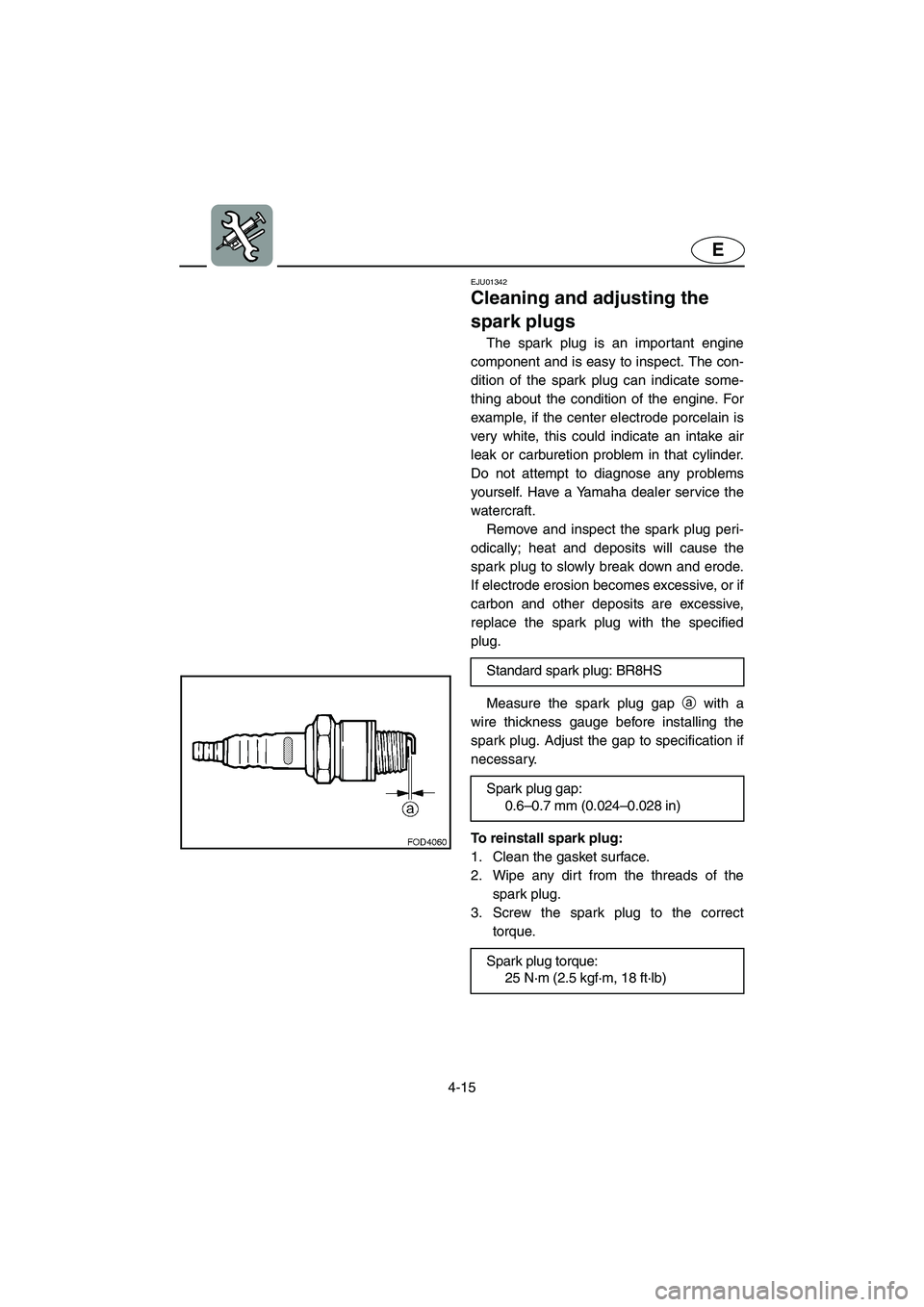

Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if the center electrode porcelain is
very white, this could indicate an intake air
leak or carburetion problem in that cylinder.
Do not attempt to diagnose any problems
yourself. Have a Yamaha dealer service the
watercraft.
Remove and inspect the spark plug peri-
odically; heat and deposits will cause the
spark plug to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Measure the spark plug gap a with a
wire thickness gauge before installing the
spark plug. Adjust the gap to specification if
necessary.
To reinstall spark plug:
1. Clean the gasket surface.
2. Wipe any dirt from the threads of the
spark plug.
3. Screw the spark plug to the correct
torque. Standard spark plug: BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Spark plug torque:
25 N·m (2.5 kgf·m, 18 ft·lb)
UGU572.book Page 15 Wednesday, August 28, 2002 1:31 PM

4-16
E
NOTE:@
Wipe off any water on the spark plug or
inside the cap before installing the spark
plug cap. Push the spark plug cap down
until it clicks.

If a torque wrench is not available when
you are fitting a new spark plug, a good
estimate of the correct torque is 1/4 turn
to 1/2 turn past finger tight. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
@
WARNING@ Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks
to escape, which could lead to explosion
or fire.
@
EJU01326

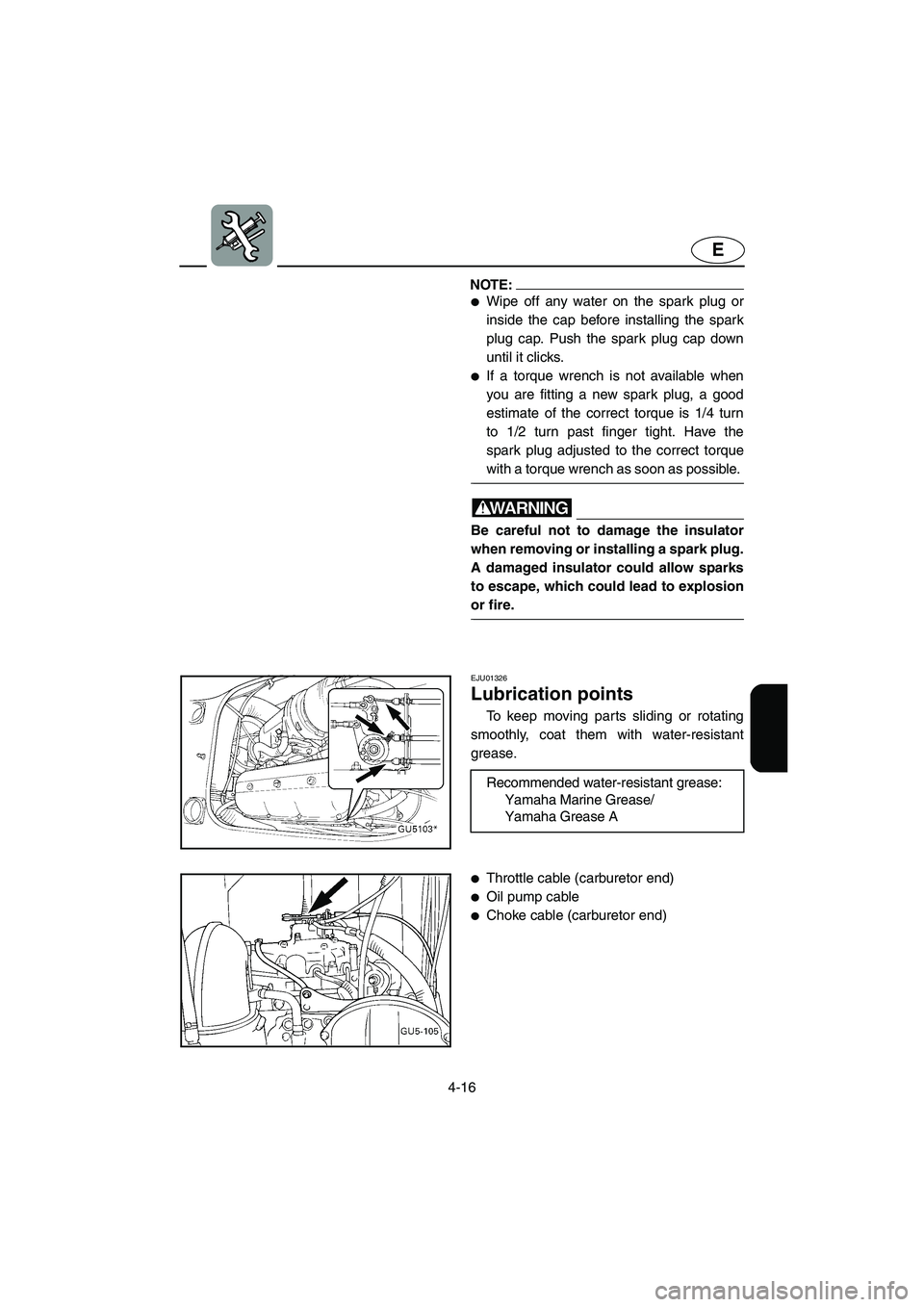

Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (carburetor end)

Oil pump cable

Choke cable (carburetor end)
UGU572.book Page 16 Wednesday, August 28, 2002 1:31 PM

4-17
E

Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal 1. Spray a rust inhibitor into the
outer cable. Refit the seal securely.

Steering cable (handlebar end)

Steering cable (nozzle end)

Nozzle pivot shaft

QSTS cable (nozzle end)

QSTS cables (pulley end)
