Safety information
15
EJU36850
Hazard information
Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.
Do not touch the hot muffler or engine dur-
ing or immediately after engine operation;
they can cause serious burns.
EJU30920
Watercraft characteristics
Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds should
you attempt to steer the watercraft after re-
leasing the throttle lever. The OTS system
assists in turning by continuing to supply
some thrust while the watercraft is deceler-
ating, but you can turn more sharply if you
apply throttle while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed.
Practice turning in an open area without ob-
stacles until you have a good feel for this
maneuver.
This watercraft is water-jet propelled. The
jet pump is directly connected to the engine.
This means that jet thrust will produce some
movement whenever the engine is running.
There is no “neutral” position. You are in ei-
ther “forward” or “reverse”, depending upon
the shift lever position.
Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or im-
pact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
legs, ankles, and other bones. You could
also damage the shift mechanism.
UF1W73E0.book Page 15 Monday, June 7, 2010 9:17 AM
Page 22 of 112
Safety information
16
Reverse can be used to slow down or stop
during slow-speed maneuvering, such as
when docking. Once the engine is idling,
shift into reverse and gradually increase en-
gine speed. Make sure that there are no ob-
stacles or people behind you before shifting
into reverse.
Keep away from the intake grate while the
engine is on. Items such as long hair, loose
clothing, or PFD straps can become entan-
gled in moving parts, resulting in severe in-
jury or drowning.
Never insert any object into the jet thrust
nozzle while the engine is running. Severe
injury or death could result from coming in
contact with the rotating parts of the jet
pump.
Stop the engine and remove the clip from
the engine shut-off switch before removingany debris or weeds, which may have col-
lected around the jet intake.
1Intake grate
2Jet thrust nozzle
1
2
1Clip
2Engine shut-off switch
2
1
UF1W73E0.book Page 16 Monday, June 7, 2010 9:17 AM
Page 23 of 112
Safety information
17
EJU30953

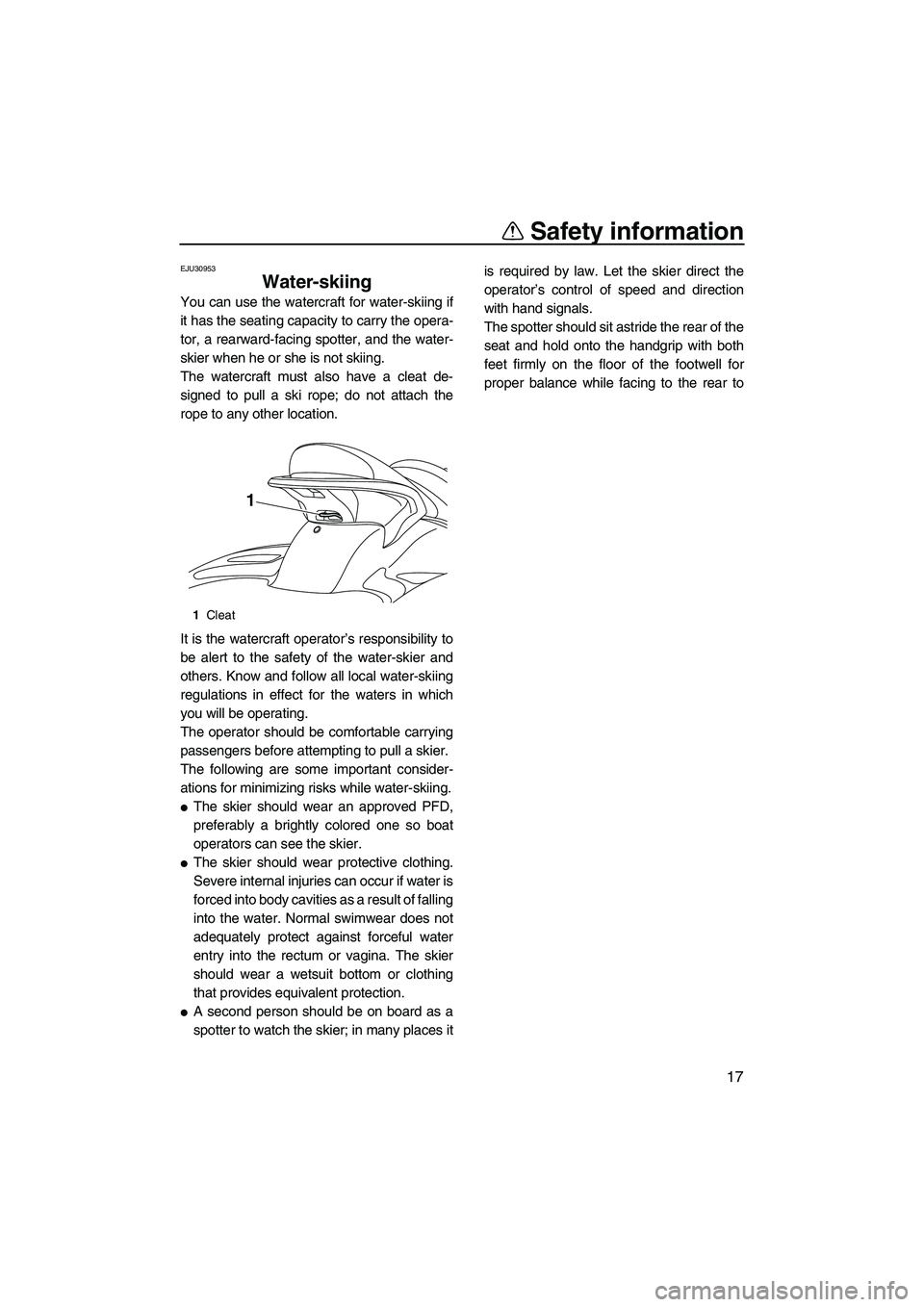

Water-skiing
You can use the watercraft for water-skiing if
it has the seating capacity to carry the opera-
tor, a rearward-facing spotter, and the water-
skier when he or she is not skiing.
The watercraft must also have a cleat de-
signed to pull a ski rope; do not attach the
rope to any other location.
It is the watercraft operator’s responsibility to
be alert to the safety of the water-skier and
others. Know and follow all local water-skiing
regulations in effect for the waters in which
you will be operating.
The operator should be comfortable carrying
passengers before attempting to pull a skier.
The following are some important consider-
ations for minimizing risks while water-skiing.
The skier should wear an approved PFD,
preferably a brightly colored one so boat
operators can see the skier.
The skier should wear protective clothing.
Severe internal injuries can occur if water is
forced into body cavities as a result of falling
into the water. Normal swimwear does not
adequately protect against forceful water
entry into the rectum or vagina. The skier
should wear a wetsuit bottom or clothing
that provides equivalent protection.
A second person should be on board as a
spotter to watch the skier; in many places itis required by law. Let the skier direct the
operator’s control of speed and direction
with hand signals.
The spotter should sit astride the rear of the
seat and hold onto the handgrip with both
feet firmly on the floor of the footwell for
proper balance while facing to the rear to
1Cleat
1
UF1W73E0.book Page 17 Monday, June 7, 2010 9:17 AM
Page 24 of 112
Safety information
18

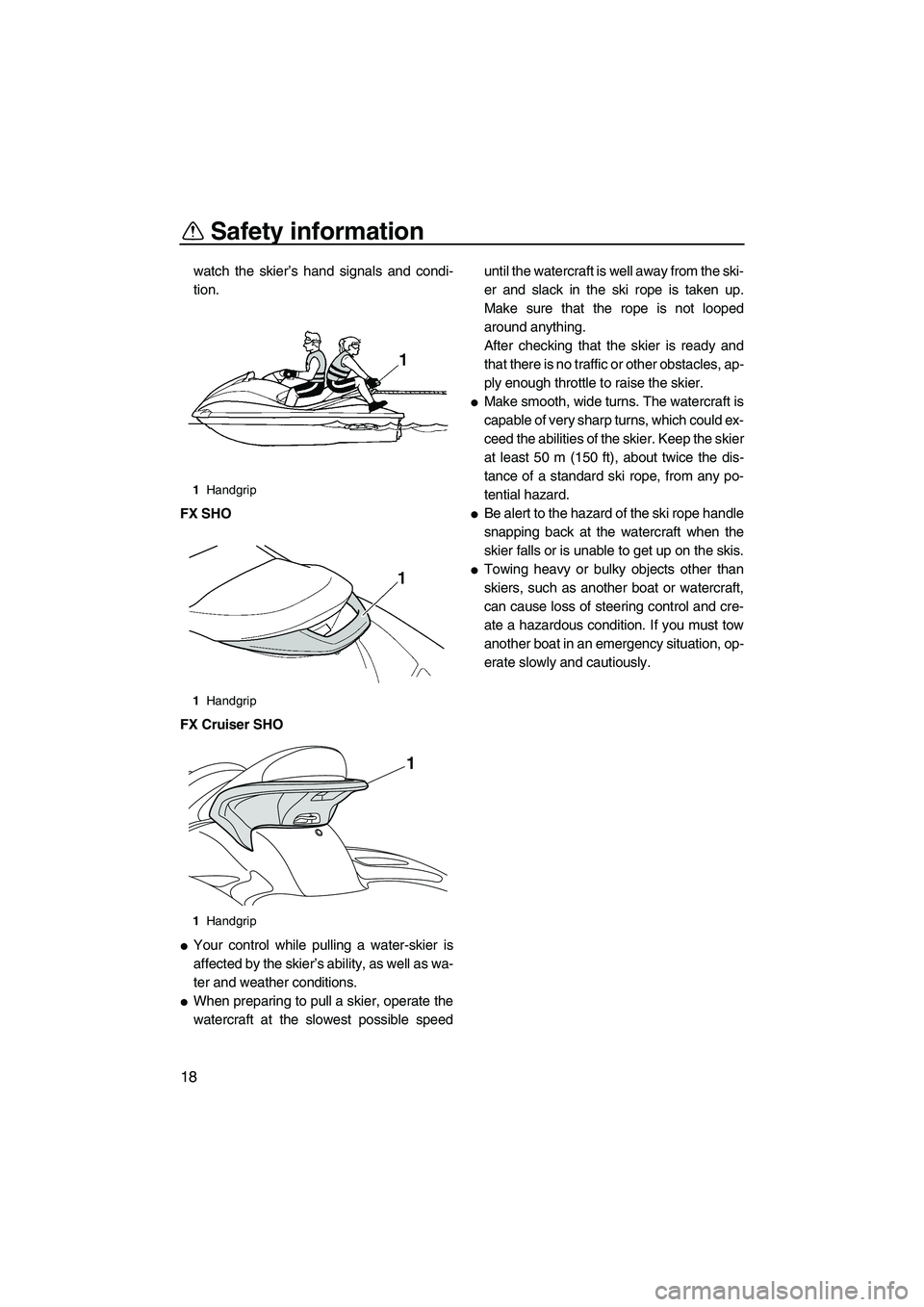

watch the skier’s hand signals and condi-
tion.
FX SHO
FX Cruiser SHO
Your control while pulling a water-skier is
affected by the skier’s ability, as well as wa-
ter and weather conditions.
When preparing to pull a skier, operate the
watercraft at the slowest possible speeduntil the watercraft is well away from the ski-
er and slack in the ski rope is taken up.
Make sure that the rope is not looped
around anything.
After checking that the skier is ready and
that there is no traffic or other obstacles, ap-
ply enough throttle to raise the skier.
Make smooth, wide turns. The watercraft is
capable of very sharp turns, which could ex-
ceed the abilities of the skier. Keep the skier
at least 50 m (150 ft), about twice the dis-
tance of a standard ski rope, from any po-
tential hazard.
Be alert to the hazard of the ski rope handle
snapping back at the watercraft when the
skier falls or is unable to get up on the skis.
Towing heavy or bulky objects other than
skiers, such as another boat or watercraft,
can cause loss of steering control and cre-
ate a hazardous condition. If you must tow
another boat in an emergency situation, op-
erate slowly and cautiously.
1Handgrip
1Handgrip
1Handgrip
1
UF1W73E0.book Page 18 Monday, June 7, 2010 9:17 AM
Page 25 of 112
Safety information
19
EJU30970
Safe boating rules
Your Yamaha watercraft is legally considered
a powerboat. Operation of the watercraft must
be in accordance with the rules and regula-
tions governing the waterway on which it is
used.
EJU30991
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.
When you ride responsibly, with respect and
courtesy for others, you help ensure that our
UF1W73E0.book Page 19 Monday, June 7, 2010 9:17 AM
Page 26 of 112
Safety information
20
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF1W73E0.book Page 20 Monday, June 7, 2010 9:17 AM
Page 27 of 112
Description
21
EJU40302
Watercraft glossary
Trolling speed
“Trolling” is the lowest maneuvering speed. You are applying little or no throttle. The watercraft
is down in the water, and there is no wake.
Sub-planing speed
“Sub-planing” is a medium speed. The bow of the watercraft is slightly up from the water sur-
face, but you are still traveling through the water. There is a wake.
Planing speed
“Planing” is a faster speed. The watercraft is more level and is skimming on top of the water.
There is a wake.
Bow
The front end of the watercraft.
Stern
The rear end of the watercraft.
Starboard
The right side of the watercraft when facing forward.
Port
The left side of the watercraft when facing forward.
Bilge water
Water that has collected in the engine compartment.
Yamaha Engine Management System (YEMS)
YEMS is an integrated, computerized management system that controls and adjusts ignition
timing, fuel injection, engine diagnostics, and the off-throttle steering (OTS) system.
UF1W73E0.book Page 21 Monday, June 7, 2010 9:17 AM
Page 28 of 112
Description
22
EJU31011

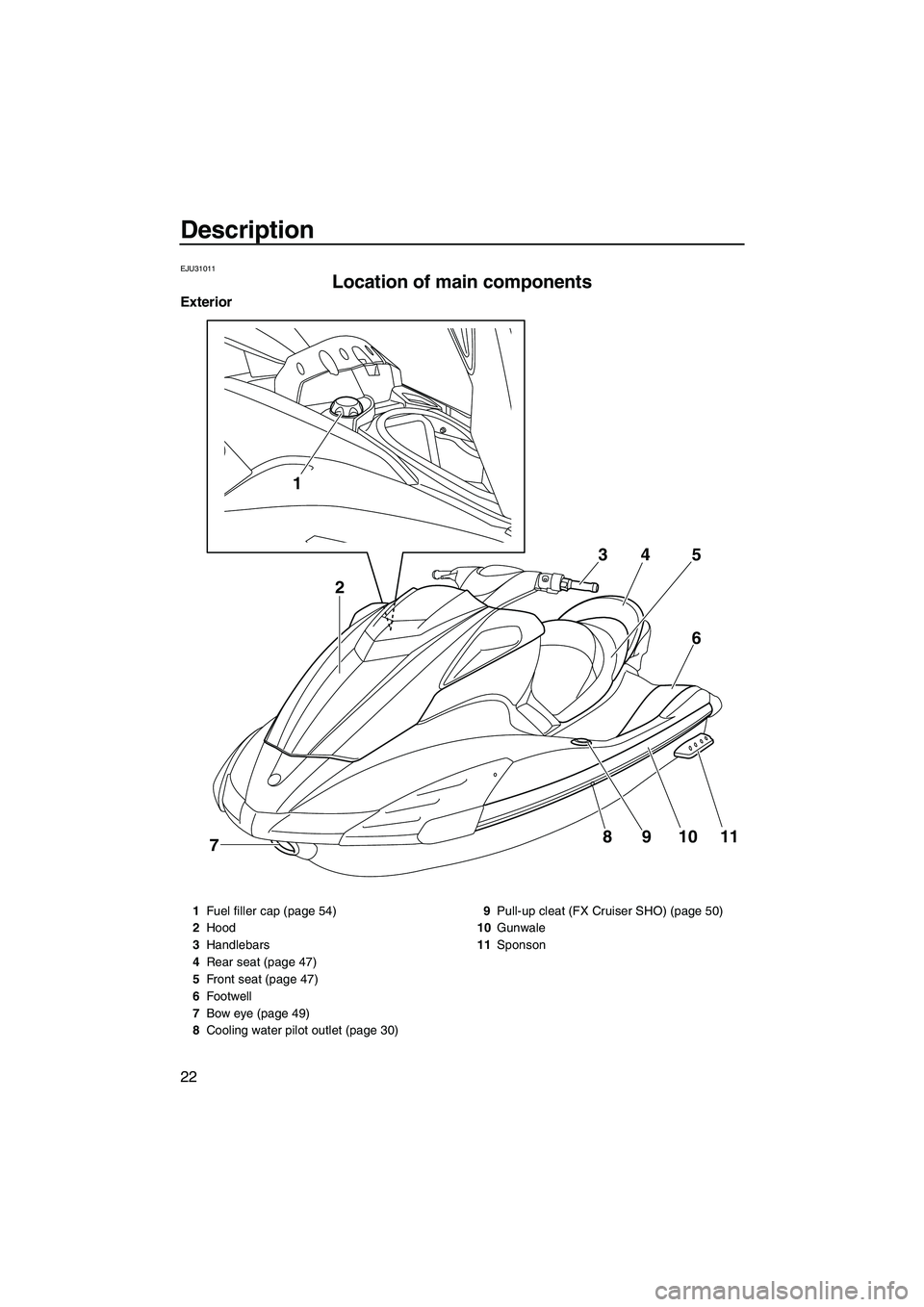

Location of main components
Exterior
1
8
7910116 5 4 3
2
1Fuel filler cap (page 54)
2Hood
3Handlebars
4Rear seat (page 47)
5Front seat (page 47)
6Footwell
7Bow eye (page 49)
8Cooling water pilot outlet (page 30)9Pull-up cleat (FX Cruiser SHO) (page 50)
10Gunwale
11Sponson
UF1W73E0.book Page 22 Monday, June 7, 2010 9:17 AM
Page 29 of 112
Description
23
4
3
2
5
67 8 9 10
1
1211
1Boarding platform
2Electric bilge pilot outlet
3Cleat (page 49)
4Handgrip (page 48)
5Reboarding step (page 48)
6Jet thrust nozzle
7Ride plate
8Reverse gate (page 32)
9Stern drain plug (page 57)
10Stern eye (page 49)
11Speed sensor
12Intake grate
UF1W73E0.book Page 23 Monday, June 7, 2010 9:17 AM
Page 30 of 112
Description
24
10 11
16 1
17 23
4
5
67 8 9
18
19 2012 1413 15
1Watertight storage compartment (page 53)
2Start switch (page 28)
3Engine shut-off switch (page 28)
4Clip (page 28)
5Remote control transmitter (page 26)
6Q.S.T.S. selector lock lever (page 33)
7Q.S.T.S. selector (page 33)
8Engine shut-off cord (lanyard) (page 28)
9Engine stop switch (page 28)
10Multifunction information center (page 39)
11Beverage holder (page 53)
12Glove compartment (page 51)
13Tilt lever (page 30)
14Shift lever (page 32)
15Throttle lever (page 29)
16Rearview mirror17“NO-WAKE MODE” switch (page 35)
18Up switch (page 36)
19Down switch (page 36)
20“SET” switch (page 36)
UF1W73E0.book Page 24 Monday, June 7, 2010 9:17 AM
