fuse YAMAHA T105 2004 Owners Manual

4
PERIODIC MAINTENANCE AND
MINOR REPAIR..............................................37
Tool kit ........................................................38
Periodic maintenance/lubrication ...........39
Engine oil ...................................................41
Air filter ......................................................44
Throttle cable adjustment ........................46
Carburetor adjustment .............................47
Idle speed adjustment ..............................47
Spark plug inspection ..............................48
Front brake adjustment(T105E) ...............50
Front brake adjustment (T105SE) ...........50
Checking the front brake pads
(T105SE) .................................................51
Checking the brake fluid level
(T105SE)..................................................51
Changing the brake fluid (T105SE) .........53
Rear brake adjustment .............................54
Brake light switch adjustment .................55
Checking the brake shoes ........................55
Drive chain slack check ............................56Drive chain slack adjustment ..................57
Drive chain lubrication .............................59
Brake lever and pedal ...............................60
Center and sidestand ...............................60
Front fork inspection ................................61
Battery ........................................................62
Replenishing the battery fluid .................64
Fuse replacement .....................................65
Troubleshooting ........................................66
CLEANING AND STORAGE .........................67
Cleaning .....................................................67
Storage ......................................................67
SPECIFICAITIONS .........................................69
5AV-F8199-E1-1 7/29/03 3:31 PM Page 4

EAI91001*

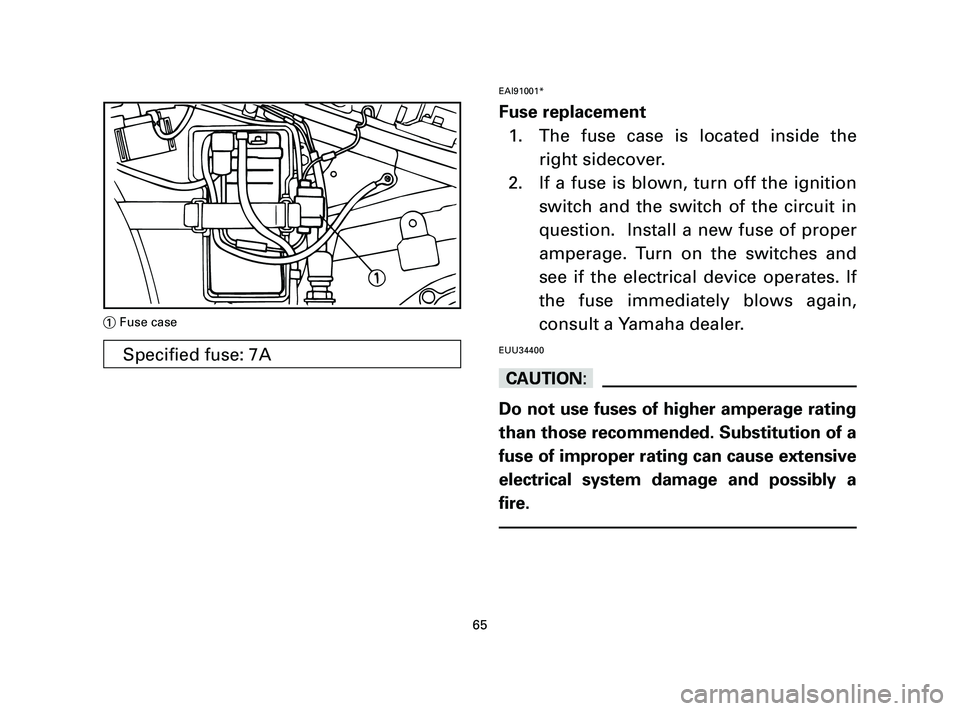

Fuse replacement
1. The fuse case is located inside the
right sidecover.
2. If a fuse is blown, turn off the ignition
switch and the switch of the circuit in
question. Install a new fuse of proper
amperage. Turn on the switches and
see if the electrical device operates. If
the fuse immediately blows again,
consult a Yamaha dealer.
EUU34400
cC
Do not use fuses of higher amperage rating
than those recommended. Substitution of a
fuse of improper rating can cause extensive
electrical system damage and possibly a
fire.
65
1Fuse case
Specified fuse: 7A
5AV-F8199-E1-3 8/1/03 1:48 PM Page 65
