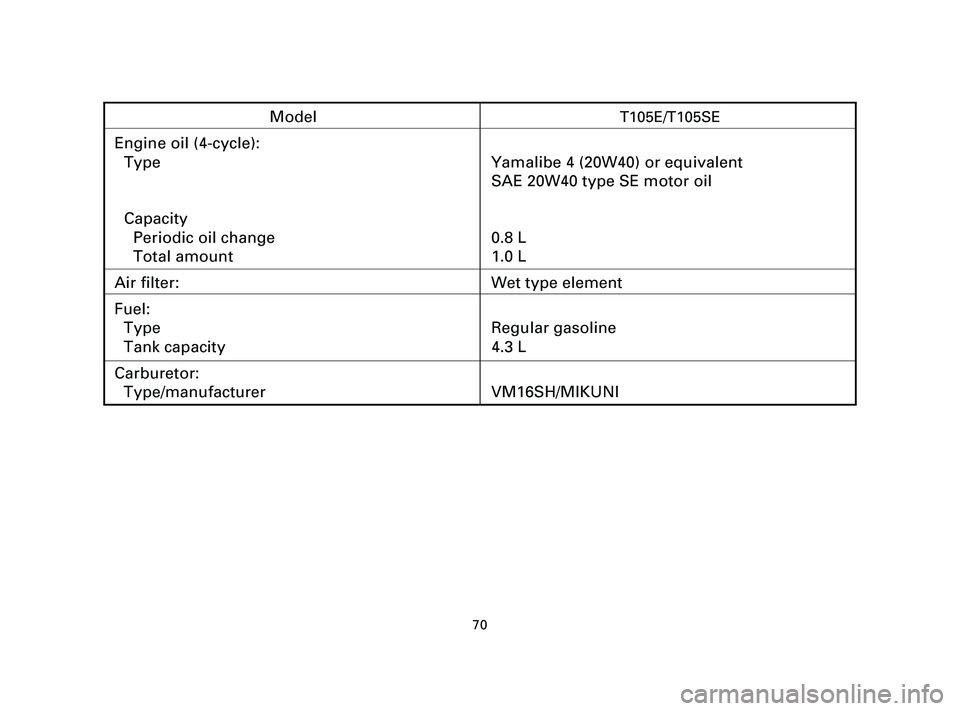

70
ModelT105E/T105SE
Engine oil (4-cycle):
Type Yamalibe 4 (20W40) or equivalent
SAE 20W40 type SE motor oil
Capacity
Periodic oil change 0.8 L
Total amount 1.0 L
Air filter: Wet type element
Fuel:
Type Regular gasoline
Tank capacity 4.3 L
Carburetor:
Type/manufacturer VM16SH/MIKUNI
5AV-F8199-E1-3 8/1/03 1:48 PM Page 70

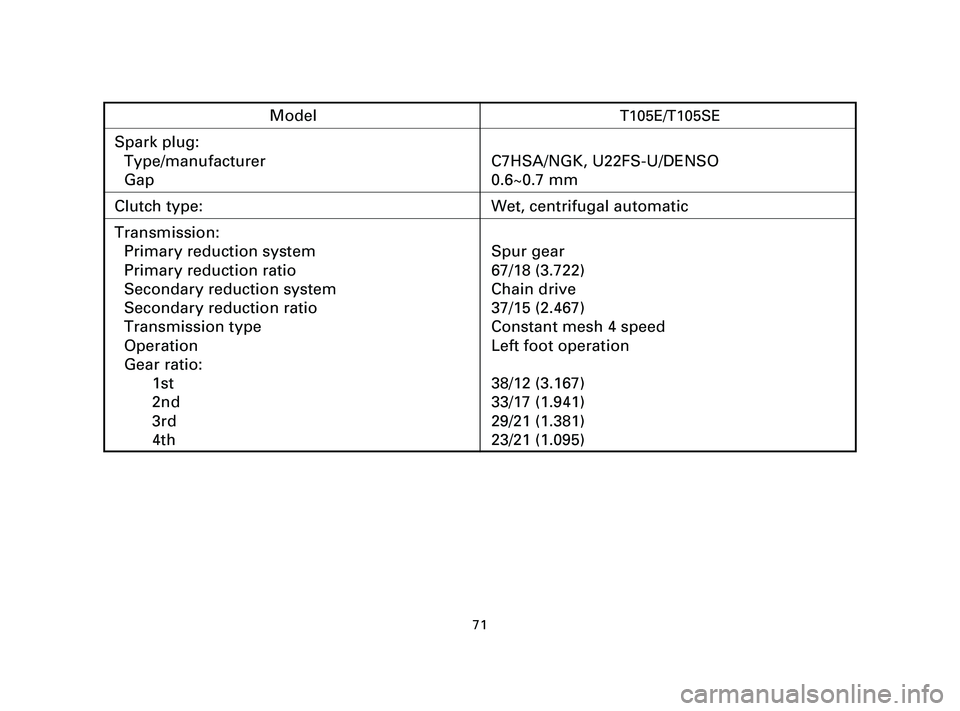

71
ModelT105E/T105SE
Spark plug:
Type/manufacturer C7HSA/NGK, U22FS-U/DENSO
Gap 0.6~0.7 mm
Clutch type: Wet, centrifugal automatic
Transmission:
Primary reduction system Spur gear
Primary reduction ratio 67/18 (3.722)
Secondary reduction system Chain drive
Secondary reduction ratio 37/15 (2.467)
Transmission type Constant mesh 4 speed
Operation Left foot operation
Gear ratio:
1st 38/12 (3.167)
2nd 33/17 (1.941)
3rd 29/21 (1.381)
4th 23/21 (1.095)
5AV-F8199-E1-3 8/1/03 1:48 PM Page 71

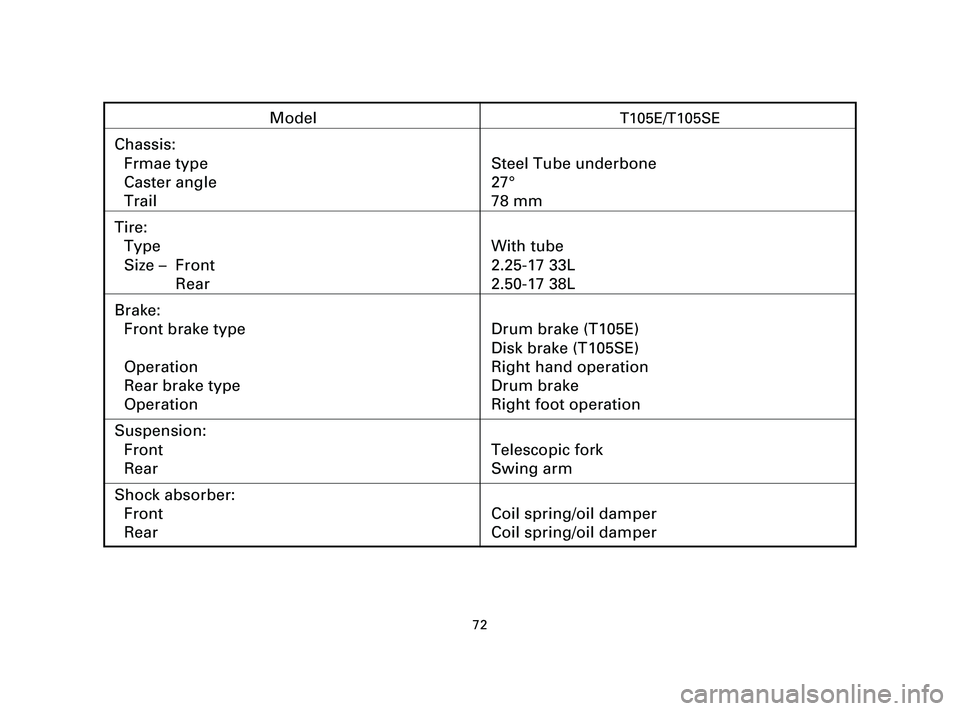

72
ModelT105E/T105SE
Chassis:
Frmae type Steel Tube underbone
Caster angle 27°
Trail 78 mm
Tire:
Type With tube
Size – Front 2.25-17 33L
Rear 2.50-17 38L
Brake:
Front brake type Drum brake (T105E)
Disk brake (T105SE)
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front Telescopic fork
Rear Swing arm
Shock absorber:
Front Coil spring/oil damper
Rear Coil spring/oil damper
5AV-F8199-E1-3 8/1/03 1:48 PM Page 72

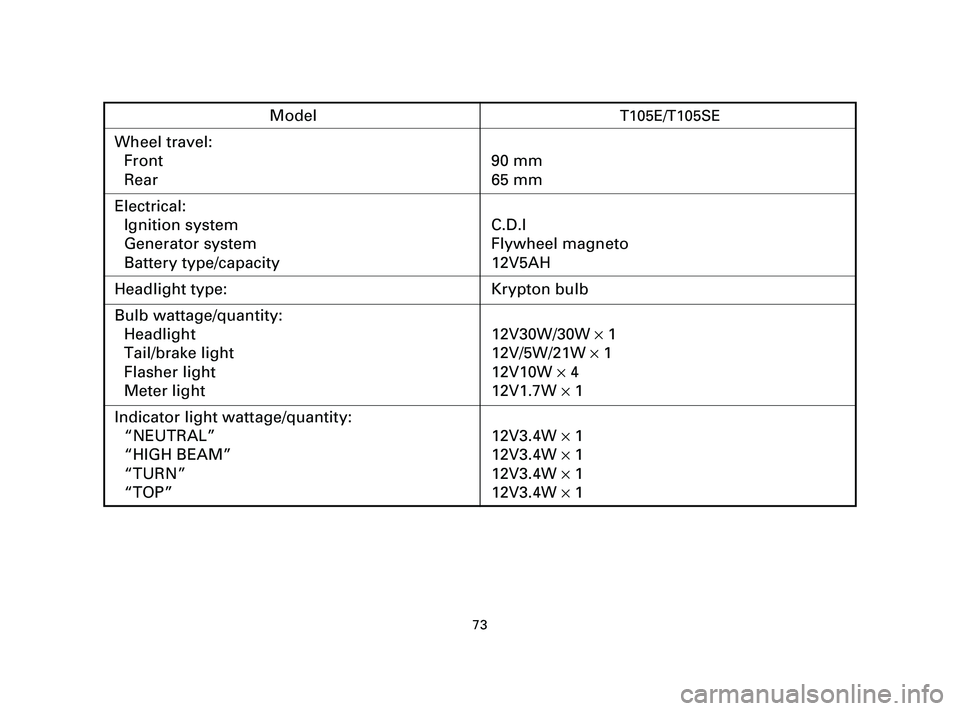

73
ModelT105E/T105SE
Wheel travel:
Front 90 mm
Rear 65 mm
Electrical:
Ignition system C.D.I
Generator system Flywheel magneto
Battery type/capacity 12V5AH
Headlight type: Krypton bulb
Bulb wattage/quantity:
Headlight 12V30W/30W ×1
Tail/brake light 12V/5W/21W ×1
Flasher light 12V10W ×4
Meter light 12V1.7W ×1
Indicator light wattage/quantity:
“NEUTRAL” 12V3.4W ×1
“HIGH BEAM” 12V3.4W ×1
“TURN” 12V3.4W ×1
“TOP” 12V3.4W ×1
5AV-F8199-E1-3 8/1/03 1:48 PM Page 73

5AV-F8199-E1-3 8/1/03 1:48 PM Page 74

OWNER'S
MANUAL
5AV-F8199-E1
YAMAHA MOTOR CO., LTD.
5AV-F8199-E1 hyosi 7/29/03 10:15 AM Page 1
