INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10461
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU47821
(on)
All electrical circuits are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “ ”.
EAU47791
(off)
All electrical systems are off. The key
can be removed.WARNING
EWA15350
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU47801
(lock)
The steering is locked, and all electrical
systems are off. The key can be re-

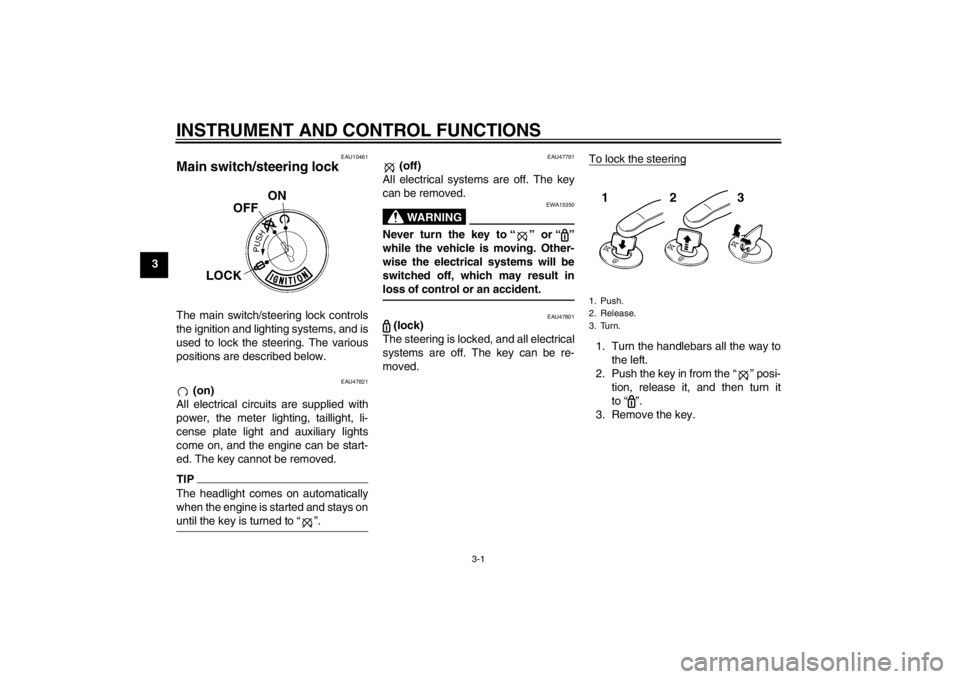

moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ” posi-
tion, release it, and then turn it
to “ ”.
3. Remove the key.1. Push.
2. Release.
3. Turn.
123
U40BE2E0.book Page 1 Wednesday, October 10, 2012 8:01 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6 3. Insert a new bulb into the socket.
4. Install the license plate light cover
by installing the screw.
EAUW0343
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove cowling A. (See page
6-7.)
2. Remove the auxiliary light bulb
socket (together with the bulb) by
pulling it out.
3. Remove the burnt-out bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light bulb sock-
et (together with the bulb) by push-
ing it in.
6. Install the cowling.1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
U40BE2E0.book Page 32 Wednesday, October 10, 2012 8:01 AM

SPECIFICATIONS
8-3
8
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 3.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
12 V, 1.7 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Gear position indicator light:
12 V, 3.0 W × 4
High beam indicator light:
12 V, 1.7 W × 1
Turn signal indicator light:
12 V, 1.7 W × 1Fuse:Fuse:
10.0 A
U40BE2E0.book Page 3 Wednesday, October 10, 2012 8:01 AM
