INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU11621
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows riding speed. The
odometer shows the total distance trav-
eled.
EAU37051
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E ” (Empty) as the fuel level
decreases. When the needle reaches
the red zone, approximately 1.0 L (0.26
US gal) (0.22 Imp.gal) remain in the
fuel tank. If this occurs, refuel as soon
as possible.NOTE:

Do not allow the fuel tank to empty
itself completely.

The main switch must be turned to
“ ON ” for the fu el gauge to display an accurate fuel level reading.
EAU12343
Handlebar switches Left
Right
1. Speedometer
2. Odometer
1. Fuel gauge
2. Red zone
1. Dimmer switch “/”
2. Turn signal switch “/”
3. Horn switch “”
2. Start switch “”

U5YPE0E0.book Page 3 Wednesday, February 23, 2005 4:22 PM
1. Light switch " / "

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17710
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.


From 30000 km, repeat the maintenance intervals starting from 6000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24
1*Fuel lineCheck fuel and vacuum hoses for cracks or damage.√√√√ √
2 Spark plugCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√√√
4 Air filter elementClean.√√
Replace.√√
5*BatteryCheck electrolyte level and specific gravity.
Make sure that the breather hose is properly routed.√√√√ √
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation and adjust brake pedal free play.√√√√√ √
Replace brake shoes. Whenever worn to the limit
8*Brake hoseCheck for cracks or damage.√√√√ √
Replace. Every 4 years
U5YPE0E0.book Page 2 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
9*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√√
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 24000 km
13 Drive chainCheck chain slack, alignment and condition.
Adjust and thoroughly lubricate chain with engine oil.Every 500 km and after washing the motorcycle or
riding in the rain
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 24000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
16 Sidestand, centerstandCheck operation.
Lubricate.√√√√ √
17*Front forkCheck operation and for oil leakage.√√√√
18*Shock absorber assem-
blyCheck operation and shock absorber for oil leakage.√√√√
19*CarburetorCheck starter (choke) operation.
Adjust engine idling speed.√√√√√ √
20 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
21 Engine oil filter elementReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24
U5YPE0E0.book Page 3 Wednesday, February 23, 2005 4:22 PM

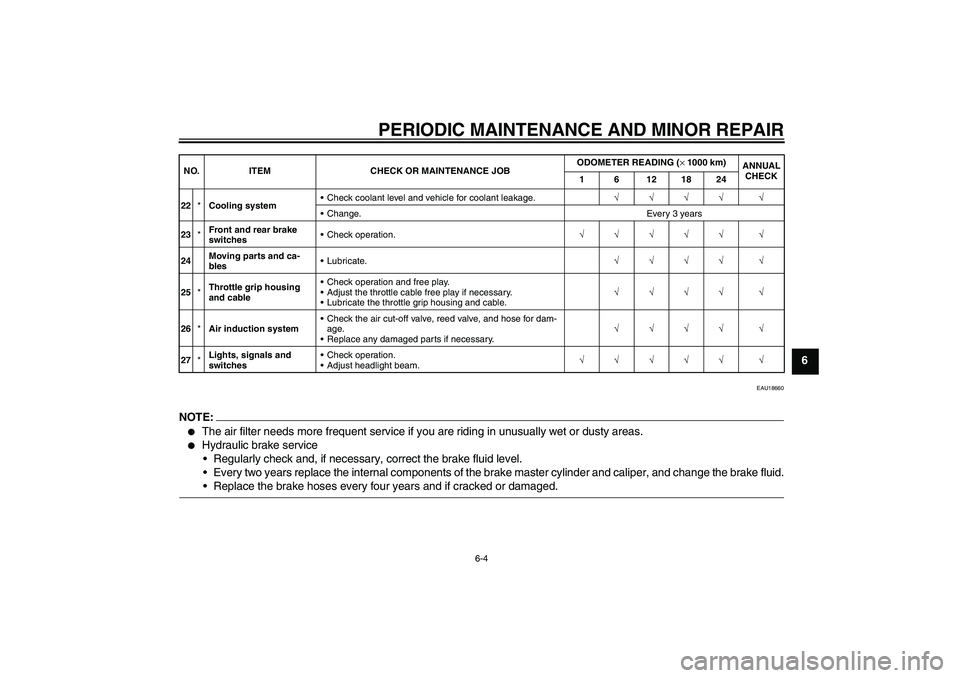

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU18660
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.Replace the brake hoses every four years and if cracked or damaged.
22*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
23*Front and rear brake
switchesCheck operation.√√√√√ √
24Moving parts and ca-
blesLubricate.√√√√ √
25*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
26*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace any damaged parts if necessary.√√√√ √
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 6 12 18 24
U5YPE0E0.book Page 4 Wednesday, February 23, 2005 4:22 PM
