PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6Battery storage
When the motorcycle is not used for a
month or longer, remove the battery,
fully charge it and store it in a cool, dry
place.
EC000102
CAUTION:@ l
Completely recharge the bat-
tery before storing. Storing a
discharged battery can cause
permanent battery damage.
l
Use a battery charger designed
for a sealed-type (MF) battery.
Using a conventional battery
charger will cause battery dam-
age. If you do not have a sealed-
type battery charger, contact
your Yamaha dealer.
l
Always make sure the connec-
tions are correct when reinstall-
ing the battery.
@
EAU01670
Fuse replacementThe fuse boxes are located under the
rider seat and the main fuse case is at-
tached to the starter relay.
If any fuse is blown, turn off the main
switch and the switch of the circuit in
question. Install a new fuse of specified
amperage. Turn on the switches and
see if the electrical device operates. If
the fuse immediately blows again, con-
sult a Yamaha dealer.
EC000103
CAUTION:@ Do not use fuses of higher amper-
age rating than those recommend-
ed. Substitution of a fuse of
improper rating can cause extensive
electrical system damage and pos-
sibly a fire. @

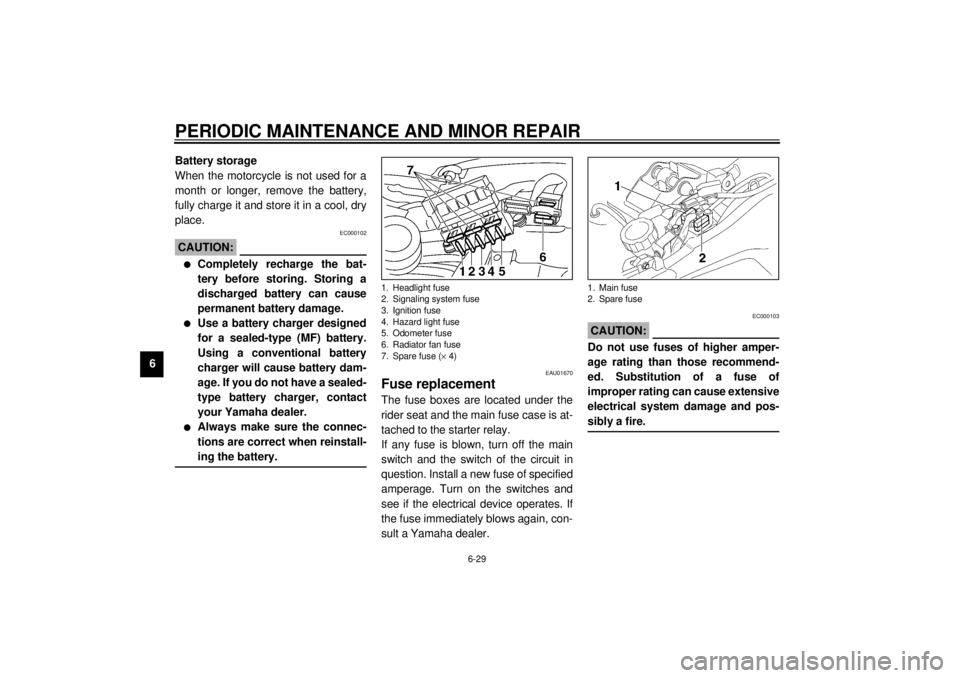

1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Hazard light fuse
5. Odometer fuse
6. Radiator fan fuse
7. Spare fuse (´ 4)
1. Main fuse
2. Spare fuse
