YAMAHA TDM 900 2006 Owner's Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-15
2
34
5
6
7
8
9
NOTE:

Make sure that the seat is properly se-
cured before riding.
EAU14411

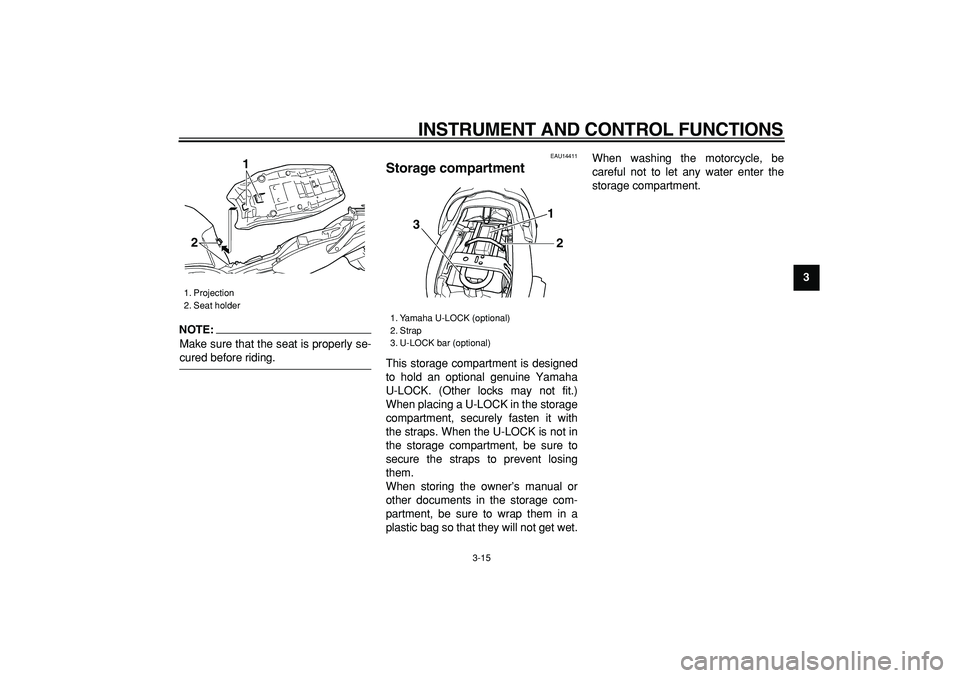

Storage compartment
This storage compartment is designed
to hold an optional genuine Yamaha
U-LOCK. (Other locks may not fit.)
When placing a U-LOCK in the storage
compartment, securely fasten it with
the straps. When the U-LOCK is not in
the storage compartment, be sure to
secure the straps to prevent losing
them.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.When washing the motorcycle, be
careful not to let any water enter the
storage compartment.
1. Projection
2. Seat holder
1
2

1. Yamaha U-LOCK (optional)
2. Strap
3. U-LOCK bar (optional)
3
2 1

INSTRUMENT AND CONTROL FUNCTIONS
3-16
1
2
3
4
5
6
7
8
9

EAU14781

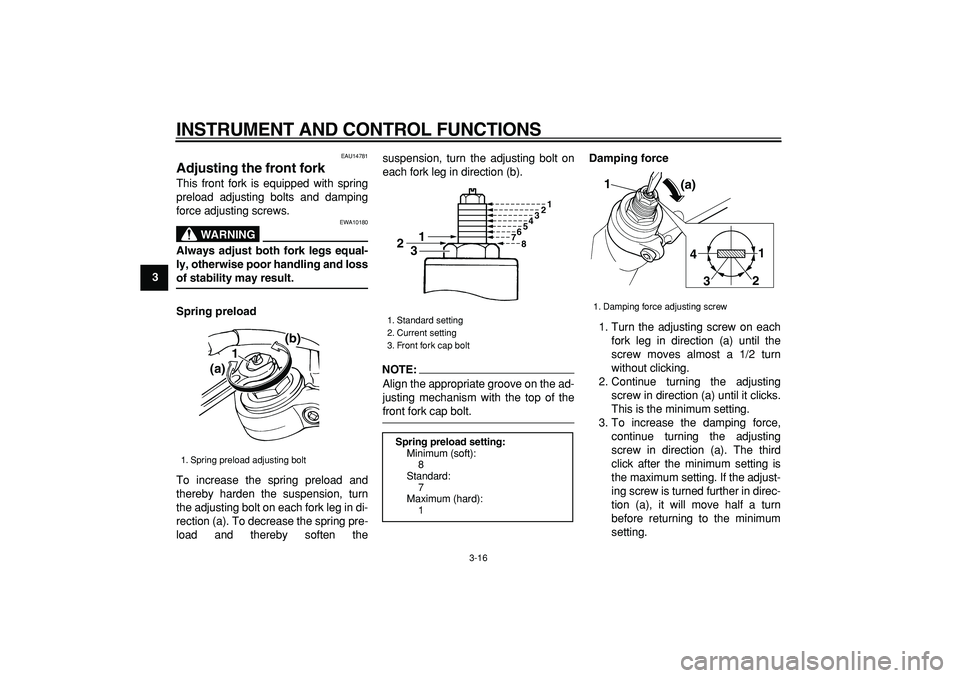

Adjusting the front fork
This front fork is equipped with spring
preload adjusting bolts and damping
force adjusting screws.
WARNING

EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.
Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection (a). To decrease the spring pre-
load and thereby soften thesuspension, turn the adjusting bolt on
each fork leg in direction (b).
NOTE:

Align the appropriate groove on the ad-
justing mechanism with the top of the
front fork cap bolt.
Damping force
1. Turn the adjusting screw on each
fork leg in direction (a) until the
screw moves almost a 1/2 turn
without clicking.
2. Continue turning the adjusting
screw in direction (a) until it clicks.
This is the minimum setting.
3. To increase the damping force,
continue turning the adjusting
screw in direction (a). The third
click after the minimum setting is
the maximum setting. If the adjust-
ing screw is turned further in direc-
tion (a), it will move half a turn
before returning to the minimum
setting.
1. Spring preload adjusting bolt
1
(a)(b)

1. Standard setting
2. Current setting
3. Front fork cap bolt
Spring preload setting:
Minimum (soft):
8
Standard:
7
Maximum (hard):
1
2
31
7654321
8

1. Damping force adjusting screw
(a) 1
1
2
3 4

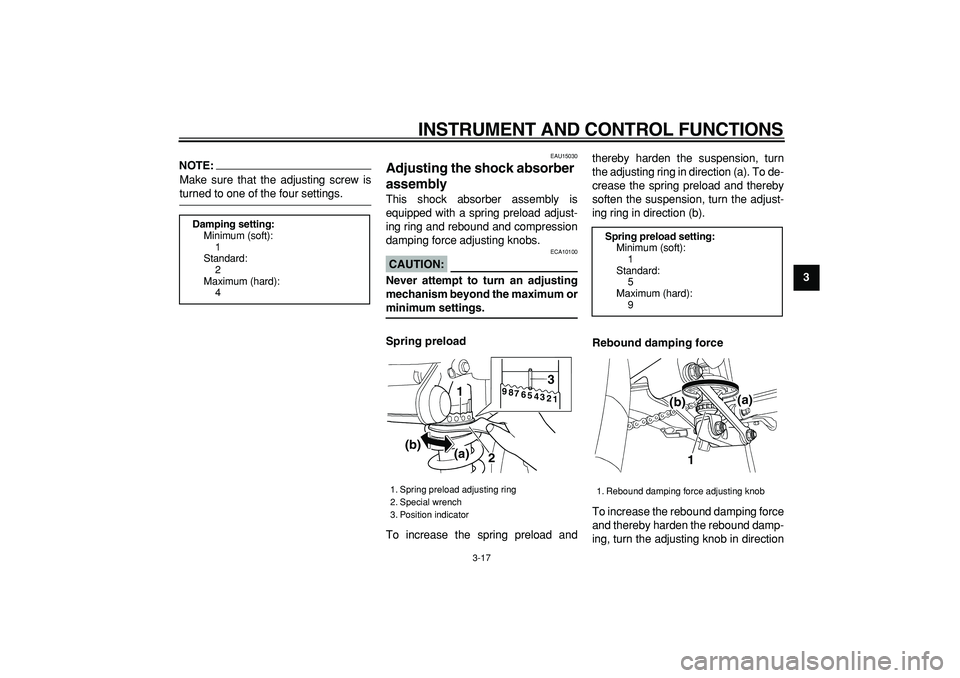

INSTRUMENT AND CONTROL FUNCTIONS
3-17
2
34
5
6
7
8
9
NOTE:

Make sure that the adjusting screw is
turned to one of the four settings.
EAU15030
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring and rebound and compression
damping force adjusting knobs.
CAUTION:

ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.
Spring preload
To increase the spring preload andthereby harden the suspension, turn
the adjusting ring in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring in direction (b).
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting knob in direction

Damping setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
1. Spring preload adjusting ring
2. Special wrench
3. Position indicator
(a) (b)3
1
2
1 2 3 4 5 6 7 8 9

Spring preload setting:
Minimum (soft):
1
Standard:
5
Maximum (hard):
9
1. Rebound damping force adjusting knob
1
(a)
(b)

INSTRUMENT AND CONTROL FUNCTIONS
3-18
1
2
3
4
5
6
7
8
9

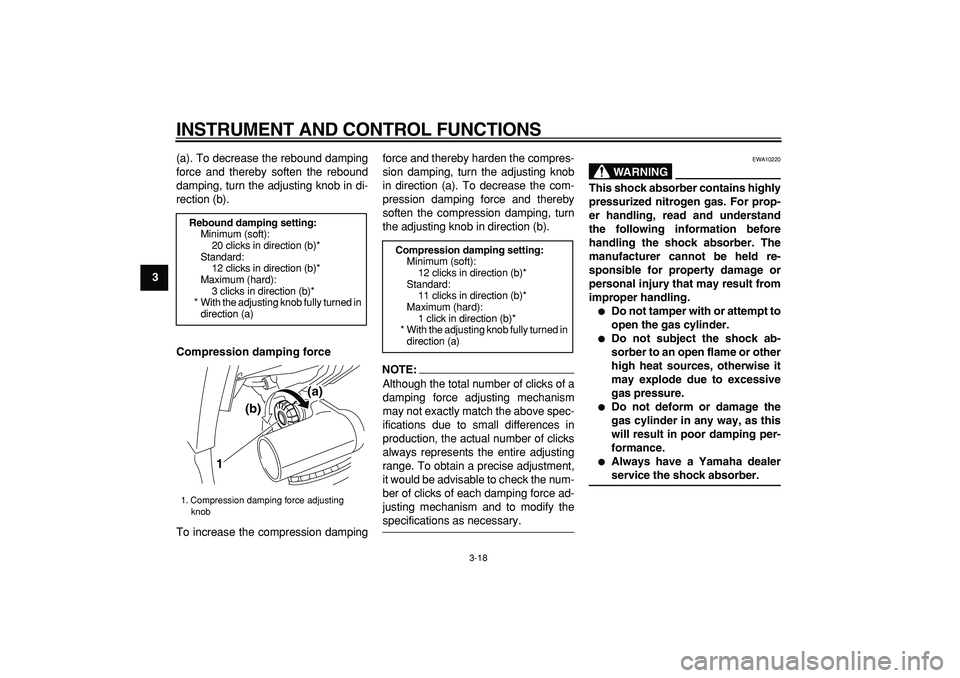

(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting knob in di-
rection (b).
Compression damping force
To increase the compression dampingforce and thereby harden the compres-
sion damping, turn the adjusting knob
in direction (a). To decrease the com-
pression damping force and thereby
soften the compression damping, turn
the adjusting knob in direction (b).
NOTE:

Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary.
WARNING

EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.

Do not tamper with or attempt to
open the gas cylinder.

Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.

Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.

Always have a Yamaha dealer
service the shock absorber.
Rebound damping setting:
Minimum (soft):
20 clicks in direction (b)*
Standard:
12 clicks in direction (b)*
Maximum (hard):
3 clicks in direction (b)*
* With the adjusting knob fully turned in
direction (a)
1. Compression damping force adjusting
knob
1
(a)
(b)

Compression damping setting:
Minimum (soft):
12 clicks in direction (b)*
Standard:
11 clicks in direction (b)*
Maximum (hard):
1 click in direction (b)*
* With the adjusting knob fully turned in
direction (a)

INSTRUMENT AND CONTROL FUNCTIONS
3-19
2
34
5
6
7
8
9

EAU15140

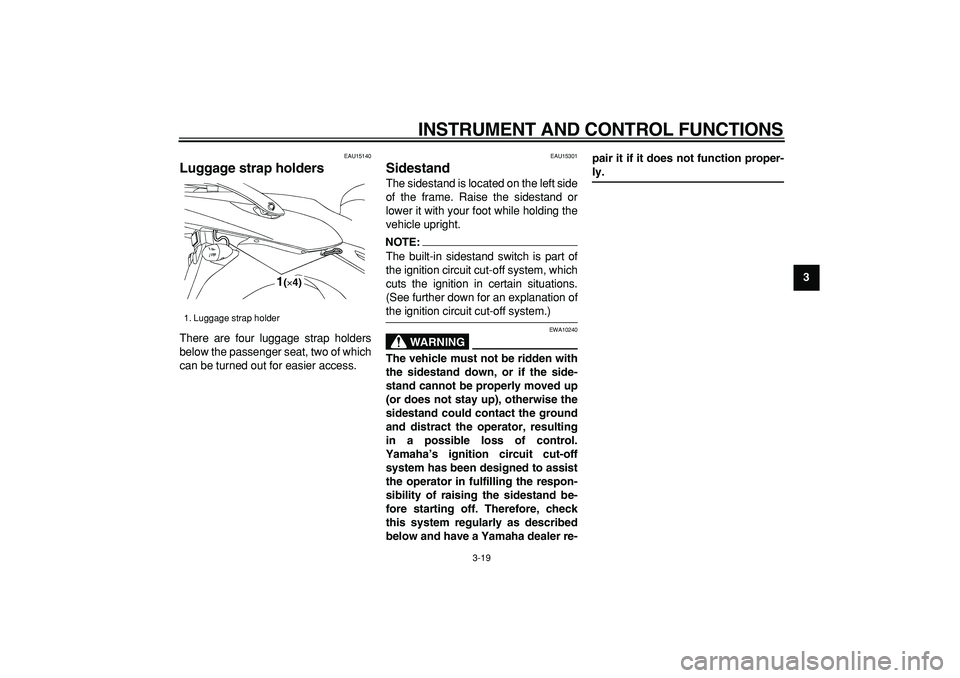

Luggage strap holders
There are four luggage strap holders
below the passenger seat, two of which
can be turned out for easier access.
EAU15301
Sidestand
The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
NOTE:

The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.)
WARNING

EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
below and have a Yamaha dealer re-pair it if it does not function proper-
ly.
1. Luggage strap holder
1(×4)

INSTRUMENT AND CONTROL FUNCTIONS
3-20
1
2
3
4
5
6
7
8
9

EAU15311

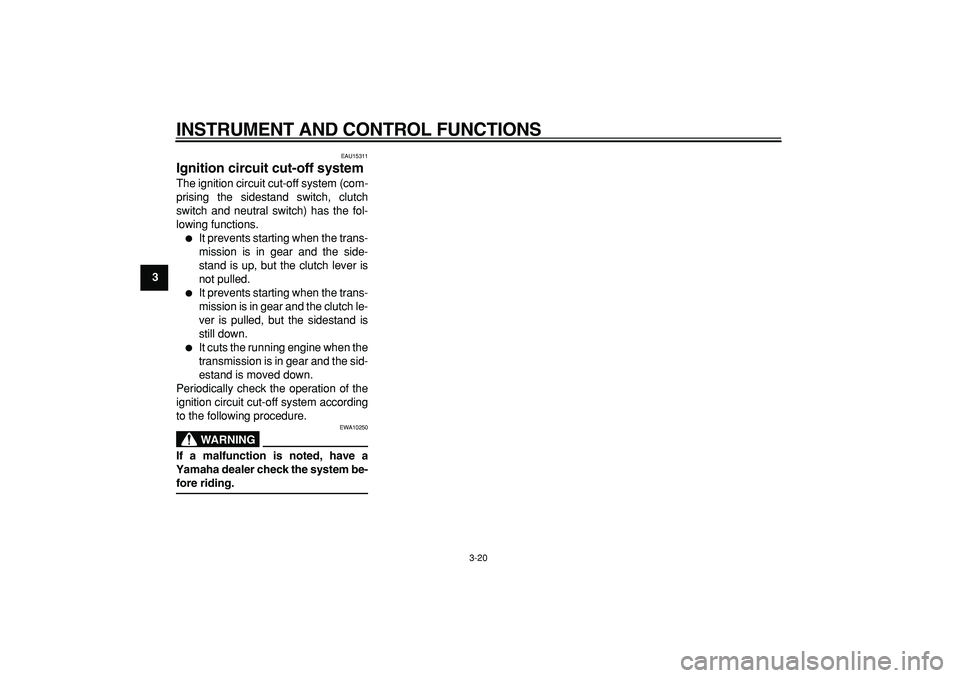

Ignition circuit cut-off system
The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.

It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.

It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
WARNING

EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-
fore riding.

INSTRUMENT AND CONTROL FUNCTIONS
3-21
2
34
5
6
7
8
9

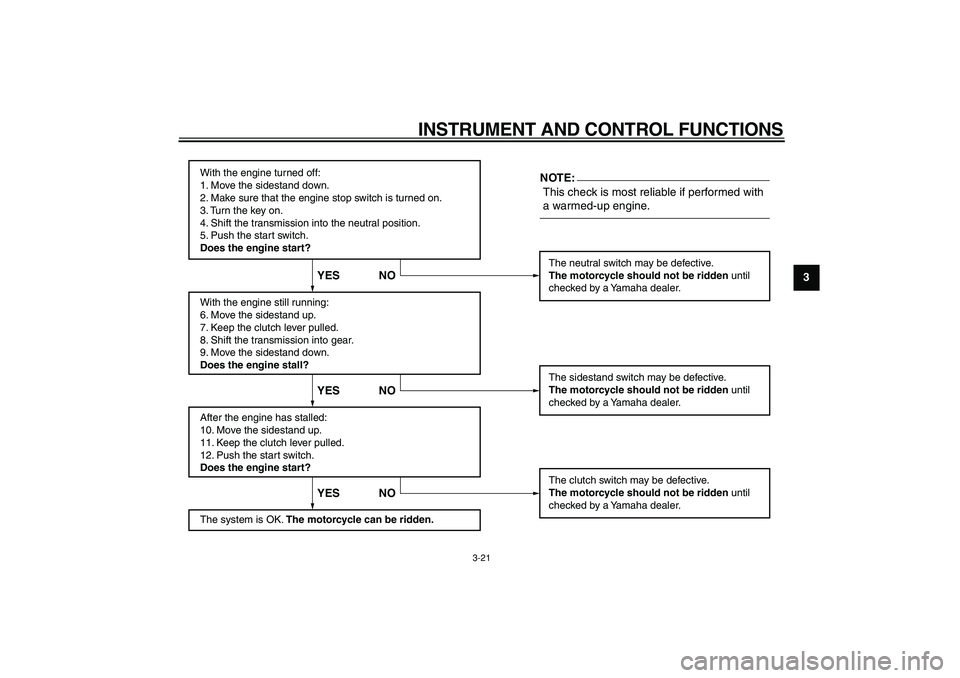

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:

4-1
1
2
3
4
5
6
7
8
9

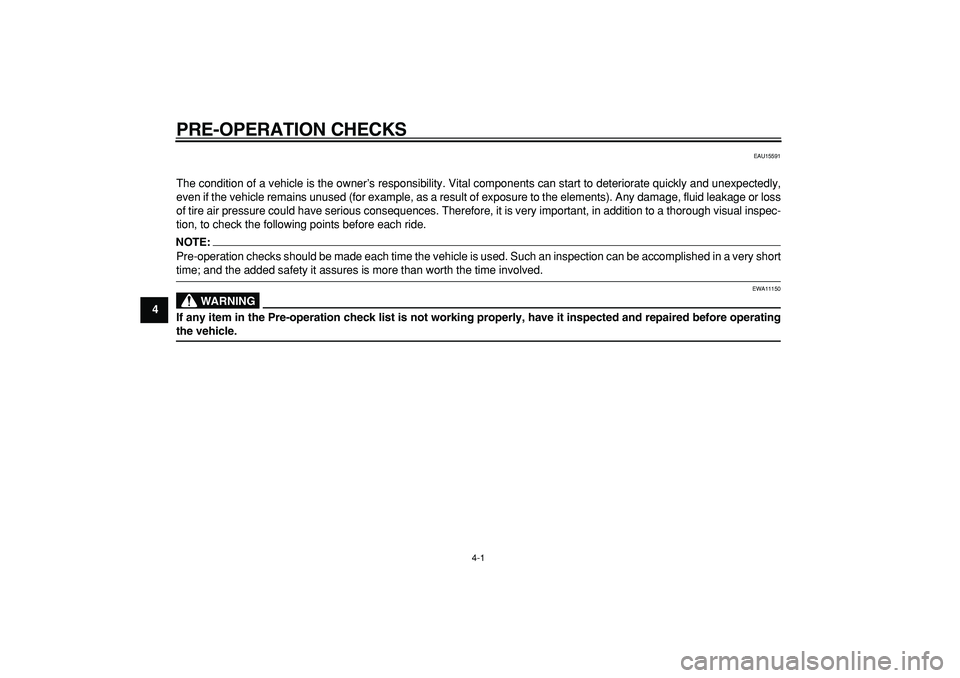

PRE-OPERATION CHECKS
EAU15591
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
NOTE:

Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very short
time; and the added safety it assures is more than worth the time involved.
WARNING

EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the vehicle.

PRE-OPERATION CHECKS
4-2
2
3
45
6
7
8
9

EAU15603
Pre-operation check list
ITEM CHECKS PAGE
Fuel

Check fuel level in fuel tank.

Refuel if necessary.

Check fuel line for leakage.3-13
Engine oil

Check oil level in engine.

If necessary, add recommended oil to specified level.

Check vehicle for oil leakage.6-7
Coolant

Check coolant level in reservoir.

If necessary, add recommended coolant to specified level.

Check cooling system for leakage.6-10
Front brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-20
Rear brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-20
Clutch

Check operation.

Lubricate cable if necessary.

Check lever free play.

Adjust if necessary.6-18

PRE-OPERATION CHECKS
4-3
1
2
3
4
5
6
7
8
9

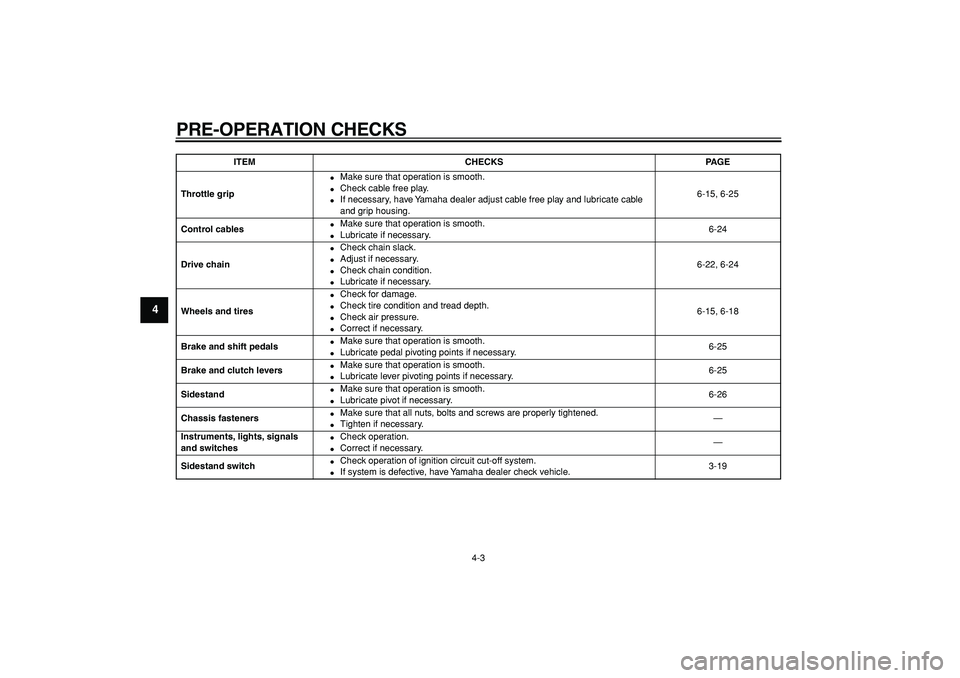

Throttle grip

Make sure that operation is smooth.

Check cable free play.

If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-15, 6-25
Control cables

Make sure that operation is smooth.

Lubricate if necessary.6-24
Drive chain

Check chain slack.

Adjust if necessary.

Check chain condition.

Lubricate if necessary.6-22, 6-24
Wheels and tires

Check for damage.

Check tire condition and tread depth.

Check air pressure.

Correct if necessary.6-15, 6-18
Brake and shift pedals

Make sure that operation is smooth.

Lubricate pedal pivoting points if necessary.6-25
Brake and clutch levers

Make sure that operation is smooth.

Lubricate lever pivoting points if necessary.6-25
Sidestand

Make sure that operation is smooth.

Lubricate pivot if necessary.6-26
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened.

Tighten if necessary.—
Instruments, lights, signals
and switches

Check operation.

Correct if necessary.—
Sidestand switch

Check operation of ignition circuit cut-off system.

If system is defective, have Yamaha dealer check vehicle.3-19
ITEM CHECKS PAGE
