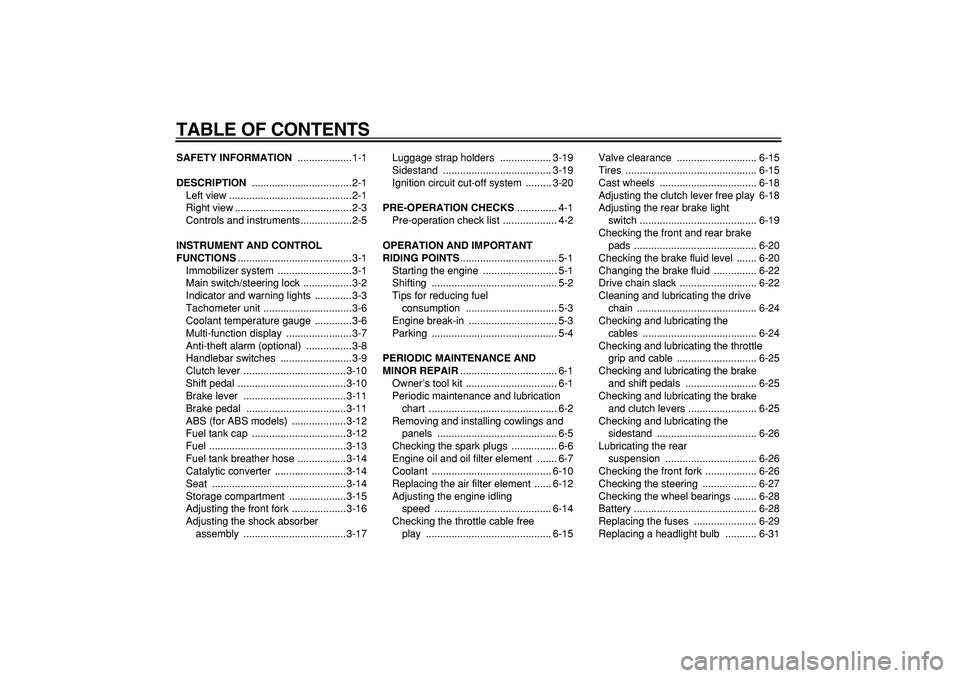

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-3
Controls and instruments..................2-5
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Tachometer unit ...............................3-6
Coolant temperature gauge .............3-6
Multi-function display .......................3-7
Anti-theft alarm (optional) ................3-8
Handlebar switches .........................3-9
Clutch lever ....................................3-10
Shift pedal ......................................3-10
Brake lever ....................................3-11
Brake pedal ...................................3-11
ABS (for ABS models) ...................3-12
Fuel tank cap .................................3-12
Fuel ................................................3-13
Fuel tank breather hose .................3-14
Catalytic converter .........................3-14
Seat ...............................................3-14
Storage compartment ....................3-15
Adjusting the front fork ...................3-16
Adjusting the shock absorber
assembly ....................................3-17Luggage strap holders .................. 3-19
Sidestand ...................................... 3-19
Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-2
Removing and installing cowlings and
panels .......................................... 6-5
Checking the spark plugs ................ 6-6
Engine oil and oil filter element ....... 6-7
Coolant .......................................... 6-10
Replacing the air filter element ...... 6-12
Adjusting the engine idling
speed ......................................... 6-14
Checking the throttle cable free
play ............................................ 6-15Valve clearance ............................ 6-15
Tires .............................................. 6-15
Cast wheels .................................. 6-18
Adjusting the clutch lever free play 6-18
Adjusting the rear brake light
switch ......................................... 6-19
Checking the front and rear brake
pads ........................................... 6-20
Checking the brake fluid level ....... 6-20
Changing the brake fluid ............... 6-22
Drive chain slack ........................... 6-22
Cleaning and lubricating the drive
chain .......................................... 6-24
Checking and lubricating the
cables ........................................ 6-24
Checking and lubricating the throttle
grip and cable ............................ 6-25
Checking and lubricating the brake
and shift pedals ......................... 6-25
Checking and lubricating the brake
and clutch levers ........................ 6-25
Checking and lubricating the
sidestand ................................... 6-26
Lubricating the rear
suspension ................................ 6-26
Checking the front fork .................. 6-26
Checking the steering ................... 6-27
Checking the wheel bearings ........ 6-28
Battery ........................................... 6-28
Replacing the fuses ...................... 6-29
Replacing a headlight bulb ........... 6-31

2-1
1
2
3
4
5
6
7
8
9

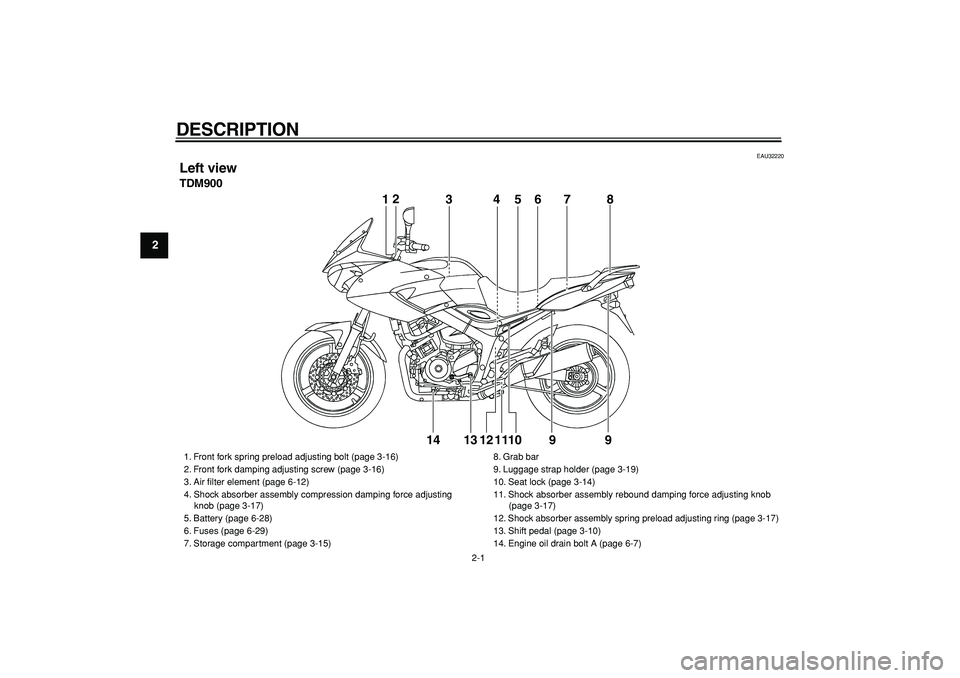

DESCRIPTION
EAU32220
Left view
TDM900
12
345678
9 9 10 11 12 13 1412
345678
9 9 10 11 12 13 14

1. Front fork spring preload adjusting bolt (page 3-16)
2. Front fork damping adjusting screw (page 3-16)
3. Air filter element (page 6-12)
4. Shock absorber assembly compression damping force adjusting
knob (page 3-17)
5. Battery (page 6-28)
6. Fuses (page 6-29)
7. Storage compartment (page 3-15)8. Grab bar
9. Luggage strap holder (page 3-19)
10. Seat lock (page 3-14)
11. Shock absorber assembly rebound damping force adjusting knob
(page 3-17)
12. Shock absorber assembly spring preload adjusting ring (page 3-17)
13. Shift pedal (page 3-10)
14. Engine oil drain bolt A (page 6-7)

DESCRIPTION
2-2
2
3
4
5
6
7
8
9 TDM900A
12
3456
7 7 8 9 10 11 1212
3456

1. Front fork spring preload adjusting bolt (page 3-16)
2. Front fork damping adjusting screw (page 3-16)
3. Air filter element (page 6-12)
4. Coolant reservoir (page 6-10)
5. Battery (page 6-28)
6. Fuses (page 6-29)
7. Luggage strap holder (page 3-19)
8. Seat lock (page 3-14)9. Shock absorber assembly rebound damping force adjusting knob
(page 3-17)
10. Shock absorber assembly spring preload adjusting ring (page 3-17)
11. Shift pedal (page 3-10)
12. Engine oil drain bolt A (page 6-7)

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU32230
Right view
TDM900
1234
5
6 7 8 9 10

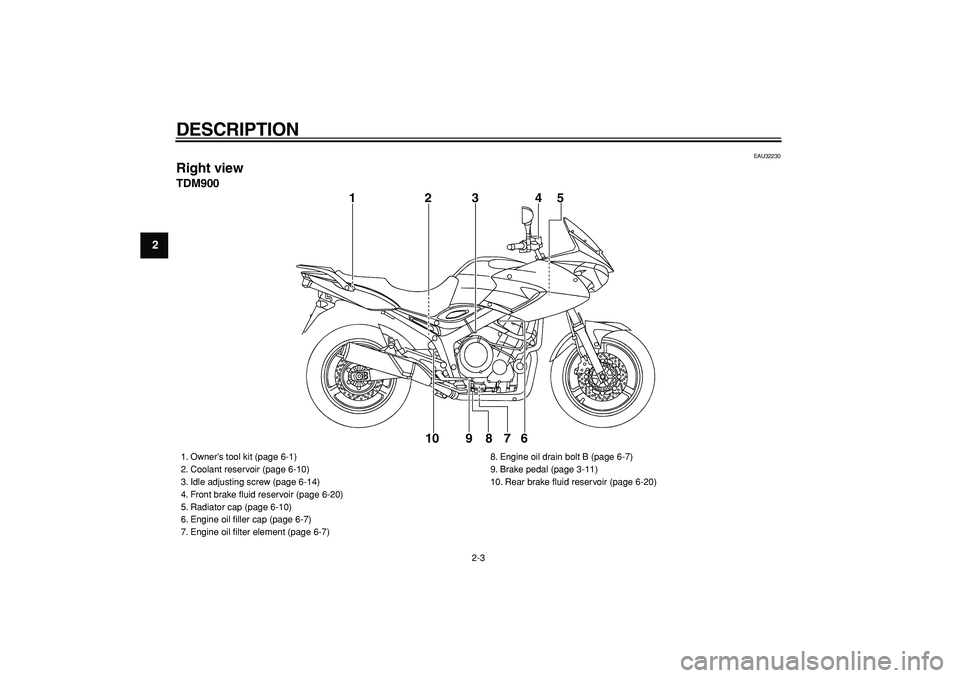

1. Owner’s tool kit (page 6-1)
2. Coolant reservoir (page 6-10)
3. Idle adjusting screw (page 6-14)
4. Front brake fluid reservoir (page 6-20)
5. Radiator cap (page 6-10)
6. Engine oil filler cap (page 6-7)
7. Engine oil filter element (page 6-7)8. Engine oil drain bolt B (page 6-7)
9. Brake pedal (page 3-11)
10. Rear brake fluid reservoir (page 6-20)

DESCRIPTION
2-4
2
3
4
5
6
7
8
9 TDM900A
1
56
7
8 9 10 11 12
23 4

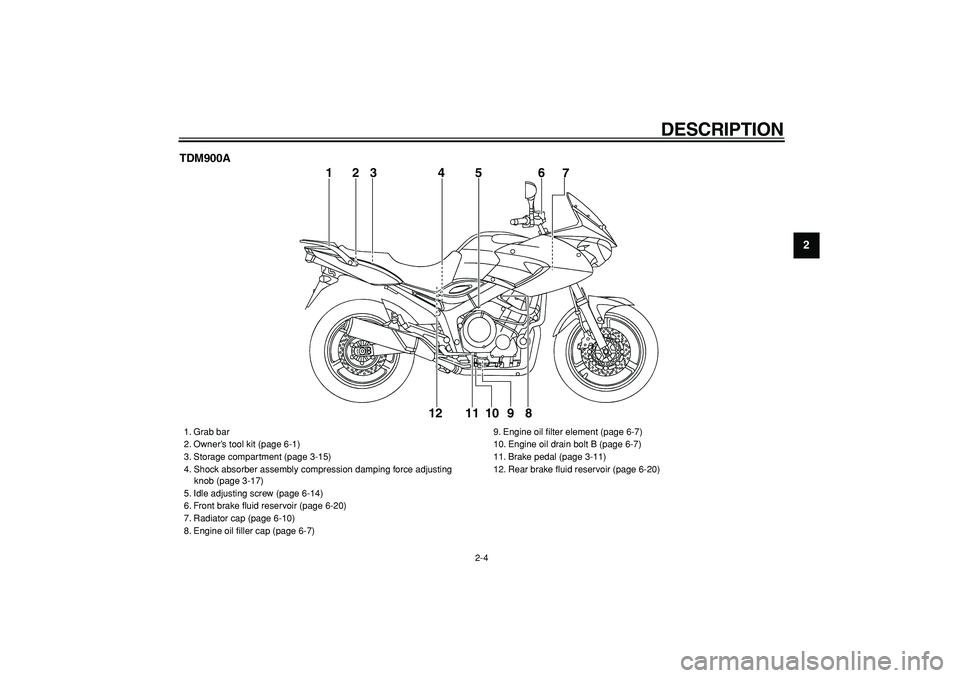

1. Grab bar
2. Owner’s tool kit (page 6-1)
3. Storage compartment (page 3-15)
4. Shock absorber assembly compression damping force adjusting
knob (page 3-17)
5. Idle adjusting screw (page 6-14)
6. Front brake fluid reservoir (page 6-20)
7. Radiator cap (page 6-10)
8. Engine oil filler cap (page 6-7)9. Engine oil filter element (page 6-7)
10. Engine oil drain bolt B (page 6-7)
11. Brake pedal (page 3-11)
12. Rear brake fluid reservoir (page 6-20)

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9

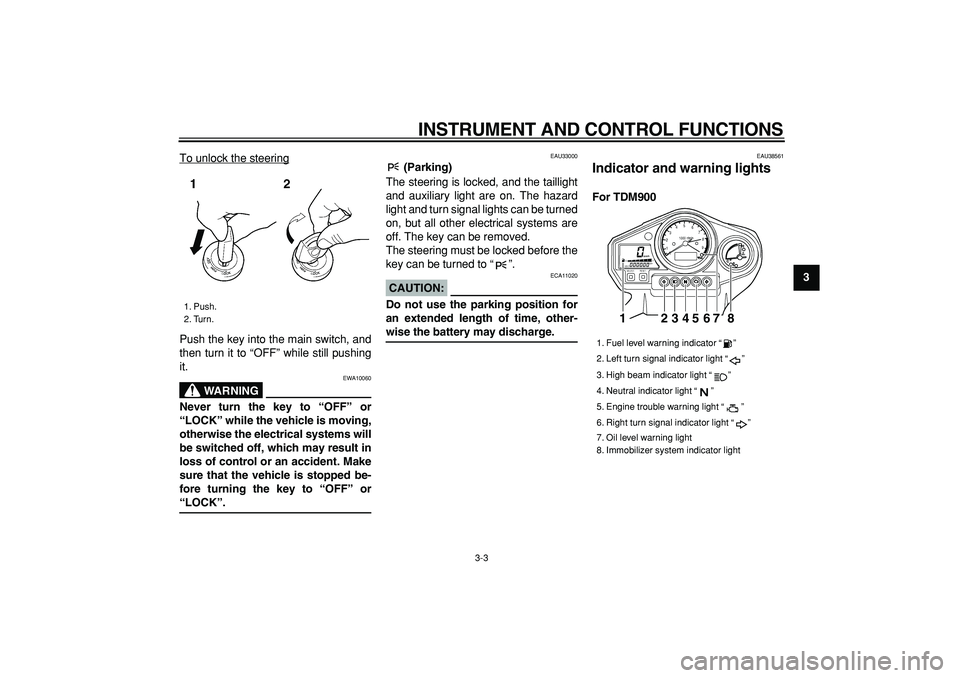

To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU33000
(Parking)
The steering is locked, and the taillight
and auxiliary light are on. The hazard
light and turn signal lights can be turned
on, but all other electrical systems are
off. The key can be removed.
The steering must be locked before the
key can be turned to “ ”.
CAUTION:

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU38561
Indicator and warning lights
For TDM900
1. Push.
2. Turn.
1. Fuel level warning indicator “ ”
2. Left turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Neutral indicator light “ ”
5. Engine trouble warning light “ ”
6. Right turn signal indicator light “ ”
7. Oil level warning light
8. Immobilizer system indicator light
12345678

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8

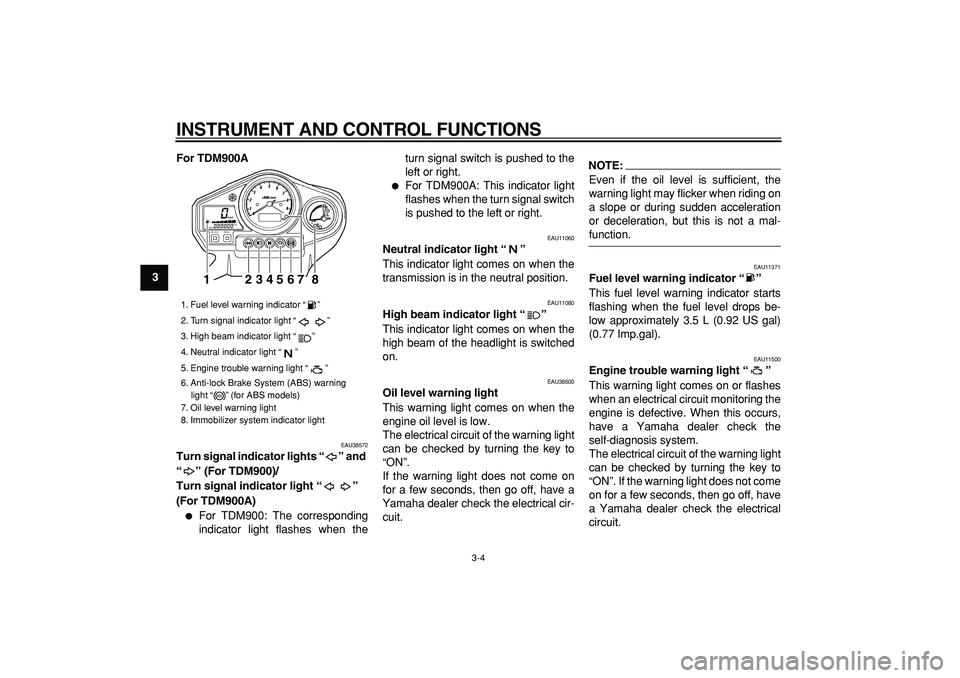

9For TDM900A

EAU38572
Turn signal indicator lights “” and
“” (For TDM900)/
Turn signal indicator light “”
(For TDM900A)

For TDM900: The corresponding
indicator light flashes when theturn signal switch is pushed to the
left or right.

For TDM900A: This indicator light
flashes when the turn signal switch
is pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU38600
Oil level warning light
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:

Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU11371
Fuel level warning indicator “”
This fuel level warning indicator starts
flashing when the fuel level drops be-
low approximately 3.5 L (0.92 US gal)
(0.77 Imp.gal).
EAU11500
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
1. Fuel level warning indicator “ ”
2. Turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Neutral indicator light “ ”
5. Engine trouble warning light “ ”
6. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
7. Oil level warning light
8. Immobilizer system indicator light
12345678
ABS

PRE-OPERATION CHECKS
4-2
2
3
45
6
7
8
9

EAU15603

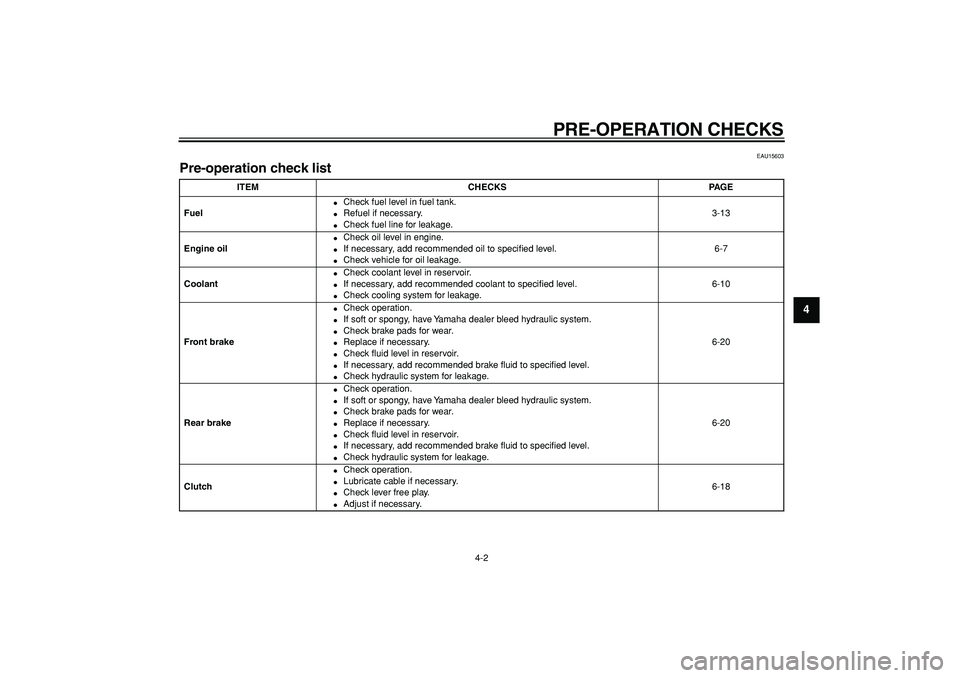

Pre-operation check list
ITEM CHECKS PAGE
Fuel

Check fuel level in fuel tank.

Refuel if necessary.

Check fuel line for leakage.3-13
Engine oil

Check oil level in engine.

If necessary, add recommended oil to specified level.

Check vehicle for oil leakage.6-7
Coolant

Check coolant level in reservoir.

If necessary, add recommended coolant to specified level.

Check cooling system for leakage.6-10
Front brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-20
Rear brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-20
Clutch

Check operation.

Lubricate cable if necessary.

Check lever free play.

Adjust if necessary.6-18

5-1
2
3
4
56
7
8
9

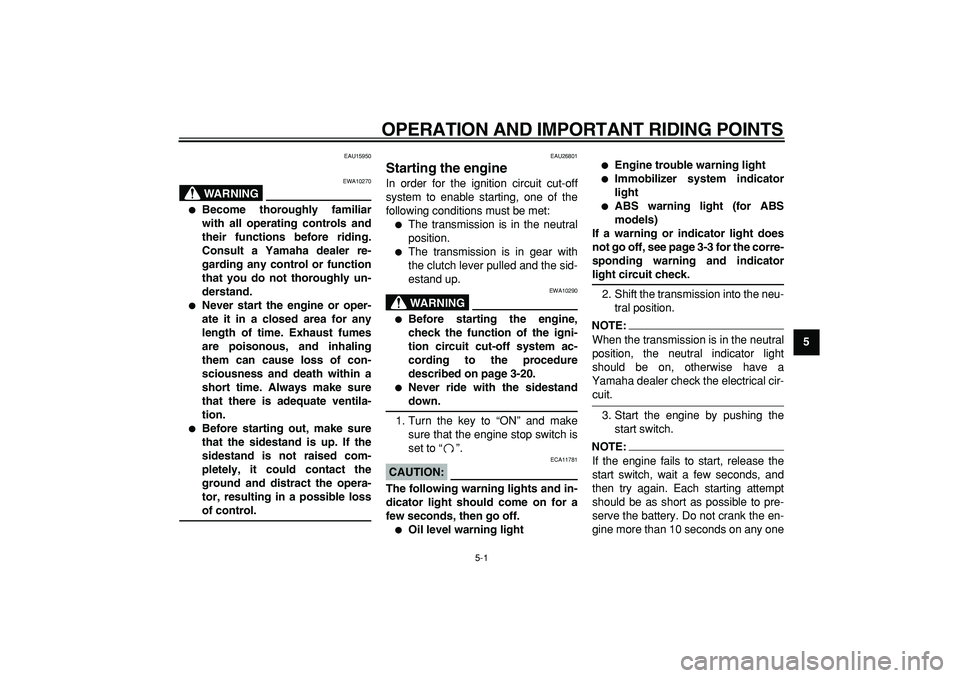

OPERATION AND IMPORTANT RIDING POINTS
EAU15950
WARNING

EWA10270

Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.

Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.

Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAU26801
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
WARNING

EWA10290

Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-20.

Never ride with the sidestand
down.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:

ECA11781
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light

Engine trouble warning light

Immobilizer system indicator
light

ABS warning light (for ABS
models)
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.
NOTE:

When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-
cuit.
3. Start the engine by pushing the
start switch.
NOTE:

If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one

OPERATION AND IMPORTANT RIDING POINTS
5-3
2
3
4
56
7
8
9

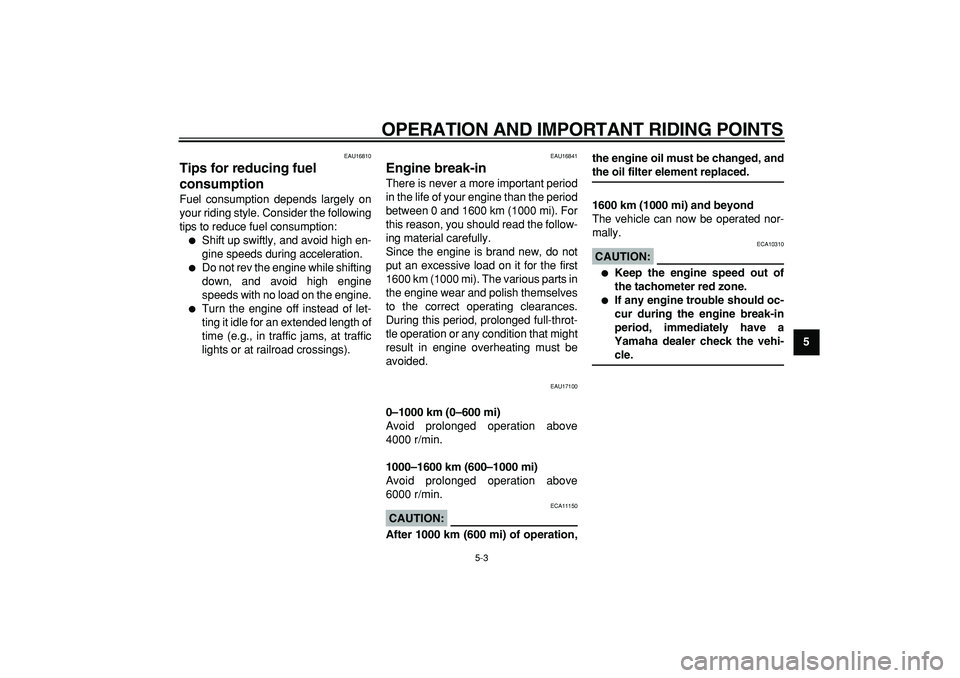

EAU16810
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.

Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17100
0–1000 km (0–600 mi)
Avoid prolonged operation above
4000 r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above
6000 r/min.
CAUTION:

ECA11150
After 1000 km (600 mi) of operation,the engine oil must be changed, and
the oil filter element replaced.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
CAUTION:

ECA10310

Keep the engine speed out of
the tachometer red zone.

If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
