SCOOTER CARE AND STORAGE
7-4
2
3
4
5
6
78
9
fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and the spark plugs.
b. Pour a teaspoonful of engine oil
into the spark plug bores.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
4. Lubricate all control cables and thepivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place
[less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more in-
formation on storing the battery,
see page 6-28.
NOTE:
Make any necessary repairs before
storing the scooter.
Page 82 of 90

8-1
1
2
3
4
5
6
7
8
9
SPECIFICATIONS
EAU2633E
Dimensions:
Overall length:
2235 mm (88.0 in)
Overall width:
775 mm (30.5 in)
Overall height:
1410 mm (55.5 in)
Seat height:
795 mm (31.3 in)
Wheelbase:
1575 mm (62.0 in)
Ground clearance:
130 mm (5.12 in)
Minimum turning radius:
2800 mm (110.2 in)
Weight:
With oil and fuel:
XP500 225.0 kg (496 lb)
XP500A 230.0 kg (507 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
499.0 cm
3
(30.45 cu.in)
Bore
×
stroke:
66.0
×
73.0 mm (2.60
×
2.87 in)
Compression ratio:
11.00 :1
Starting system:
Electric starterLubrication system:
Dry sump
Engine oil:
Type:
SAE10W30 or SAE10W40
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
2.80 L (2.96 US qt) (2.46 Imp.qt)
With oil filter cartridge replacement:
2.90 L (3.07 US qt) (2.55 Imp.qt)
Chain drive oil:
Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.70 L (0.74 US qt) (0.62 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.35 L (0.37 US qt) (0.31 Imp.qt)
Radiator capacity (including all routes):
1.50 L (1.59 US qt) (1.32 Imp.qt)
Air filter:
Air filter element:
Dry element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
14.0 L (3.70 US gal) (3.08 Imp.gal)
Fuel injection:
Manufacturer:
AISAN
Model/quantity:
1100-87B60/1100-87B70
Spark plug (s):
Manufacturer/model:
NGK/CR7E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Spur gear/helical gear
Primary reduction ratio:
52/32
×
36/22 (2.659)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
41/25
×
40/29 (2.262)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type
Chassis:
Frame type:
Diamond
Caster angle:
28.00 °
Trail:
95.0 mm (3.74 in)
Page 83 of 90

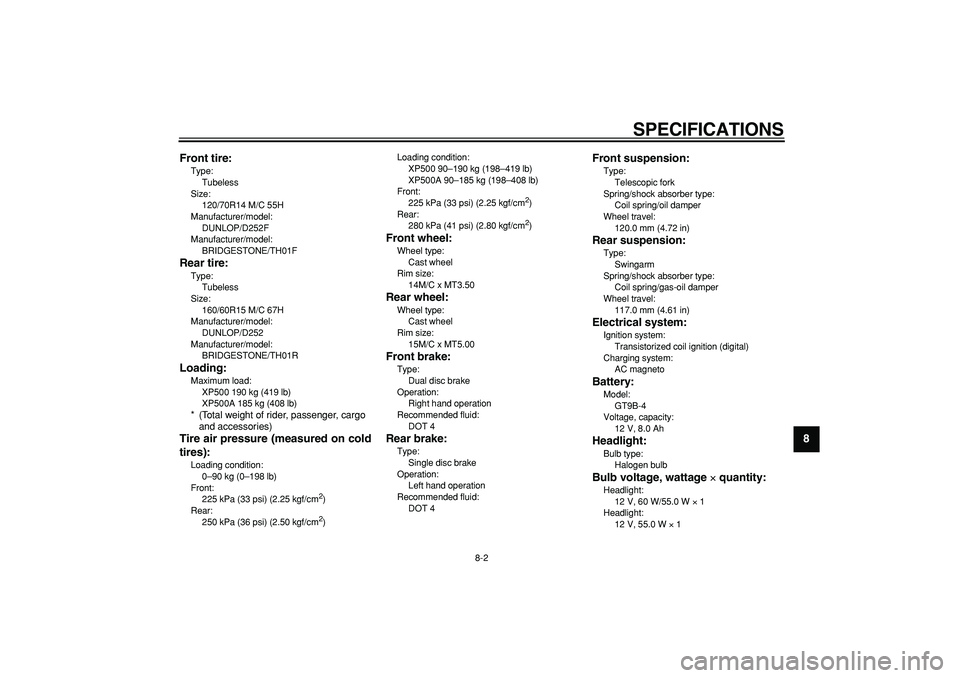

SPECIFICATIONS
8-2
2
3
4
5
6
7
89 Front tire:
Type:
Tubeless
Size:
120/70R14 M/C 55H
Manufacturer/model:
DUNLOP/D252F
Manufacturer/model:
BRIDGESTONE/TH01F
Rear tire:
Type:
Tubeless
Size:
160/60R15 M/C 67H
Manufacturer/model:
DUNLOP/D252
Manufacturer/model:
BRIDGESTONE/TH01R
Loading:
Maximum load:
XP500 190 kg (419 lb)
XP500A 185 kg (408 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2
)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2
)Loading condition:
XP500 90–190 kg (198–419 lb)
XP500A 90–185 kg (198–408 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2
)
Rear:
280 kPa (41 psi) (2.80 kgf/cm
2
)
Front wheel:
Wheel type:
Cast wheel
Rim size:
14M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
15M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
117.0 mm (4.61 in)
Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT9B-4
Voltage, capacity:
12 V, 8.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55.0 W
×
1
Headlight:
12 V, 55.0 W
×
1
Page 84 of 90

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9
Tail/brake light:
12 V, 5.0 W/21.0 W
×
2
Front turn signal/position light:
12 V, 21 W/5.0 W
×
2
Rear turn signal light:
12 V, 21.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
2
License plate light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
3
High beam indicator light:
14 V, 1.4 W
×
1
Turn signal indicator light:
14 V, 1.4 W
×
2
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
XP500A 14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED
Fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
XP500 20.0 A
XP500A 15.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 ARadiator fan fuse:
15.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
XP500A 5.0 A
ABS motor fuse:
XP500A 30.0 A
Backup fuse:
10.0 A
Page 85 of 90

9-1
2
3
4
5
6
7
8
9

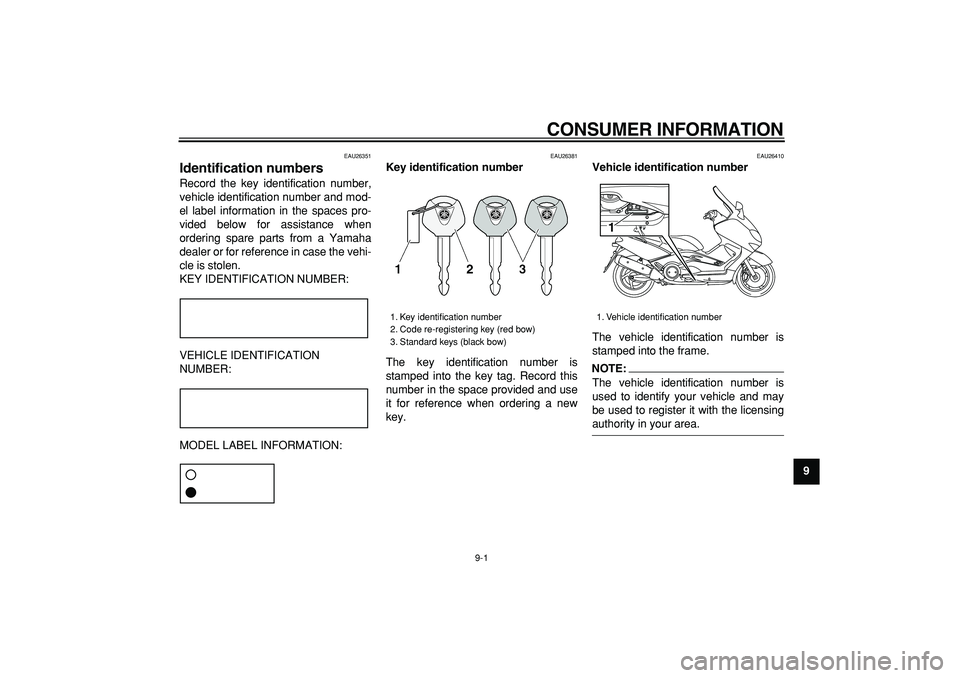

CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.
NOTE:
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
1
Page 86 of 90

CONSUMER INFORMATION
9-2
1
2
3
4
5
6
7
8
9

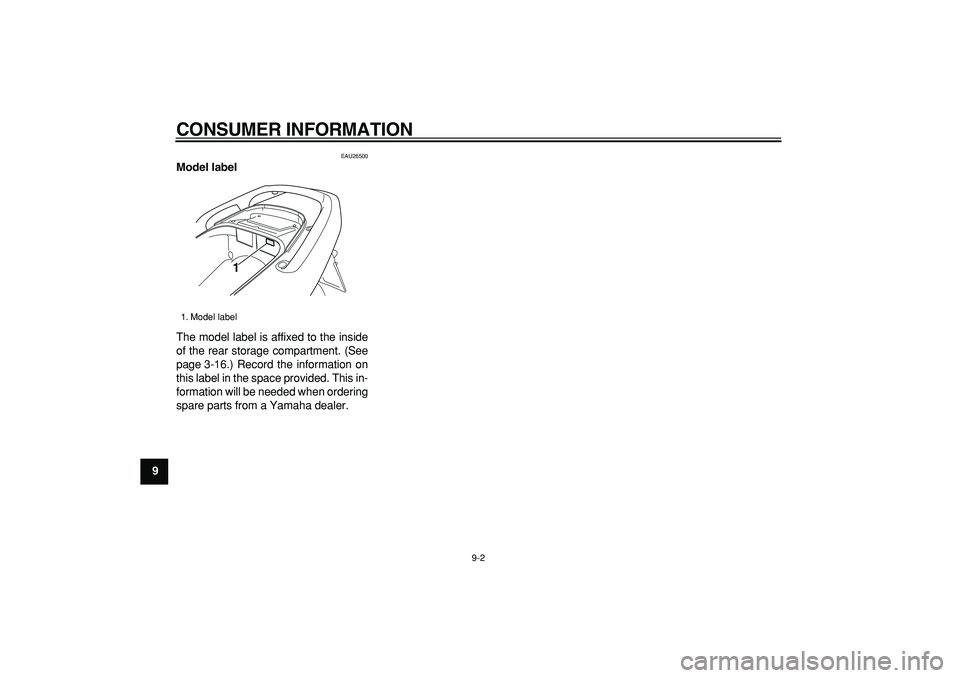

EAU26500
Model label
The model label is affixed to the inside
of the rear storage compartment. (See
page 3-16.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Model label
1
Page 87 of 90

INDEX
A
ABS (for ABS models) .............................3-11
ABS warning light (for ABS models) ..........3-3
Acceleration and deceleration ...................5-2
Air filter element, cleaning .......................6-16
Anti-theft alarm (optional) ..........................3-8
B
Battery .....................................................6-28
Brake fluid, changing ...............................6-24
Brake fluid level, checking .......................6-23
Brake lever, front .....................................3-10
Brake lever, rear ......................................3-10
Brake levers, lubricating ..........................6-25
Braking ......................................................5-3
C
Care ...........................................................7-1
Catalytic converter ...................................3-13
Caution, matte black ..................................7-1
Centerstand and sidestand, checking and
lubricating ..............................................6-25
Chain drive oil ..........................................6-14
Coolant ....................................................6-15
Cowlings and panels, removing and
installing ..................................................6-6
D
Dimmer switch ...........................................3-9
E
Engine break-in .........................................5-4
Engine idling speed .................................6-17
Engine oil and oil filter cartridge ..............6-11
Engine stop switch.....................................3-9
Engine trouble warning light ......................3-3
F
Front and rear brake lever free play ........6-21Front and rear brake pads, checking....... 6-22
Front fork, checking ................................. 6-26
Fuel ......................................................... 3-13
Fuel consumption, tips for reducing .......... 5-4
Fuel tank cap ........................................... 3-12
Fuses, replacing ...................................... 6-29
H
Handlebar switches ................................... 3-8
Hazard switch ............................................ 3-9
Headlight bulb, replacing ......................... 6-31
Helmet holder .......................................... 3-15
High beam indicator light ........................... 3-3
Horn switch................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-18
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-3
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
M
Main switch/steering lock .......................... 3-2
Model label ................................................ 9-2
Multi-function display ................................. 3-5
P
Parking ...................................................... 5-5
Part locations............................................. 2-1
Pass switch ............................................... 3-9
Periodic maintenance and lubrication
chart ........................................................ 6-3
Pre-operation check list ............................. 4-2
R
Rear brake lock lever .............................. 3-10Rear brake lock lever cable, adjusting .... 6-22
Rider backrest, adjusting......................... 3-14
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shock absorber ....................................... 3-17
Sidestand ................................................ 3-17
Spark plugs, checking ............................... 6-9
Specifications ............................................ 8-1
Speedometer............................................. 3-4
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-27
Storage...................................................... 7-3
Storage compartments ............................ 3-16
T
Tachometer ............................................... 3-4
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating ............................................. 6-25
Tires ........................................................ 6-19
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-32
Troubleshooting charts............................ 6-33
Turn signal indicator lights ........................ 3-3
Turn signal switch ..................................... 3-9
V
Valve clearance....................................... 6-18
Vehicle identification number .................... 9-1
W
Wheel bearings, checking ....................... 6-27
Wheels .................................................... 6-21
Page 88 of 90

Page 89 of 90

Page 90 of 90

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2005.7–0.1×1 !
(E)
PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2005.7–0.1×1 !
(E)
