headlight bulb YAMAHA TMAX 2007 Owners Manual

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Further safe-riding points .................1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-4
Tachometer .....................................3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) ................3-8
Handlebar switches .........................3-9
Front brake lever ...........................3-10
Rear brake lever ............................3-10
Rear brake lock lever .....................3-11
ABS (for ABS models) ...................3-11
Fuel tank cap .................................3-12
Fuel ................................................3-13
Catalytic converter .........................3-14
Seat ...............................................3-14
Adjusting the rider backrest ...........3-15
Helmet holder ................................3-15
Storage compartments ..................3-16
Shock absorber .............................3-17
Sidestand .......................................3-18Ignition circuit cut-off system ......... 3-18
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-3
Tips for reducing fuel
consumption ................................ 5-4
Engine break-in ............................... 5-4
Parking ............................................ 5-5
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-3
Removing and installing cowlings and
panels .......................................... 6-6
Checking the spark plugs ................ 6-9
Engine oil and oil filter cartridge .... 6-11
Chain drive oil ............................... 6-14
Coolant .......................................... 6-15
Cleaning the air filter element ....... 6-17
Adjusting the engine idling
speed ......................................... 6-18Checking the throttle cable free
play ............................................ 6-19
Valve clearance ............................ 6-19
Tires .............................................. 6-19
Cast wheels .................................. 6-21
Front and rear brake lever free
play ............................................ 6-22
Adjusting the rear brake lock lever
cable .......................................... 6-22
Checking the front and rear brake
pads ........................................... 6-23
Checking the brake fluid level ....... 6-24
Changing the brake fluid ............... 6-25
Checking and lubricating the throttle
grip and cable ............................ 6-25
Lubricating the front and rear brake
levers ......................................... 6-26
Checking and lubricating the
centerstand and sidestand ........ 6-26
Checking the front fork .................. 6-27
Checking the steering ................... 6-28
Checking the wheel bearings ........ 6-28
Battery ........................................... 6-29
Replacing the fuses ...................... 6-30
Replacing the headlight bulb ........ 6-32
Tail/brake light ............................... 6-33
Replacing a front turn signal light
bulb ............................................ 6-34
Replacing a rear turn signal light
bulb ............................................ 6-34
License plate light ......................... 6-35

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
2
3
4
5
67
8
9
CAUTION:

ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn onthe electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23760
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Disconnect the headlight coupler,
and then remove the bulb cover.
2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
XP500 20.0 A
XP500A 15.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
15.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
XP500A 5.0 A
ABS motor fuse:
XP500A 30.0 A
Backup fuse:
10.0 A
1. Headlight coupler
2. Headlight bulb cover
1
2

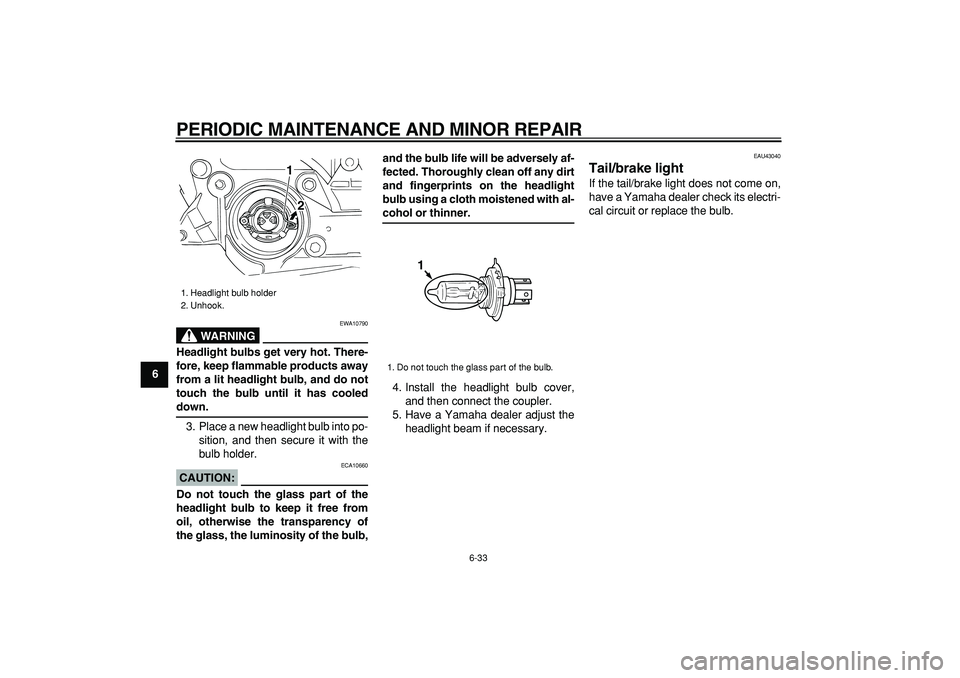

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
1
2
3
4
5
6
7
8
9
WARNING

EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down.
3. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
CAUTION:

ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
4. Install the headlight bulb cover,
and then connect the coupler.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU43040
Tail/brake light
If the tail/brake light does not come on,
have a Yamaha dealer check its electri-
cal circuit or replace the bulb.
1. Headlight bulb holder
2. Unhook.
1
2

1. Do not touch the glass part of the bulb.
1

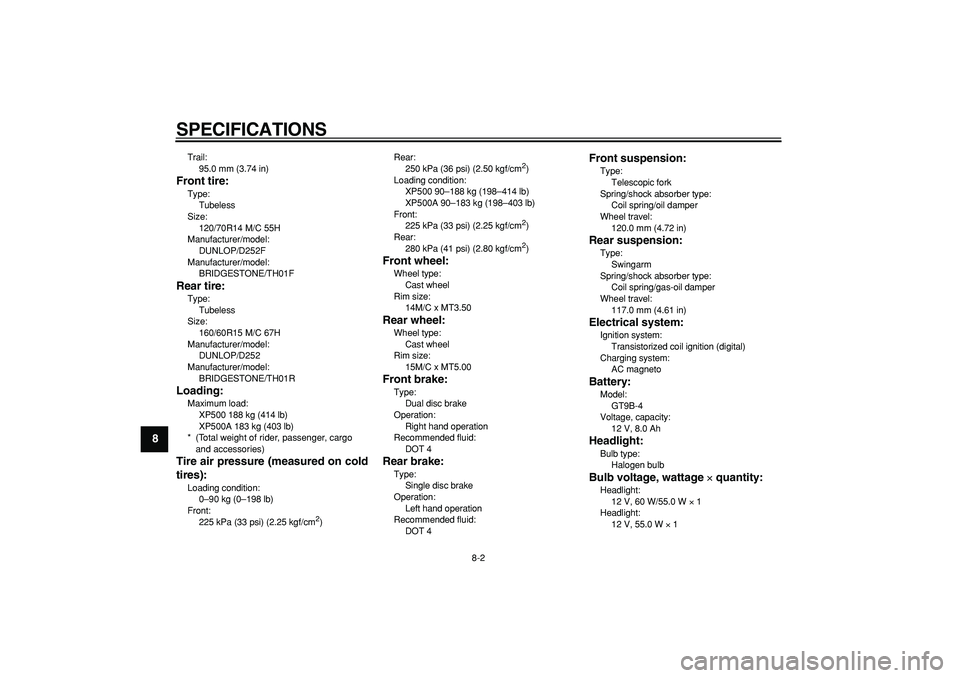

SPECIFICATIONS
8-2
1
2
3
4
5
6
7
8
9

Trail:
95.0 mm (3.74 in)
Front tire:
Type:
Tubeless
Size:
120/70R14 M/C 55H
Manufacturer/model:
DUNLOP/D252F
Manufacturer/model:
BRIDGESTONE/TH01F
Rear tire:
Type:
Tubeless
Size:
160/60R15 M/C 67H
Manufacturer/model:
DUNLOP/D252
Manufacturer/model:
BRIDGESTONE/TH01R
Loading:
Maximum load:
XP500 188 kg (414 lb)
XP500A 183 kg (403 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Loading condition:
XP500 90–188 kg (198–414 lb)
XP500A 90–183 kg (198–403 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
280 kPa (41 psi) (2.80 kgf/cm
2

)
Front wheel:
Wheel type:
Cast wheel
Rim size:
14M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
15M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
117.0 mm (4.61 in)
Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT9B-4
Voltage, capacity:
12 V, 8.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55.0 W
×
1
Headlight:
12 V, 55.0 W
×
1

INDEX
A
ABS (for ABS models) ............................ 3-11
ABS warning light (for ABS models) ......... 3-3
Acceleration and deceleration................... 5-2
Air filter element, cleaning....................... 6-17
Anti-theft alarm (optional).......................... 3-8
Auxiliary light bulb, replacing .................. 6-35
B
Battery..................................................... 6-29
Brake fluid, changing .............................. 6-25
Brake fluid level, checking ...................... 6-24
Brake lever, front..................................... 3-10
Brake lever, rear ..................................... 3-10
Brake levers, lubricating.......................... 6-26
Braking ...................................................... 5-3
C
Care .......................................................... 7-1
Catalytic converter .................................. 3-14
Centerstand and sidestand, checking and
lubricating ............................................. 6-26
Chain drive oil ......................................... 6-14
Coolant.................................................... 6-15
Cowlings and panels, removing and
installing.................................................. 6-6
D
Dimmer switch .......................................... 3-9
E
Engine break-in ......................................... 5-4
Engine idling speed................................. 6-18
Engine oil and oil filter cartridge .............. 6-11
Engine stop switch .................................... 3-9
Engine trouble warning light...................... 3-3
F
Front and rear brake lever free play........ 6-22Front and rear brake pads, checking .......6-23
Front fork, checking .................................6-27
Fuel ..........................................................3-13
Fuel consumption, tips for reducing ...........5-4
Fuel tank cap ...........................................3-12
Fuses, replacing ......................................6-30
H
Handlebar switches ...................................3-9
Hazard switch ..........................................3-10
Headlight bulb, replacing .........................6-32
Helmet holder ..........................................3-15
High beam indicator light ...........................3-3
Horn switch ................................................3-9
I
Identification numbers................................9-1
Ignition circuit cut-off system ...................3-18
Immobilizer system ....................................3-1
Immobilizer system indicator light ..............3-4
Indicator and warning lights .......................3-3
K
Key identification number ..........................9-1
L
License plate light ....................................6-35
M
Main switch/steering lock ...........................3-2
Matte color, caution ...................................7-1
Model label ................................................9-2
Multi-function display .................................3-5
P
Parking.......................................................5-5
Part locations .............................................2-1
Pass switch ................................................3-9
Periodic maintenance and lubrication
chart ........................................................6-3Pre-operation check list ............................. 4-2
R
Rear brake lock lever .............................. 3-11
Rear brake lock lever cable, adjusting .... 6-22
Rider backrest, adjusting ......................... 3-15
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shock absorber ....................................... 3-17
Sidestand ................................................ 3-18
Spark plugs, checking ............................... 6-9
Specifications ............................................ 8-1
Speedometer ............................................. 3-4
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch ................................................ 3-9
Steering, checking ................................... 6-28
Storage ...................................................... 7-3
Storage compartments ............................ 3-16
T
Tachometer ............................................... 3-5
Tail/brake light ......................................... 6-33
Throttle cable free play, checking............ 6-19
Throttle grip and cable, checking and
lubricating .............................................. 6-25
Tires ........................................................ 6-19
Tool kit ....................................................... 6-1
Troubleshooting....................................... 6-35
Troubleshooting charts ............................ 6-36
Turn signal indicator lights......................... 3-3
Turn signal light bulb (front), replacing .... 6-34
Turn signal light bulb (rear), replacing ..... 6-34
Turn signal switch...................................... 3-9
