IMPORTANT MANUAL INFORMATION
EAU34111
Particularly important information is distinguished in this manual by the following notations:
NOTE:


This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is sub-
sequently sold.

Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your scooter and
this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.
WARNING

EWA12410
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.
*Product and specifications are subject to change without notice.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in se
vere injur
y or death
to the
scooter operator, a bystander, or a person inspecting or repairing the scooter.
A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:NOTE:

SAFETY INFORMATION
1-4
1

Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade-
quate ventilation.

Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:

The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes-
trians or children are not likely to
touch these hot areas.

Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.

Do not park the scooter near a
flammable source (e.g., a kero-sene heater, or near an open
flame), otherwise it could catch
fire.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.
EAU10371
Further safe-riding points

Be sure to signal clearly when
making turns.

Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.

Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.

Be careful when passing parked
cars. A driver might not see you
and open a door in your path.

Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.

The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.

Always wear a helmet, gloves,
trousers (tapered around the cuff

3-1
2
34
5
6
7
8
9

INSTRUMENT AND CONTROL FUNCTIONS
EAU10972
Immobilizer system
This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing.

a code re-registering key (with a
red bow)

two standard keys (with a black
bow) that can be re-registered with
new codes

a transponder (which is installed in
the code re-registering key)

an immobilizer unit

an ECU

an immobilizer system indicator
light (See page 3-3.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
CAUTION:

ECA11820

DO NOT LOSE THE CODE
RE-REGISTERING KEY! CON-
TACT YOUR DEALER IMMEDI-
ATELY IF IT IS LOST! If the code
re-registering key is lost, regis-
tering new codes in the stan-
dard keys is impossible. The
standard keys can still be used
to start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the en-
tire immobilizer system must be
replaced. Therefore, it is highly
recommended to use either
standard key and keep the codere-registering key in a safe
place.

Do not submerse any key in wa-
ter.

Do not expose any key to exces-
sively high temperatures.

Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).

Do not place heavy items on any
key.

Do not grind any key or alter its
shape.

Do not disassemble the plastic
part of any key.

Do not put two keys of any im-
mobilizer system on the same
key ring.

Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.

Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-
ference.

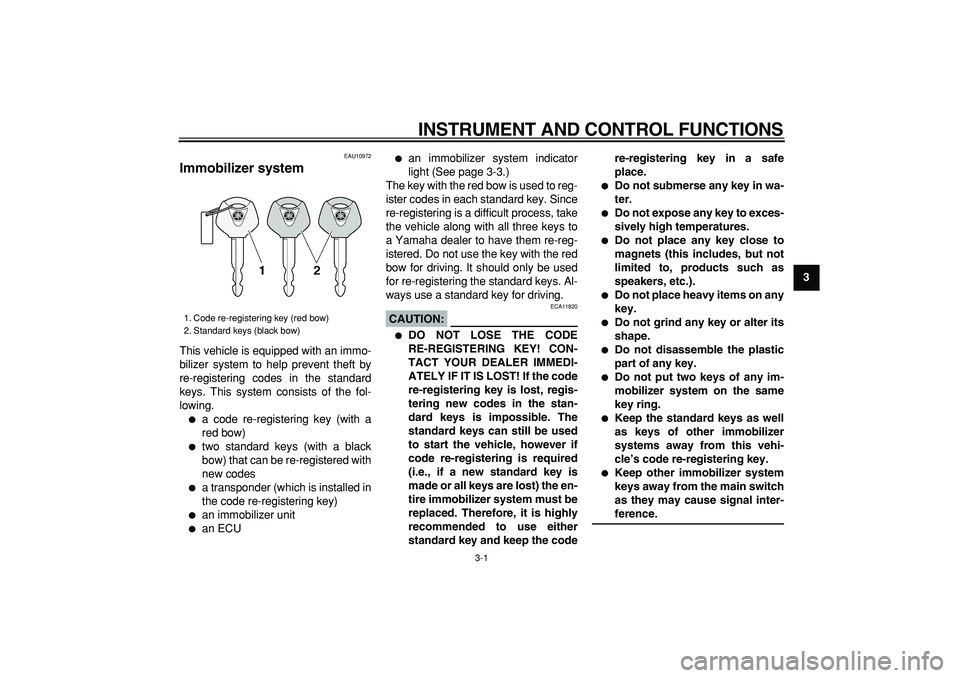

1. Code re-registering key (red bow)
2. Standard keys (black bow)

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9

EAU10471
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.
NOTE:

Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code
re-registering key (red bow), keep it in a
safe place and only use it for code
re-registering.
EAU34121
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lightscome on, and the engine can be start-
ed. The key cannot be removed.
NOTE:

The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU39460
(Parking)
The steering is locked, and the tail-
lights, license plate light and auxiliary
lights are on. The hazard lights and turn
signal lights can be turned on, but all
other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to “ ”.
CAUTION:

ECA11020
Do not use the parking position for
an extended length of time, other-

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9

wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “”
This indicator light comes on when thehigh beam of the headlight is switched
on.
EAU43020
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
NOTE:

This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU43030
ABS warning light “” (for ABS
models)
CAUTION:

ECA10830
If the ABS warning light comes on or
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Immobilizer system indicator light
4. Engine trouble warning light “ ”
5. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)1
2
3
4
5
ABS
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9flashes while riding, the ABS may be
defective. If this occurs, have a
Yamaha dealer check the electrical

circuit.
See page 3-11 for an explanation of the
ABS.
The electrical circuit of the warning light
can be checked by setting the engine
stop switch to “” and turning the key
to “ON”. The warning light should come
on for a few seconds, and then go off. If
the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
WARNING

EWA11350
When the ABS warning light comes
on or flashes while riding, the brake
system reverts to conventional brak-
ing. Therefore, be careful not to
cause the wheel to lock during emer-
gency braking.
NOTE:

The ABS warning light may come on
while accelerating the engine with the
scooter on its centerstand, but this
does not indicate a malfunction.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-5 for an expla-
nation of the self-diagnosis device.)
EAU11601
Speedometer
The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
1. Speedometer
1

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU11872
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8250 r/min and above
EAU33519
Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:

a fuel meter

a coolant temperature meter

an odometer (which shows the to-
tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning indi-
1. Tachometer
2. Tachometer red zone
12

1. Clock
2. Coolant temperature meter
3. Fuel meter
4. Odometer/tripmeters
5. “SELECT” button
6. “RESET” button
1
2
3
4
5
6

1. V-belt replacement indicator “V-BELT”
2. Fuel level warning indicator “”
3. Coolant temperature warning indicator
“”
4. Oil change indicator “OIL”
12
4
3

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
cator started flashing)


a self-diagnosis device

a clock

an oil change indicator

a V-belt replacement indicator
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.

When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP” in the following order:
ODO
→
TRIP (top)
→
TRIP (bottom)
→
ODO
When approximately 2.8 L (0.74 US
gal) (0.62 Imp.gal) of fuel remains in the
fuel tank, the bottom segment of the
fuel meter and fuel level warning indica-
tor will start flashing, and the display willautomatically change to the fuel re-
serve tripmeter mode “TRIP F” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→
TRIP (top)
→
TRIP (bottom)
→
ODO
→
TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button until “TRIP” or
“TRIP F” begins flashing (“TRIP” or
“TRIP F” will only flash for five sec-
onds). While “TRIP” or “TRIP F” is
flashing, push the “RESET” button for
at least one second. If you do not reset
the fuel reserve tripmeter manually, itwill reset itself automatically and the
display will return to the prior mode af-
ter refueling and traveling 5 km (3 mi).
NOTE:

The display cannot be changed back to
“TRIP F” after pushing the “RESET”
button.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator and the bottom segment
will flash. Refuel as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the top segment and coolant tempera-
ture warning indicator flash, stop the
vehicle and let the engine cool. (See

1. Fuel reserve tripmeter
1

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
page 6-36.)
CAUTION:

ECA10020
Do not operate the engine if it is
overheated.
Oil change indicator “OIL”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. (See page 6-11.)
If the engine oil is changed before the
oil change indicator comes on (i.e. be-
fore the periodic oil change interval has
been reached), the indicator must bereset after the oil change for the next
periodic oil change to be indicated at
the correct time. (See page 6-11.)
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “”
and turn the key to “ON”.
2. Check that the indicator comes on
for a few seconds and then goes
off.
3. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
NOTE:

The oil change indicator may flash
when the engine is revved with the
scooter on the centerstand, but this
does not indicate a malfunction.
V-belt replacement indicator
“V-BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
The electrical circuit of the indicator can
be checked according to the following
procedure.1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
2. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:

ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system.

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.
NOTE:

If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.

EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
