engine YAMAHA TMAX 2008 Owner's Manual

OPERATION AND IMPORTANT RIDING POINTS
5-4
1
2
3
4
5
6
7
8
9

EAU16820

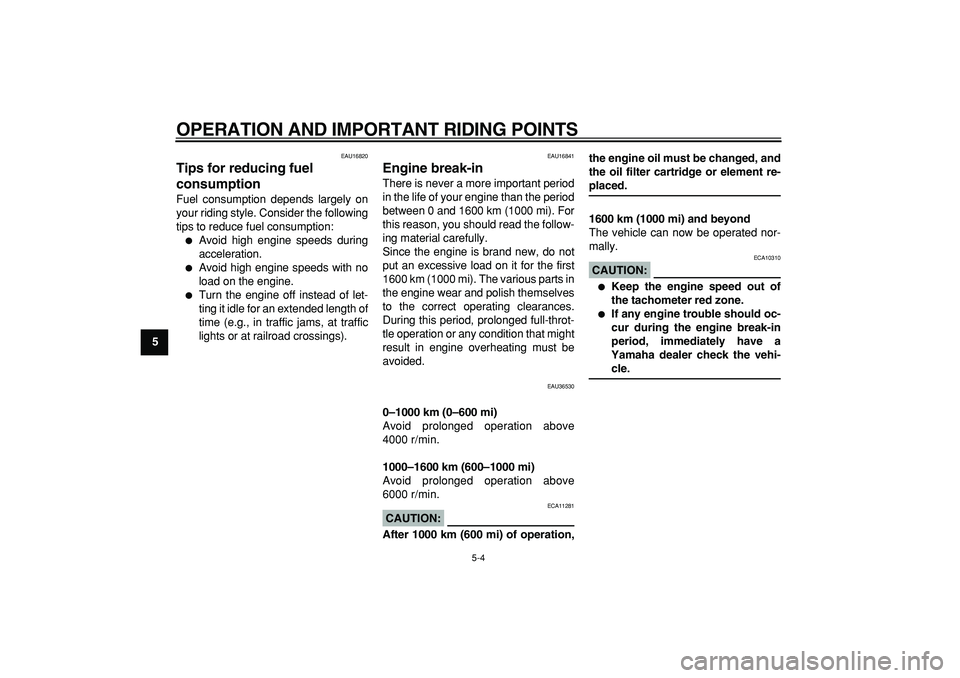

Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Avoid high engine speeds during
acceleration.

Avoid high engine speeds with no
load on the engine.

Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU36530
0–1000 km (0–600 mi)
Avoid prolonged operation above
4000 r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above
6000 r/min.
CAUTION:

ECA11281
After 1000 km (600 mi) of operation,the engine oil must be changed, and
the oil filter cartridge or element re-
placed.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
CAUTION:

ECA10310

Keep the engine speed out of
the tachometer red zone.

If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.

OPERATION AND IMPORTANT RIDING POINTS
5-5
2
3
4
56
7
8
9

EAU17212

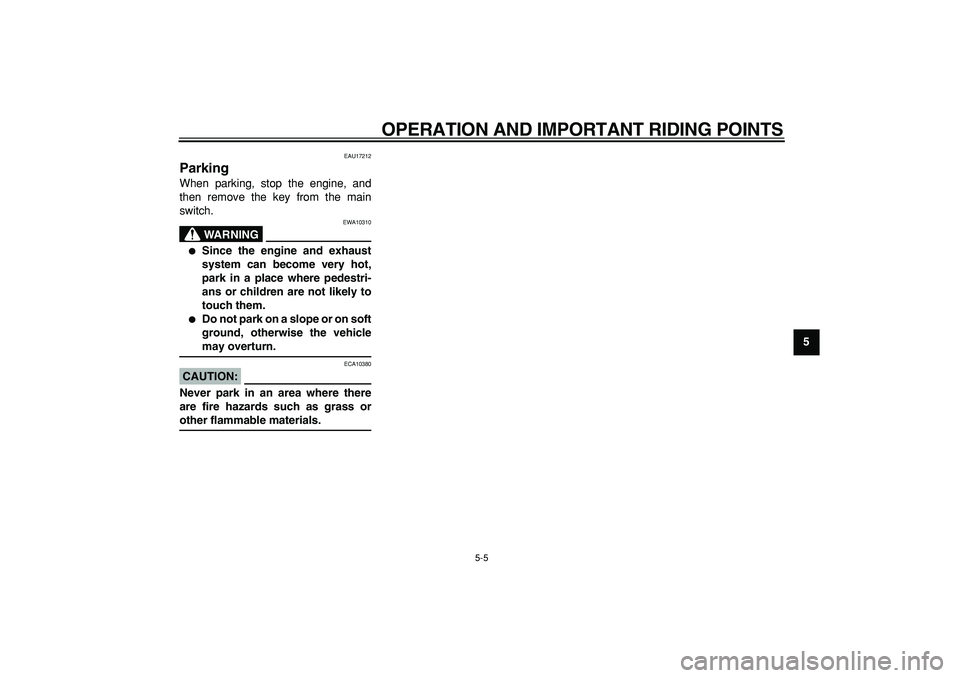

Parking
When parking, stop the engine, and
then remove the key from the main
switch.
WARNING

EWA10310

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.

Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn.
CAUTION:

ECA10380
Never park in an area where there
are fire hazards such as grass or
other flammable materials.

6-1
1
2
3
4
5
6
7
8
9

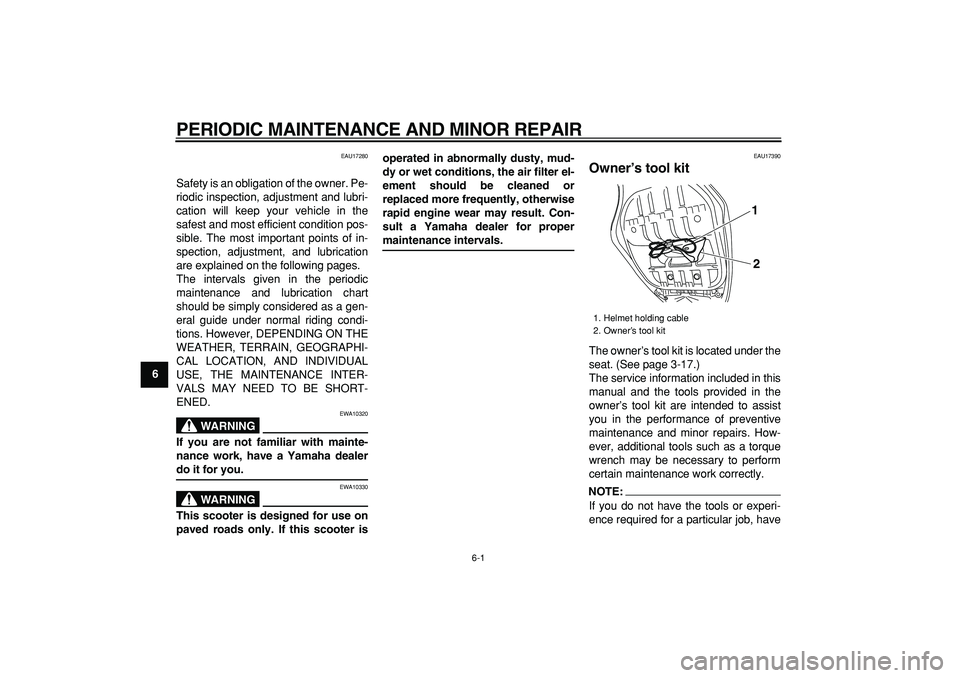

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17280
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING

EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
WARNING

EWA10330
This scooter is designed for use on
paved roads only. If this scooter isoperated in abnormally dusty, mud-
dy or wet conditions, the air filter el-
ement should be cleaned or
replaced more frequently, otherwise
rapid engine wear may result. Con-
sult a Yamaha dealer for proper
maintenance intervals.
EAU17390
Owner’s tool kit
The owner’s tool kit is located under the
seat. (See page 3-17.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:

If you do not have the tools or experi-
ence required for a particular job, have
1. Helmet holding cable
2. Owner’s tool kit
12

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
1
2
3
4
5
6
7
8
9

21

*

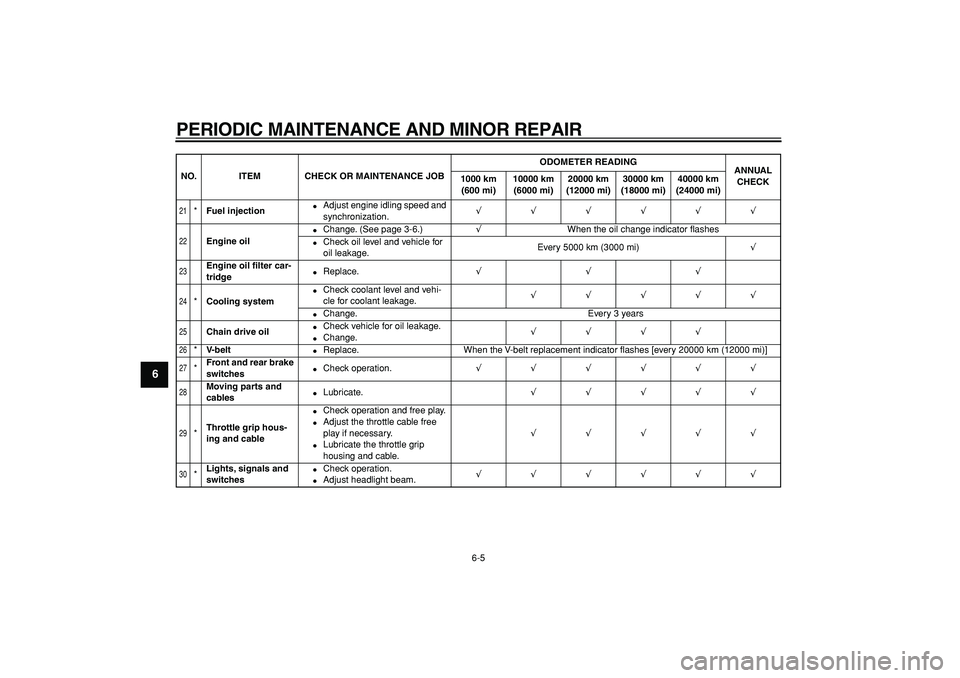

Fuel injection

Adjust engine idling speed and
synchronization.
√√√√√√
22

Engine oil

Change. (See page 3-6.)
√
When the oil change indicator flashes

Check oil level and vehicle for
oil leakage.Every 5000 km (3000 mi)
√
23

Engine oil filter car-
tridge

Replace.
√√√
24

*
Cooling system

Check coolant level and vehi-
cle for coolant leakage.
√√√√√

Change. Every 3 years
25

Chain drive oil

Check vehicle for oil leakage.

Change.
√√√√
26

*
V-belt

Replace. When the V-belt replacement indicator flashes [every 20000 km (12000 mi)]
27

*
Front and rear brake
switches

Check operation.
√√√√√√
28

Moving parts and
cables

Lubricate.
√√√√√
29

*
Throttle grip hous-
ing and cable

Check operation and free play.

Adjust the throttle cable free
play if necessary.

Lubricate the throttle grip
housing and cable.
√√√√√
30

*
Lights, signals and
switches

Check operation.

Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
2
3
4
5
67
8
9

EAU19642

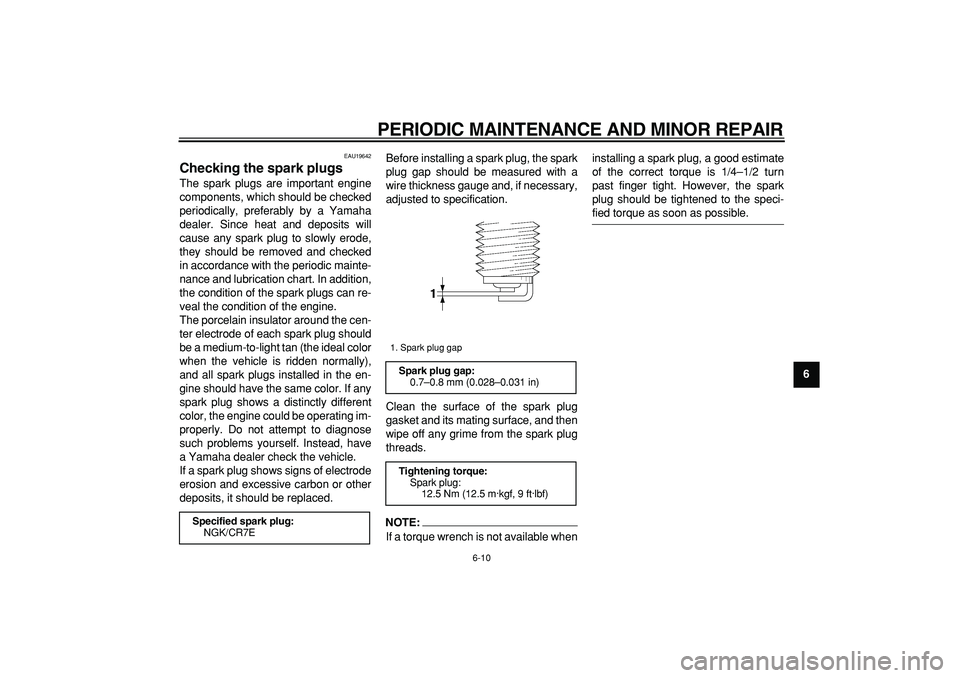

Checking the spark plugs
The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:

If a torque wrench is not available wheninstalling a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
Specified spark plug:
NGK/CR7E
1. Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Tightening torque:
Spark plug:
12.5 Nm (12.5 m·kgf, 9 ft·lbf)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
1
2
3
4
5
6
7
8
9

EAU19858
Engine oil and oil filter
cartridge
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand.
CAUTION:

ECA11290
The engine must be cold before pro-
ceeding with the oil level check, oth-
erwise the check will result in a false
reading.
NOTE:

Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in a
false reading.
2. Start the engine, warm it up for two
minutes, and then turn it off.
3. Wait two minutes until the oil set-tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.
NOTE:

The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1
32

1. Engine oil filler cap
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
2
3
4
5
67
8
9

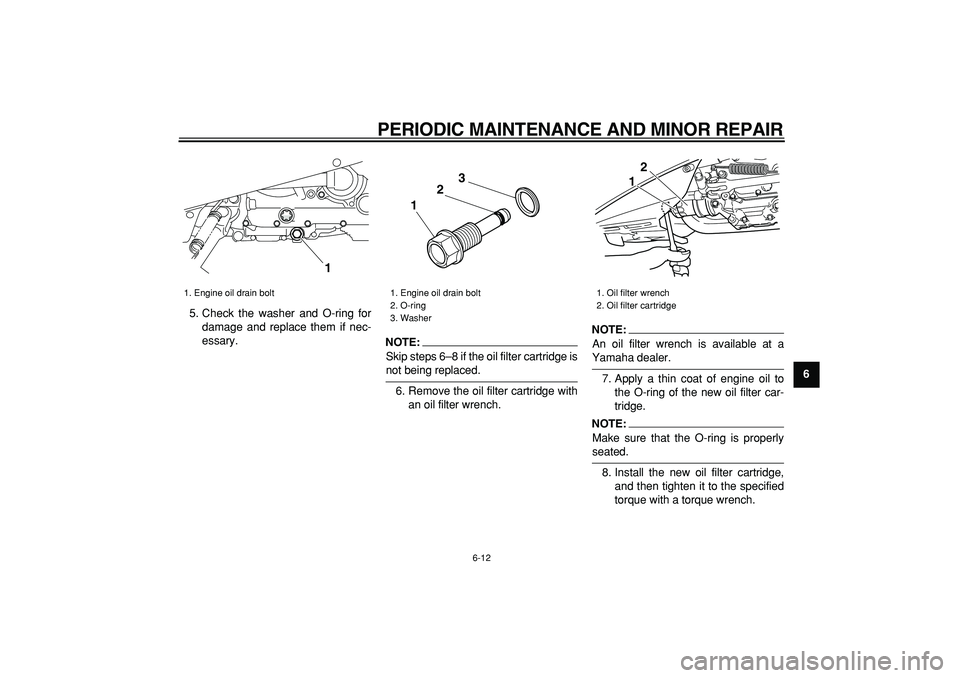

5. Check the washer and O-ring for
damage and replace them if nec-
essary.
NOTE:

Skip steps 6–8 if the oil filter cartridge is
not being replaced.
6. Remove the oil filter cartridge with
an oil filter wrench.
NOTE:

An oil filter wrench is available at a
Yamaha dealer.
7. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
NOTE:

Make sure that the O-ring is properly
seated.
8. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.
1. Engine oil drain bolt
1

1. Engine oil drain bolt
2. O-ring
3. Washer
12
3

1. Oil filter wrench
2. Oil filter cartridge
2
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
1
2
3
4
5
6
7
8
9

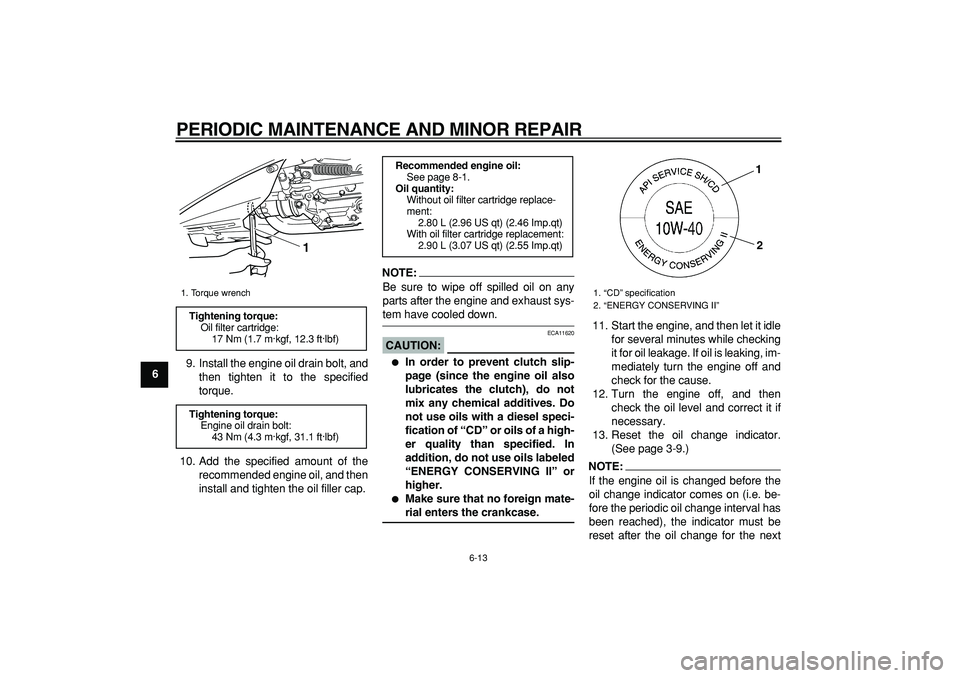

9. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
10. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
NOTE:

Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
CAUTION:

ECA11620

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-
rial enters the crankcase.
11. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
12. Turn the engine off, and then
check the oil level and correct it if
necessary.
13. Reset the oil change indicator.
(See page 3-9.)
NOTE:

If the engine oil is changed before the
oil change indicator comes on (i.e. be-
fore the periodic oil change interval has
been reached), the indicator must be
reset after the oil change for the next
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12.3 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31.1 ft·lbf)
1

Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.80 L (2.96 US qt) (2.46 Imp.qt)
With oil filter cartridge replacement:
2.90 L (3.07 US qt) (2.55 Imp.qt)
1. “CD” specification
2. “ENERGY CONSERVING II”
1
2

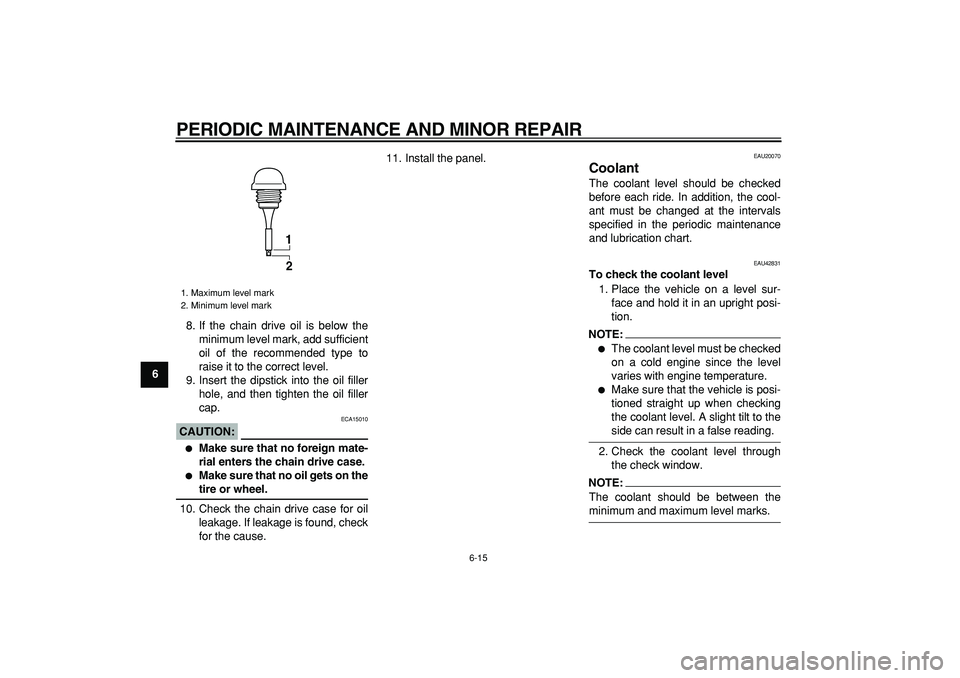

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
1
2
3
4
5
6
7
8
9
8. If the chain drive oil is below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
9. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
CAUTION:

ECA15010

Make sure that no foreign mate-
rial enters the chain drive case.

Make sure that no oil gets on the
tire or wheel.
10. Check the chain drive case for oil
leakage. If leakage is found, check
for the cause.11. Install the panel.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42831
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:


The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level through
the check window.
NOTE:

The coolant should be between the
minimum and maximum level marks.
1. Maximum level mark
2. Minimum level mark
1
2

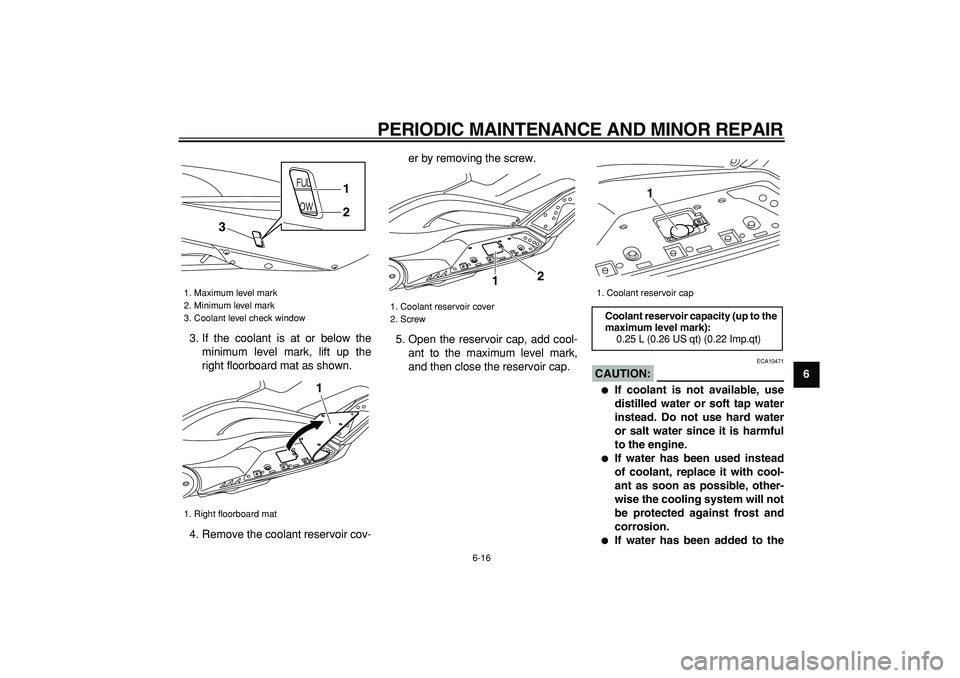

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
2
3
4
5
67
8
9
3. If the coolant is at or below the
minimum level mark, lift up the
right floorboard mat as shown.
4. Remove the coolant reservoir cov-er by removing the screw.
5. Open the reservoir cap, add cool-
ant to the maximum level mark,
and then close the reservoir cap.
CAUTION:

ECA10471

If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.

If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.

If water has been added to the
1. Maximum level mark
2. Minimum level mark
3. Coolant level check window
1. Right floorboard mat
3
1
2
1

1. Coolant reservoir cover
2. Screw
12

1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
1
