YAMAHA TMAX 2008 Repair Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
2
3
4
5
67
8
9
periodic oil change to be indicated at

the correct time.
EAU19995

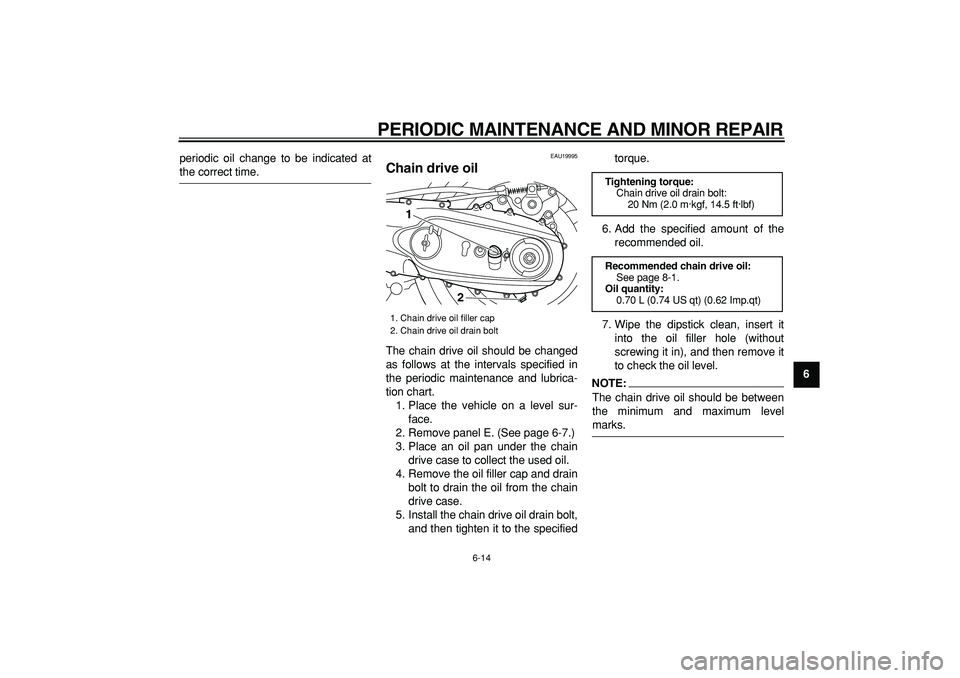

Chain drive oil
The chain drive oil should be changed
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place the vehicle on a level sur-
face.
2. Remove panel E. (See page 6-7.)
3. Place an oil pan under the chain
drive case to collect the used oil.
4. Remove the oil filler cap and drain
bolt to drain the oil from the chain
drive case.
5. Install the chain drive oil drain bolt,
and then tighten it to the specifiedtorque.
6. Add the specified amount of the
recommended oil.
7. Wipe the dipstick clean, insert it
into the oil filler hole (without
screwing it in), and then remove it
to check the oil level.
NOTE:

The chain drive oil should be between
the minimum and maximum level
marks.
1. Chain drive oil filler cap
2. Chain drive oil drain bolt
1
2

Tightening torque:
Chain drive oil drain bolt:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
Recommended chain drive oil:
See page 8-1.
Oil quantity:
0.70 L (0.74 US qt) (0.62 Imp.qt)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
1
2
3
4
5
6
7
8
9
8. If the chain drive oil is below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
9. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
CAUTION:

ECA15010

Make sure that no foreign mate-
rial enters the chain drive case.

Make sure that no oil gets on the
tire or wheel.
10. Check the chain drive case for oil
leakage. If leakage is found, check
for the cause.11. Install the panel.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42831
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:


The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level through
the check window.
NOTE:

The coolant should be between the
minimum and maximum level marks.
1. Maximum level mark
2. Minimum level mark
1
2

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
2
3
4
5
67
8
9
3. If the coolant is at or below the
minimum level mark, lift up the
right floorboard mat as shown.
4. Remove the coolant reservoir cov-er by removing the screw.
5. Open the reservoir cap, add cool-
ant to the maximum level mark,
and then close the reservoir cap.
CAUTION:

ECA10471

If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.

If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.

If water has been added to the
1. Maximum level mark
2. Minimum level mark
3. Coolant level check window
1. Right floorboard mat
3
1
2
1

1. Coolant reservoir cover
2. Screw
12

1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
1
2
3
4
5
6
7
8
9coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of

the coolant will be reduced.
WARNING

EWA10380
Never attempt to remove the radiator
cap when the engine is hot.
6. Install the coolant reservoir cover
by installing the screw.
7. Place the right floorboard mat in
the original position.
NOTE:


The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.

If the engine overheats, see page
6-35 for further instructions.
EAU45020
Replacing the air filter element
The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas.
To replace the air filter element
1. Remove panels C and D. (See
page 6-7.)
2. Remove the air filter case cover by
removing the screws.
3. Pull the air filter element out.4. Insert a new air filter element into
the air filter case.
CAUTION:

ECA10480

Make sure that the air filter ele-
ment is properly seated in the
air filter case.

The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
5. Install the air filter case cover by in-
stalling the screws.
6. Install the panels.
1. Screw
2. Air filter case cover
2
1
1

1. Air filter element
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
2
3
4
5
67
8
9

EAU33482
Adjusting the engine idling
speed
The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.
1. Remove panel F. (See page 6-7.)
2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the idle adjust-
ing screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
NOTE:

If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
3. Install the panel.
EAU21382
Checking the throttle cable
free play
The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. Idle adjusting screw
Engine idling speed:
1100–1300 r/min
1(a) (b)

1. Throttle cable free play
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
1
2
3
4
5
6
7
8
9

EAU21401
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU33600
Tires
To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING

EWA10500

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).

The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
WARNING

EWA11200
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your vehicle, you should keep
the following precautions in mind.

NEVER OVERLOAD THE VEHI-
CLE! Operation of an overload-
ed vehicle may result in tire
damage, loss of control, or se-
vere injury. Make sure that the
total weight of rider, passenger,
cargo, and accessories does
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
90–190 kg (198–419 lb):
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
280 kPa (41 psi) (2.80 kgf/cm
2

)
Maximum load*:
190 kg (419 lb)
* Total weight of rider, passenger, car-
go and accessories

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
2
3
4
5
67
8
9 not exceed the specified maxi-
mum load for the vehicle.


Do not carry along loosely
packed items, which can shift
during a ride.

Securely pack the heaviest
items close to the center of the
vehicle and distribute the
weight evenly on both sides.

Adjust the tire air pressure with
regard to the load.

Check the tire condition and air
pressure before each ride.
Tire inspection
The tires must be checked before eachride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:

The tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
Tire information
This model is equipped with tubeless
tires.
WARNING

EWA10470

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.

The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
1. Tire sidewall
2. Tire tread depth
12

Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
Front tire:
Size:
120/70R15 M/C 56H
Manufacturer/model:
DUNLOP/GPR-100F
BRIDGESTONE/BT011F
Rear tire:
Size:
160/60R15 M/C 67H
Manufacturer/model:
DUNLOP/GPR-100L
BRIDGESTONE/BT012R

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
1
2
3
4
5
6
7
8
9

EAU21960

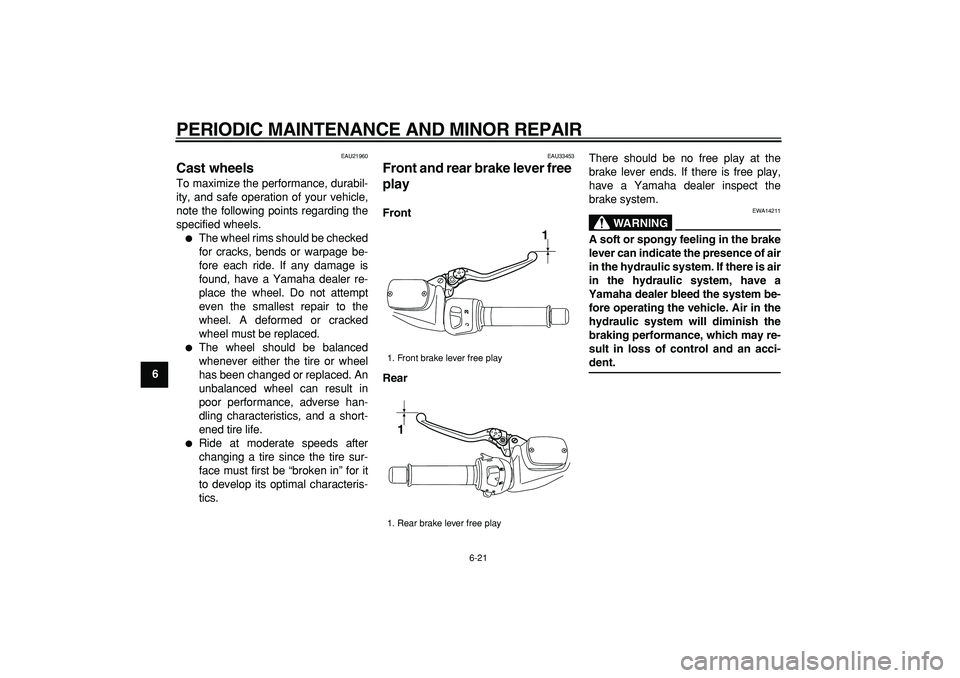

Cast wheels
To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.

The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.

The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.

Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU33453
Front and rear brake lever free
play
Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING

EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
dent.
1. Front brake lever free play
1. Rear brake lever free play
1
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
2
3
4
5
67
8
9

EAU33473

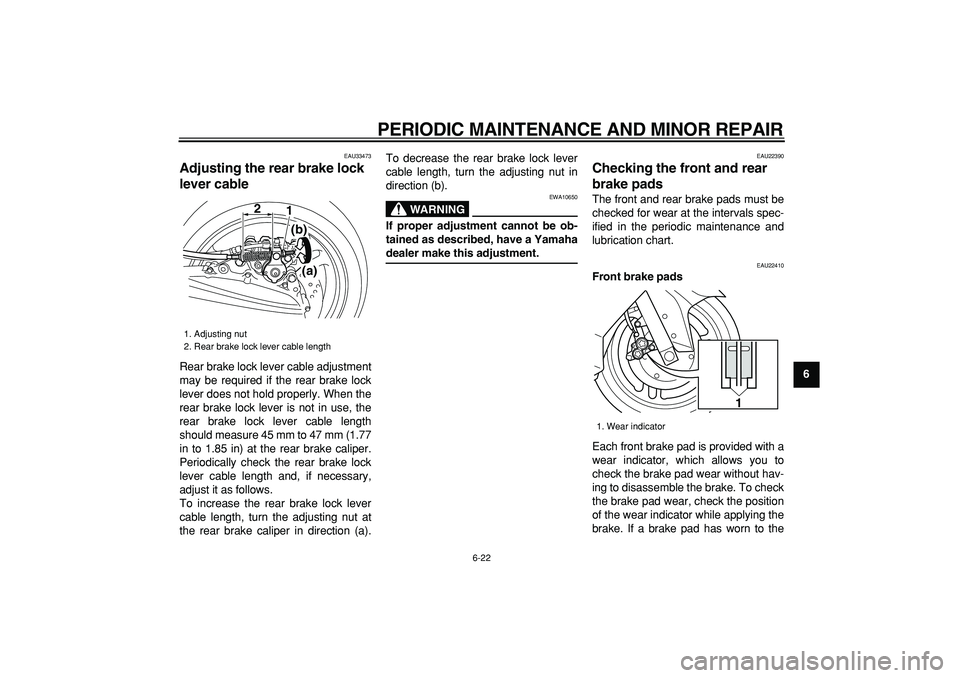

Adjusting the rear brake lock
lever cable
Rear brake lock lever cable adjustment
may be required if the rear brake lock
lever does not hold properly. When the
rear brake lock lever is not in use, the
rear brake lock lever cable length
should measure 45 mm to 47 mm (1.77
in to 1.85 in) at the rear brake caliper.
Periodically check the rear brake lock
lever cable length and, if necessary,
adjust it as follows.
To increase the rear brake lock lever
cable length, turn the adjusting nut at
the rear brake caliper in direction (a).To decrease the rear brake lock lever
cable length, turn the adjusting nut in
direction (b).
WARNING

EWA10650
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22410
Front brake pads
Each front brake pad is provided with a
wear indicator, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicator while applying the
brake. If a brake pad has worn to the
1. Adjusting nut
2. Rear brake lock lever cable length
2
1
(b)
(a)

1. Wear indicator
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
1
2
3
4
5
6
7
8
9

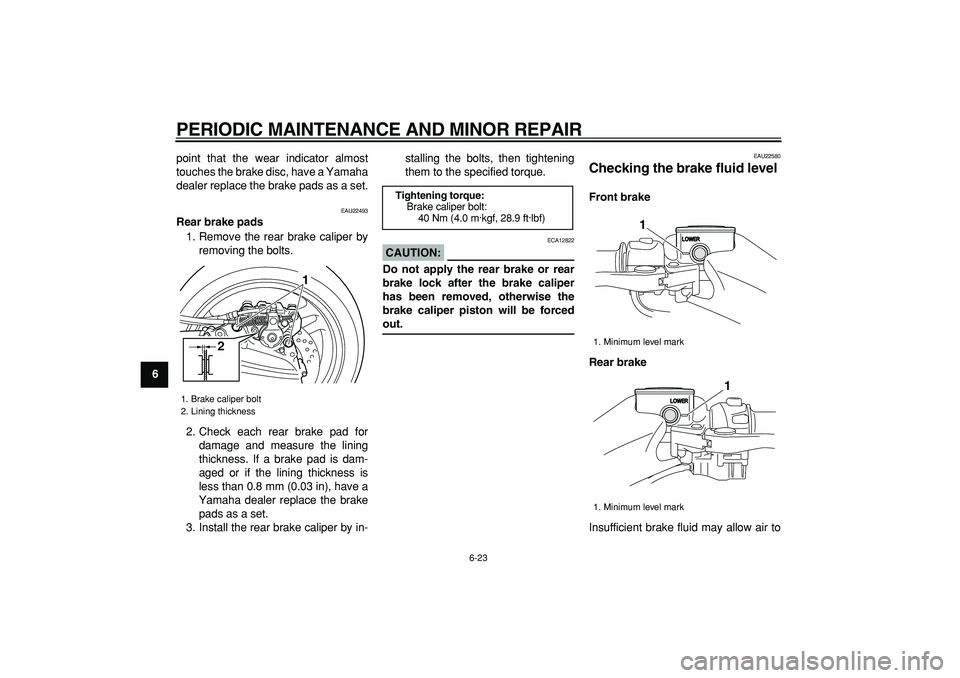

point that the wear indicator almost
touches the brake disc, have a Yamaha
dealer replace the brake pads as a set.

EAU22493
Rear brake pads
1. Remove the rear brake caliper by
removing the bolts.
2. Check each rear brake pad for
damage and measure the lining
thickness. If a brake pad is dam-
aged or if the lining thickness is
less than 0.8 mm (0.03 in), have a
Yamaha dealer replace the brake
pads as a set.
3. Install the rear brake caliper by in-stalling the bolts, then tightening
them to the specified torque.
CAUTION:

ECA12822
Do not apply the rear brake or rear
brake lock after the brake caliper
has been removed, otherwise the
brake caliper piston will be forced
out.
EAU22580
Checking the brake fluid level
Front brake
Rear brake
Insufficient brake fluid may allow air to
1. Brake caliper bolt
2. Lining thickness
1
2

Tightening torque:
Brake caliper bolt:
40 Nm (4.0 m·kgf, 28.9 ft·lbf)
1. Minimum level mark
1. Minimum level mark
1
1
