PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
2
3
4
567
8
9
For XP500 For XP500A
3. Turn the key to “ON” and turn onthe electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.

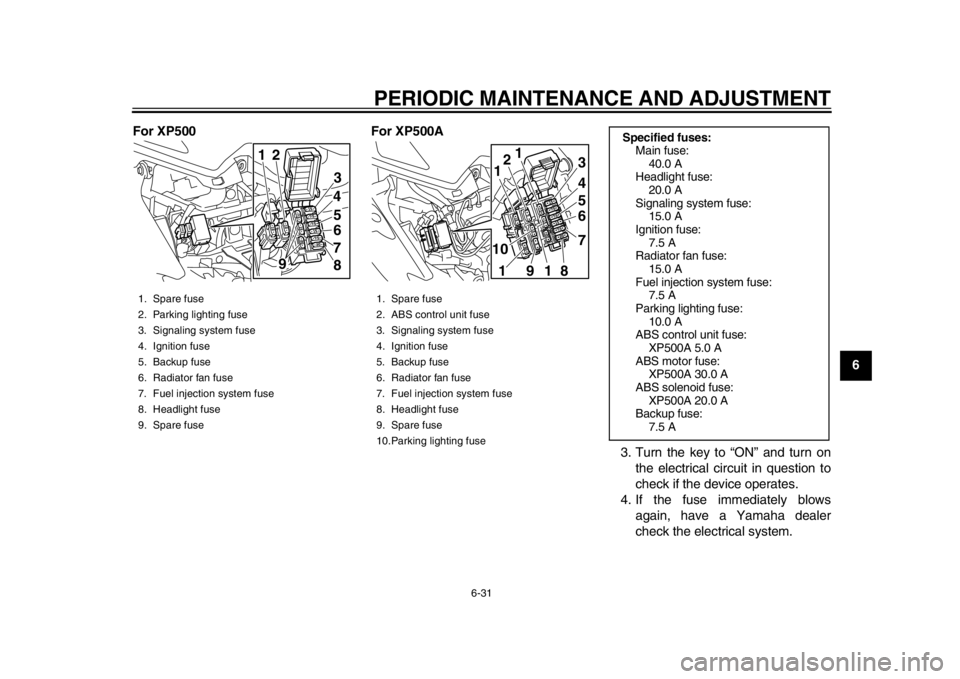

1. Spare fuse
2. Parking lighting fuse
3. Signaling system fuse
4. Ignition fuse
5. Backup fuse
6. Radiator fan fuse
7. Fuel injection system fuse
8. Headlight fuse
9. Spare fuse
9 3
4
56
7 8
21
1. Spare fuse
2. ABS control unit fuse
3. Signaling system fuse
4. Ignition fuse
5. Backup fuse
6. Radiator fan fuse
7. Fuel injection system fuse
8. Headlight fuse
9. Spare fuse
10.Parking lighting fuse
1
2
1
3
5 4
6
7
1
10
918
Specified fuses:
Main fuse: 40.0 A
Headlight fuse:
20.0 A
Signaling system fuse: 15.0 A
Ignition fuse: 7.5 A
Radiator fan fuse:
15.0 A
Fuel injection system fuse: 7.5 A
Parking lighting fuse: 10.0 A
ABS control unit fuse:
XP500A 5.0 A
ABS motor fuse: XP500A 30.0 A
ABS solenoid fuse: XP500A 20.0 A
Backup fuse:
7.5 A
59C-9-E1.book 31 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
1
2
3
4
56
7
8
9
EAU52231

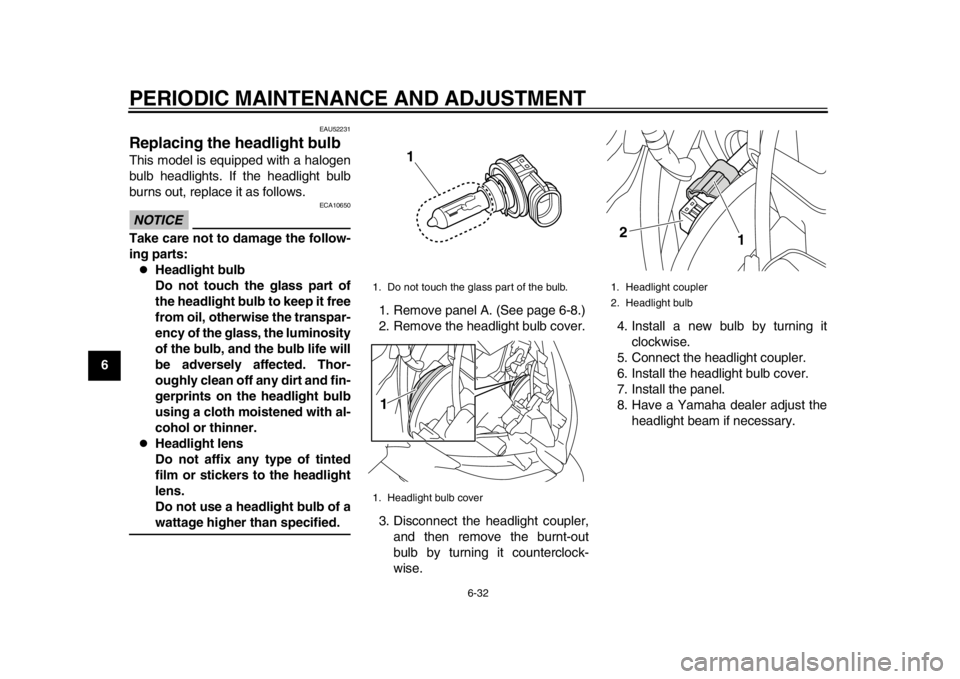

Replacing the headlight bulb This model is equipped with a halogen
bulb headlights. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.

Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified. 1. Remove panel A. (See page 6-8.)
2. Remove the headlight bulb cover.
3. Disconnect the headlight coupler,
and then remove the burnt-out
bulb by turning it counterclock-
wise. 4. Install a new bulb by turning it
clockwise.
5. Connect the headlight coupler.
6. Install the headlight bulb cover.
7. Install the panel.
8. Have a Yamaha dealer adjust the headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
1
1
1. Headlight coupler
2. Headlight bulb
1
2
59C-9-E1.book 32 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
2
3
4
567
8
9
EAU24181
Tail/brake light This model is equipped with an
LED-type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU52320

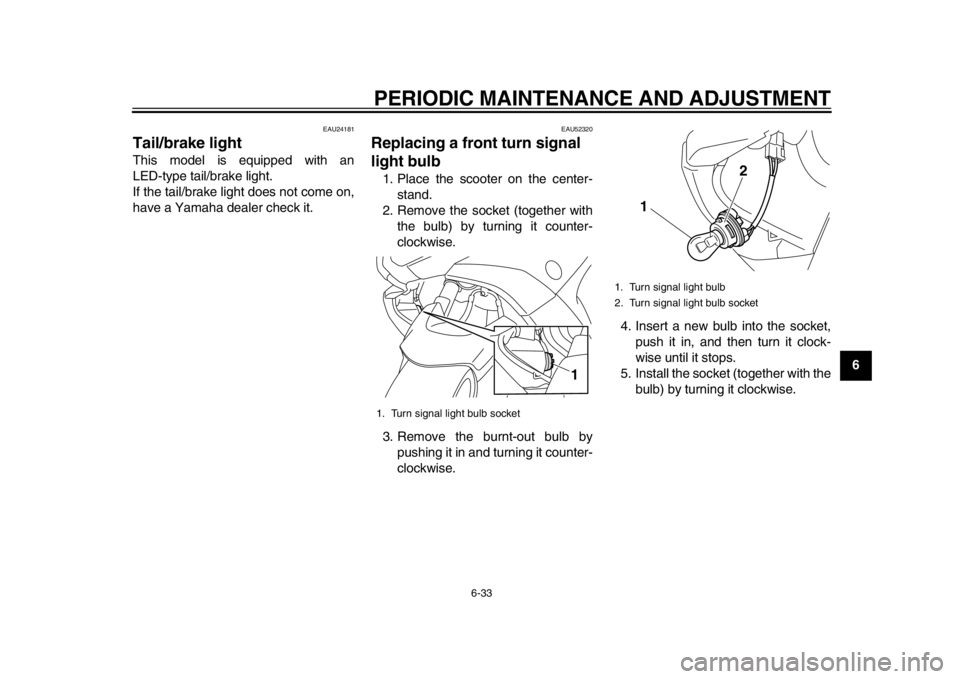

Replacing a front turn signal
light bulb 1. Place the scooter on the center-
stand.
2. Remove the socket (together with the bulb) by turning it counter-
clockwise.
3. Remove the burnt-out bulb by pushing it in and turning it counter-
clockwise. 4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the bulb) by turning it clockwise.1. Turn signal light bulb socket
1
1. Turn signal light bulb
2. Turn signal light bulb socket
1 2
59C-9-E1.book 33 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
1
2
3
4
56
7
8
9
EAUT1330
Rear turn signal light bulbIf a rear turn signal light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAU24313

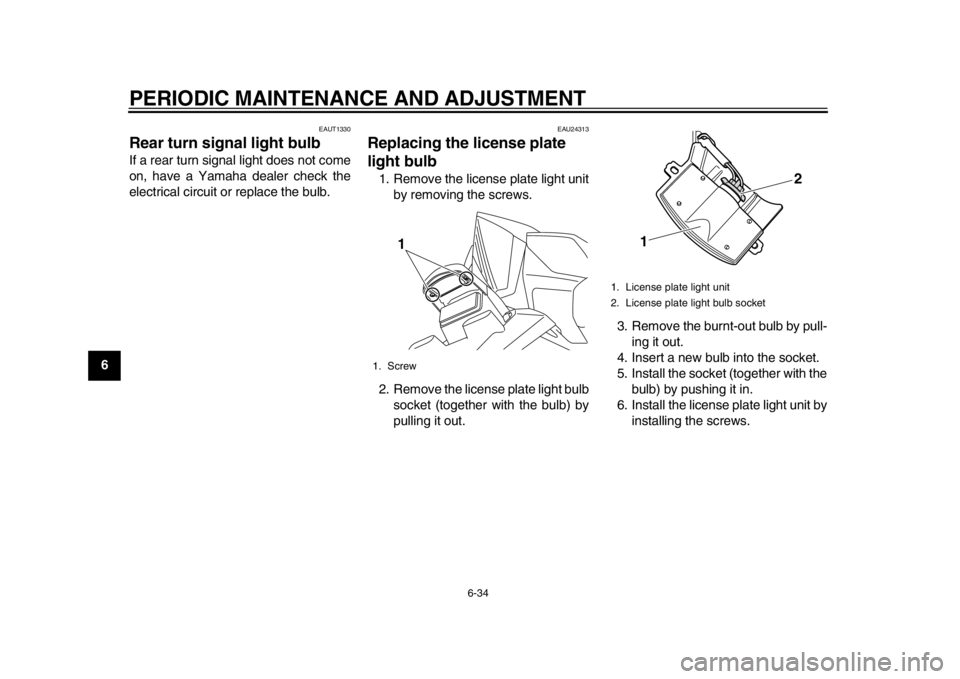

Replacing the license plate
light bulb 1. Remove the license plate light unitby removing the screws.
2. Remove the license plate light bulb socket (together with the bulb) by
pulling it out. 3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by pushing it in.
6. Install the license plate light unit by installing the screws.1. Screw
1
1. License plate light unit
2. License plate light bulb socket
1 2
59C-9-E1.book 34 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
2
3
4
567
8
9
EAU52050

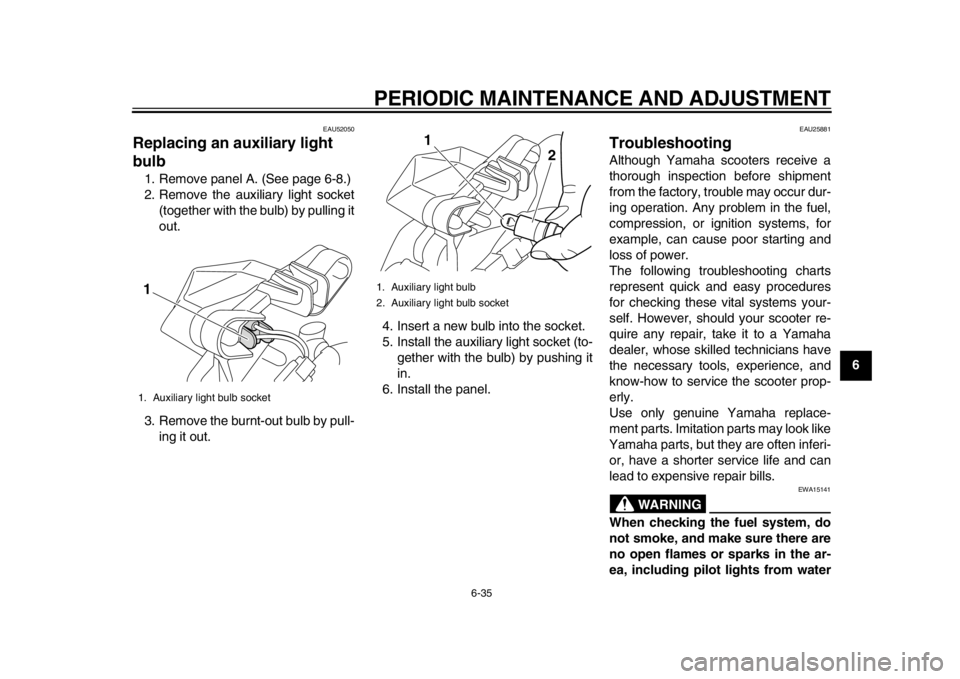

Replacing an auxiliary light
bulb 1. Remove panel A. (See page 6-8.)
2. Remove the auxiliary light socket(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull- ing it out. 4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the panel.
EAU25881
Troubleshooting Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water
1. Auxiliary light bulb socket1
1. Auxiliary light bulb
2. Auxiliary light bulb socket
1 2
59C-9-E1.book 35 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
1
2
3
4
56
7
8
9heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.59C-9-E1.book 36 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
2
3
4
567
8
9
EAU42503

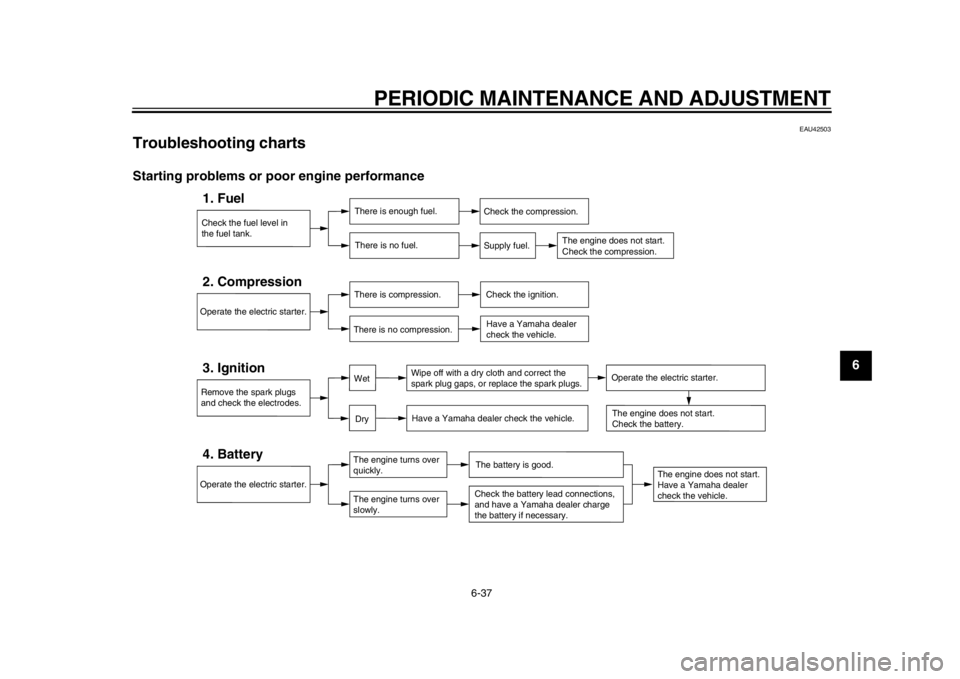

Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition. Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
59C-9-E1.book 37 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
1
2
3
4
56
7
8

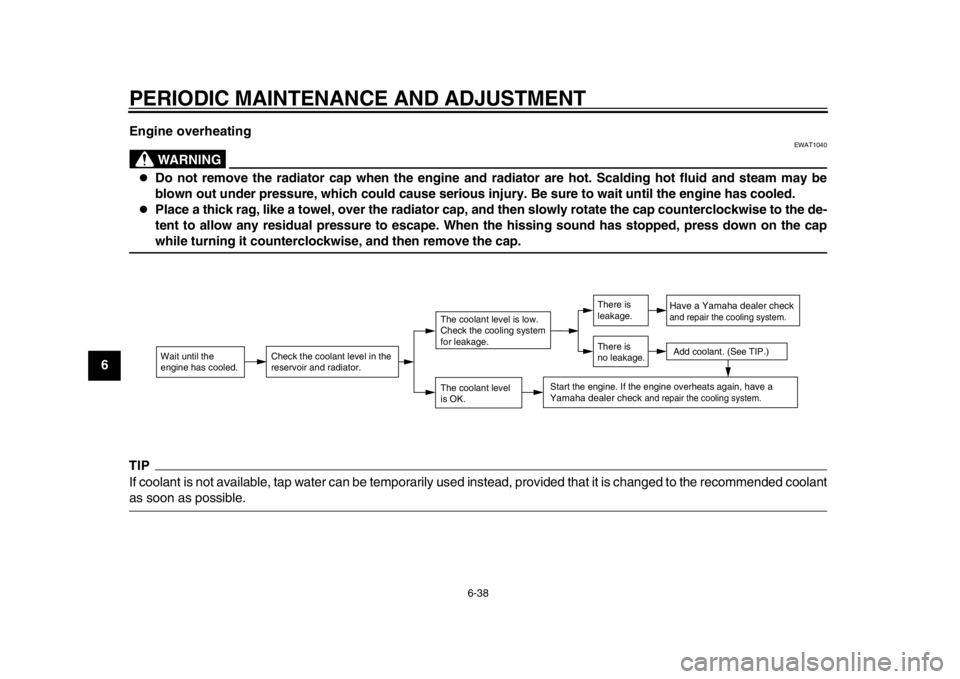

9Engine overheating
WARNING
EWAT1040

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily us
ed instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
59C-9-E1.book 38 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

7-1
2
3
4
5
678
9
SCOOTER CARE AND STORAGE
EAU37833
Matte color caution NOTICE
ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU26104
Care While the open design of a scooter re-
veals the attractiveness of the technol-
ogy, it also makes it more vulnerable.
Rust and corrosion can develop even if
high-quality components are used. A
rusty exhaust pipe may go unnoticed
on a car, however, it detracts from the
overall appearance of a scooter. Fre-
quent and proper care does not only
comply with the terms of the warranty,
but it will also keep your scooter looking
good, extend its life and optimize its
performance.
Before cleaning1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all el ectrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA10783

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
off any detergent residue using
59C-9-E1.book 1 ページ ２０１２年６月２６日　火曜日　午前１１時３３分

SCOOTER CARE AND STORAGE
7-2
1
2
3
4
5
67
8
9plenty of water, as it is harmful
to plastic parts.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid- den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.TIPSalt sprayed on roads in the winter may
remain well into spring. 1. Clean the scooter with cold water and a mild detergent after the en-
gine has cooled down. NOTICE:
Do not use warm water since it
increases the corrosive action
of the salt.
[ECA10791]

2. Apply a corrosion protection spray on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning 1. Dry the scooter with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
3. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
59C-9-E1.book 2 ページ ２０１２年６月２６日　火曜日　午前１１時３３分
