headlights YAMAHA TRACER 900 2018 Owners Manual

Table of contents
Checking and lubricating the
brake and clutch levers ..............6-26
Checking and lubricating the centerstand and sidestand ........6-27
Lubricating the swingarm pivots ...6-28
Checking the front fork..................6-28
Checking the steering ...................6-29
Checking the wheel bearings ........6-29
Battery ...........................................6-29
Replacing the fuses .......................6-31
Headlights .....................................6-33
Auxiliary lights ...............................6-33
Brake/tail light ...............................6-34
Replacing a turn signal light
bulb ............................................6-34
Replacing the license plate light bulb ............................................6-35
Troubleshooting ............................6-35
Troubleshooting charts .................6-37
Motorcycle care an d stora ge ..........7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-4
Specifications ....................................8-1
Consumer information .....................9-1
Identification numbers .....................9-1
Diagnostic connector ......................9-2
Vehicle data recording ....................9-2 In
dex ................................................ 10-1
UB5CE0E0.book Page 2 Wednesday, December 20, 2017 11:08 AM

Instrument and control functions
3-2
3

Keep other immo bilizer system
keys away from the main switch
as they may cause si gnal inter-
ference.
EAU10474
Main switch/steerin g lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
EAU10552
ON
All electrical circuits are supplied with
power. The meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10662
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is movin g.
Otherwise the electrical systems will
b e switche d off, which may result in
loss of control or an acci dent.
P
ON
OFF
LOCK
UB5CE0E0.book Page 2 Wednesday, December 20, 2017 11:08 AM

Instrument and control functions
3-19
3 Ri
ght
EAU54201
Dimmer/Pass switch “ / /PASS”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
To flash the high beam, push the pass
side “PASS” of the switch while the
headlights are on low beam.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen- ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU54212
Stop/Run/Start switch “ / / ”
To crank the engine with the starter,
set this switch to “ ”, and then push
the switch down towards “ ”. See
page 5-1 for starting instructions prior
to starting the engine.
Set this switch to “ ” to stop the en-
gine in case of an emergency, such as
when the vehicle overturns or when the
throttle cable is stuck.
EAU12735
Hazar
d switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
NOTICE
ECA10062
Do not use the hazard lights for an
exten ded len gth of time with the en-
g ine not runnin g, otherwise the bat-
tery may dischar ge.
EAU59011
Menu switch “MENU”
This switch is used to perform selec-
tions in the setting mode display of the
multi-function meter unit.
See Multi-function meter unit on page
3-6 for detailed information.
EAU59001
Select switch “ / ”
This switch is used to perform selec-
tions in the information display and
setting mode display of the multi-func-
tion meter unit.
See Multi-function meter unit on page
3-6 for detailed information.
EAU77020
Drive mo de switch “MODE”
WARNING
EWA15341
Do not chan ge the D-mo de while the
vehicle is movin g.

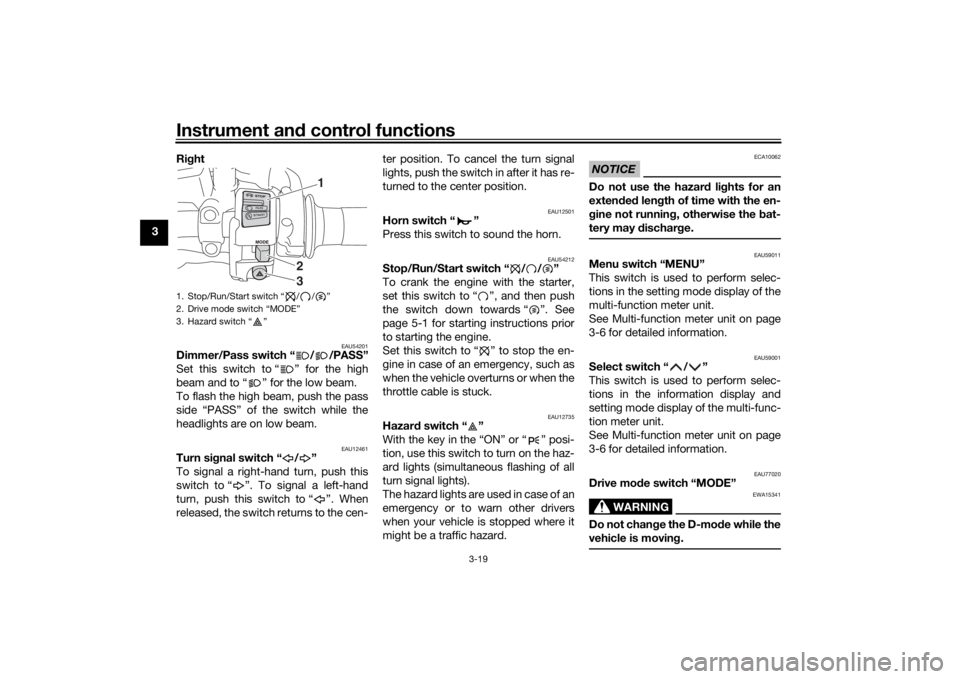

1. Stop/Run/Start switch “ / / ”
2. Drive mode switch “MODE”
3. Hazard switch “ ”
1
23
UB5CE0E0.book Page 19 Wednesday, December 20, 2017 11:08 AM

Instrument and control functions
3-32
3
EAU62550

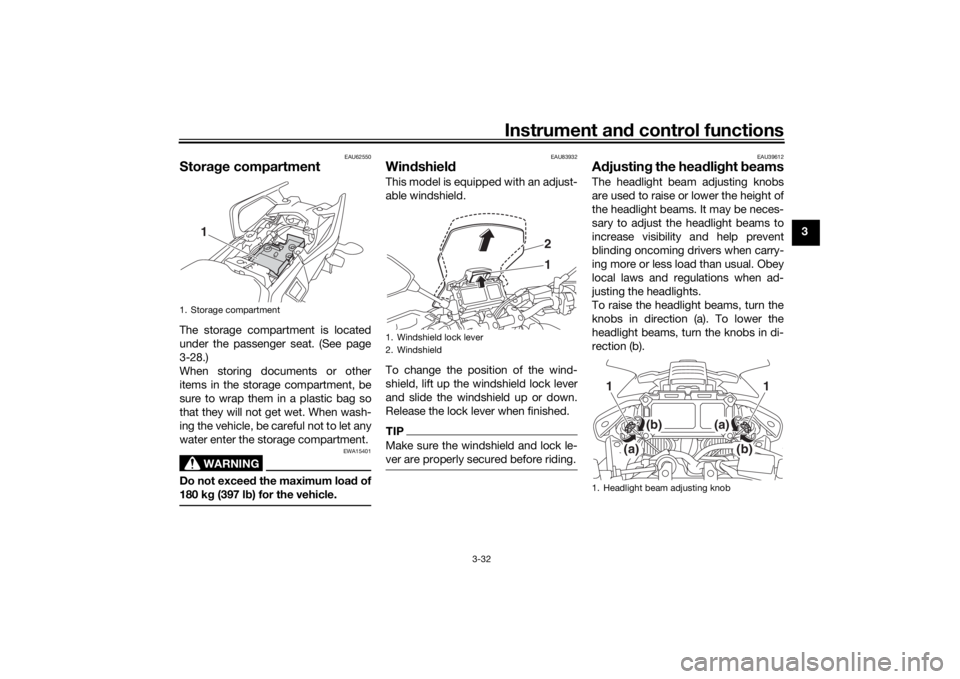

Stora ge compartmentThe storage compartment is located
under the passenger seat. (See page
3-28.)
When storing documents or other
items in the storage compartment, be
sure to wrap them in a plastic bag so
that they will not get wet. When wash-
ing the vehicle, be careful not to let any
water enter the storage compartment.
WARNING
EWA15401
Do not exceed the maximum loa d of
180 k g (397 l b) for the vehicle.
EAU83932
Win dshiel d This model is equipped with an adjust-
able windshield.
To change the position of the wind-
shield, lift up the windshield lock lever
and slide the windshield up or down.
Release the lock lever when finished.TIPMake sure the windshield and lock le-
ver are properly secured before riding.
EAU39612
A djustin g the hea dlig ht beamsThe headlight beam adjusting knobs
are used to raise or lower the height of
the headlight beams. It may be neces-
sary to adjust the headlight beams to
increase visibility and help prevent
blinding oncoming drivers when carry-
ing more or less load than usual. Obey
local laws and regulations when ad-
justing the headlights.
To raise the headlight beams, turn the
knobs in direction (a). To lower the
headlight beams, turn the knobs in di-
rection (b).
1. Storage compartment
1
1. Windshield lock lever
2. Windshield
12
1. Headlight beam adjusting knob
(a)
(b)
1
(b)
(a)
1
UB5CE0E0.book Page 32 Wednesday, December 20, 2017 11:08 AM

Periodic maintenance an d a djustment
6-33
6 3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU77470
Hea dlig htsThis model is equipped with LED-type
headlights.
If a headlight does not come on, check
the fuses and then have a Yamaha
dealer check the vehicle.TIPWhen the headlights are set to low
beam, one headlight will come on.
When the headlights are set to high
beam or the passing switch is pushed,
both headlights should come on.NOTICE
ECA16581
Do not affix any type of tinte d film or
stickers to the hea dlig ht lens.
EAU54502
Auxiliary li ghtsThis model is equipped with LED-type
auxiliary lights.
If an auxiliary light does not come on,
have a Yamaha dealer check it.1. Auxiliary light
1
1
UB5CE0E0.book Page 33 Wednesday, December 20, 2017 11:08 AM

10-1
10
IndexAABS ....................................................... 3-21
ABS warning light ................................... 3-5
Air filter element .................................... 6-15
Auxiliary DC connector ......................... 3-36
Auxiliary DC jack ................................... 3-39
Auxiliary lights ....................................... 6-33BBattery .................................................. 6-29
Brake and clutch levers, checking and
lubricating ........................................... 6-26
Brake and shift pedals, checking and
lubricating ........................................... 6-26
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-21
Brake lever free play, checking............. 6-19
Brake light switches.............................. 6-20
Brake pedal........................................... 3-21
Brake/tail light ....................................... 6-34CCables, checking and lubricating ......... 6-25
Canister................................................. 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-27
Centerstand and sidestand, checking
and lubricating .................................... 6-27
Clutch lever ........................................... 3-20
Clutch lever free play, adjusting ........... 6-19
Coolant ................................................. 6-13DData recording, vehicle ........................... 9-2
Diagnostic connector.............................. 9-2
Dimmer/Pass switch ............................. 3-19 D-mode (drive mode) ........................... 3-18
Drive chain, cleaning and lubricating ... 6-24
Drive chain slack .................................. 6-23
EEngine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-15
Engine oil .............................................. 6-11
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4FFront and rear brake pads, checking ... 6-20
Front fork, adjusting ............................. 3-33
Front fork, checking ............................. 6-28
Fuel ....................................................... 3-25
Fuel consumption, tips for reducing ...... 5-3
Fuel tank cap ........................................ 3-24
Fuel tank overflow hose ....................... 3-27
Fuses, replacing ................................... 6-31HHandlebar position, adjusting .............. 3-33
Handlebar switches .............................. 3-18
Hazard switch....................................... 3-19
Headlight beams, adjusting.................. 3-32
Headlights ............................................ 6-33
Helmet holder ....................................... 3-31
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-19IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-37
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-5
Indicator lights and warning lights ......... 3-4
LLicense plate light bulb, replacing ........6-35MMain switch/steering lock .......................3-2
Maintenance and lubrication, periodic....6-5
Maintenance, emission control
system ..................................................6-3
Matte color, caution ................................7-1
Menu switch..........................................3-19
Model label .............................................9-1
Multi-function meter unit .........................3-6NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PPanel, removing and installing ................6-9
Parking ....................................................5-4
Part locations ..........................................2-1RRider seat height, adjusting ..................3-29SSafety information ...................................1-1
Seats .....................................................3-28
Select switch.........................................3-19
Shifting ....................................................5-2
Shift pedal .............................................3-20
Shock absorber assembly, adjusting ....3-34
Sidestand ..............................................3-36
Spark plugs, checking ..........................6-10
Specifications .........................................8-1
Starting the engine ..................................5-1
Steering, checking ................................6-29
Stop/Run/Start switch ..........................3-19
UB5CE0E0.book Page 1 Wednesday, December 20, 2017 11:08 AM
