YAMAHA TRACER 900 2020 Owners Manual

Motorcycle care and stora ge
7-4
7
1. Make all necessary repairs and
perform any outstanding mainte-
nance.
2. Follow all instructions in the Care section of this chapter.
3. Fill up the fuel tank, adding fuel stabilizer according to product in-
structions. Run the engine for 5
minutes to distribute treated fuel
through the fuel system.
4. For vehicles equipped with a fuel cock: Turn the fuel cock lever to
the off position.
5. For vehicles with a carburetor: To prevent fuel deposits from build-
ing up, drain the fuel in the carbu-
retor float chamber into a clean
container. Retighten the drain bolt
and pour the fuel back into the fuel
tank.
6. Use a quality engine fogging oil according to product instructions
to protect internal engine compo-
nents from corrosion. If engine
fogging oil is not available, per-
form the following steps for each
cylinder:a. Remove the spark plug cap and spark plug. b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
7. Lubricate all control cables, piv- ots, levers and pedals, as well as
the sidestand and centerstand (if
equipped).
8. Check and correct the tire air pressure, and then lift the vehicle
so that all wheels are off the
ground. Otherwise, turn the wheels a little once a month in or-
der to prevent the tires from be-
coming degraded in one spot.
9. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
10. Remove the battery and fully charge it, or attach a maintenance
charger to keep the battery opti-
mally charged. NOTICE: Confirm
that the battery an d its char ger
are compati ble. Do not char ge a
VRLA battery with a convention-
al char ger.
[ECA26330]
TIP If the battery will be removed,
charge it once a month and store
it in a temperate location between
0-30 °C (32-90 °F).
 See page 6-30 for more informa-
tion on charging and storing the
battery.
UB5CE1E0.book Page 4 Monday, August 6, 2018 1:13 PM

Specifications
8-1
8
Dimensions:Overall length:2160 mm (85.0 in)
Overall width:
850 mm (33.5 in)
Overall height: 1375/1430 mm (54.1/56.3 in)
Seat height: 850/865 mm (33.5/34.1 in)
Wheelbase:
1500 mm (59.1 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius: 3.0 m (9.84 ft)Wei ght:Curb weight:
214 kg (472 lb)Engine:Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train: DOHC
Cylinder arrangement:
Inline
Number of cylinders: 3-cylinder
Displacement: 847 cm³
Bore × stroke:
78.0 × 59.1 mm (3.07 × 2.33 in) Starting system:
Electric starter
Engine oil:Recommended brand:
SAE viscosity grades:
10W-40
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Oil change: 2.40 L (2.54 US qt, 2.11 Imp.qt)
With oil filter removal:
2.70 L (2.85 US qt, 2.38 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.93 L (2.04 US qt, 1.70 Imp.qt)Fuel:Recommended fuel:Premium unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 18 L (4.8 US gal, 4.0 Imp.gal)
Fuel reserve amount: 2.6 L (0.69 US gal, 0.57 Imp.gal)
Fuel injection:Throttle body:ID mark: B901 00Drivetrain:Gear ratio:
1st:2.667 (40/15)
2nd:
2.000 (38/19)
3rd: 1.619 (34/21)
4th: 1.381 (29/21)
5th:
1.190 (25/21)
6th: 1.037 (28/27)Front tire:Type:
Tubeless
Size: 120/70ZR17 M/C (58W)
Manufacturer/model: DUNLOP/D222FRear tire:Type:Tubeless
Size: 180/55ZR17 M/C (73W)
Manufacturer/model:
DUNLOP/D222
UB5CE1E0.book Page 1 Monday, August 6, 2018 1:13 PM

Specifications
8-2
8
Loadin g:Maximum load:
180 kg (397 lb)
(Total weight of rider, passenger, cargo
and accessories)Front brake:Type:
Hydraulic dual disc brakeRear brake:Type:
Hydraulic single disc brakeFront suspension:Type:
Telescopic forkRear suspension:Type:Swingarm (link suspension)Electrical system:System voltage:12 VBattery:Model:
YTZ10S
Voltage, capacity: 12 V, 8.6 Ah (10 HR)Bul b watta ge:Headlight:
LED
Brake/tail light: LED
Front turn signal light: 10.0 W
Rear turn signal light:
10.0 W Auxiliary light:
LED
License plate light: 5.0 W
UB5CE1E0.book Page 2 Monday, August 6, 2018 1:13 PM

Consumer information
9-1
9
EAU53562

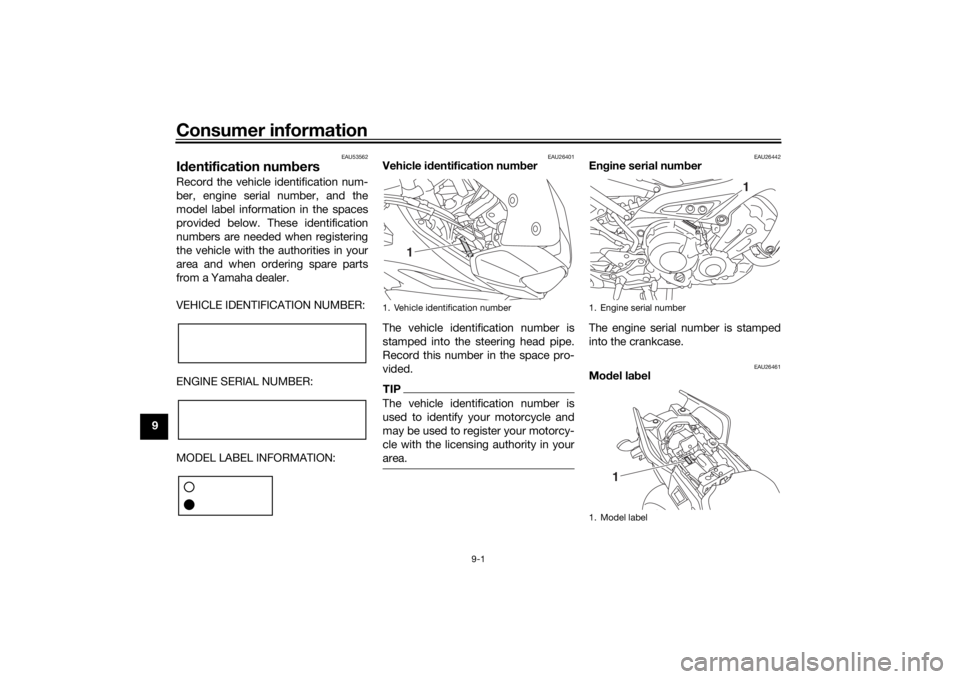

Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26461
Mo del la bel
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UB5CE1E0.book Page 1 Monday, August 6, 2018 1:13 PM

Consumer information
9-2
9
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This
information will be needed when order-
ing spare parts from a Yamaha dealer.
EAU69910
Dia
gnostic connectorThe diagnostic connector is located as
shown.
EAU85300
Vehicle data recor din gThis model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research, statisti-
cal analysis and development purpos-
es.
Although the sensors and recorded
data will vary by model, the main data
points are:
 Vehicle status and engine perfor-
mance data
 Fuel-injection and emission-relat-
ed data
This data will be uploaded only when a
special Yamaha diagnostic tool is at-
tached to the vehicle, such as when
maintenance checks or service proce-
dures are performed.
Vehicle data uploaded will be handled
appropriately according to the follow-
ing Privacy Policy.
Privacy Policy
1. Diagnostic connector
1
https://www.yamaha-motor.eu/eu/
privacy/privacy-policy.aspx
UB5CE1E0.book Page 2 Monday, August 6, 2018 1:13 PM

Consumer information
9-3
9Yamaha will not disclose this data to a
third party except in the following cas-
es. In addition, Yamaha may provide
vehicle data to a contractor in order to
outsource services related to the han-
dling of vehicle data. Even in this case,
Yamaha will require the contractor to properly handle the vehicle data we
provided and Yamaha will appropriate-
ly manage the data.  With the consent of the vehicle
owner
 Where obligated by law
 For use by Yamaha in litigation
 When the data is not related to an
individual vehicle nor owner
UB5CE1E0.book Page 3 Monday, August 6, 2018 1:13 PM

10-1
10
Index
AABS....................................................... 3-21
ABS warning light ................................... 3-4
Air filter element.................................... 6-15
Auxiliary DC connector ......................... 3-36
Auxiliary DC jack .................................. 3-36BBattery .................................................. 6-30
Brake and clutch levers, checking and
lubricating........................................... 6-27
Brake and shift pedals, checking and lubricating........................................... 6-26
Brake fluid, changing............................ 6-23
Brake fluid level, checking.................... 6-21
Brake lever............................................ 3-20
Brake lever free play, checking ............ 6-20
Brake light switches ............................. 6-20
Brake pedal .......................................... 3-21CCables, checking and lubricating ......... 6-25
Canister ................................................ 6-11
Care ........................................................ 7-1
Catalytic converter ............................... 3-27
Centerstand and sidestand, checking and lubricating ................................... 6-27
Clutch lever........................................... 3-20
Clutch lever free play, adjusting ........... 6-19
Coolant ................................................. 6-14DData recording, vehicle........................... 9-2
Diagnostic connector ............................. 9-2
Dimmer/Pass switch............................. 3-18
D-mode (drive mode)............................ 3-17
Drive chain, cleaning and lubricating ... 6-25 Drive chain slack .................................. 6-23
EEngine break-in ...................................... 5-4
Engine idling speed, checking ............. 6-15
Engine oil.............................................. 6-11
Engine serial number ............................. 9-1
Engine trouble warning light .................. 3-4FFront and rear brake pads, checking ... 6-21
Front fork, adjusting ............................. 3-33
Front fork, checking ............................. 6-28
Fuel ...................................................... 3-25
Fuel consumption, tips for reducing ...... 5-3
Fuel tank cap........................................ 3-24
Fuel tank overflow hose ....................... 3-26
Fuses, replacing ................................... 6-31HHandlebar position, adjusting .............. 3-32
Handlebar switches ............................. 3-18
Hazard switch ...................................... 3-19
Headlight beams, adjusting ................. 3-32
Helmet holder....................................... 3-31
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-18IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-37
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-5
Indicator lights and warning lights ......... 3-3LLicense plate light bulb, replacing ....... 6-34MMain switch/steering lock ...................... 3-2Maintenance and lubrication, periodic ... 6-5
Maintenance, emission control
system .................................................. 6-3
Matte color, caution................................ 7-1
Menu switch ......................................... 3-19
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-6
NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-9
Parking.................................................... 5-4
Part locations.......................................... 2-1RRider seat height, adjusting .................. 3-29SSafety information................................... 1-1
Seats ..................................................... 3-27
Select switch ........................................ 3-19
Shifting.................................................... 5-2
Shift pedal............................................. 3-20
Shock absorber assembly, adjusting ... 3-34
Sidestand.............................................. 3-37
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Starting the engine ................................. 5-1
Steering, checking ................................ 6-29
Stop/Run/Start switch .......................... 3-18
Storage ................................................... 7-3
Storage compartment........................... 3-31
Swingarm pivots, lubricating ................ 6-28
UB5CE1E0.book Page 1 Monday, August 6, 2018 1:13 PM

Index
10-2
10
TThrottle grip and cable, checking and
lubricating ........................................... 6-26
Throttle grip free play, checking ........... 6-16
Tires ...................................................... 6-16
Tool kit .................................................... 6-2
Traction control system ........................ 3-22
Traction control system indicator light ... 3-4
Troubleshooting .................................... 6-35
Troubleshooting charts ......................... 6-36
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing............ 6-33
Turn signal switch ................................. 3-18VValve clearance..................................... 6-16
Vehicle identification number ................. 9-1
Vehicle lights ......................................... 6-33WWheel bearings, checking..................... 6-29
Wheels .................................................. 6-19
Windshield ............................................ 3-32YYamalube .............................................. 6-13
UB5CE1E0.book Page 2 Monday, August 6, 2018 1:13 PM

UB5CE1E0.book Page 3 Monday, August 6, 2018 1:13 PM

DIC183
Original instructions
PRINTED IN JAPAN
2019.08-0.3×1 CR (E)
