LOCATION OF IMPORTANT LABELS1-1
1
EAU48116
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement
label is available from your Yamaha dealer.
For Canada

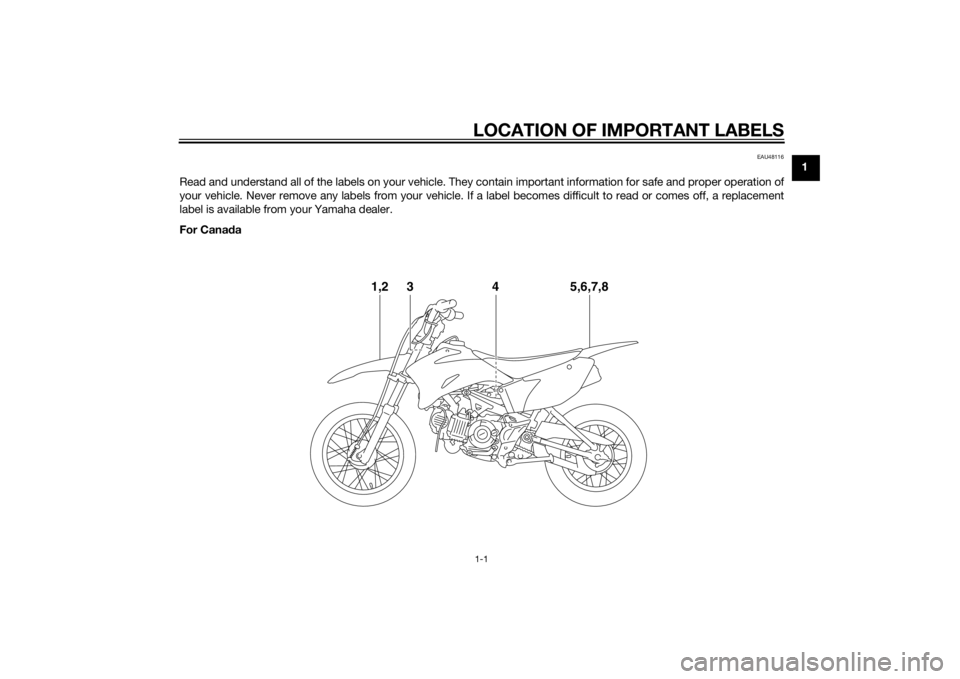

1,2
3
5,6,7,8
4
UB5180E0.book Page 1 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS
1-2
1For Cana
da
•CMVSSCANADANSVAC
TRANSPORT
506
2
4
1
3
Cold tire normal pressure should be set as
follows.FRONT : 100kPa, {1.00kgf/cm
2}, 15psi
REAR : 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
TIRE INFORMATION
La pression des pneus à froid doit normalement
être réglée comme suit.
AVANT : 100kPa, {1.00kgf/cm
2}, 15psi
ARRIERE
: 100kPa, {1.00kgf/cm
2}, 15psi
3RV-21668-B0
INFORMATION SUR LES PNEUS
UB5180E0.book Page 2 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS1-3
1
For Cana
da
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
3PT-2416E-10
3PT-2118K-A1
56
8
7
UB5180E0.book Page 3 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS
1-4
1For Europe
4
1,25
3
UB5180E0.book Page 4 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS1-5
1
For Europe
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi 100 kPa
1.00 kgf/cm²
15 psi
4AA-22259-40 5B6-2156A-10
TT-R110E
5.4 kW 72 kg
5B6-2816R-00
5B6-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2014EN16029
1
5
2
4
3
UB5180E0.book Page 5 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS
1-6
1Familiarize yourself with the following pictograms and read the explanatory text.
Read the Owner’s manual.
Always use an approved
helmet and protective gear. Never use on paved roads.
Use from 6 years old.
Operation of this motorcycle
by children under the age of 6
increase the risk of severe
injury or death. Never carry passengers.
Adult supervision required for
children. This unit contains high-
pressure nitrogen gas.
Mishandling can cause an
explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery.
UB5180E0.book Page 6 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS1-7
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****1
Use unleaded gasoline only.
Measure the tire pressure
when the tires are cold.
Adjust the tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.
1
2
3 Model Name
Max. Power
Mass In Running Order 1
Year of construction
UB5180E0.book Page 7 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS
1-8
1For Oceania an
d South Africa
13
2
UB5180E0.book Page 8 Monday, June 9, 2014 1:20 PM

LOCATION OF IMPORTANT LABELS1-9
1
For Oceania an
d South Africa
TIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT : 100kPa, {
1.00kgf/cm
2}, 15psi
REAR : 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
4AA-22259-40
3PT-2118K-A1
12
3
UB5180E0.book Page 9 Monday, June 9, 2014 1:20 PM

2-1
2
SAFETY INFORMATION
EAU4121C
Be a Responsible Owner
As the vehicle’s owner, you are re-
sponsible for the safe and proper oper-
ation of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements be-
fore riding this motorcycle.
He or she should:  Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.
 Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
 Obtain qualified training in safe
and proper riding techniques.
 Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions. 
Never operate a motorcycle with-
out proper training or instruction.
Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Ri din g
Perform the pre-operation checks
each time you use the vehicle to make
sure it is in safe operating condition.
Failure to inspect or maintain the vehi-
cle properly increases the possibility of
an accident or equipment damage.
See page 5-1 for a list of pre-operation
checks.  This motorcycle is designed for
off-road use only, therefore, it is il-
legal to operate it on public
streets, roads, or highways, even
a dirt or gravel one. Off-road use
on public lands may be illegal.
Please check local regulations be-
fore riding.
 This motorcycle is designed to
carry the operator only. No pas-
sengers. 
The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been
caused by an automobile driver
who did not see the motorcycle.
Making yourself conspicuous ap-
pears to be very effective in reduc-
ing the chance of this type of
accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you are approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
• Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
• Never maintain a motorcycle without proper knowledge.
Contact an authorized motorcy-
cle dealer to inform you on ba-
sic motorcycle maintenance.
Certain maintenance can only
be carried out by certified staff.UB5180E0.book Page 1 Monday, June 9, 2014 1:20 PM
