5-48
ENGENGINE ASSEMBLY AND SETTING
TRANSMISSION AND GEARBOX
1. Install:
•Transmission assembly (1)
2. Install:
•Shift fork #1 (1)
•Shift fork #2 (2)
•Shift fork #3 (3)
•Shift cam (4)
•Guide bar (5)
NOTE:
Each shift fork is identified by the number
stamped on its side. All numbers must face left.
3. Install:
•Shift shaft #1 (1)
•Shift shaft #2 (2)
NOTE:
Align mark (3) on the shift lever shaft with that on
the shift shaft.
4. Check:
•Transmission functioning
Jerky functioning ➔Repair.
ProCarManuals.com

ENGINE ASSEMBLY AND SETTING
5-52
ENG
4. Tighten:
•Screws (crankcase) (1) ~ (14)
NOTE:
Tighten the screws beginning with the one with
the lowest number.
Screw (crankcase): 10 Nm (1.0 mkg)
Stopper lever screw (4):
10 Nm (1.0 mkg)
5. Apply:
•4-stroke engine oil
(to the connecting rod pin, the bearing and
the oil passage).
6. Check:
•Gearbox and transmission functioning
Jerky functioning ➔Replace.
SHIFT SHAFT AND OIL PUMP
1. Install
•Spring (1)
•Collar (2)
•Stopper lever (3)
NOTE:
Place the stopper lever and the spring in the cor-
rect position.
2. Install:
•Plate washer (1)
•Spring (2)
•Shift lever (3)
•Circlip (4)
ProCarManuals.com

ENGINE ASSEMBLY AND SETTING
5-60
ENG
5. Offset the piston ring end gaps as illustrated in the figure.
NOTE:
•Check that the marks and numbers stamped
by the manufacturer on the piston rings face
upwards.
•Before installing the cylinder, lubricate the pis-
ton rings liberally with 4-stroke engine oil.
(1) Upper ring
(2) Scraper (lower ring)
(3) Scraper (upper ring)
(4) Lower ring
6. Install:
•Cylinder (1)
NOTE:
•Install the cylinder to the piston with one hand
while one hand while compressing the piston
rings with the other.
•Bind the timing chain with wire and slip it
through the appropriate slot.
Cylinder:
Screw (2): 10 Nm (1.0 mkg)
Cap nut (3): 42 Nm (4.2 mkg)
Nut (4): 42 Nm (4.2 mkg)
ProCarManuals.com

ENGINE ASSEMBLY AND SETTING
5-66
ENG
AC GENERATOR
1. Install:
•Woodruff key (1)
•Washer (2)
•Bearing (3)
•Rotor (4)
•Washer (5)
•Nut (6)
NOTE:
When installing the AC generator rotor, check that
the woodruff key fits properly into its seat on the
crankshaft. Apply a thin layer of lithium soap-
based grease on the conical tip of the crankshaft.
2. Tighten:
•Nut (rotor) Nut (rotor): 120 Nm (12.0 mkg)
NOTE:
To tighten the nut, lock the rotor with the special
tool (1).
Sheave holder: P/N. 90890-01701
Be careful not to touch the jutting edges (2) on
the rotor with the sheave holder.
CAUTION:
ProCarManuals.com

ENGINE REASSEMBLY
5-78
ENG
9. Install:
•Carburetor Screw (clamp): 2 Nm (0.2 mkg)
Screw (seat): 10 Nm (1.0 mkg)
See section “CARBURETOR-INSTALLA-
TION” in CHAPTER 6.
10. Adjust:
•Throttle cable free play
Free play: 3 ~ 5 mm
Engine idle speed:1.150 ~ 1.450 rpm
See section “THROTTLE CABLE FREE
PLAY ADJUSTMENT” in CHAPTER 3.
11. Install:
•Fuel tank
Do not start the engine until it is filled with oil.
CAUTION:
12. Fill with:
•Engine oil Amount of oil (total): 3.0 litres
13. Check:
•Engine idle speed
See section “IDLE SPEED ADJUST-
MENT” in CHAPTER 3.
14. Install:
•Seat
See section “ENGINE OIL REPLACE-
MENT” in CHAPTER 3.
ProCarManuals.com

CARBURETOR ASSEMBLY
6-16
CARB
FUEL LEVEL ADJUSTMENT (CARBURE-
TOR INSTALLED
1. Place the motorcycle on a level surface.
2. Make sure that the carburetor is in a horizon- tal position by placing a hydraulic jack under
the engine.
Fuel level gauge: P/N. 90890-01312
4. Loosen drain screw (2) and heat the engine.
5. Measure:
•Fuel level (a)
Out of specification ➔Adjust.
Fuel level: 6.0 ~ 8.0 mm
Under the edge of the carburetor
body.
6. Adjust:
•Fuel level
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Fuel level adjustment:
•Remove carburetor assembly.
•Inspect valve seat and needle valve set.
•If either of the two is worn, replace both.
•If both are perfect, adjust float height by bend-
ing the wing tab of the float itself (1).
•Recheck the fuel level.
3. Connect the fuel level gauge (1) to the carbu- rettor nipple.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
ProCarManuals.com

ELECIGNITION SYSTEM
7-13
DIAGNOSTICS IF THE IGNITION SYSTEM WERE TO STOP WORKING (NO OR INTERMITTENT SPARK)
Procedure
Check:
1. Fuse
2. Battery
3. Spark plug
4. Amplitude of ignition spark
5. Spark plug cap resistance
6. Ignition winding resistance 7. Main switch
8. Engine stop switch
9. Sidestand switch
10. Neutral switch
11. Clutch switch
12. Pick-up coil resistance
13. Wiring connections (whole connection sys- tem)
NOTE:
Before making the inspections mentioned, remove the following parts:
1. Seat
2. Rear cowling 3. Fuel tank
4. Cowling (headlight)
•To check functioning defects use the following special tools.
Dinamic spark tester: P/N. 90890-06754
Pocket tester:P/N. 90890-03112
1. Fuse
•Check the fuse for continuity.
Refer to “CHECKING THE FUSES” in
Chapter 3.
•Is the fuse OK?
YES
2. Battery
•Check the condition of the battery.
Refer to “CHECKING AND CHARGING
THE BATTERY” in Chapter 3.
Min. open-circuit voltage:
2.8 V or more at 20°C (68°F)
•Is the battery OK?
NO
Replace the fuse.
NO
•Clean the battery terminals.
•Recharge or replace the battery.
YES
*
ProCarManuals.com

IGNITION SYSTEM
7-14

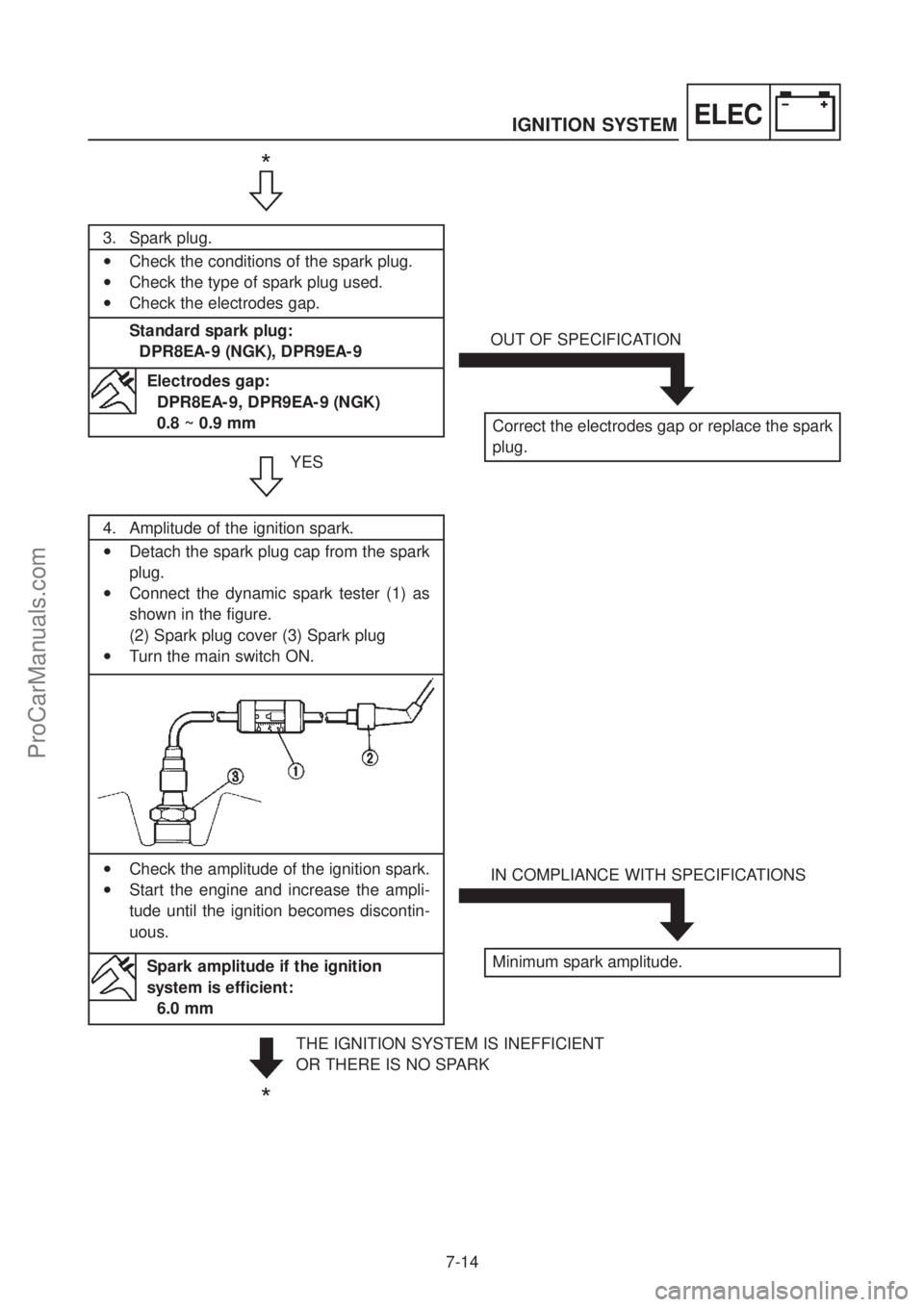

ELEC
3. Spark plug.
•Check the conditions of the spark plug.
•Check the type of spark plug used.
•Check the electrodes gap.
Standard spark plug: DPR8EA-9 (NGK), DPR9EA-9
4. Amplitude of the ignition spark.
•Detach the spark plug cap from the spark
plug.
•Connect the dynamic spark tester (1) as
shown in the figure.
(2) Spark plug cover (3) Spark plug
•Turn the main switch ON.
•Check the amplitude of the ignition spark.
•Start the engine and increase the ampli-
tude until the ignition becomes discontin-
uous.
Electrodes gap: DPR8EA-9, DPR9EA-9 (NGK)
0.8 ~ 0.9 mm
YES
OUT OF SPECIFICATION
Correct the electrodes gap or replace the spark
plug.
Spark amplitude if the ignition
system is efficient: 6.0 mm
THE IGNITION SYSTEM IS INEFFICIENT
OR THERE IS NO SPARK
IN COMPLIANCE WITH SPECIFICATIONS
Minimum spark amplitude.
*
*
ProCarManuals.com

ELECIGNITION SYSTEM
7-17
*
CORRECT
8. Emergency stop engine switch.
•Disconnect the emergency stop engine
switch connector (Brown, Green/Yellow
and Red/Black) from the wire harness.
•Connect the pocket tester ( Ωx 1) to the
switch cables. Refer to “SWITCH CHECK” in Chapter 3.
Tester terminal (+) ➔Red/Black (1) cable
Tester terminal (–) ➔Brown cable (2)
CORRECT
INCORRECT
The emergency stop engine switch is defective.
Replace the right handlebar switch.
INCORRECT
The sidestand switch is defective. Replace.
*
9. Sidestand switch.
•Disconnect the sidestand switch connec-
tor (Black and Black) from the wire har-
ness.
•Connect the pocket tester ( Ωx 1) to the
sidestand switch cables. Refer to “SWITCH CHECK” in Chapter 3.
Tester terminal (+) ➔Black cable (1)
Tester terminal (–) ➔Black cable (2)










\f









\f
ProCarManuals.com

ELECTRICAL STARTING SYSTEM
7-24
ELEC
DIAGNOSTICS THE STARTER FAILS TO WORK
Procedure
Inspect:
(1) Fuse
(2) Battery
(3) Starting motor
(4) Starter relay
(5) Main switch (6) Engine stop switch
(7) Sidestand switch
(8) Neutral switch
(9) Clutch switch
(10) Starter switch
(11) Harness connections
NOTE:
Before starting inspections, remove the following parts:
1. Seat
2. Rear cowling 3. Fuel tank
4. Cowling (headlight)
•To check for defects use the following special tools.
Pocket tester: P/N. 90890-03112
1. Fuse.
•Remove fuse.
•Connect the pocket tester ( Ωx 1) to the
fuse.
•Check the fuse for continuity.
Refer to “CHECKING THE FUSES” in
Chapter 3.
2. Battery.
•Check the condition of the battery.
Refer to “CHECKING AND CHARGING
THE BATTERY” in Chapter 3.
Min. open-circuit voltage:
12.8 V or more at 20°C (68°F)
CONTINUITY
DISCONTINUTY
Replace the fuse.
INCORRECT
•Clean the battery terminals.
•Recharge or replace the battery.
Refer to “BATTERY INSPECTION” in
Chapter 3.
*
CORRECT
