YAMAHA TTR110 2010 Owner's Guide

INSTRUMENT AND CONTROL FUNCTIONS
4-6

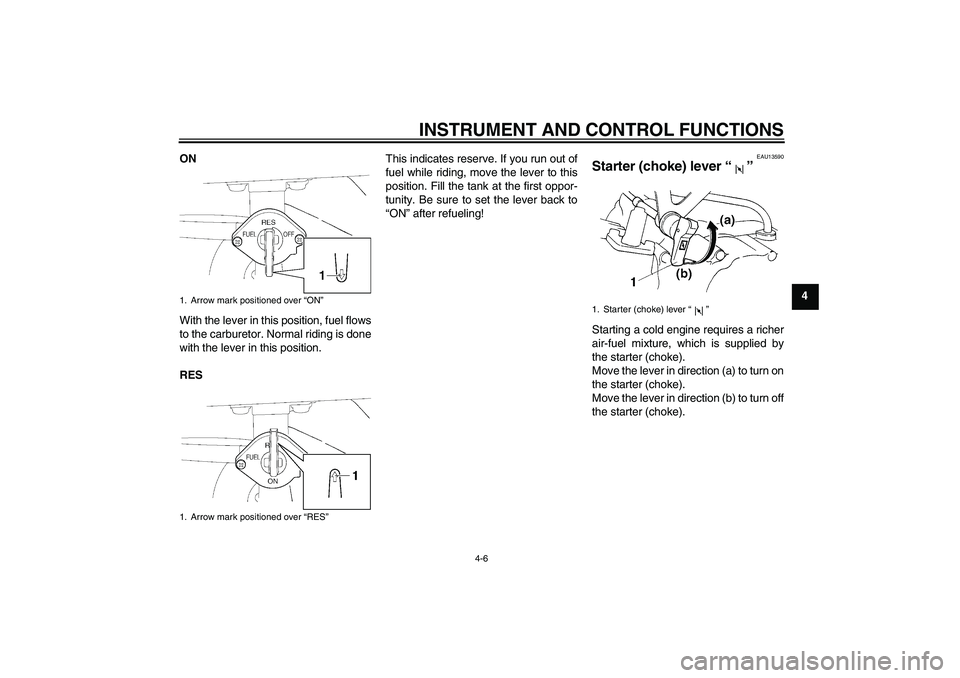

4 ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RESThis indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!
EAU13590
Starter (choke) lever“” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
1. Starter (choke) lever“”
U5B682E0.book Page 6 Tuesday, June 9, 2009 2:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
4-7
4
EAU37650

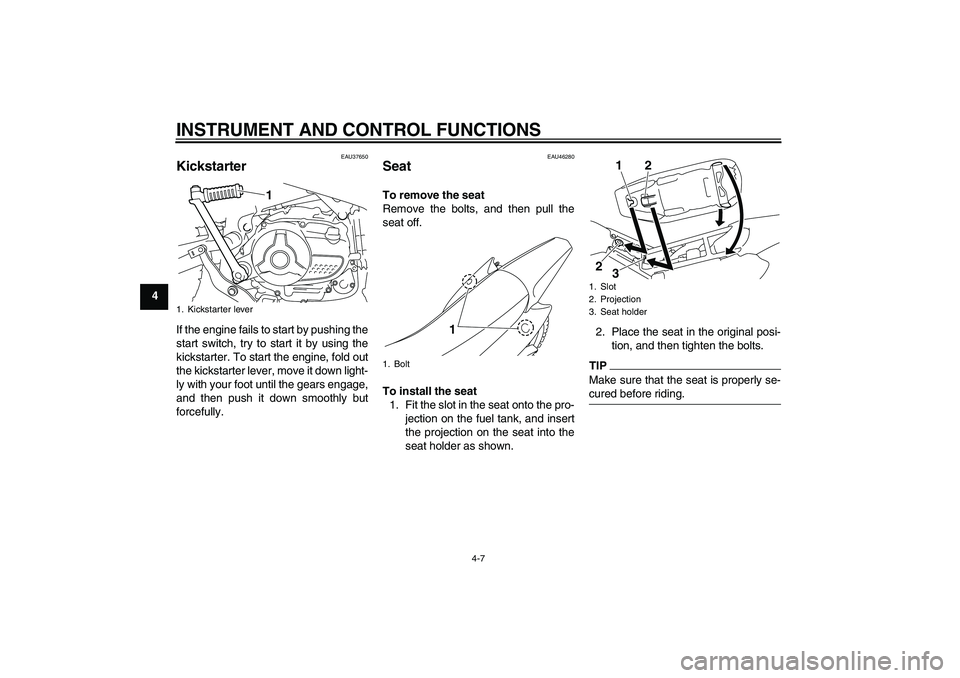

Kickstarter If the engine fails to start by pushing the
start switch, try to start it by using the
kickstarter. To start the engine, fold out
the kickstarter lever, move it down light-
ly with your foot until the gears engage,
and then push it down smoothly but
forcefully.
EAU46280
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Fit the slot in the seat onto the pro-
jection on the fuel tank, and insert
the projection on the seat into the
seat holder as shown.2. Place the seat in the original posi-
tion, and then tighten the bolts.
TIPMake sure that the seat is properly se-
cured before riding.
1. Kickstarter lever
1
1. Bolt
1
1. Slot
2. Projection
3. Seat holder
2 1
2
3
U5B682E0.book Page 7 Tuesday, June 9, 2009 2:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
4-8
4
EAU46021

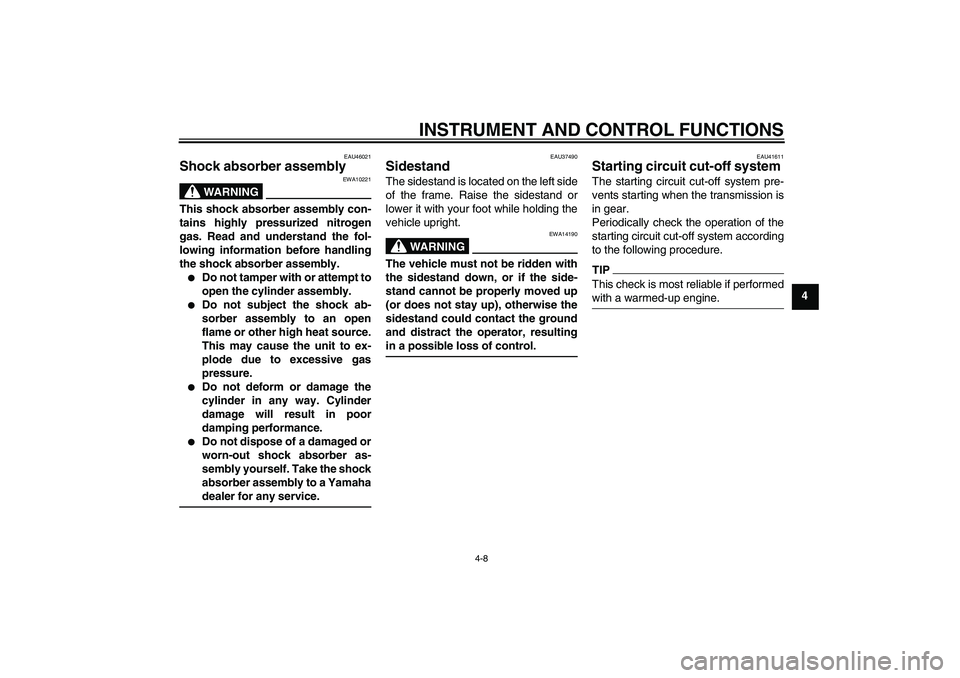

Shock absorber assembly
WARNING
EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

Do not tamper with or attempt to
open the cylinder assembly.


Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.


Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.


Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
EAU37490
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
WARNING
EWA14190
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
EAU41611
Starting circuit cut-off system The starting circuit cut-off system pre-
vents starting when the transmission is
in gear.
Periodically check the operation of the
starting circuit cut-off system according
to the following procedure.TIPThis check is most reliable if performed
with a warmed-up engine.
U5B682E0.book Page 8 Tuesday, June 9, 2009 2:04 PM

INSTRUMENT AND CONTROL FUNCTIONS
4-9
4

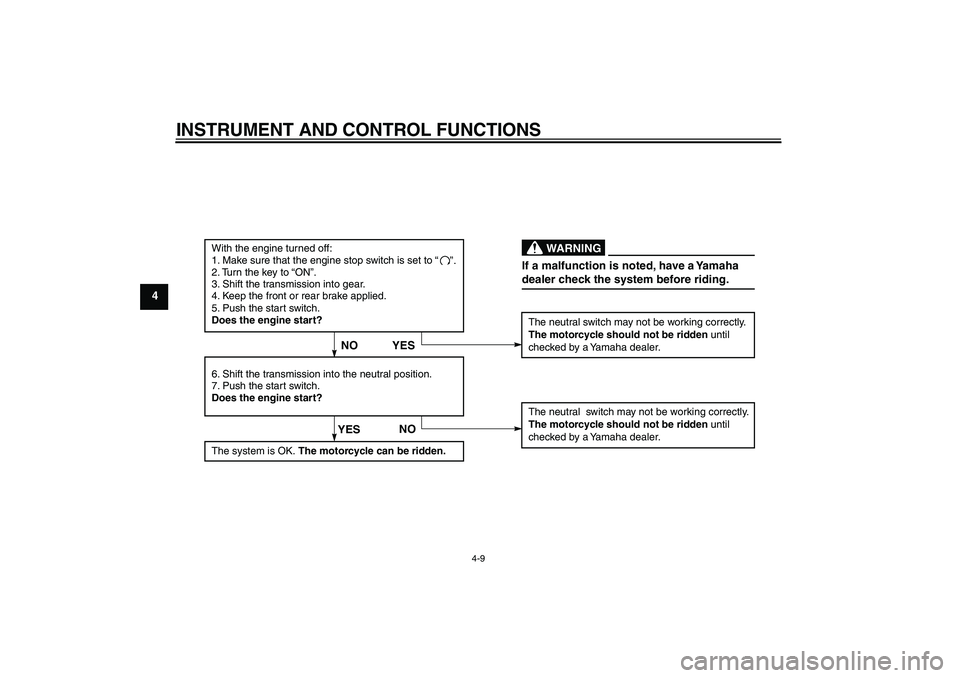

With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO
The system is OK. The motorcycle can be ridden.
YES
NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U5B682E0.book Page 9 Tuesday, June 9, 2009 2:04 PM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-1
5
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.4-3
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.7-9
Front brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.7-18, 7-20
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.7-19, 7-20
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.7-15, 7-23
Control cablesMake sure that operation is smooth.
Lubricate if necessary.7-23
U5B682E0.book Page 1 Tuesday, June 9, 2009 2:04 PM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-2
5

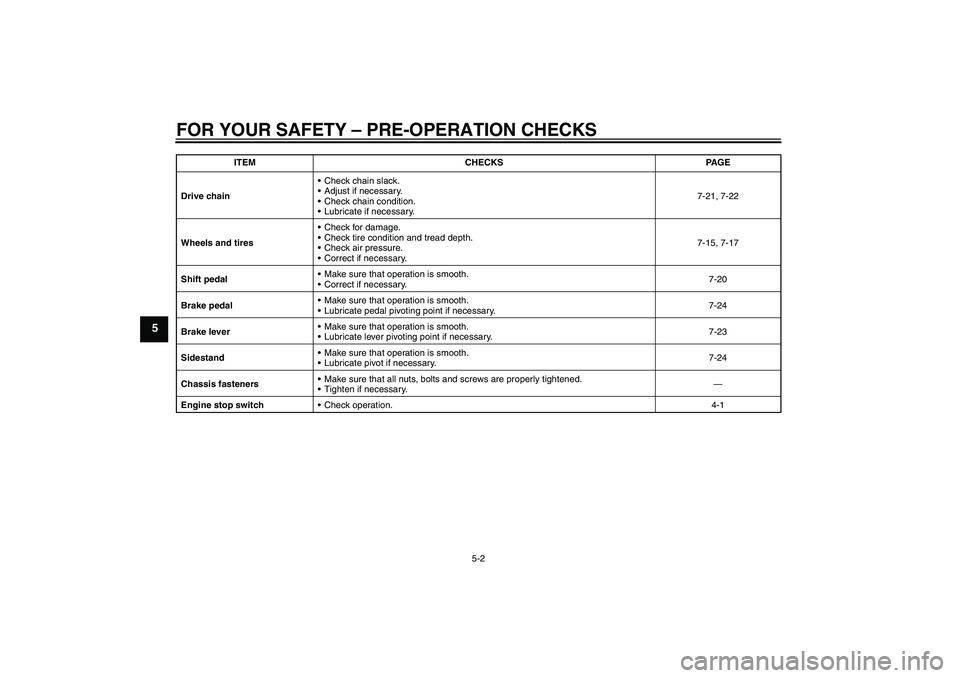

Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.7-21, 7-22
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.7-15, 7-17
Shift pedalMake sure that operation is smooth.
Correct if necessary.7-20
Brake pedalMake sure that operation is smooth.
Lubricate pedal pivoting point if necessary.7-24
Brake leverMake sure that operation is smooth.
Lubricate lever pivoting point if necessary.7-23
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.7-24
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switchCheck operation.4-1 ITEM CHECKS PAGE
U5B682E0.book Page 2 Tuesday, June 9, 2009 2:04 PM

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951

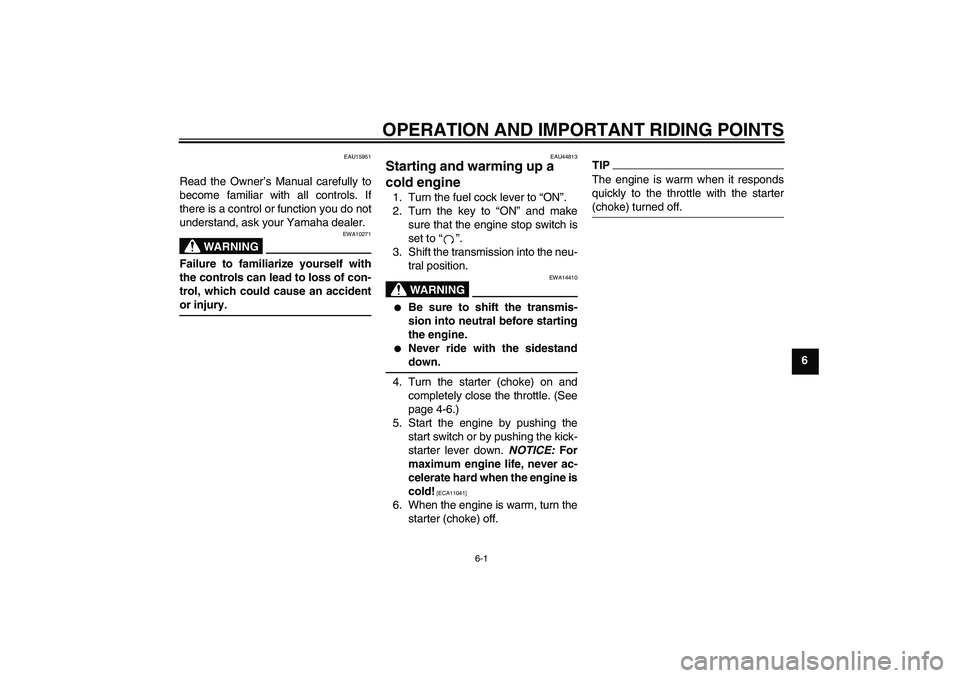

Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU44813
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410


Be sure to shift the transmis-
sion into neutral before starting
the engine.


Never ride with the sidestand
down.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 4-6.)
5. Start the engine by pushing the
start switch or by pushing the kick-
starter lever down. NOTICE: For
maximum engine life, never ac-
celerate hard when the engine is
cold!
[ECA11041]
6. When the engine is warm, turn the
starter (choke) off.
TIPThe engine is warm when it responds
quickly to the throttle with the starter
(choke) turned off.
U5B682E0.book Page 1 Tuesday, June 9, 2009 2:04 PM

OPERATION AND IMPORTANT RIDING POINTS
6-2
6
EAU16640
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
EAU39901
Shifting This motorcycle has a 4-speed trans-
mission with a centrifugal, automatic
clutch. Shifting gears lets you control
the amount of engine power available
for starting off, accelerating, climbing
hills, etc.

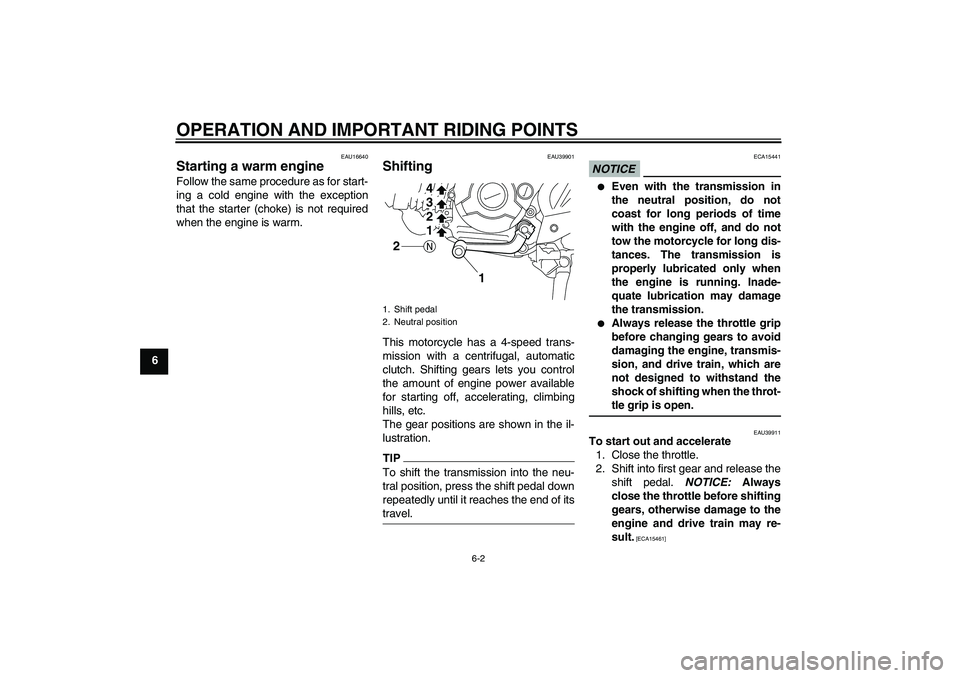

The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel.
NOTICE
ECA15441


Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.


Always release the throttle grip
before changing gears to avoid
damaging the engine, transmis-
sion, and drive train, which are
not designed to withstand the
shock of shifting when the throt-
tle grip is open.
EAU39911
To start out and accelerate
1. Close the throttle.
2. Shift into first gear and release the
shift pedal. NOTICE: Always
close the throttle before shifting
gears, otherwise damage to the
engine and drive train may re-
sult.
[ECA15461]
1. Shift pedal
2. Neutral position
1
2
1 2
34
U5B682E0.book Page 2 Tuesday, June 9, 2009 2:04 PM

OPERATION AND IMPORTANT RIDING POINTS
6-3
6 3. Open the throttle gradually.
4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle.
5. Shift into second gear and release
the shift pedal.
6. Open the throttle gradually.
7. Follow the same procedure when
shifting to the next higher gear.
EAU16710
To decelerate
1. Close the throttle and apply both
the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and
shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU39920
Engine break-in There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to ac-
custom the rider to the motorcycle dur-
ing this time. Please read the following
information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first 5
hours of operation. The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided. However, momentary full-
throttle operation under load (i.e., two
to three seconds maximum) does not
harm the engine. Each full-throttle ac-
celeration should be followed with a
substantial rest period for the engine.
To allow the engine to cool down from
the temporary buildup of heat, cruise at
a lower engine speed.
After the first 5 hours of operation, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
NOTICE
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
U5B682E0.book Page 3 Tuesday, June 9, 2009 2:04 PM

OPERATION AND IMPORTANT RIDING POINTS
6-4
6
EAU17171

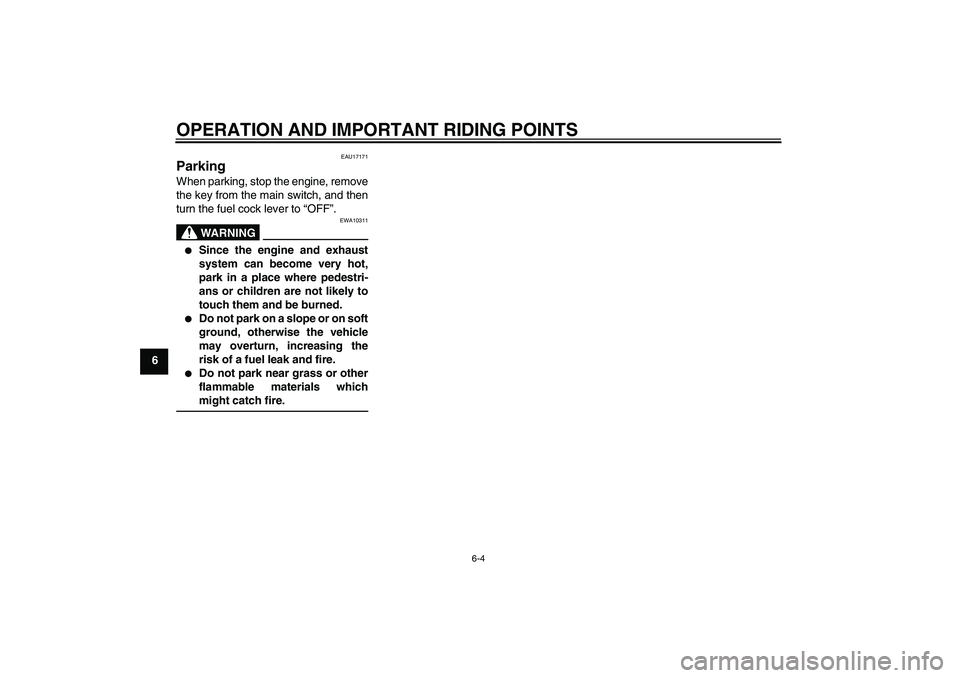

Parking When parking, stop the engine, remove
the key from the main switch, and then
turn the fuel cock lever to “OFF”.
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials which
might catch fire.
U5B682E0.book Page 4 Tuesday, June 9, 2009 2:04 PM
