5 - 65
CHAS

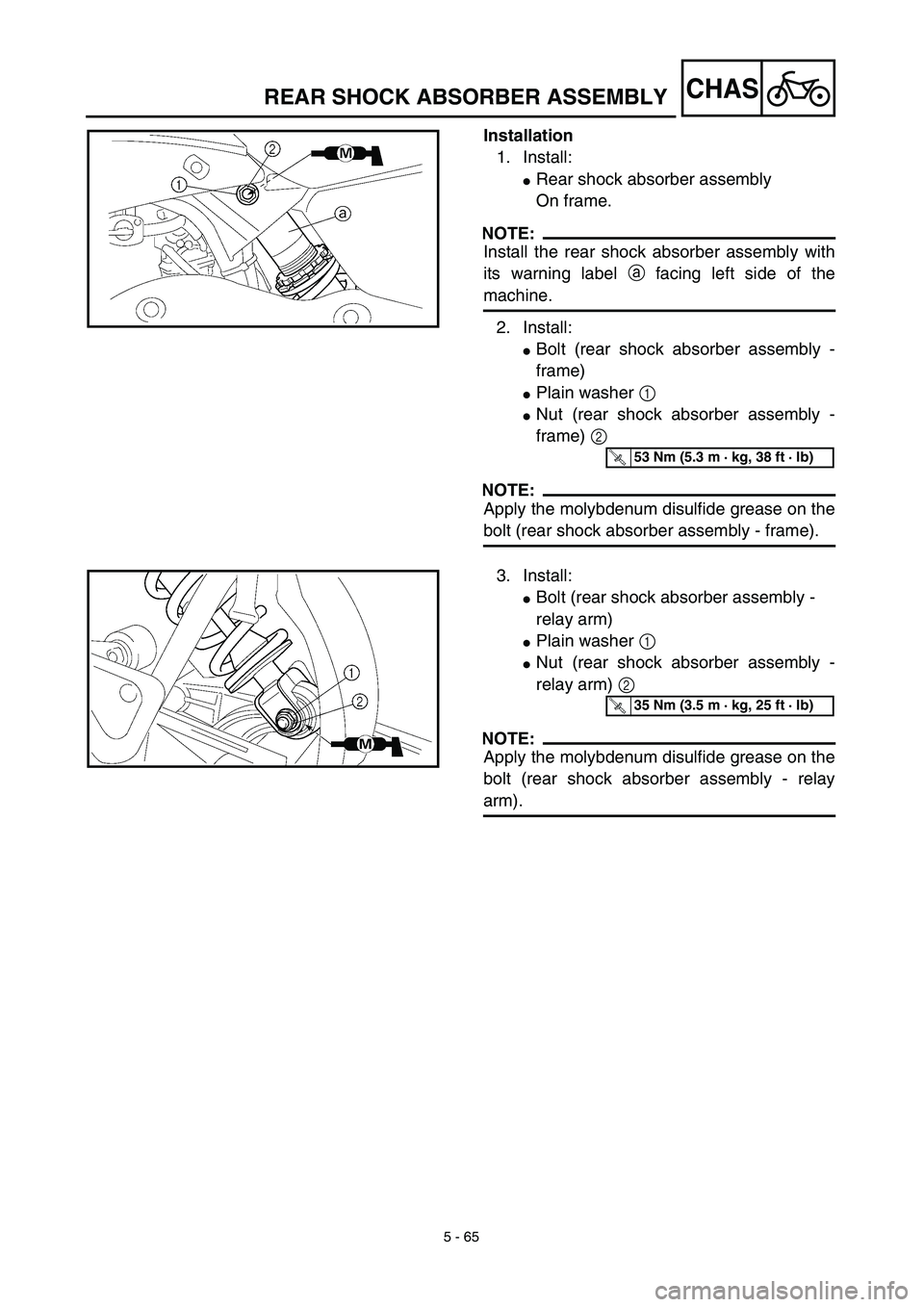

Installation
1. Install:
Rear shock absorber assembly
On frame.
NOTE:
Install the rear shock absorber assembly with
its warning label a facing left side of the
machine.
2. Install:
Bolt (rear shock absorber assembly -
frame)
Plain washer 1
Nut (rear shock absorber assembly -
frame) 2
NOTE:
Apply the molybdenum disulfide grease on the
bolt (rear shock absorber assembly - frame).
T R..53 Nm (5.3 m · kg, 38 ft · lb)
3. Install:
Bolt (rear shock absorber assembly -
relay arm)
Plain washer 1
Nut (rear shock absorber assembly -
relay arm) 2
NOTE:
Apply the molybdenum disulfide grease on the
bolt (rear shock absorber assembly - relay
arm).
T R..35 Nm (3.5 m · kg, 25 ft · lb)
REAR SHOCK ABSORBER ASSEMBLY
