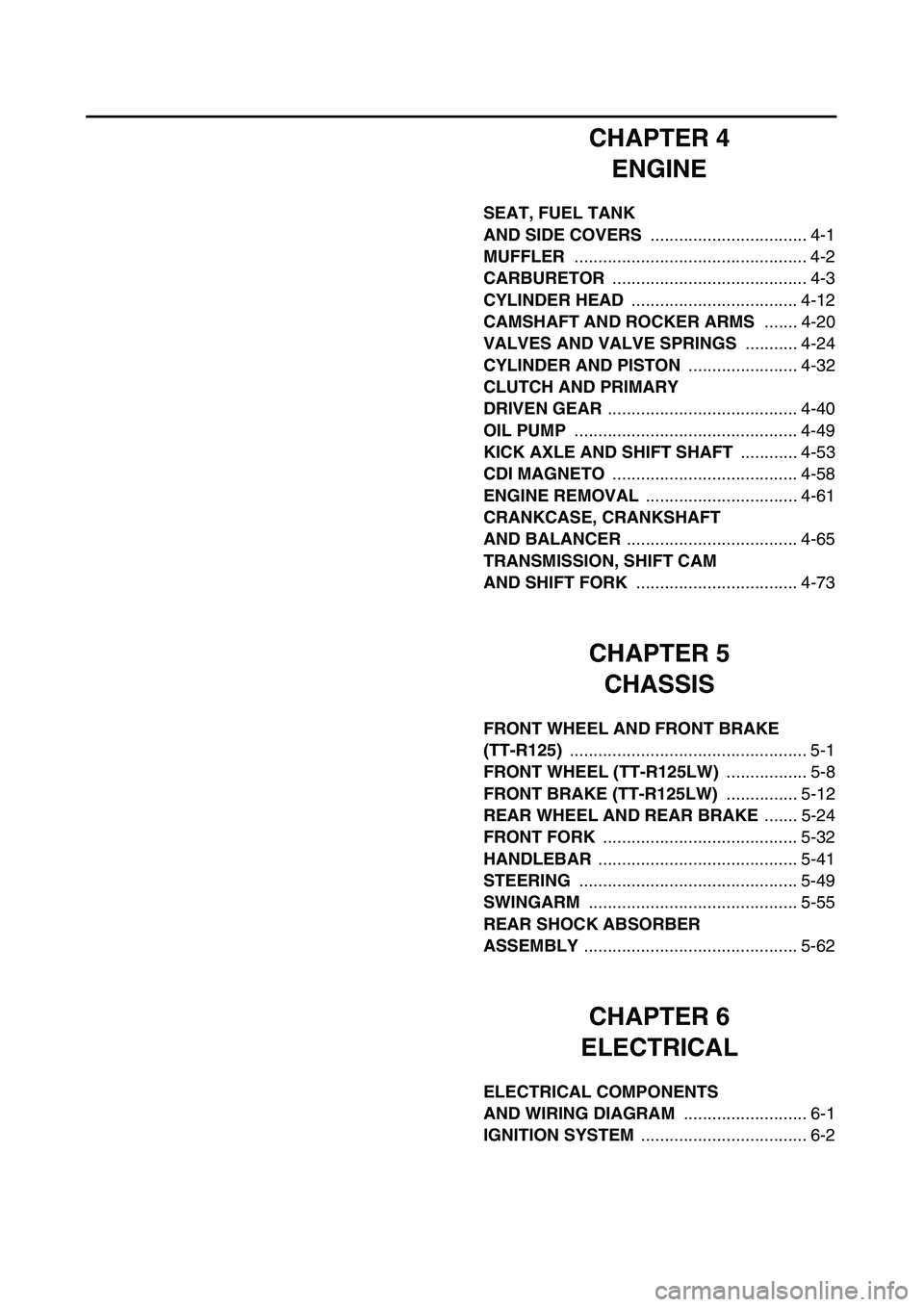

CHAPTER 4
ENGINE
SEAT, FUEL TANK
AND SIDE COVERS
................................. 4-1
MUFFLER
................................................. 4-2
CARBURETOR
......................................... 4-3
CYLINDER HEAD
................................... 4-12
CAMSHAFT AND ROCKER ARMS
....... 4-20
VALVES AND VALVE SPRINGS
........... 4-24
CYLINDER AND PISTON
....................... 4-32
CLUTCH AND PRIMARY
DRIVEN GEAR
........................................ 4-40
OIL PUMP
............................................... 4-49
KICK AXLE AND SHIFT SHAFT
............ 4-53
CDI MAGNETO
....................................... 4-58
ENGINE REMOVAL
................................ 4-61
CRANKCASE, CRANKSHAFT
AND BALANCER
.................................... 4-65
TRANSMISSION, SHIFT CAM
AND SHIFT FORK
.................................. 4-73
CHAPTER 5
CHASSIS
FRONT WHEEL AND FRONT BRAKE
(TT-R125)
.................................................. 5-1
FRONT WHEEL (TT-R125LW)
................. 5-8
FRONT BRAKE (TT-R125LW)
............... 5-12
REAR WHEEL AND REAR BRAKE
....... 5-24
FRONT FORK
......................................... 5-32
HANDLEBAR
.......................................... 5-41
STEERING
.............................................. 5-49
SWINGARM
............................................ 5-55
REAR SHOCK ABSORBER
ASSEMBLY
............................................. 5-62
CHAPTER 6
ELECTRICAL
ELECTRICAL COMPONENTS
AND WIRING DIAGRAM
.......................... 6-1
IGNITION SYSTEM
................................... 6-2

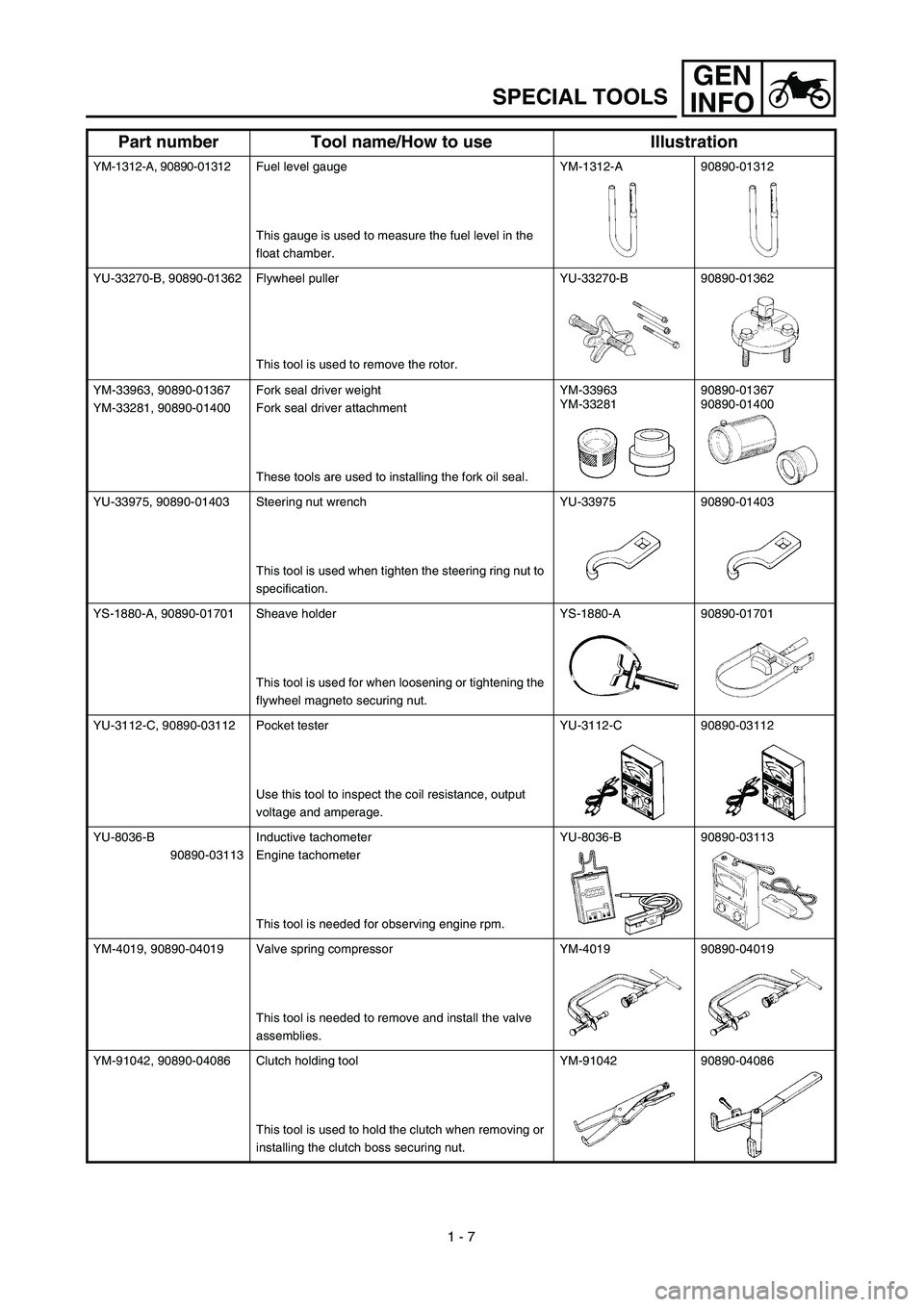

1 - 7
GEN
INFO
SPECIAL TOOLS
YM-1312-A, 90890-01312Fuel level gauge
This gauge is used to measure the fuel level in the
float chamber.YM-1312-A 90890-01312
YU-33270-B, 90890-01362 Flywheel puller
This tool is used to remove the rotor.YU-33270-B 90890-01362
YM-33963, 90890-01367
YM-33281, 90890-01400Fork seal driver weight
Fork seal driver attachment
These tools are used to installing the fork oil seal.YM-33963
YM-3328190890-01367
90890-01400
YU-33975, 90890-01403 Steering nut wrench
This tool is used when tighten the steering ring nut to
specification.YU-33975 90890-01403
YS-1880-A, 90890-01701 Sheave holder
This tool is used for when loosening or tightening the
flywheel magneto securing nut.YS-1880-A 90890-01701
YU-3112-C, 90890-03112 Pocket tester
Use this tool to inspect the coil resistance, output
voltage and amperage.YU-3112-C 90890-03112
YU-8036-B
90890-03113Inductive tachometer
Engine tachometer
This tool is needed for observing engine rpm.YU-8036-B 90890-03113
YM-4019, 90890-04019 Valve spring compressor
This tool is needed to remove and install the valve
assemblies.YM-4019 90890-04019
YM-91042, 90890-04086 Clutch holding tool
This tool is used to hold the clutch when removing or
installing the clutch boss securing nut.YM-91042 90890-04086
Part number Tool name/How to use Illustration

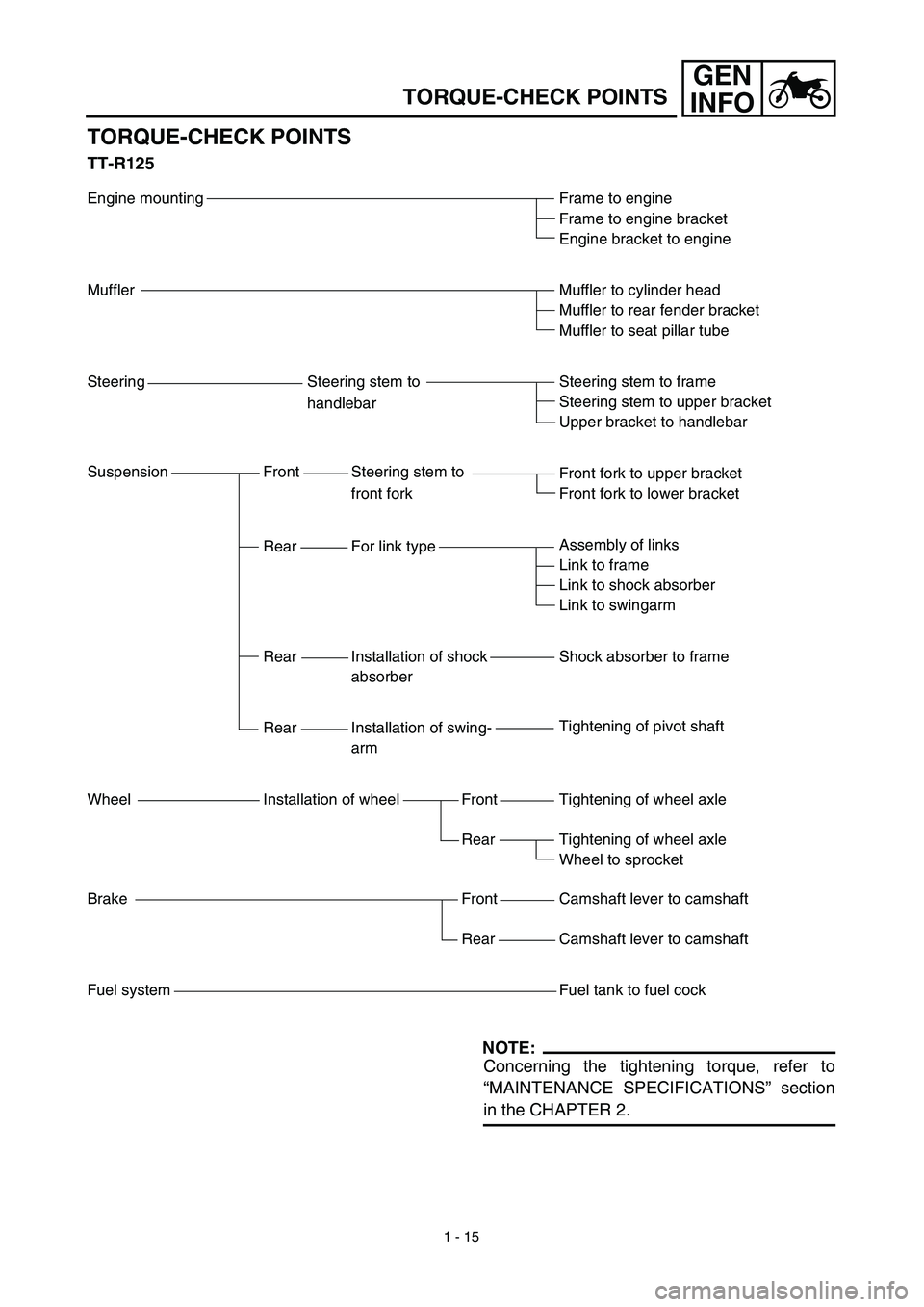

1 - 15
GEN
INFO
TORQUE-CHECK POINTS
TORQUE-CHECK POINTS
TT-R125
Engine mounting
Muffler
Steering Steering stem to
handlebar
Suspension Front Steering stem to
front fork
Rear For link type
Rear Installation of shock
absorber
Rear Installation of swing-
arm
Wheel Installation of wheel Front
Rear
Brake Front
Rear
Fuel systemFrame to engine
Frame to engine bracket
Engine bracket to engine
Muffler to cylinder head
Muffler to rear fender bracket
Muffler to seat pillar tube
Steering stem to frame
Steering stem to upper bracket
Upper bracket to handlebar
Front fork to upper bracket
Front fork to lower bracket
Assembly of links
Link to frame
Link to shock absorber
Link to swingarm
Shock absorber to frame
Tightening of pivot shaft
Tightening of wheel axle
Tightening of wheel axle
Wheel to sprocket
Camshaft lever to camshaft
Camshaft lever to camshaft
Fuel tank to fuel cock
NOTE:
Concerning the tightening torque, refer to
“MAINTENANCE SPECIFICATIONS” section
in the CHAPTER 2.

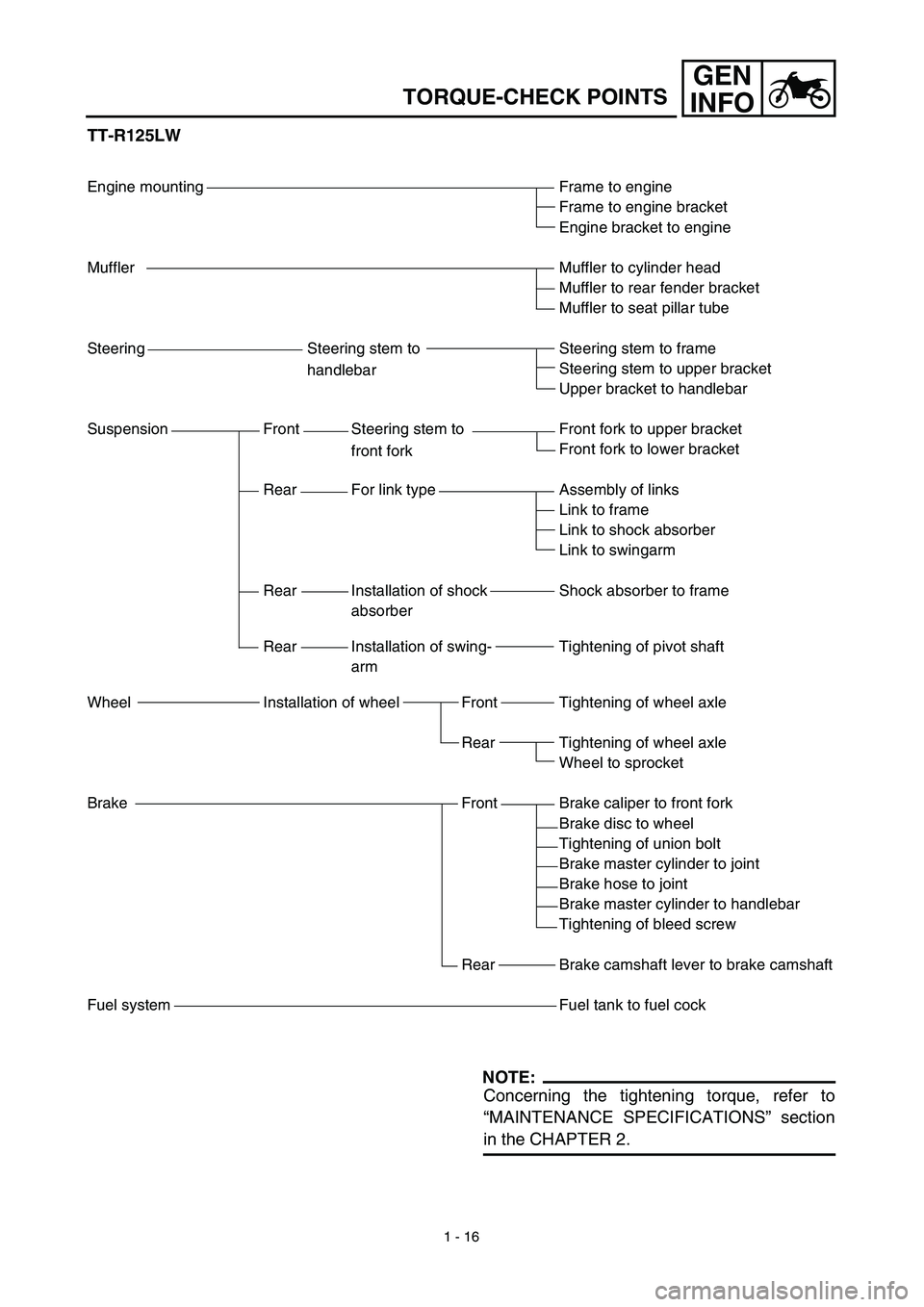

1 - 16
GEN
INFO
TORQUE-CHECK POINTS
TT-R125LW
Engine mounting
Muffler
Steering Steering stem to
handlebar
Suspension Front Steering stem to
front fork
Rear For link type
Rear Installation of shock
absorber
Rear Installation of swing-
arm
Wheel Installation of wheel Front
Rear
Brake Front
Rear
Fuel systemFrame to engine
Frame to engine bracket
Engine bracket to engine
Muffler to cylinder head
Muffler to rear fender bracket
Muffler to seat pillar tube
Steering stem to frame
Steering stem to upper bracket
Upper bracket to handlebar
Front fork to upper bracket
Front fork to lower bracket
Assembly of links
Link to frame
Link to shock absorber
Link to swingarm
Shock absorber to frame
Tightening of pivot shaft
Tightening of wheel axle
Tightening of wheel axle
Wheel to sprocket
Brake caliper to front fork
Brake disc to wheel
Tightening of union bolt
Brake master cylinder to joint
Brake hose to joint
Brake master cylinder to handlebar
Tightening of bleed screw
Brake camshaft lever to brake camshaft
Fuel tank to fuel cock
NOTE:
Concerning the tightening torque, refer to
“MAINTENANCE SPECIFICATIONS” section
in the CHAPTER 2.

1 - 17
GEN
INFO
CLEANING AND STORAGE
EC1B0000
CLEANING AND STORAGE
EC1B1000
CLEANING
Frequent cleaning of your machine will
enhance its appearance, maintain good over-
all performance, and extend the life of many
components.
1. Before washing the machine, block off
the end of the exhaust pipe to prevent
water from entering. A plastic bag
secured with a rubber band may be used
for this purpose.
2. If the engine is excessively greasy, apply
some degreaser to it with a paint brush.
Do not apply degreaser to the chain,
sprockets, or wheel axles.
3. Rinse the dirt and degreaser off with a
garden hose; use only enough pressure
to do the job.
CAUTION:
Excessive hose pressure may cause water
seepage and contamination of wheel bear-
ings, front forks, brakes and transmission
seals. Many expensive repair bills have
resulted from improper high pressure
detergent applications such as those avail-
able in coin-operated car washers.
4. After the majority of the dirt has been
hosed off, wash all surfaces with warm
water and a mild detergent. Use an old
toothbrush to clean hard-to-reach places.
5. Rinse the machine off immediately with
clean water, and dry all surfaces with a
soft towel or cloth.
6. Immediately after washing, remove
excess water from the chain with a paper
towel and lubricate the chain to prevent
rust.
7. Clean the seat with a vinyl upholstery
cleaner to keep the cover pliable and
glossy.
8. Automotive wax may be applied to all
painted or chromed surfaces. Avoid com-
bination cleaner-waxes, as they may con-
tain abrasives.
9. After completing the above, start the
engine and allow it to idle for several min-
utes.

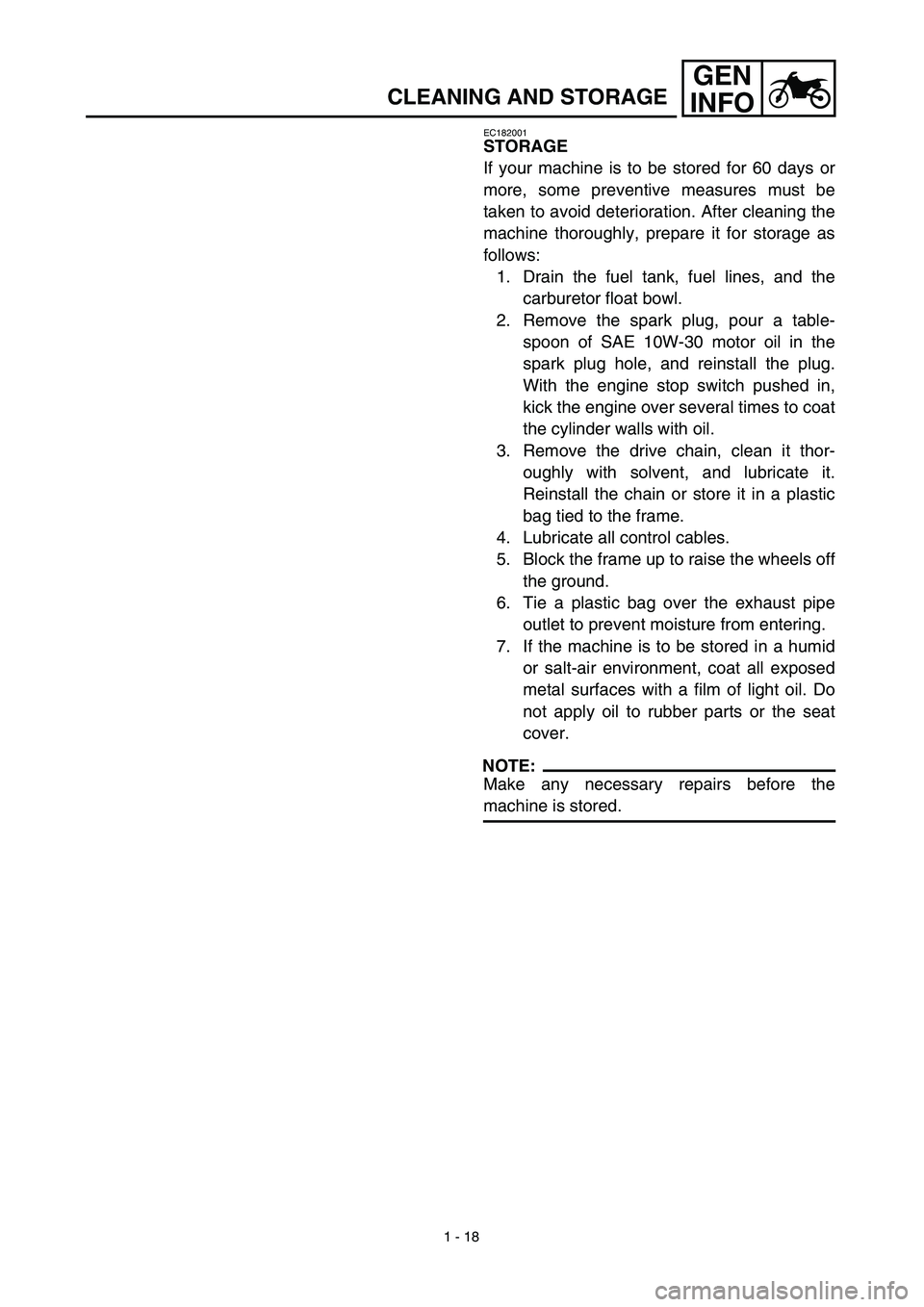

1 - 18
GEN
INFO
CLEANING AND STORAGE
EC182001
STORAGE
If your machine is to be stored for 60 days or
more, some preventive measures must be
taken to avoid deterioration. After cleaning the
machine thoroughly, prepare it for storage as
follows:
1. Drain the fuel tank, fuel lines, and the
carburetor float bowl.
2. Remove the spark plug, pour a table-
spoon of SAE 10W-30 motor oil in the
spark plug hole, and reinstall the plug.
With the engine stop switch pushed in,
kick the engine over several times to coat
the cylinder walls with oil.
3. Remove the drive chain, clean it thor-
oughly with solvent, and lubricate it.
Reinstall the chain or store it in a plastic
bag tied to the frame.
4. Lubricate all control cables.
5. Block the frame up to raise the wheels off
the ground.
6. Tie a plastic bag over the exhaust pipe
outlet to prevent moisture from entering.
7. If the machine is to be stored in a humid
or salt-air environment, coat all exposed
metal surfaces with a film of light oil. Do
not apply oil to rubber parts or the seat
cover.
NOTE:
Make any necessary repairs before the
machine is stored.

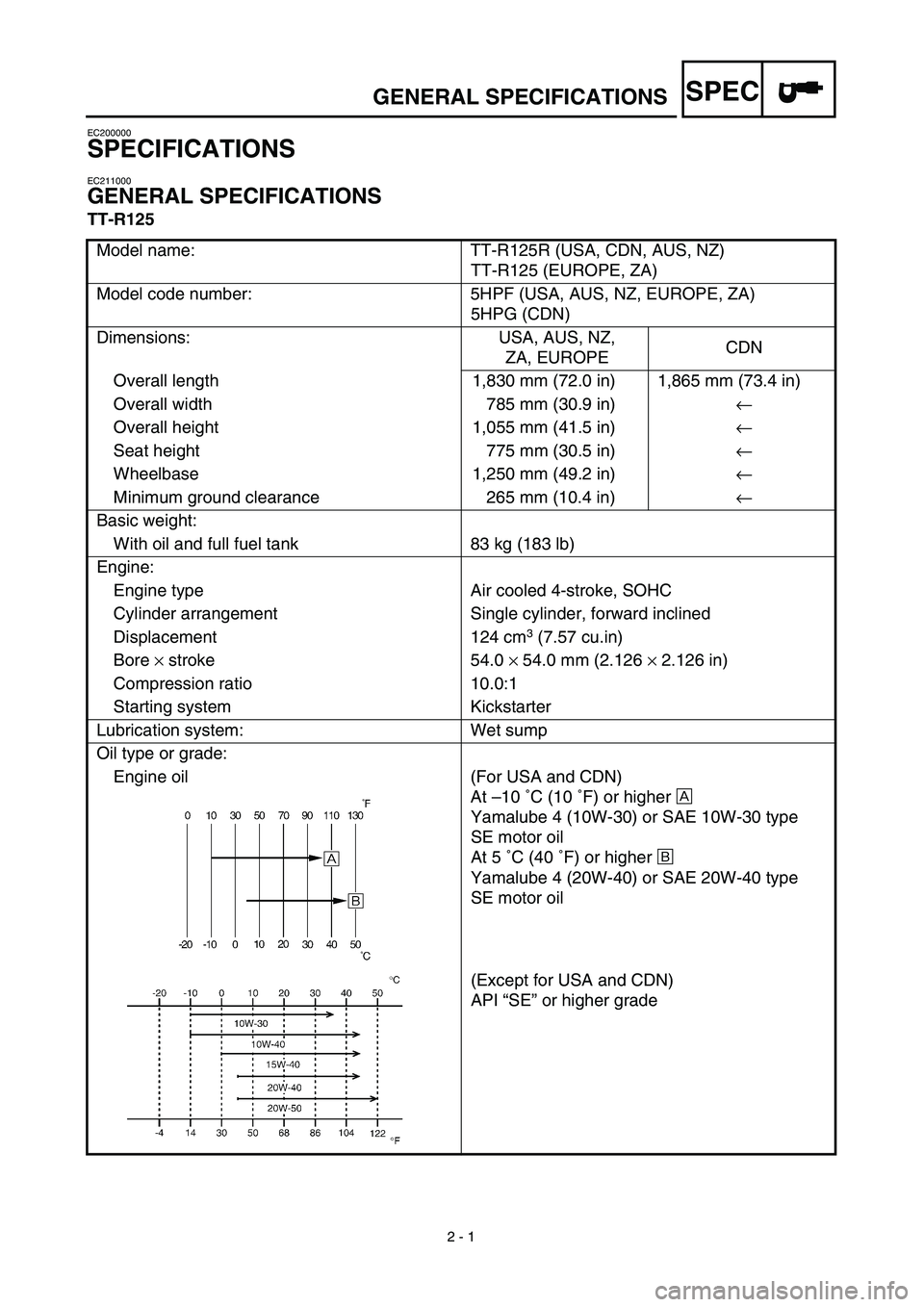

SPEC
2 - 1
GENERAL SPECIFICATIONS
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
TT-R125
Model name: TT-R125R (USA, CDN, AUS, NZ)
TT-R125 (EUROPE, ZA)
Model code number: 5HPF (USA, AUS, NZ, EUROPE, ZA)
5HPG (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Overall length 1,830 mm (72.0 in) 1,865 mm (73.4 in)
Overall width 785 mm (30.9 in)←
Overall height 1,055 mm (41.5 in)←
Seat height 775 mm (30.5 in)←
Wheelbase 1,250 mm (49.2 in)←
Minimum ground clearance 265 mm (10.4 in)←
Basic weight:
With oil and full fuel tank 83 kg (183 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 124 cm
3 (7.57 cu.in)
Bore × stroke 54.0 × 54.0 mm (2.126 × 2.126 in)
Compression ratio 10.0:1
Starting system Kickstarter
Lubrication system: Wet sump
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher ı
Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade

SPEC
2 - 3
GENERAL SPECIFICATIONS
Brake:
Front brake type Drum brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 180 mm (7.09 in)
Rear wheel travel 160 mm (6.30 in)
Electrical:
Ignition system CDI magneto

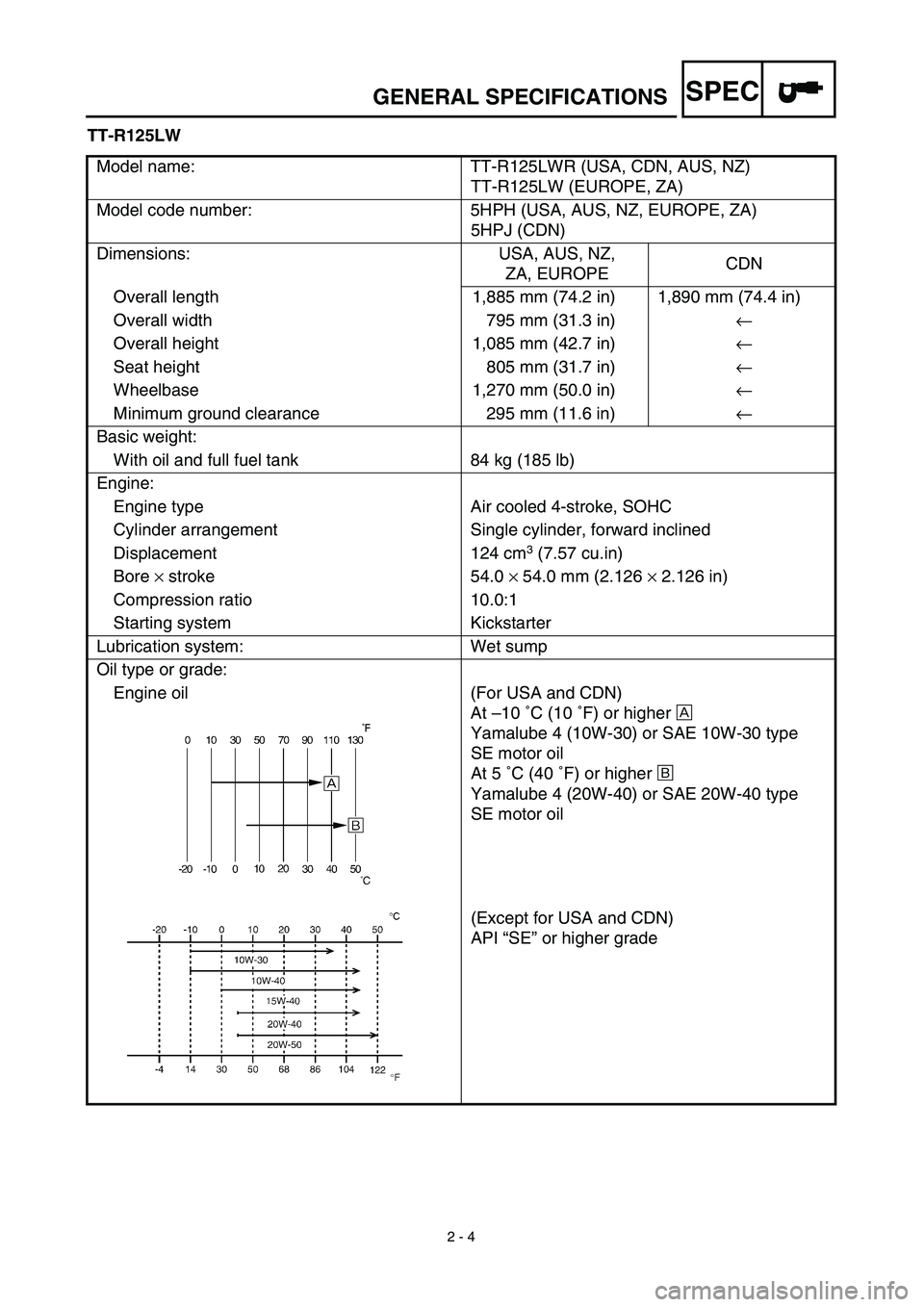

SPEC
2 - 4
GENERAL SPECIFICATIONS
TT-R125LW
Model name: TT-R125LWR (USA, CDN, AUS, NZ)
TT-R125LW (EUROPE, ZA)
Model code number: 5HPH (USA, AUS, NZ, EUROPE, ZA)
5HPJ (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Overall length 1,885 mm (74.2 in) 1,890 mm (74.4 in)
Overall width 795 mm (31.3 in)←
Overall height 1,085 mm (42.7 in)←
Seat height 805 mm (31.7 in)←
Wheelbase 1,270 mm (50.0 in)←
Minimum ground clearance 295 mm (11.6 in)←
Basic weight:
With oil and full fuel tank 84 kg (185 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 124 cm
3 (7.57 cu.in)
Bore × stroke 54.0 × 54.0 mm (2.126 × 2.126 in)
Compression ratio 10.0:1
Starting system Kickstarter
Lubrication system: Wet sump
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher ı
Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade

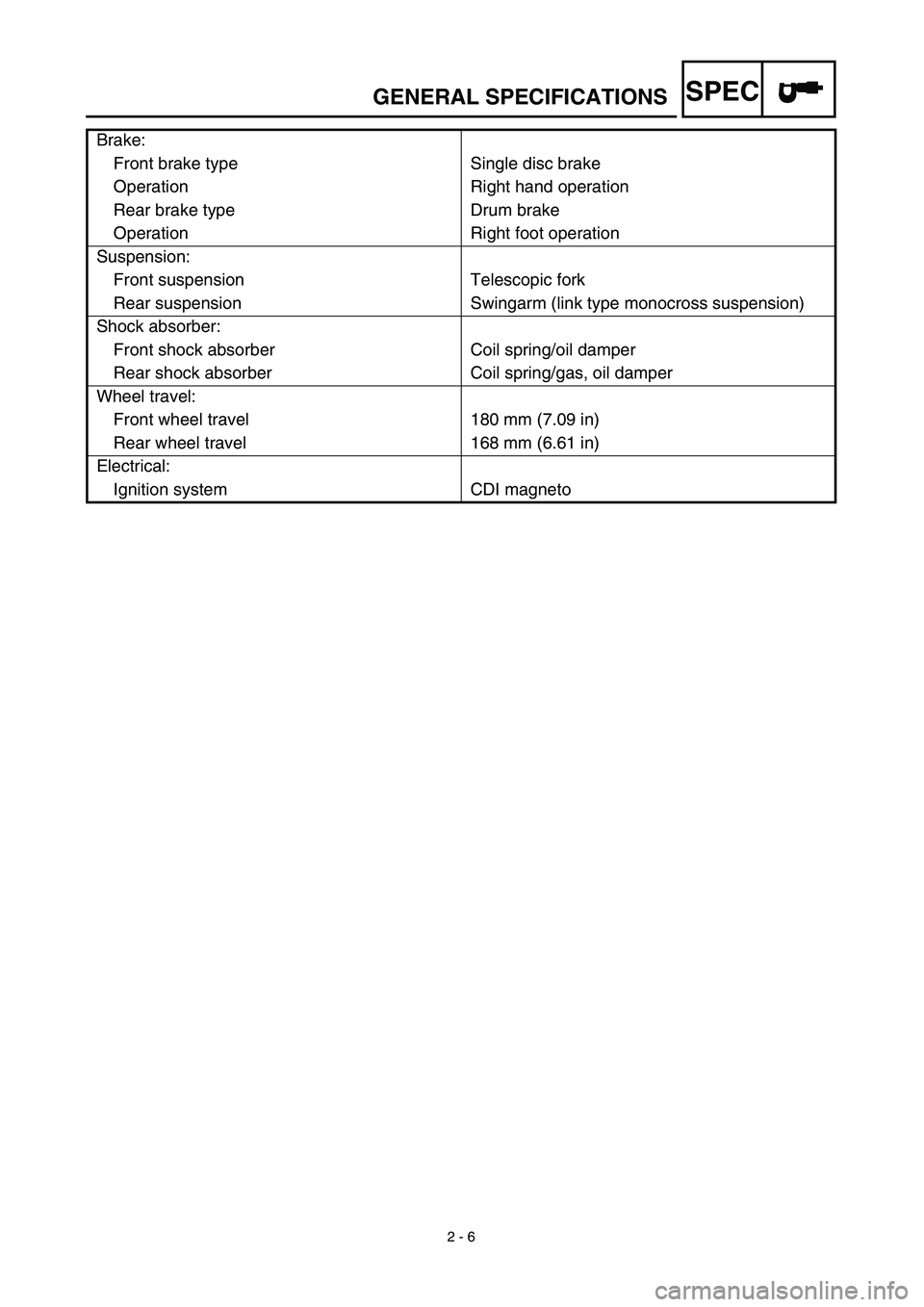

SPEC
2 - 6
GENERAL SPECIFICATIONS
Brake:
Front brake type Single disc brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 180 mm (7.09 in)
Rear wheel travel 168 mm (6.61 in)
Electrical:
Ignition system CDI magneto
