5 - 8
CHAS

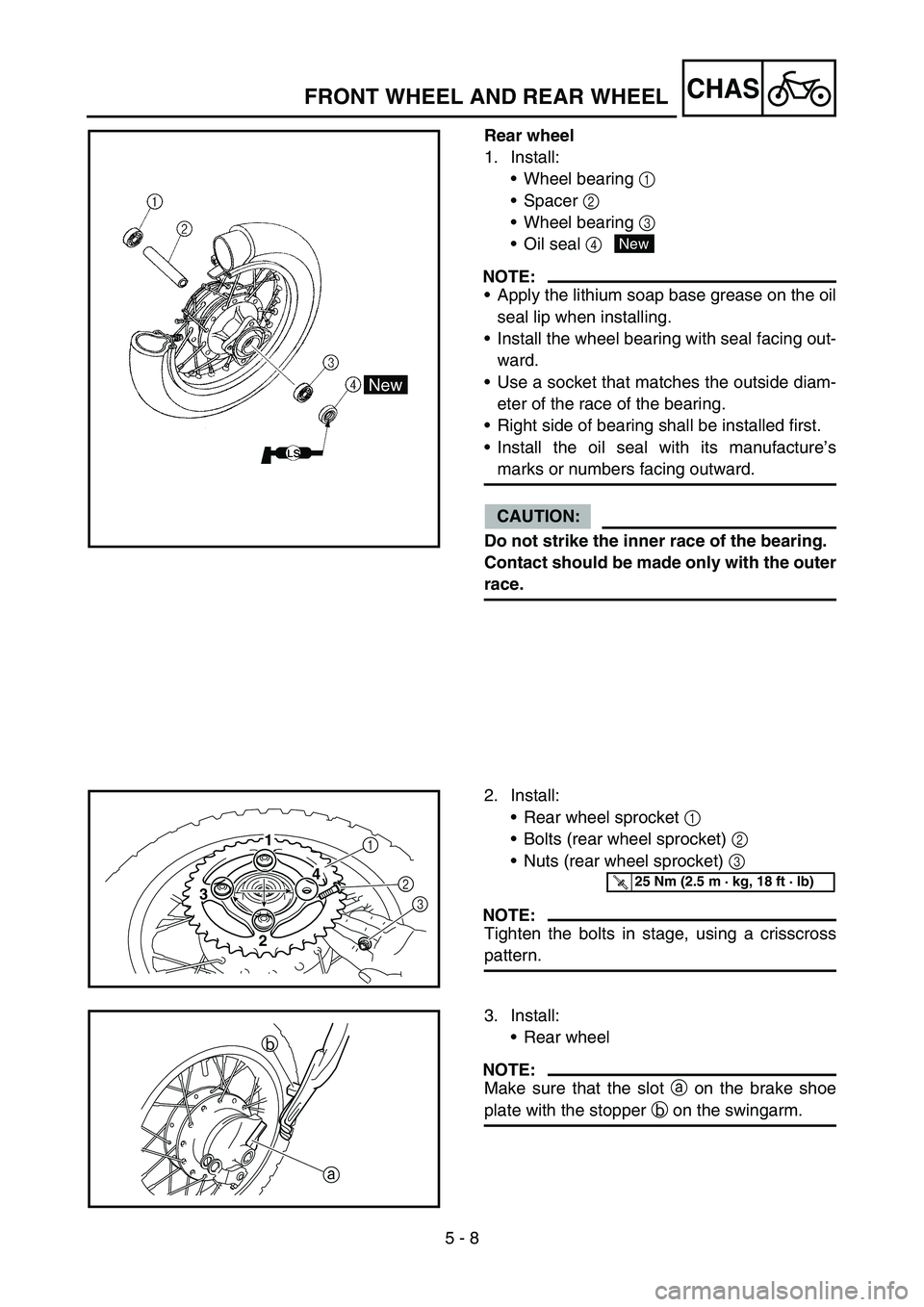

Rear wheel
1. Install:Wheel bearing 1
 Spacer 2
 Wheel bearing 3
 Oil seal 4
NOTE:
Apply the lithium soap base grease on the oil
seal lip when installing.
 Install the wheel bearing with seal facing out-
ward.
 Use a socket that matches the outside diam-
eter of the race of the bearing.
 Right side of bearing shall be installed first.
 Install the oil seal with its manufacture ’s
marks or numbers facing outward.
CAUTION:
Do not strike the inner race of the bearing.
Contact should be made only with the outer
race.
New
2. Install: Rear wheel sprocket 1
 Bolts (rear wheel sprocket) 2
 Nuts (rear wheel sprocket) 3
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
1
2 4
1
3
2 3T R..25 Nm (2.5 m · kg, 18 ft · lb)
3. Install:
Rear wheel
NOTE:
Make sure that the slot a on the brake shoe
plate with the stopper b on the swingarm.
a
b
FRONT WHEEL AND REAR WHEEL
