TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Location of important labels ............1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch .....................................3-1
Handlebar switches ........................3-1
Speed limiter ...................................3-2
Shift pedal .......................................3-2
Brake lever .....................................3-3
Brake pedal ....................................3-3
Fuel tank cap ..................................3-3
Fuel .................................................3-4
Fuel tank breather hose ..................3-5
Fuel cock ........................................3-5
Starter (choke) lever .......................3-6
Seat ................................................3-7
Sidestand ........................................3-7
Starting circuit cut-off system .........3-8
PRE-OPERATION CHECKS..............4-1
Pre-operation check list ..................4-2OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting and warming up a cold
engine ......................................... 5-1
Starting a warm engine .................. 5-2
Shifting ........................................... 5-2
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
PERIODIC MAINTENANCE ........... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2
General maintenance and
lubrication chart .......................... 6-3
Checking the spark plug ................. 6-5
Engine oil ....................................... 6-6
Cleaning the air filter element ........ 6-8
Cleaning the spark arrester ............ 6-9
Adjusting the carburetor ............... 6-10
Adjusting the engine idling
speed ........................................ 6-11
Adjusting the throttle cable free
play ........................................... 6-11
Valve clearance ............................ 6-12
Tires ............................................. 6-12
Spoke wheels ............................... 6-14
Accessories and replacement
parts .......................................... 6-14Adjusting the brake lever free
play ........................................... 6-14
Adjusting the brake pedal free
play ........................................... 6-15
Checking the front and rear
brake shoes .............................. 6-16
Drive chain slack .......................... 6-16
Cleaning and lubricating the
drive chain ................................ 6-18
Checking and lubricating the
cables ....................................... 6-19
Checking and lubricating the
throttle grip and cable ............... 6-19
Checking and lubricating the
brake and shift pedals .............. 6-19
Checking and lubricating the
brake lever ................................ 6-20
Checking and lubricating the
sidestand .................................. 6-20
Lubricating the swingarm
pivots ........................................ 6-20
Checking the front fork ................. 6-21
Checking the steering .................. 6-21
Checking the wheel bearings ....... 6-22
Battery ......................................... 6-22
Replacing the fuse ....................... 6-24
Supporting the motorcycle ........... 6-25
Front wheel .................................. 6-25
Rear wheel ................................... 6-27
Troubleshooting ........................... 6-29
Troubleshooting chart .................. 6-30U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM
Page 12 of 78
1-1
1
SAFETY INFORMATION
EAU39313

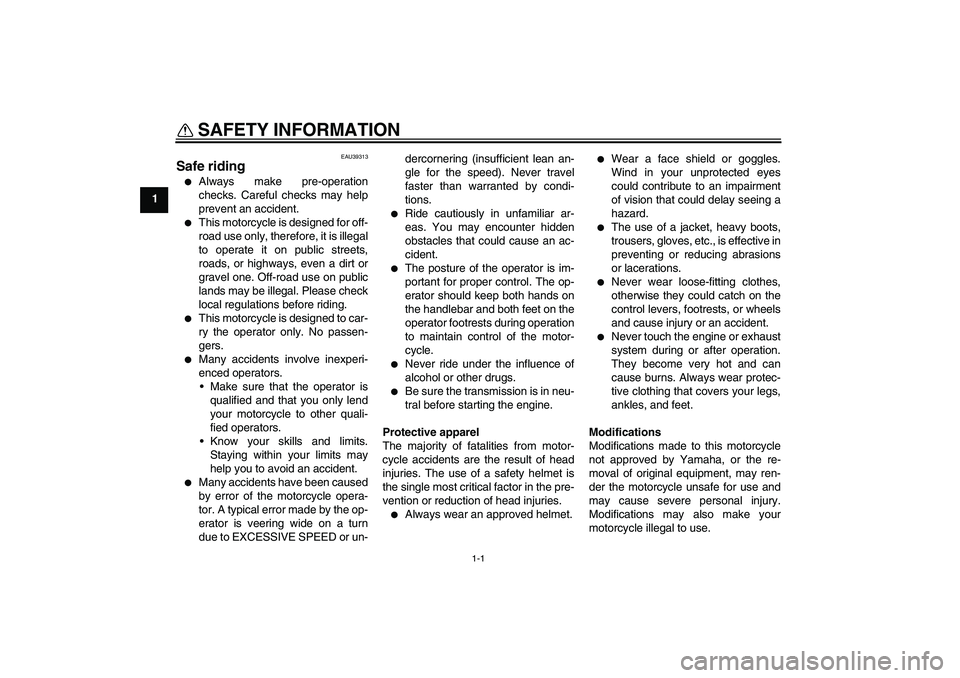

Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.
This motorcycle is designed to car-
ry the operator only. No passen-
gers.
Many accidents involve inexperi-
enced operators.
Make sure that the operator is
qualified and that you only lend
your motorcycle to other quali-
fied operators.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to EXCESSIVE SPEED or un-dercornering (insufficient lean an-
gle for the speed). Never travel
faster than warranted by condi-
tions.
Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.
The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during operation
to maintain control of the motor-
cycle.
Never ride under the influence of
alcohol or other drugs.
Be sure the transmission is in neu-
tral before starting the engine.
Protective apparel
The majority of fatalities from motor-
cycle accidents are the result of head
injuries. The use of a safety helmet is
the single most critical factor in the pre-
vention or reduction of head injuries.
Always wear an approved helmet.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your
motorcycle illegal to use.
U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM
Page 32 of 78
PRE-OPERATION CHECKS
4-2
4
EAU15605

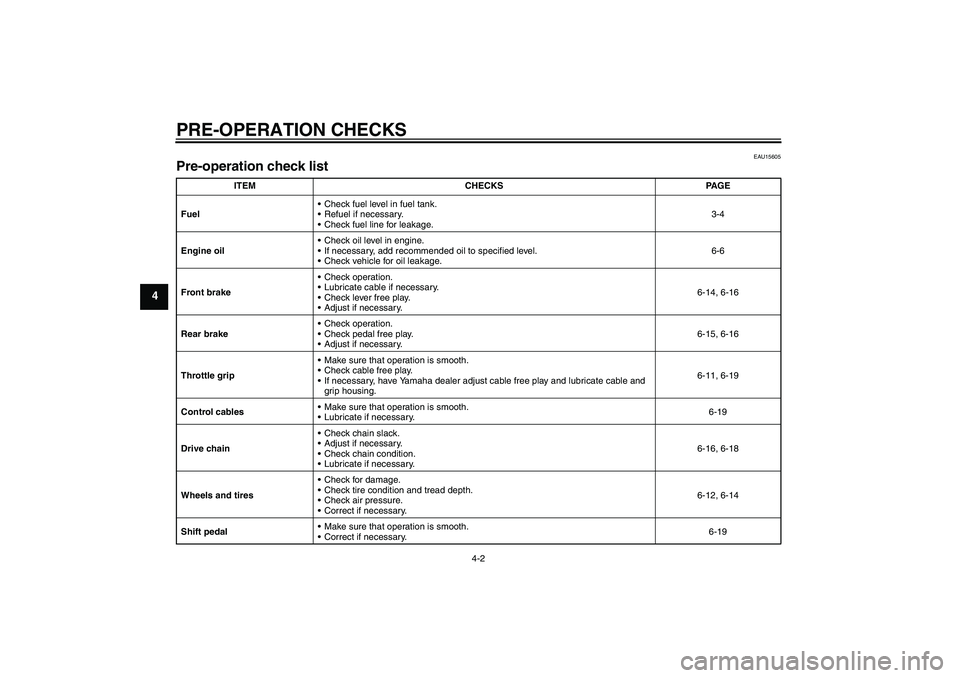

Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-4
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-6
Front brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-14, 6-16
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.6-15, 6-16
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-11, 6-19
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-19
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-16, 6-18
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-12, 6-14
Shift pedalMake sure that operation is smooth.
Correct if necessary.6-19
U1P681E0.book Page 2 Tuesday, April 18, 2006 2:38 PM
Page 40 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
EAU35346
General maintenance and lubrication chart No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*ClutchCheck operation.
Adjust if necessary.√√√
2*Front brakeCheck operation.
Adjust brake lever free play and replace brake shoes if
necessary.√√√
3*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake shoes if
necessary.√√√
4*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√
5*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√
6*Wheel bearingsCheck bearings for smooth operation.
Replace if necessary.√√
7*Swingarm pivot bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
8 Drive chainCheck chain slack/alignment and condition.
Adjust and lubricate chain with Yamaha chain and cable
lube thoroughly.Every ride
9*Steering bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
U1P681E0.book Page 3 Tuesday, April 18, 2006 2:38 PM
Page 50 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
WARNING
EWA10460
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model byYamaha Motor Co., Ltd.WARNING
EWA14390
Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-sively worn tires decreases
riding stability and can lead to
loss of control.
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a high-quality product.
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
12
Front tire:
Size:
2.50-10 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Rear tire:
Size:
2.50-10 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
U1P681E0.book Page 13 Friday, April 21, 2006 4:12 PM
Page 51 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
EAU21940

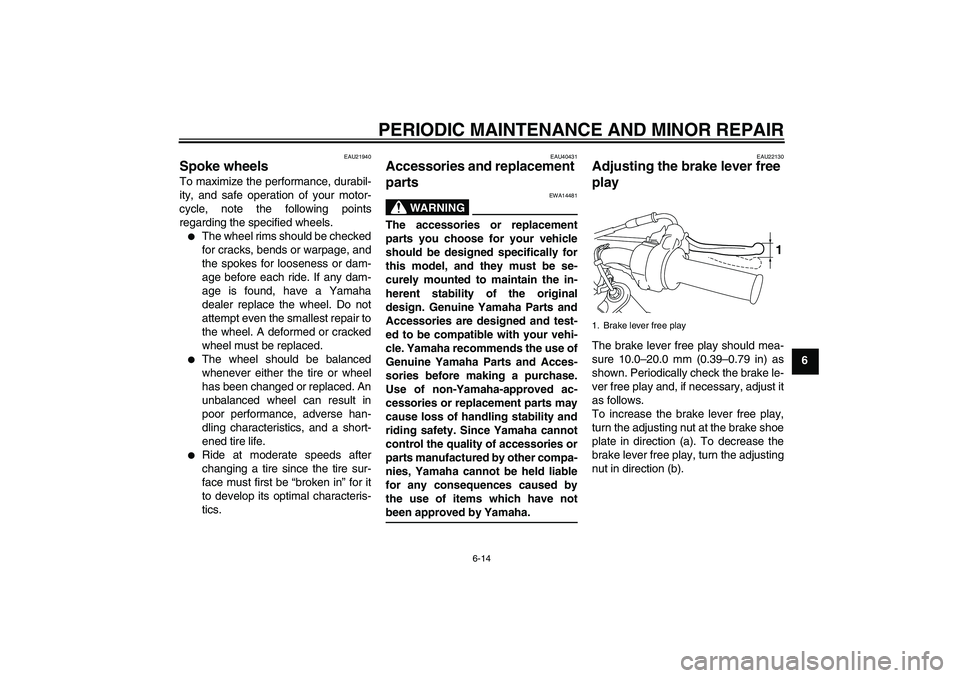

Spoke wheels To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified wheels.
The wheel rims should be checked
for cracks, bends or warpage, and
the spokes for looseness or dam-
age before each ride. If any dam-
age is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU40431
Accessories and replacement
parts
WARNING
EWA14481
The accessories or replacement
parts you choose for your vehicle
should be designed specifically for
this model, and they must be se-
curely mounted to maintain the in-
herent stability of the original
design. Genuine Yamaha Parts and
Accessories are designed and test-
ed to be compatible with your vehi-
cle. Yamaha recommends the use of
Genuine Yamaha Parts and Acces-
sories before making a purchase.
Use of non-Yamaha-approved ac-
cessories or replacement parts may
cause loss of handling stability and
riding safety. Since Yamaha cannot
control the quality of accessories or
parts manufactured by other compa-
nies, Yamaha cannot be held liable
for any consequences caused by
the use of items which have notbeen approved by Yamaha.
EAU22130
Adjusting the brake lever free
play The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
To increase the brake lever free play,
turn the adjusting nut at the brake shoe
plate in direction (a). To decrease the
brake lever free play, turn the adjusting
nut in direction (b).1. Brake lever free play
1
U1P681E0.book Page 14 Tuesday, April 18, 2006 2:38 PM
Page 53 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU22361

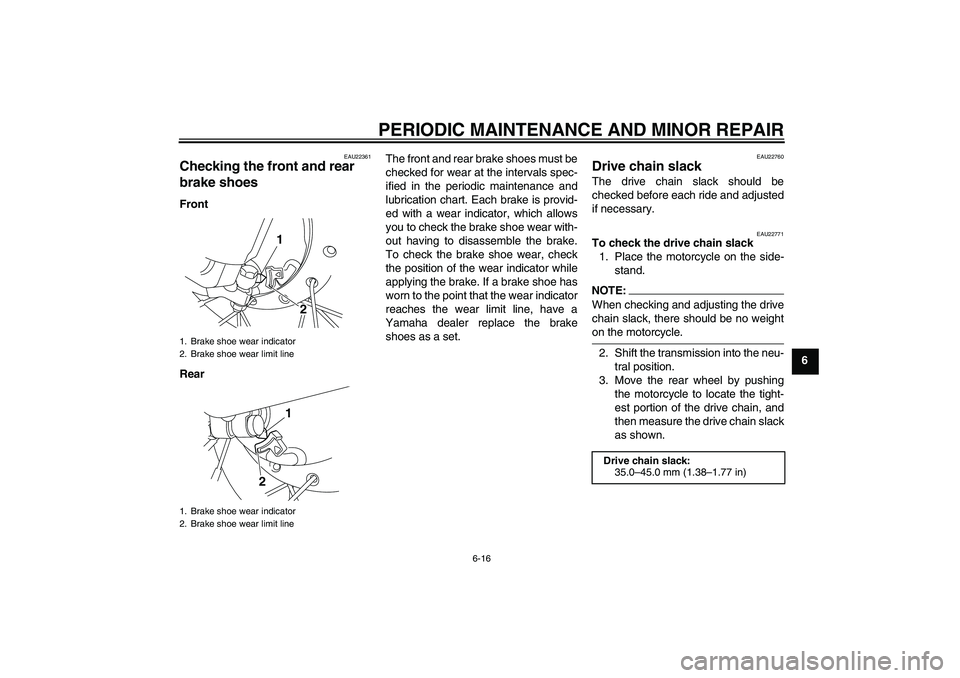

Checking the front and rear
brake shoes Front
RearThe front and rear brake shoes must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake is provid-
ed with a wear indicator, which allows
you to check the brake shoe wear with-
out having to disassemble the brake.
To check the brake shoe wear, check
the position of the wear indicator while
applying the brake. If a brake shoe has
worn to the point that the wear indicator
reaches the wear limit line, have a
Yamaha dealer replace the brake
shoes as a set.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22771
To check the drive chain slack
1. Place the motorcycle on the side-
stand.NOTE:When checking and adjusting the drive
chain slack, there should be no weighton the motorcycle.
2. Shift the transmission into the neu-
tral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.
1. Brake shoe wear indicator
2. Brake shoe wear limit line
1. Brake shoe wear indicator
2. Brake shoe wear limit line
2
1
21
Drive chain slack:
35.0–45.0 mm (1.38–1.77 in)
U1P681E0.book Page 16 Tuesday, April 18, 2006 2:38 PM
Page 54 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
64. If the drive chain slack is incorrect,
adjust it as follows.
EAU40110
To adjust the drive chain slack
1. Loosen the brake pedal free play
adjusting nut, axle nut, and locknut
at each end of the swingarm.2. To tighten the drive chain, turn the
adjusting nut at each end of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing nut at each end of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same po-sition for proper wheel alignment.
CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within thespecified limits.
3. Tighten both locknuts and the axle
nut to the specified torques.
1. Drive chain slack
1. Brake pedal free play adjusting nut
2. Drive chain slack adjusting nut
3. Locknut
1
2
3
1. Axle nut
2. Locknut
3. Drive chain slack adjusting nut
4. Alignment marks
1(b) 4(a)
2
3
U1P681E0.book Page 17 Tuesday, April 18, 2006 2:38 PM
Page 58 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU42080

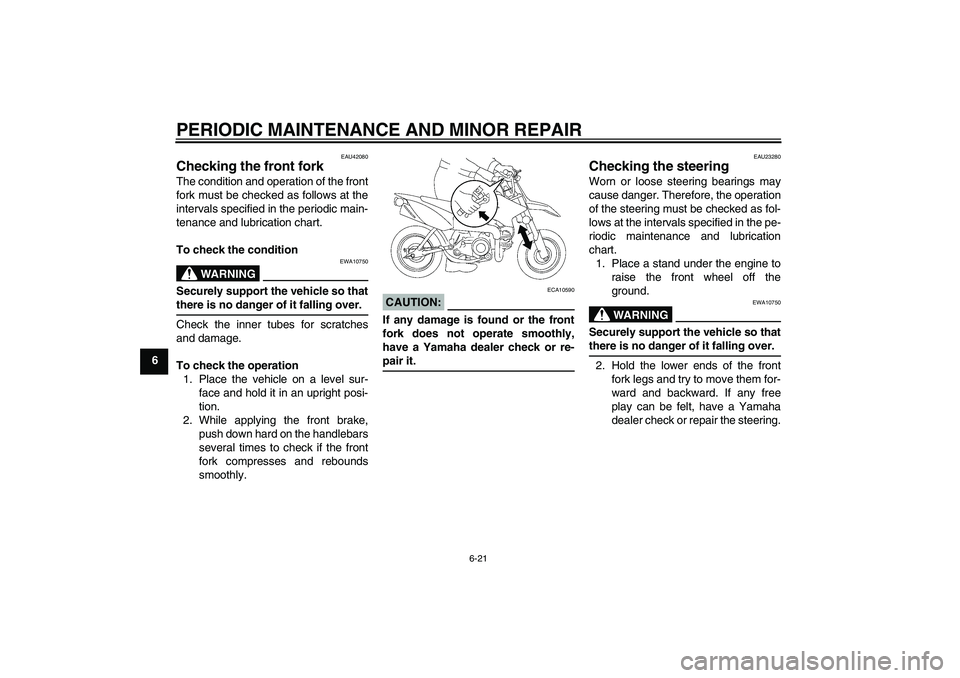

Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches
and damage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U1P681E0.book Page 21 Tuesday, April 18, 2006 2:38 PM
Page 59 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU23290

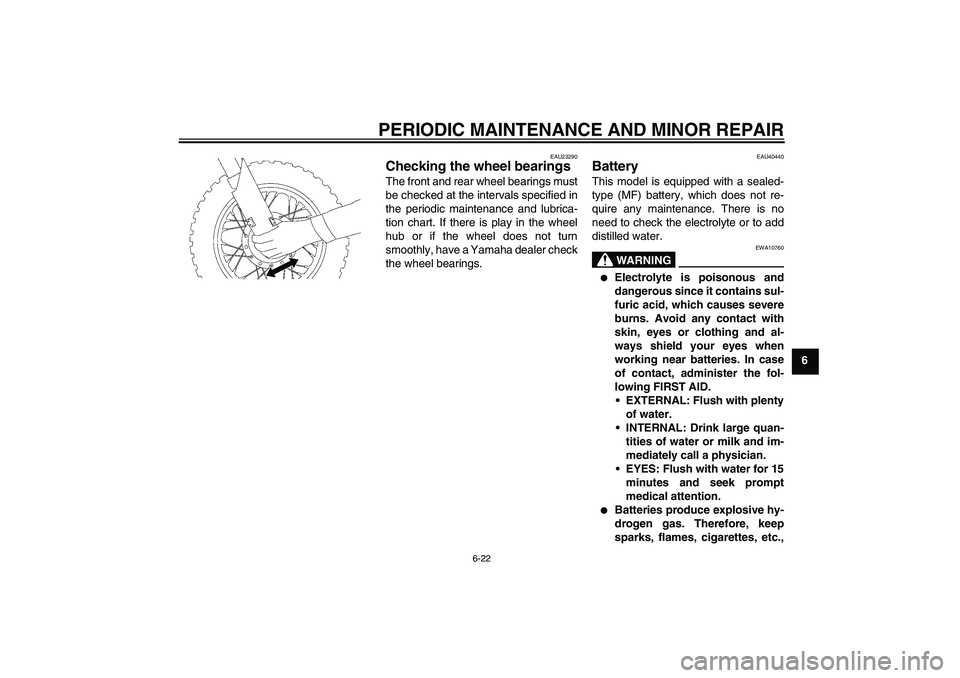

Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU40440
Battery This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
WARNING
EWA10760
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
U1P681E0.book Page 22 Tuesday, April 18, 2006 2:38 PM
