4 - 1
ENG

ENGINE
CARBURETOR
Extent of removal:
1

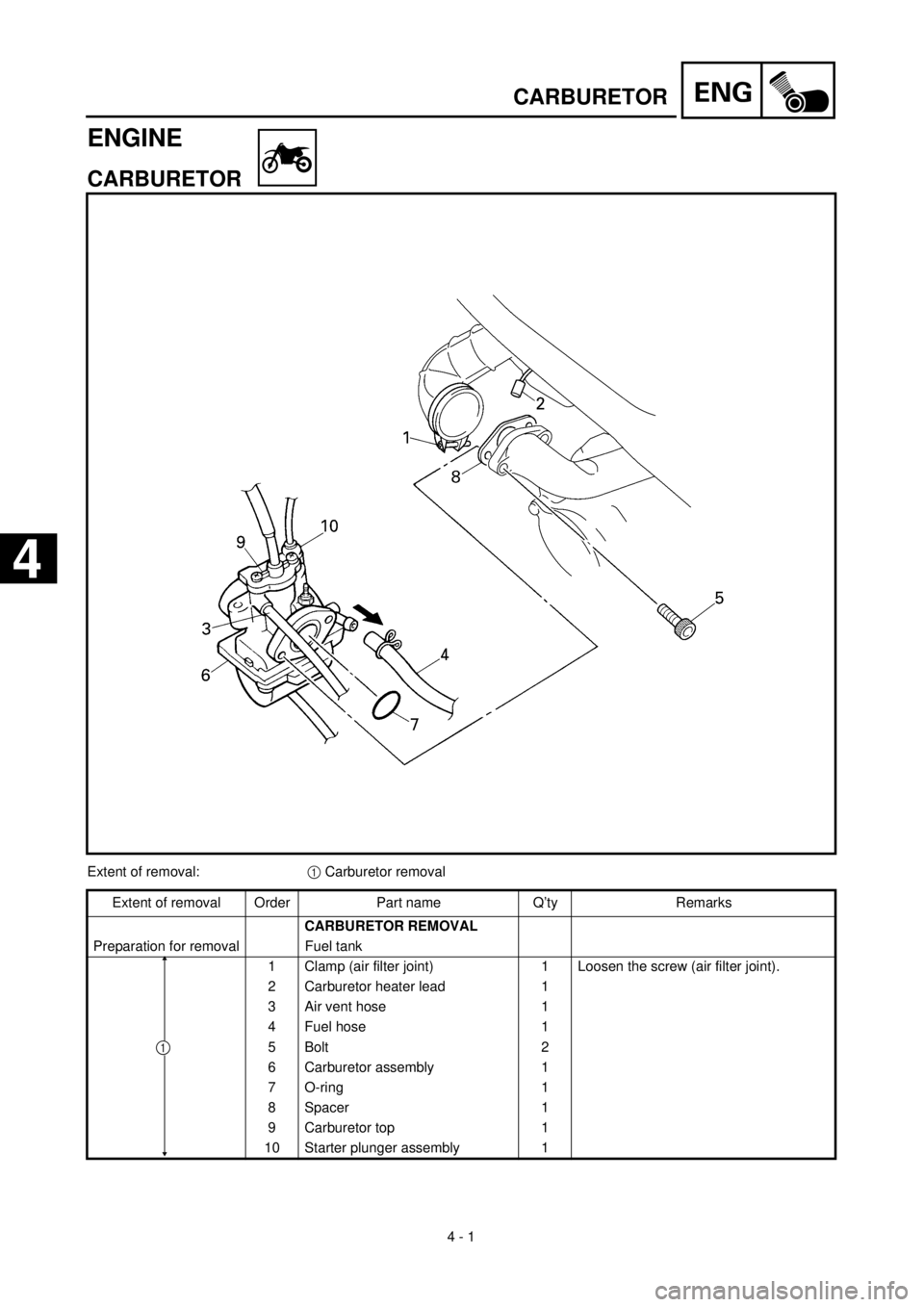

Carburetor removal
Extent of removal Order Part name Q’ty Remarks
CARBURETOR REMOVAL
Preparation for removal Fuel tank
1 Clamp (air filter joint) 1 Loosen the screw (air filter joint).
2 Carburetor heater lead 1
3 Air vent hose 1
4 Fuel hose 1
5 Bolt 2
6 Carburetor assembly 1
7 O-ring 1
8 Spacer 1
9 Carburetor top 1
10 Starter plunger assembly 1
1

CARBURETOR
4

4 - 3
ENG

CARBURETOR
Extent of removal:
1

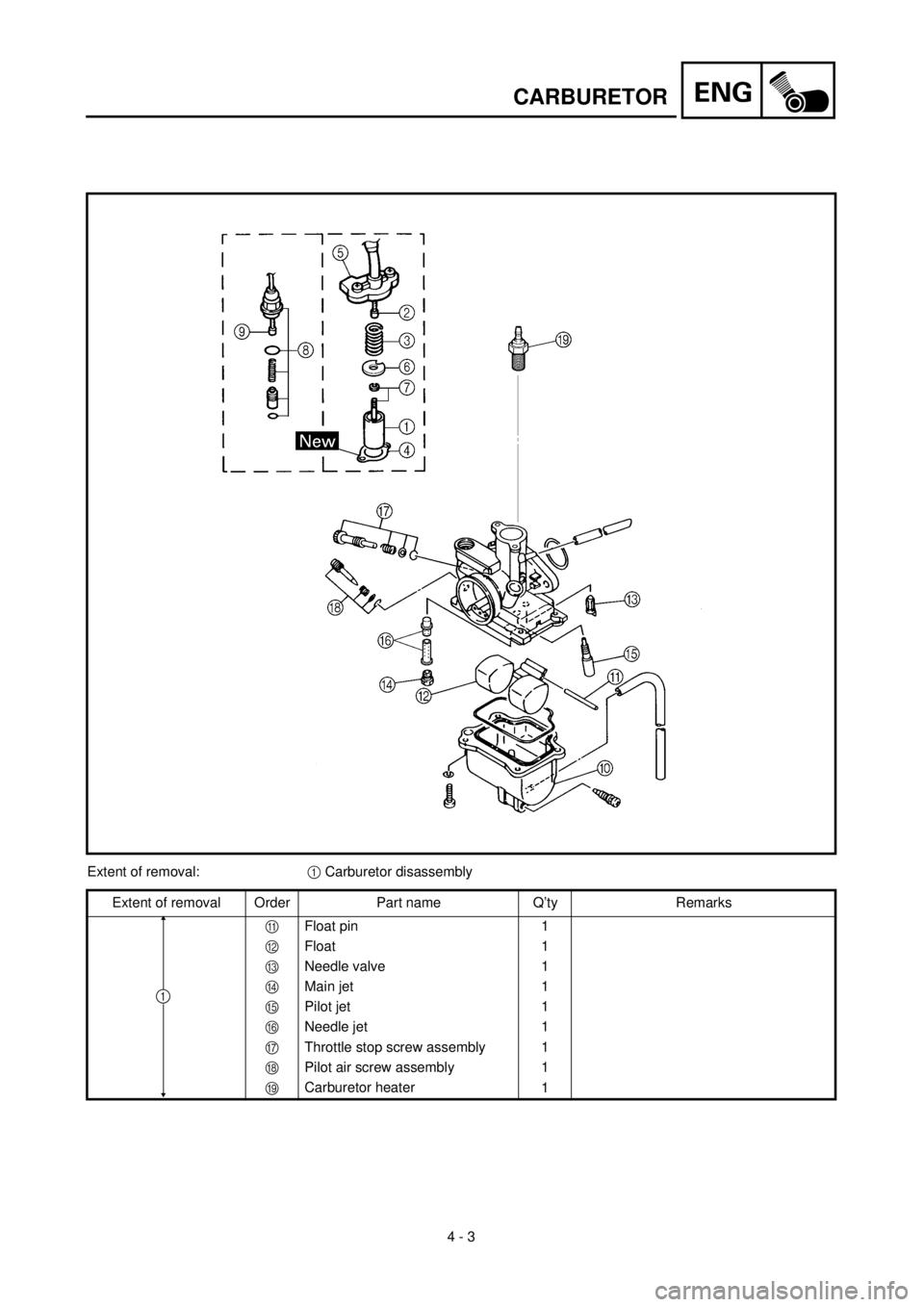

Carburetor disassembly
Extent of removal Order Part name Q’ty Remarks
A
Float pin 1
B
Float 1
C
Needle valve 1
D
Main jet 1
E
Pilot jet 1
F
Needle jet 1
G
Throttle stop screw assembly 1
H
Pilot air screw assembly 1
I
Carburetor heater
1
1

6 - 1
–+ELEC

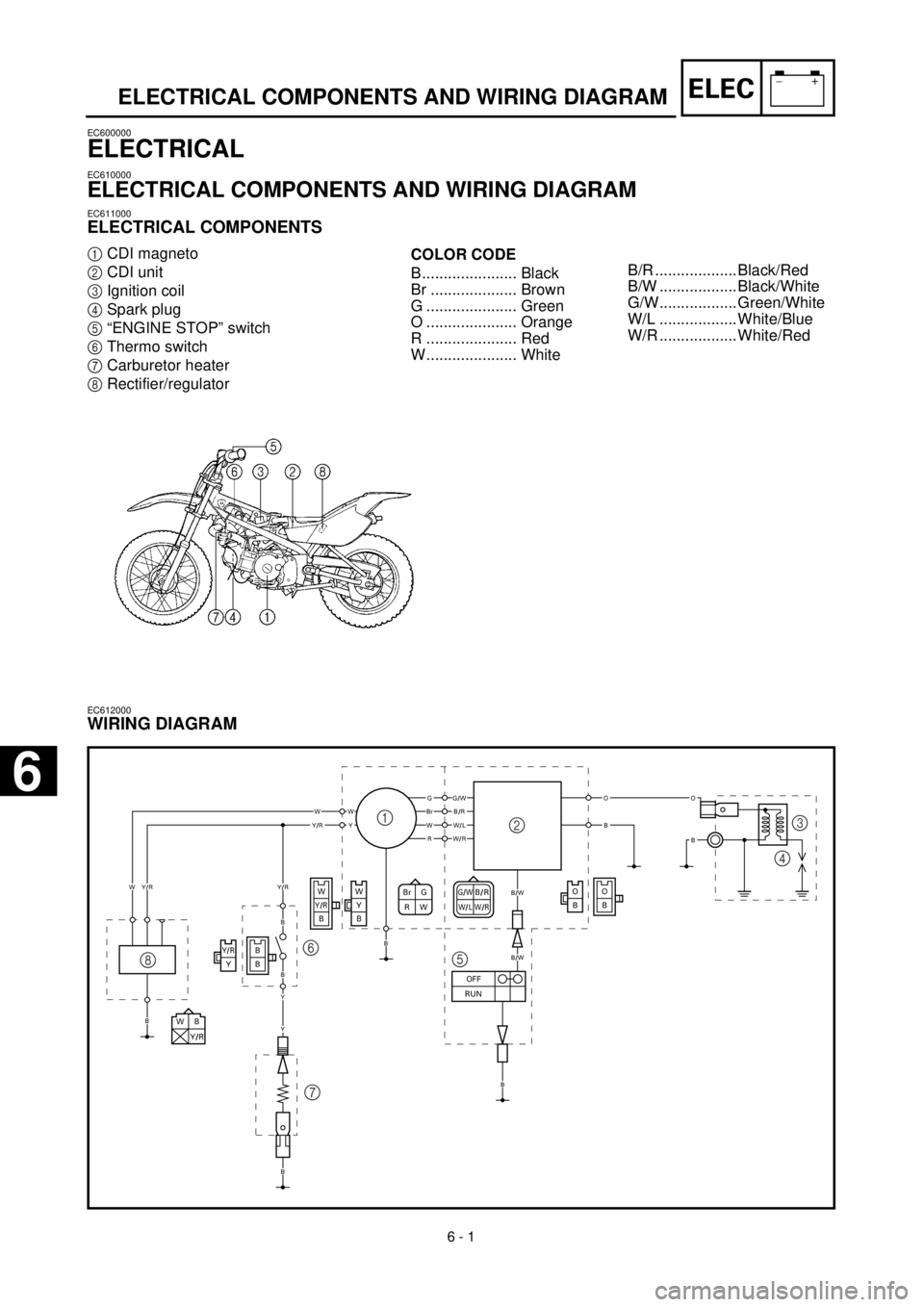

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1
CDI magneto
2
CDI unit
3
Ignition coil
4
Spark plug
5
“ENGINE STOP” switch
6
Thermo switch
7
Carburetor heater
8
Rectifier/regulator
COLOR CODE
B...................... Black
Br .................... Brown
G ..................... Green
O ..................... Orange
R ..................... Red
W..................... White
EC612000
WIRING DIAGRAM
G/WB/RW/LW/RBr G
RW
WB
Y/R
O
BO
B
B
BY/RY
WY/RB
W
Y
B
GG/W
B/W
B/W
BrB/RWWWY
OO
BBW/LY/RR
W
B
B
B
W/R
Y/R
OFF
RUN
B
Y/R
B
B
Y
Y
1
23
4
5 6
7 8

B/R ................... Black/Red
B/W .................. Black/White
G/W.................. Green/White
W/L .................. White/Blue
W/R .................. White/Red
6

–+ELEC
6 - 6
CARBURETOR HEATING SYSTEM
CARBURETOR HEATING SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning carburetor heating system.
NOTE:
lRemove the following parts before inspection.
1) Seat
2) Fuel tank
lUse the following special tools in this inspection.
Check entire carburetor
heating system for connec-
tion.Repair or replace.
Check thermo switch. Replace.
Check carburetor heater. Replace.
Check CDI magneto. Source coil Replace.
Replace rectifier/regulator.
Pocket tester:
YU-03112/90890-03112
OK
OK
OK
No good
No good
No good
No good
OK

6 - 8
–+ELEC

CARBURETOR HEATING SYSTEM

The thermo switch circuit is open.
õ
The thermo switch circuit is closed.
Test step Water temperatureContinu-
ity
1Less than 23
±
3 ˚C
(73.4
±
5.4 ˚F)YES
2More than 23
±
3 ˚C
(73.4
±
5.4 ˚F)NO
3More than 12
±
4 ˚C
(53.6
±
7.2 ˚F)NO
4Less than 12
±
4 ˚C
(53.6
±
7.2 ˚F)YES
Test steps 1 & 2: Heating phase
Test steps 3 & 4: Cooling phase
l

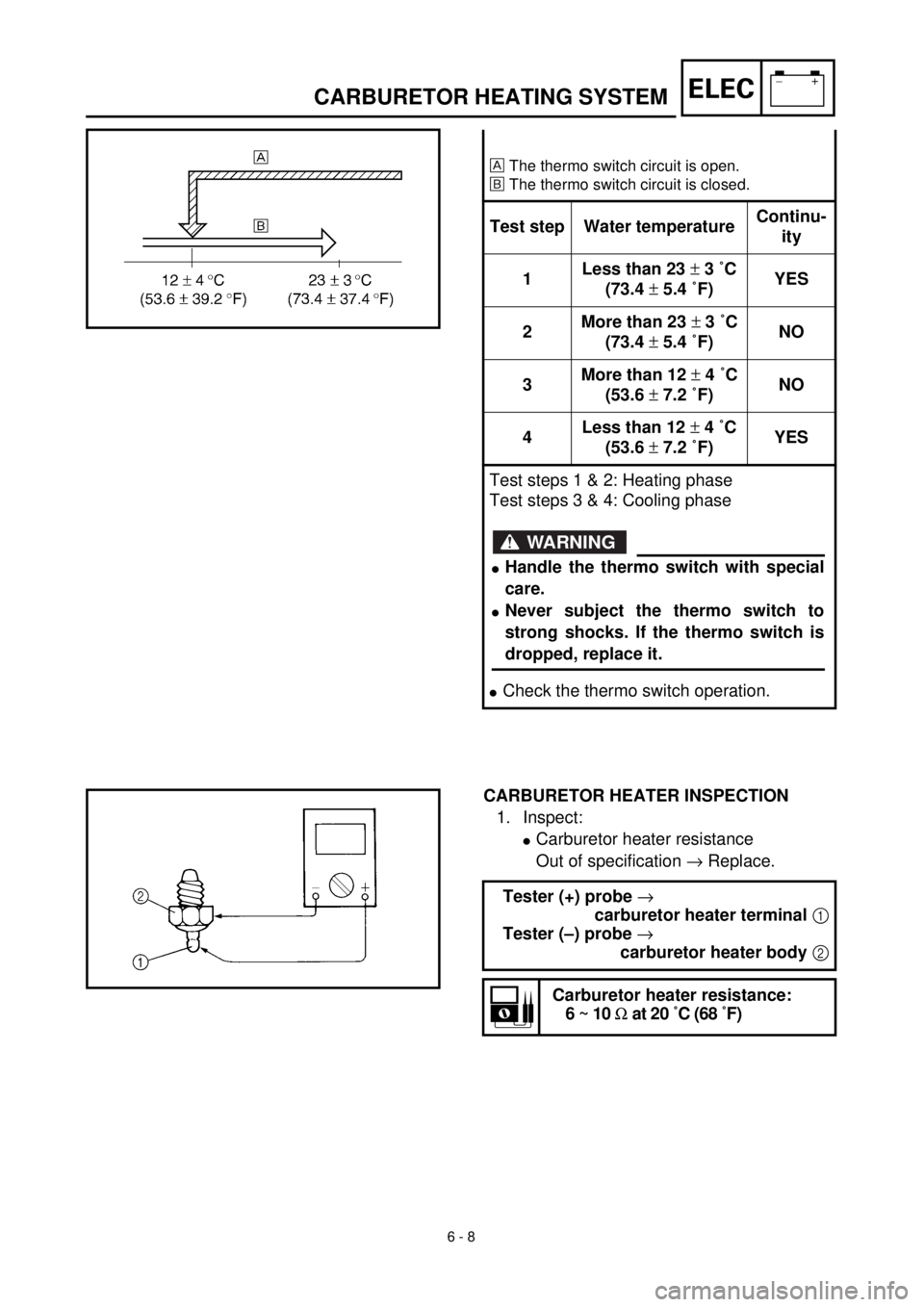

Check the thermo switch operation.
WARNING
lHandle the thermo switch with special
care.
lNever subject the thermo switch to
strong shocks. If the thermo switch is
dropped, replace it.
CARBURETOR HEATER INSPECTION
1. Inspect:

l
Carburetor heater resistance
Out of specification
®
Replace.
Tester (+) probe
®

carburetor heater terminal
1
Tester (–) probe
®
carburetor heater body
2
Carburetor heater resistance:
6 ~ 10
W
at 20 ˚C (68 ˚F)
