4 - 1
ENG

ENGINE
CARBURETOR
Extent of removal:
1
Carburetor removal
Extent of removal Order Part name Q’ty Remarks
CARBURETOR REMOVAL
Preparation for removal Fuel tank
1 Clamp (air filter joint) 1 Loosen the screw (air filter joint).
2 Carburetor heater lead 1
3 Air vent hose 1
4 Fuel hose 1
5 Bolt 2
6 Carburetor assembly 1
7 O-ring 1
8 Spacer 1
9 Carburetor top 1
10 Starter plunger assembly 1
1

CARBURETOR
4

4 - 8

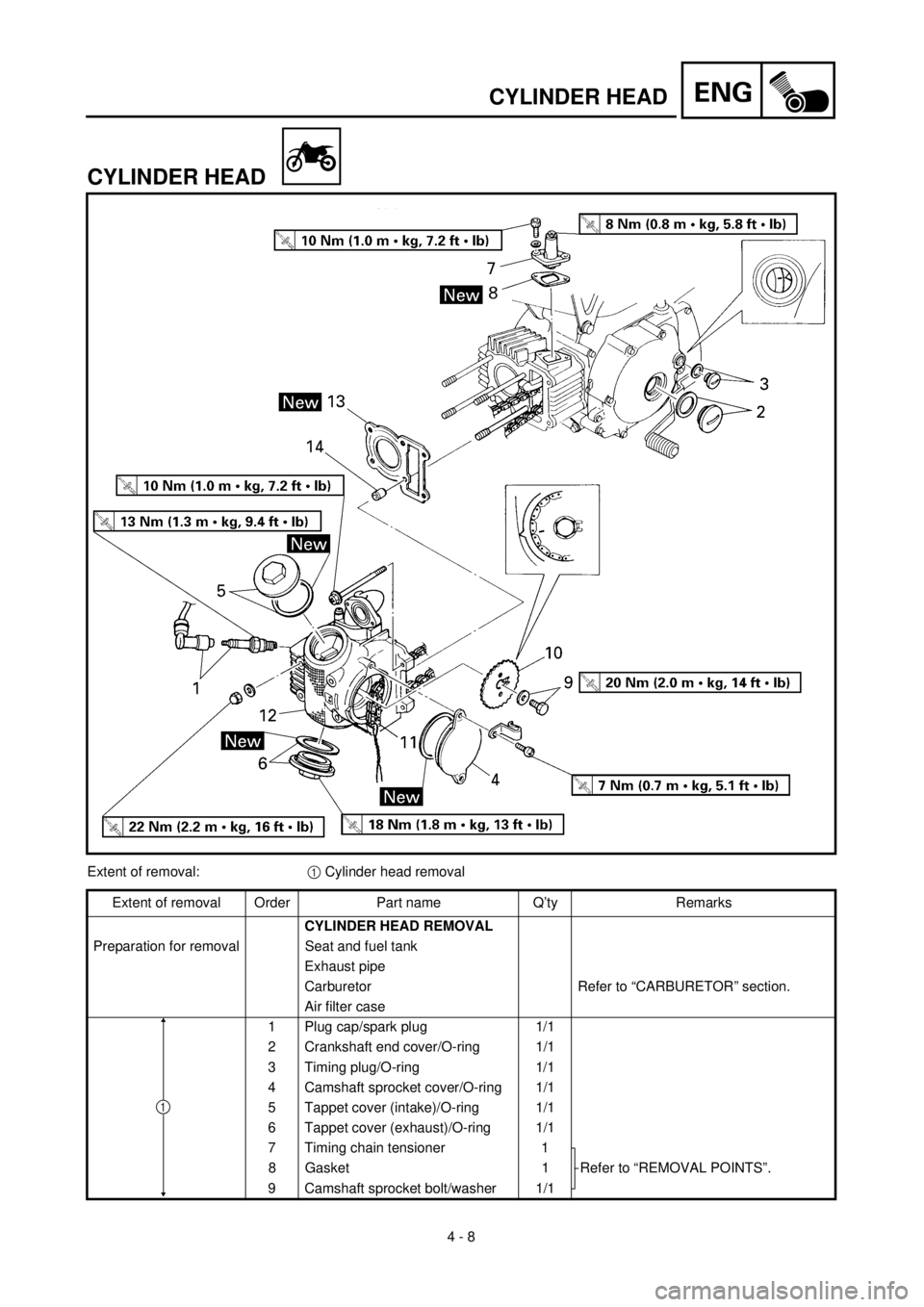

ENGCYLINDER HEAD
CYLINDER HEAD
Extent of removal:1 Cylinder head removal
Extent of removal Order Part name Q’ty Remarks
CYLINDER HEAD REMOVAL
Preparation for removal Seat and fuel tank
Exhaust pipe
Carburetor Refer to “CARBURETOR” section.
Air filter case
1 Plug cap/spark plug 1/1
2 Crankshaft end cover/O-ring 1/1
3 Timing plug/O-ring 1/1
4 Camshaft sprocket cover/O-ring 1/1
5 Tappet cover (intake)/O-ring 1/1
6 Tappet cover (exhaust)/O-ring 1/1
7 Timing chain tensioner 1
Refer to “REMOVAL POINTS”. 8 Gasket 1
9 Camshaft sprocket bolt/washer 1/1
1

4 - 39
ENG

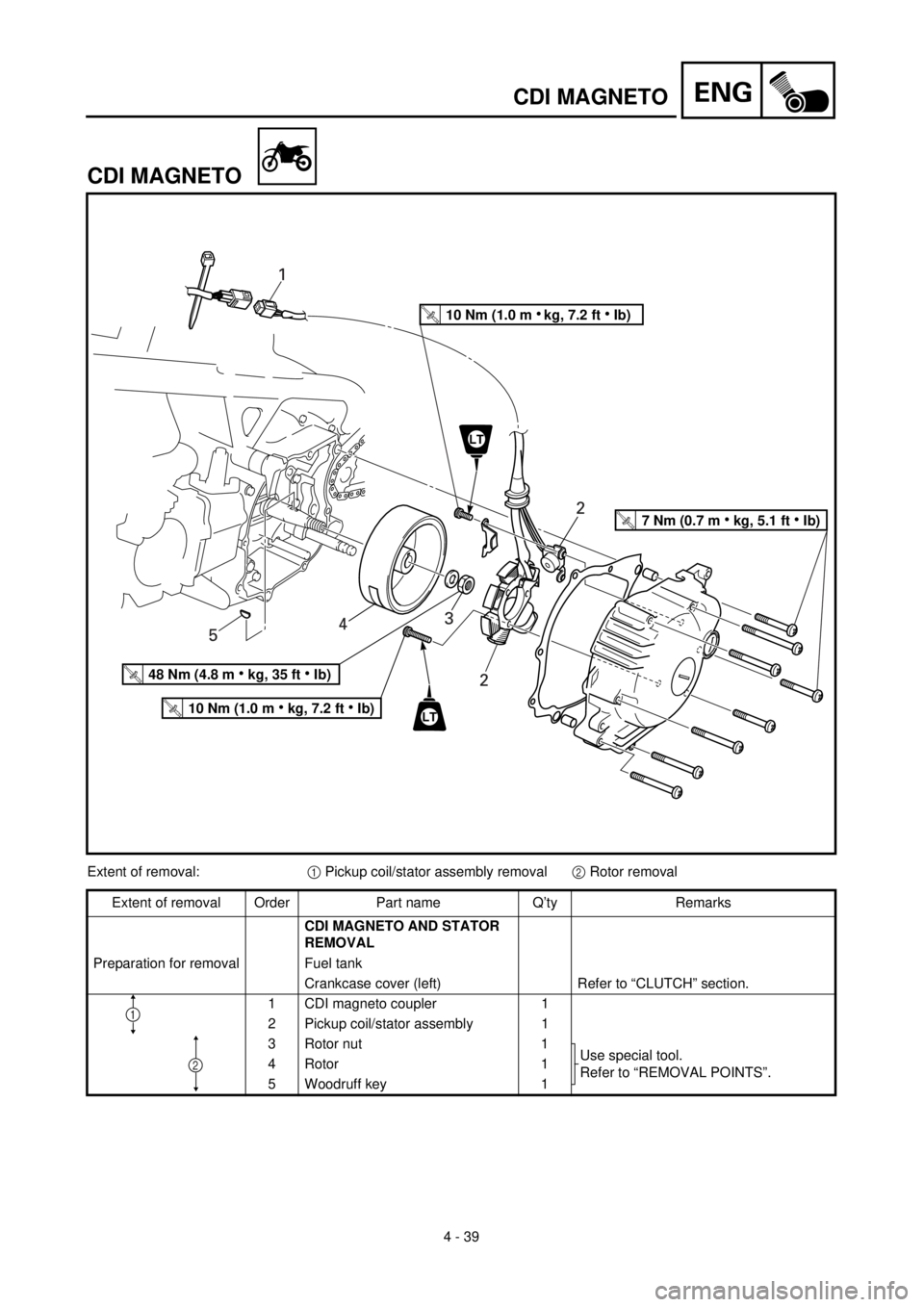

CDI MAGNETO
CDI MAGNETO
T R..10 Nm (1.0 m • kg, 7.2 ft • Ib)
LT
LT
3
T R..10 Nm (1.0 m •
kg, 7.2 ft • Ib)
T R..48 Nm (4.8 m •
kg, 35 ft • Ib)
45
2
T R..7 Nm (0.7 m • kg, 5.1 ft • Ib)2
1

Extent of removal:
1
Pickup coil/stator assembly removal
2
Rotor removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO AND STATOR
REMOVAL
Preparation for removal Fuel tank
Crankcase cover (left) Refer to “CLUTCH” section.
1 CDI magneto coupler 1
2 Pickup coil/stator assembly 1
3 Rotor nut 1
Use special tool.
Refer to “REMOVAL POINTS”. 4 Rotor 1
5 Woodruff key 1
1
2

4 - 41

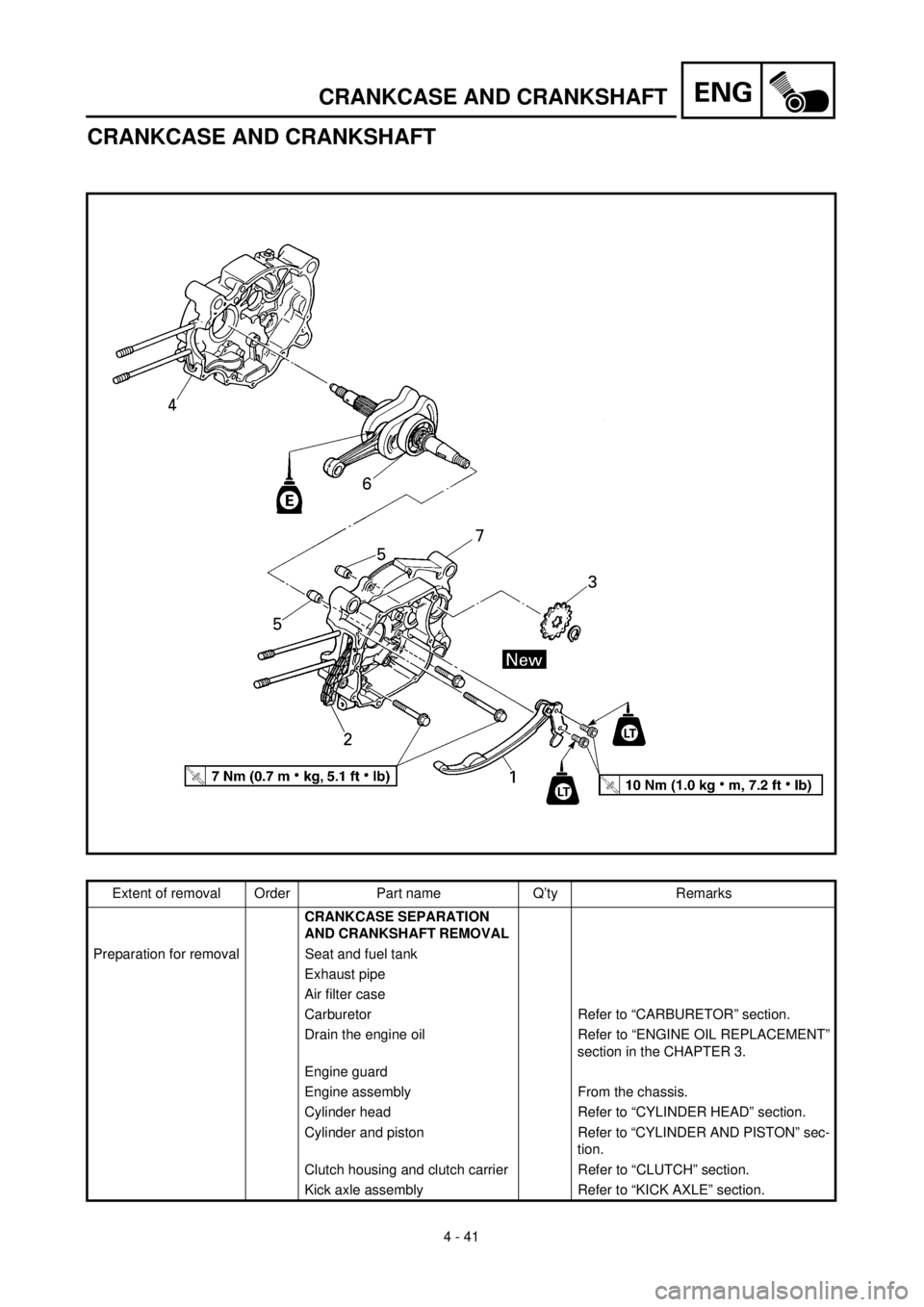

ENGCRANKCASE AND CRANKSHAFT
CRANKCASE AND CRANKSHAFT
Extent of removal Order Part name Q’ty Remarks
CRANKCASE SEPARATION
AND CRANKSHAFT REMOVAL
Preparation for removal Seat and fuel tank
Exhaust pipe
Air filter case
Carburetor Refer to “CARBURETOR” section.
Drain the engine oil Refer to “ENGINE OIL REPLACEMENT”
section in the CHAPTER 3.
Engine guard
Engine assembly From the chassis.
Cylinder head Refer to “CYLINDER HEAD” section.
Cylinder and piston Refer to “CYLINDER AND PISTON” sec-
tion.
Clutch housing and clutch carrier Refer to “CLUTCH” section.
Kick axle assembly Refer to “KICK AXLE” section.
