1 - 7
GEN
INFO

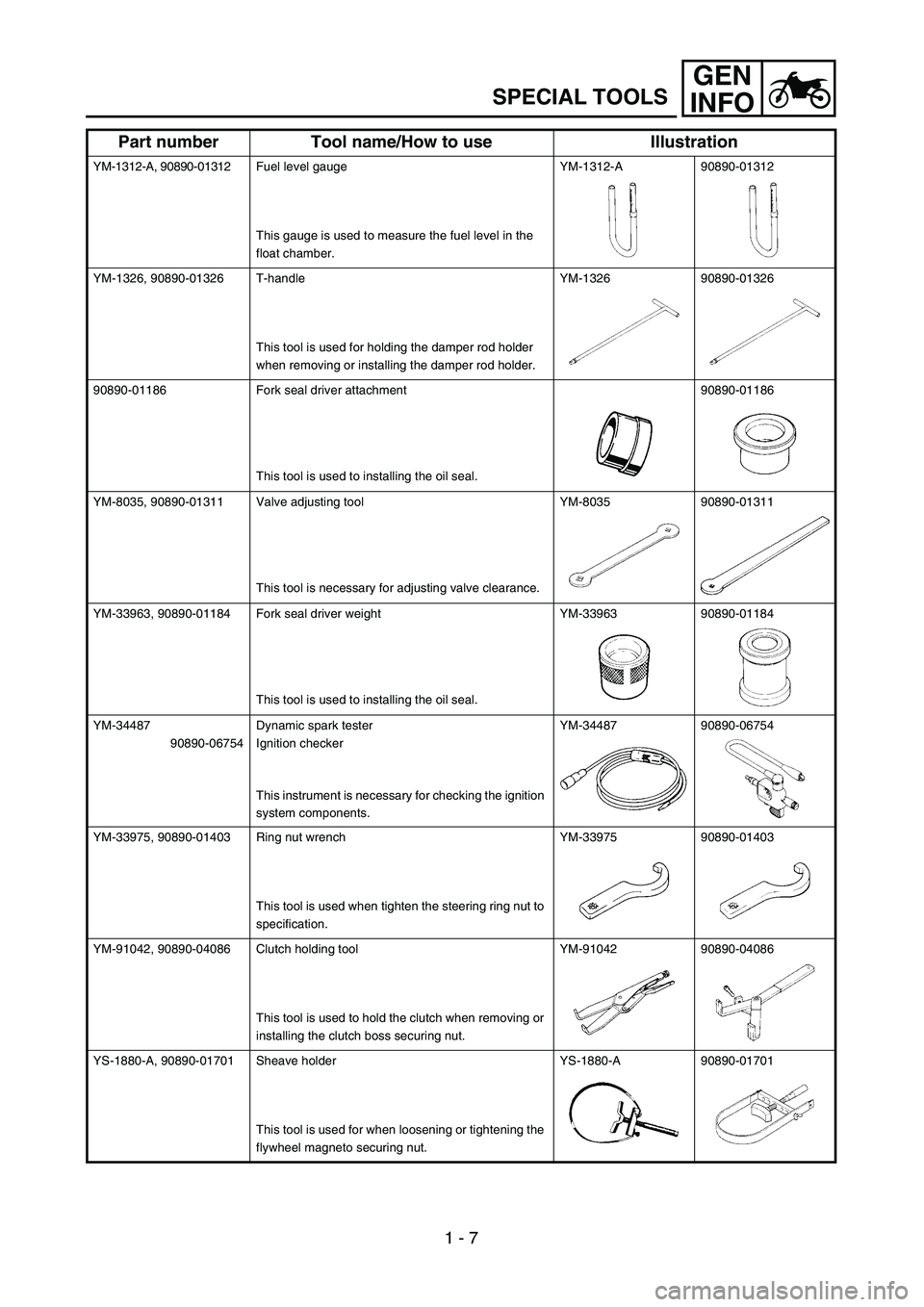

SPECIAL TOOLS
YM-1312-A, 90890-01312Fuel level gauge
This gauge is used to measure the fuel level in the
float chamber.YM-1312-A 90890-01312
YM-1326, 90890-01326 T-handle
This tool is used for holding the damper rod holder
when removing or installing the damper rod holder.YM-1326 90890-01326
90890-01186 Fork seal driver attachment
This tool is used to installing the oil seal.90890-01186
YM-8035, 90890-01311 Valve adjusting tool
This tool is necessary for adjusting valve clearance.YM-8035 90890-01311
YM-33963, 90890-01184 Fork seal driver weight
This tool is used to installing the oil seal.YM-33963 90890-01184
YM-34487
90890-06754Dynamic spark tester
Ignition checker
This instrument is necessary for checking the ignition
system components.YM-34487 90890-06754
YM-33975, 90890-01403 Ring nut wrench
This tool is used when tighten the steering ring nut to
specification.YM-33975 90890-01403
YM-91042, 90890-04086 Clutch holding tool
This tool is used to hold the clutch when removing or
installing the clutch boss securing nut.YM-91042 90890-04086
YS-1880-A, 90890-01701 Sheave holder
This tool is used for when loosening or tightening the
flywheel magneto securing nut.YS-1880-A 90890-01701
Part number Tool name/How to use Illustration

–+ELEC

6 - 3

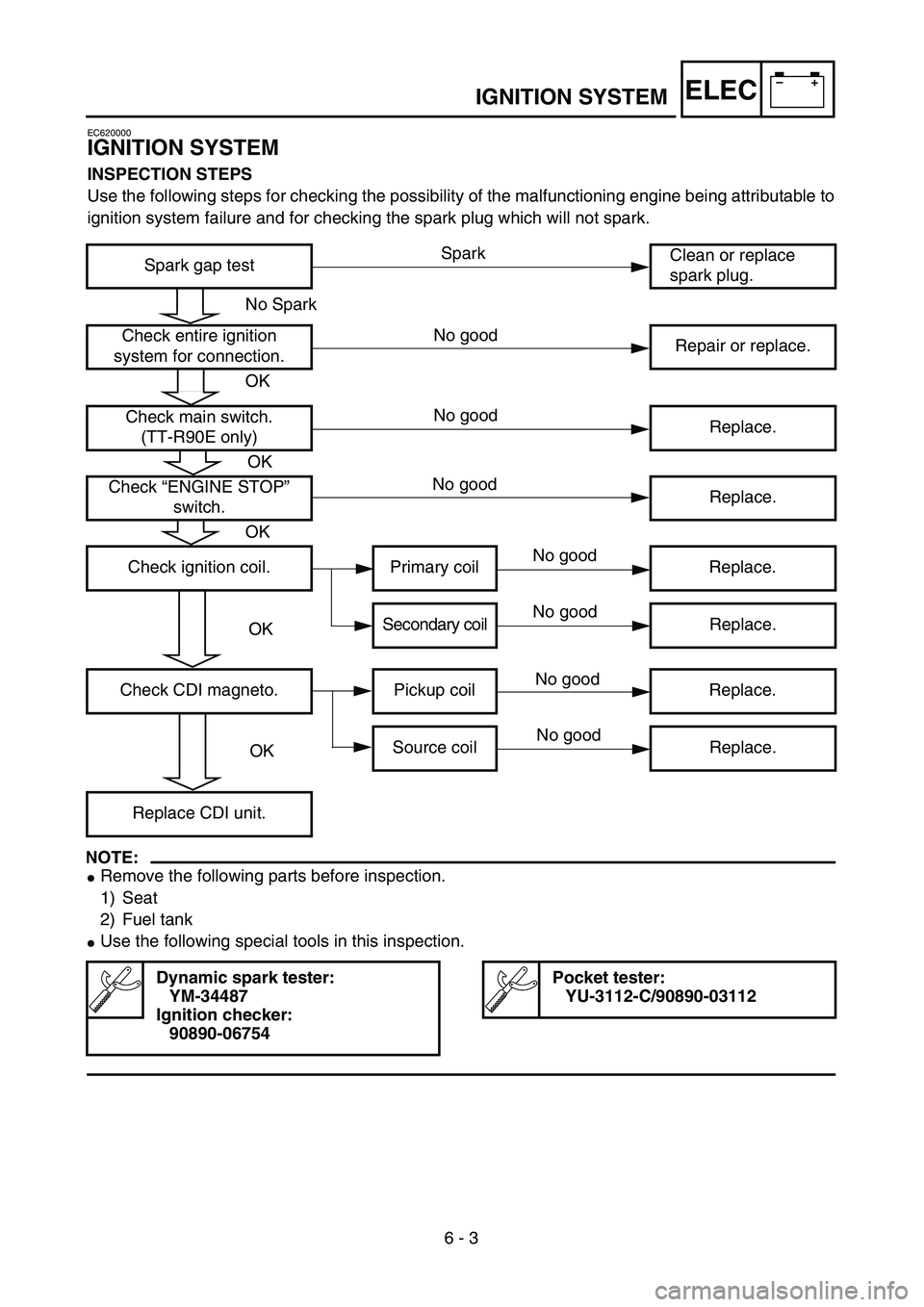

IGNITION SYSTEM
EC620000
IGNITION SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning engine being attributable to
ignition system failure and for checking the spark plug which will not spark.
NOTE:


Remove the following parts before inspection.
1) Seat
2) Fuel tank

Use the following special tools in this inspection.
Spark gap testClean or replace
spark plug.
Check entire ignition
system for connection.Repair or replace.
Check main switch.
(TT-R90E only)Replace.
Check “ENGINE STOP”
switch.Replace.
Check ignition coil. Primary coil Replace.
Secondary coil Replace.
Check CDI magneto. Pickup coil Replace.
Source coil Replace.
Replace CDI unit.
Dynamic spark tester:
YM-34487
Ignition checker:
90890-06754
Pocket tester:
YU-3112-C/90890-03112
No Spark
OK
OK
OK
OK
Spark
No good
No good
No good
No good
No good
No good
OK
No good

–+ELEC
6 - 15

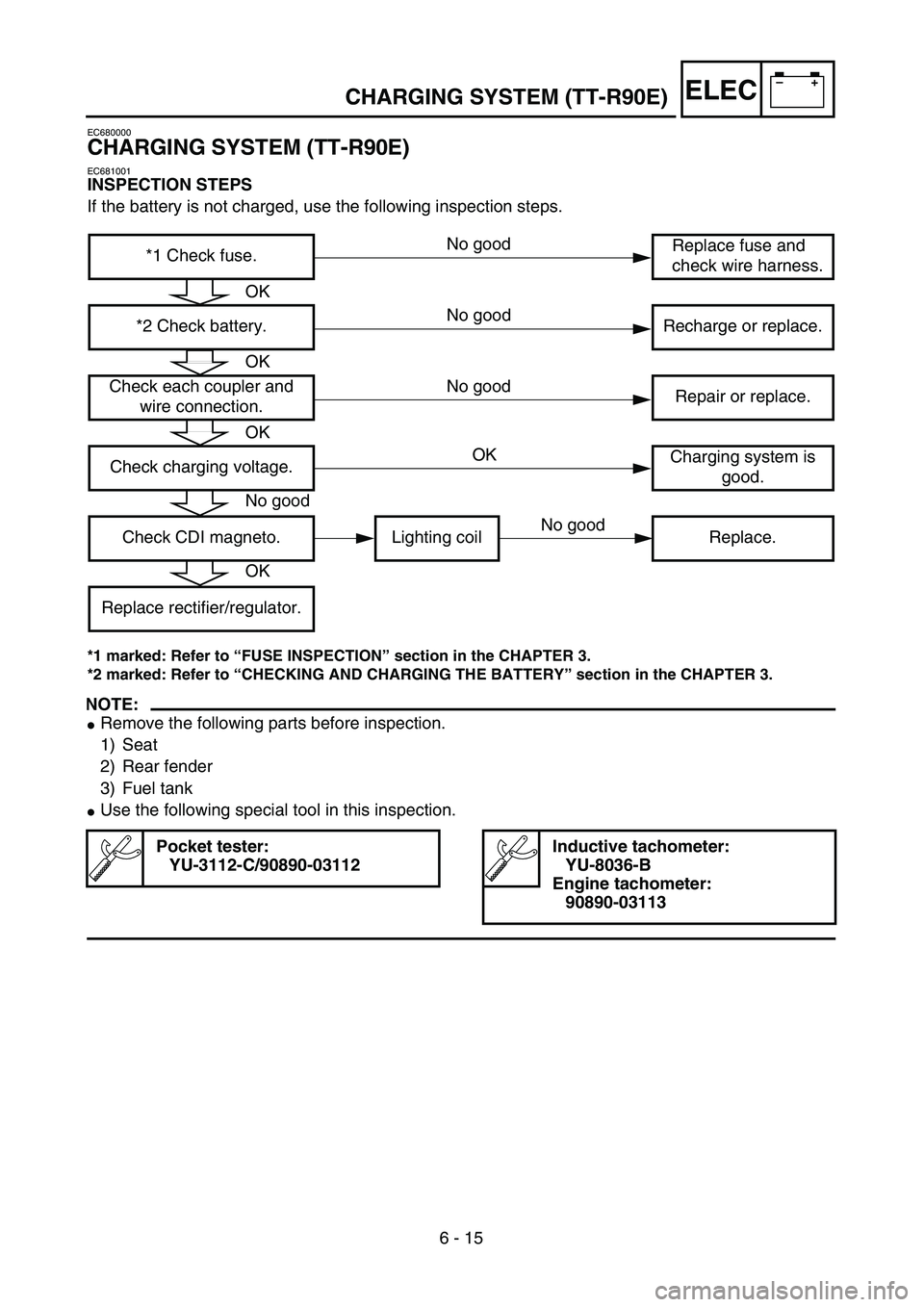

CHARGING SYSTEM (TT-R90E)
EC680000
CHARGING SYSTEM (TT-R90E)
EC681001
INSPECTION STEPS
If the battery is not charged, use the following inspection steps.
*1 marked: Refer to “FUSE INSPECTION” section in the CHAPTER 3.
*2 marked: Refer to “CHECKING AND CHARGING THE BATTERY” section in the CHAPTER 3.
NOTE:
Remove the following parts before inspection.
1) Seat
2) Rear fender
3) Fuel tank
Use the following special tool in this inspection.
Pocket tester:
YU-3112-C/90890-03112Inductive tachometer:
YU-8036-B
Engine tachometer:
90890-03113
*1 Check fuse.Replace fuse and
check wire harness.
*2 Check battery. Recharge or replace.
Check each coupler and
wire connection.Repair or replace.
Check charging voltage.Charging system is
good.
Check CDI magneto. Lighting coil Replace.
Replace rectifier/regulator.
OK
OK
OK
No good
OK
No good
No good
No good
No good
OK

6 - 16
–+ELECCHARGING SYSTEM (TT-R90E)
EC624000

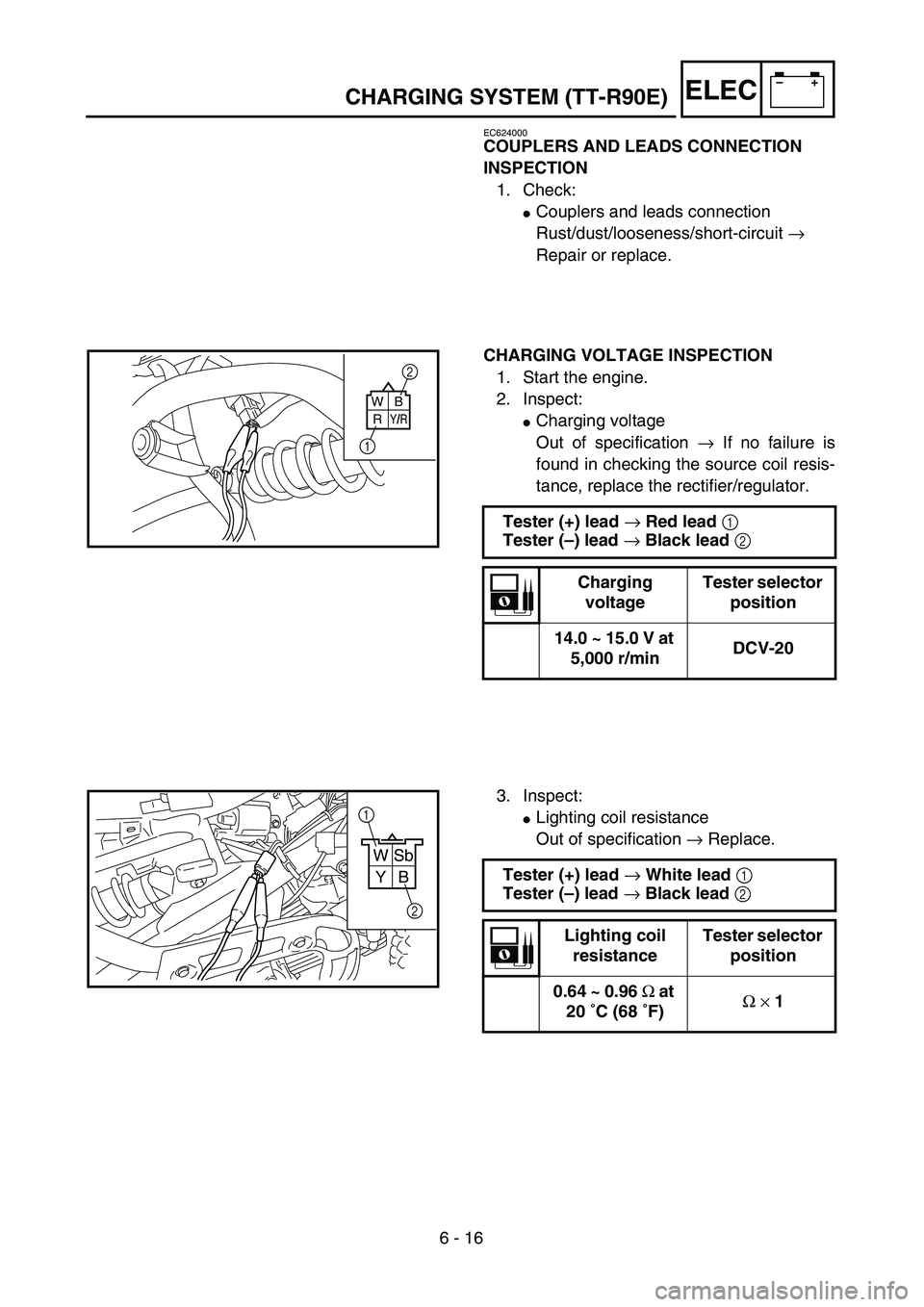

COUPLERS AND LEADS CONNECTION
INSPECTION
1. Check:
Couplers and leads connection
Rust/dust/looseness/short-circuit →
Repair or replace.
CHARGING VOLTAGE INSPECTION
1. Start the engine.
2. Inspect:
Charging voltage
Out of specification → If no failure is
found in checking the source coil resis-
tance, replace the rectifier/regulator.
Tester (+) lead → Red lead 1
Tester (–) lead → Black lead 2
Charging
voltageTester selector
position
14.0 ~ 15.0 V at
5,000 r/minDCV-20
WB
R
Y/R
12
3. Inspect:
Lighting coil resistance
Out of specification → Replace.
Tester (+) lead → White lead 1
Tester (–) lead → Black lead 2
Lighting coil
resistanceTester selector
position
0.64 ~ 0.96 Ω at
20 ˚C (68 ˚F)Ω × 1
WSb
YB
1
2

–+ELEC
6 - 17

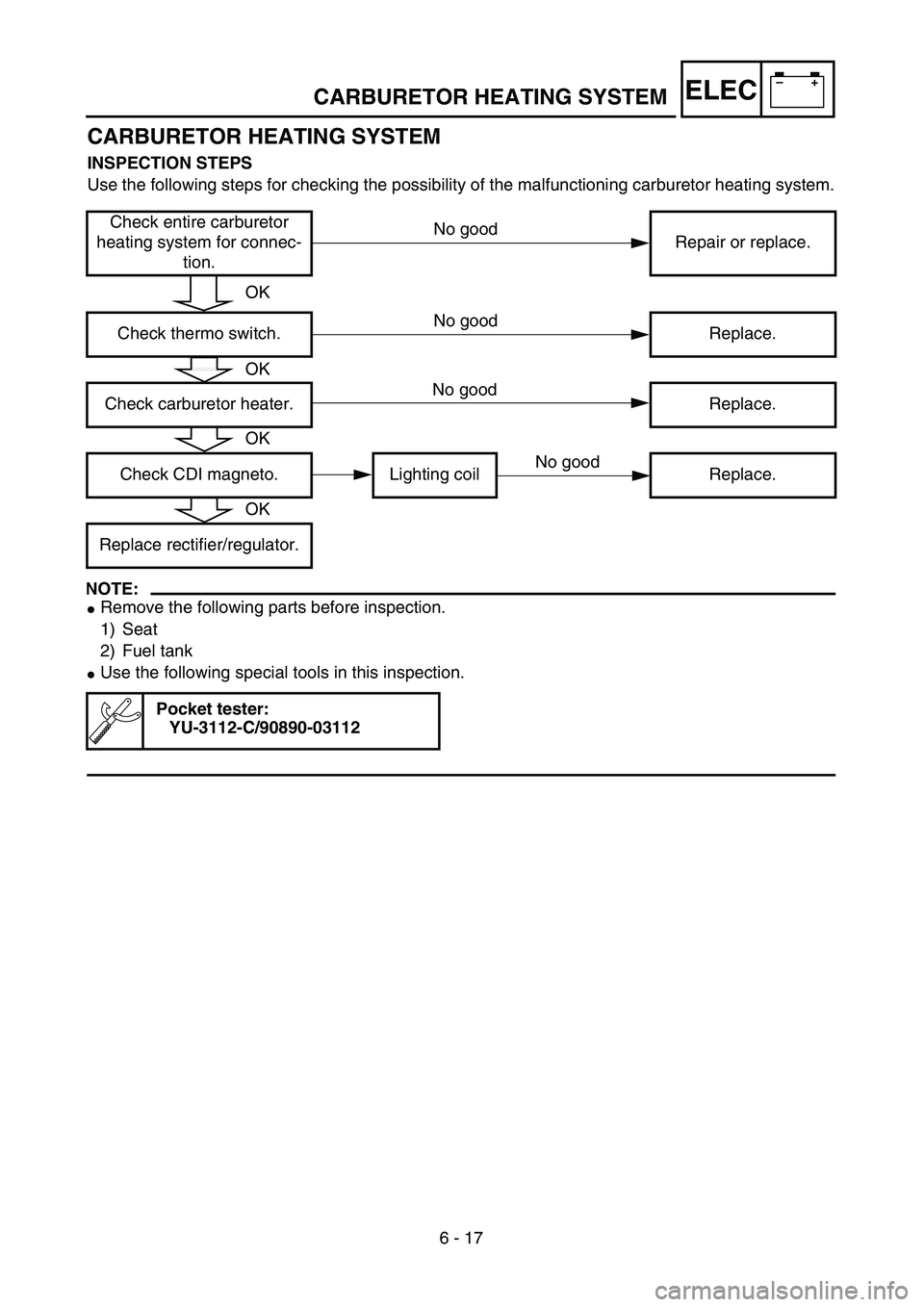

CARBURETOR HEATING SYSTEM
CARBURETOR HEATING SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning carburetor heating system.
NOTE:
Remove the following parts before inspection.
1) Seat
2) Fuel tank
Use the following special tools in this inspection.
Check entire carburetor
heating system for connec-
tion.Repair or replace.
Check thermo switch. Replace.
Check carburetor heater. Replace.
Check CDI magneto. Lighting coil Replace.
Replace rectifier/regulator.
Pocket tester:
YU-3112-C/90890-03112
OK
OK
OK
No good
No good
No good
No good
OK
