SPEC

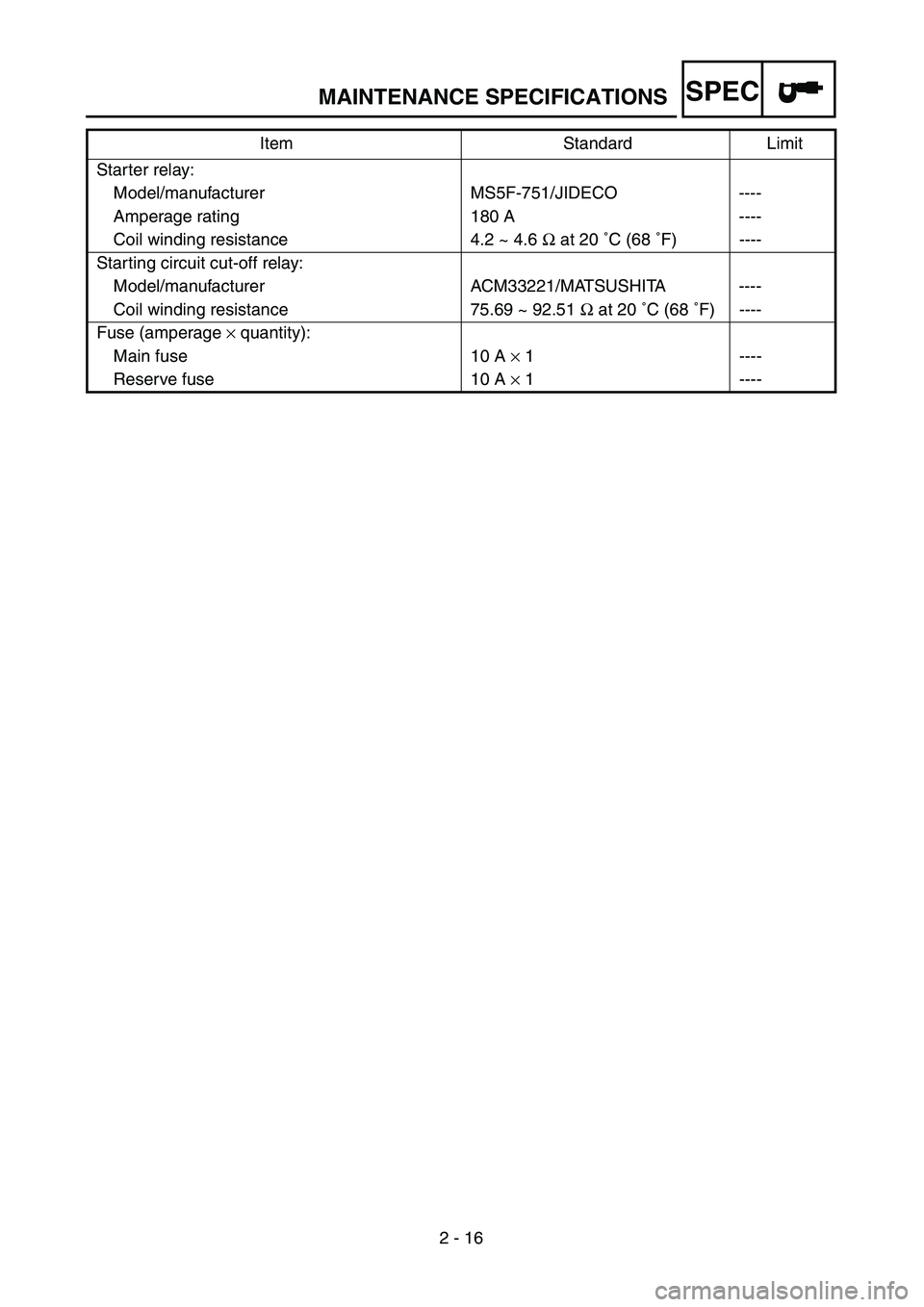

2 - 16 Starter relay:
Model/manufacturer MS5F-751/JIDECO ----
Amperage rating 180 A ----
Coil winding resistance 4.2 ~ 4.6 Ω at 20 ˚C (68 ˚F) ----
Starting circuit cut-off relay:
Model/manufacturer ACM33221/MATSUSHITA ----
Coil winding resistance 75.69 ~ 92.51 Ω at 20 ˚C (68 ˚F) ----
Fuse (amperage × quantity):
Main fuse 10 A × 1 ----
Reserve fuse 10 A × 1 ---- Item Standard Limit
MAINTENANCE SPECIFICATIONS

2 - 21
SPECCABLE ROUTING DIAGRAM
TT-R90E
1Crankcase breather hose
2CDI magneto lead
3Wire harness
4Thermo switch
5Thermo switch lead
6CDI unit lead
7Spark plug lead
8Starter cable
9Starter relay lead
0Starter motor leadAStarter motor
BThrottle cable
CBrake cable
DEngine stop switch lead
EMain switch lead
FStart switch lead
ÅPass the spark plug lead
through the lead guide.ıMake sure that the starter cable
does not contact the engine
bracket.
ÇFasten the engine stop lead with
the plastic bands.
ÎPass the brake cable through
the cable guide.
‰Fasten the start switch lead with
the plastic bands.
30 ~ 40 mm
(1.18 ~ 1.57 in)A
B
40 ~ 50 mm
(1.57 ~ 1.97 in)
1
B
C
D
E ‰
F
ÎÎÇ A875 4
6 3
2
1
Å
ı
A
B
0
9
10 ~ 20 mm
(0.39 ~ 0.79 in)

2 - 22
SPECCABLE ROUTING DIAGRAM

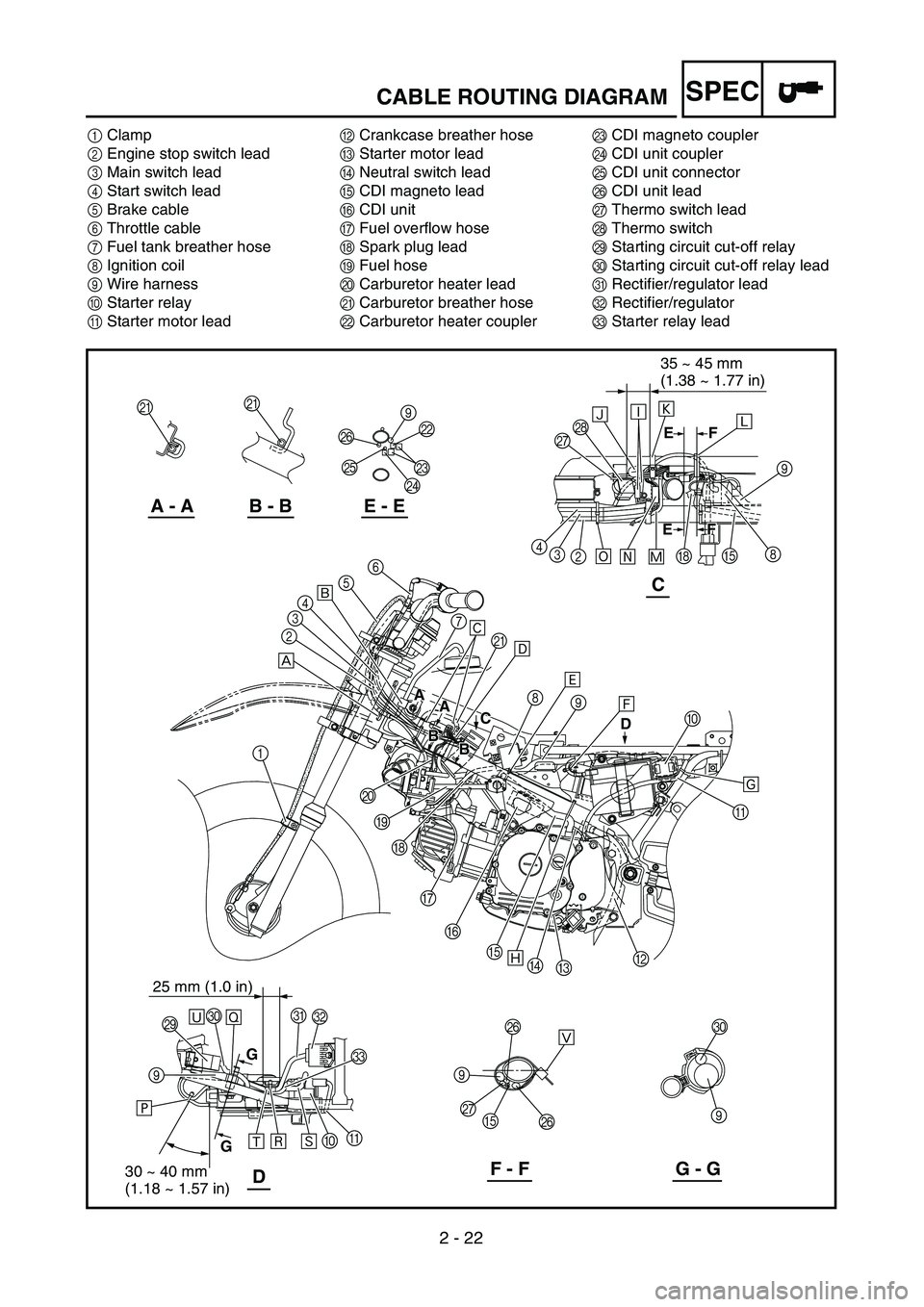

1Clamp
2Engine stop switch lead
3Main switch lead
4Start switch lead
5Brake cable
6Throttle cable
7Fuel tank breather hose
8Ignition coil
9Wire harness
0Starter relay
AStarter motor leadBCrankcase breather hose
CStarter motor lead
DNeutral switch lead
ECDI magneto lead
FCDI unit
GFuel overflow hose
HSpark plug lead
IFuel hose
JCarburetor heater lead
KCarburetor breather hose
LCarburetor heater couplerMCDI magneto coupler
NCDI unit coupler
OCDI unit connector
PCDI unit lead
QThermo switch lead
RThermo switch
SStarting circuit cut-off relay
TStarting circuit cut-off relay lead
URectifier/regulator lead
VRectifier/regulator
WStarter relay lead
A AA
C C
D
B
B B
BF FF
EE
D
A - AB - BE - E
C
F - FG - GD
KK
QRÔ
8
E
H
˜ 2 3 4
6
5
4
3
2
1
J
I
H
G
F
E
D
CBA 0 Ï 9 8 Î K 7
S
W U
V
A
0
Í T
99
QP
PT
9 
Ò
ˆ Ø
Ç ı
Å
Ó
Œ
Â
E
GGA
P
O
NML 9
È
9
Ì
Ê
◊
25 mm (1.0 in)
∏
‰
35 ~ 45 mm
(1.38 ~ 1.77 in)
30 ~ 40 mm
(1.18 ~ 1.57 in)
Ë

2 - 24
SPEC

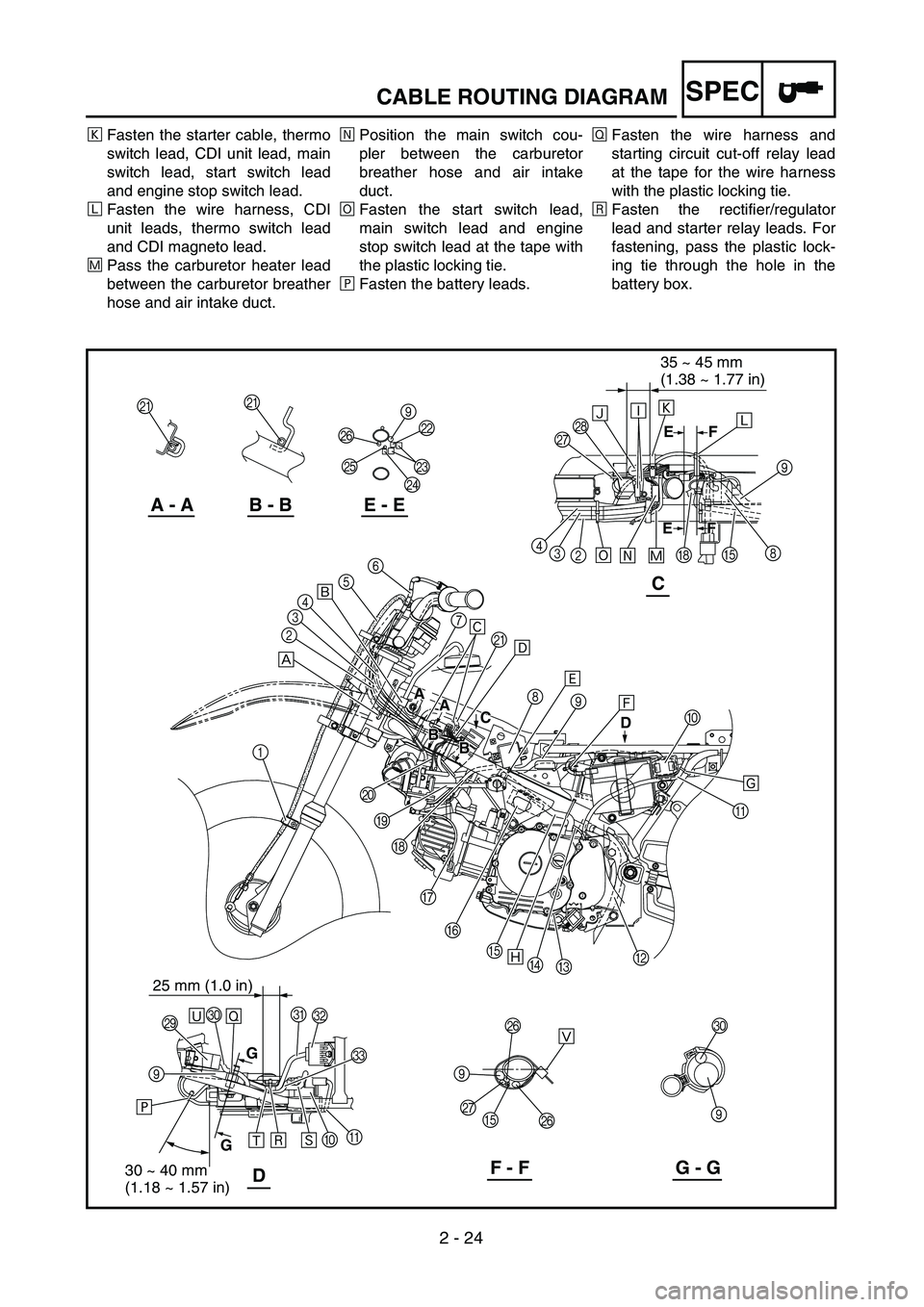

Fasten the starter cable, thermo
switch lead, CDI unit lead, main
switch lead, start switch lead
and engine stop switch lead.
ÒFasten the wire harness, CDI
unit leads, thermo switch lead
and CDI magneto lead.
˜Pass the carburetor heater lead
between the carburetor breather
hose and air intake duct.ˆPosition the main switch cou-
pler between the carburetor
breather hose and air intake
duct.
ØFasten the start switch lead,
main switch lead and engine
stop switch lead at the tape with
the plastic locking tie.
∏Fasten the battery leads.ŒFasten the wire harness and
starting circuit cut-off relay lead
at the tape for the wire harness
with the plastic locking tie.
ÂFasten the rectifier/regulator
lead and starter relay leads. For
fastening, pass the plastic lock-
ing tie through the hole in the
battery box.
A AA
C C
D
B
B B
BF FF
EE
D
A - AB - BE - E
C
F - FG - GD
KK
QRÔ
8
E
H
˜ 2 3 4
6
5
4
3
2
1
J
I
H
G
F
E
D
CBA 0 Ï 9 8 Î K 7
S
W U
V
A
0
Í T
99
QP
PT
9 
Ò
ˆ Ø
Ç ı
Å
Ó
Œ
Â
E
GGA
P
O
NML 9
È
9
Ì
Ê
◊
25 mm (1.0 in)
∏
‰
35 ~ 45 mm
(1.38 ~ 1.77 in)
30 ~ 40 mm
(1.18 ~ 1.57 in)
Ë
CABLE ROUTING DIAGRAM

2 - 25
SPEC

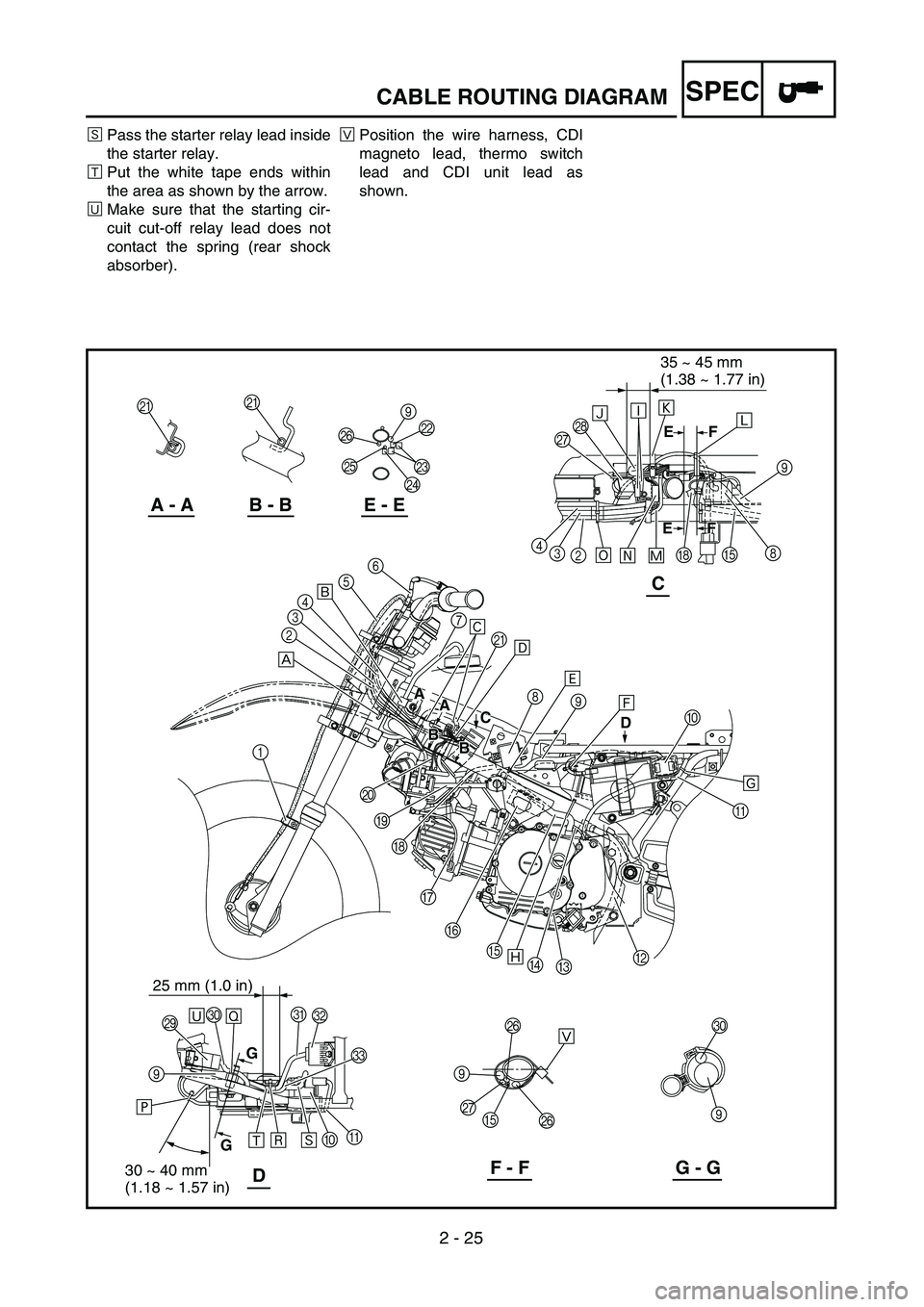

ÍPass the starter relay lead inside
the starter relay.
ÊPut the white tape ends within
the area as shown by the arrow.
ËMake sure that the starting cir-
cuit cut-off relay lead does not
contact the spring (rear shock
absorber).◊Position the wire harness, CDI
magneto lead, thermo switch
lead and CDI unit lead as
shown.
A AA
C C
D
B
B B
BF FF
EE
D
A - AB - BE - E
C
F - FG - GD
KK
QRÔ
8
E
H
˜ 2 3 4
6
5
4
3
2
1
J
I
H
G
F
E
D
CBA 0 Ï 9 8 Î K 7
S
W U
V
A
0
Í T
99
QP
PT
9 
Ò
ˆ Ø
Ç ı
Å
Ó
Œ
Â
E
GGA
P
O
NML 9
È
9
Ì
Ê
◊
25 mm (1.0 in)
∏
‰
35 ~ 45 mm
(1.38 ~ 1.77 in)
30 ~ 40 mm
(1.18 ~ 1.57 in)
Ë
CABLE ROUTING DIAGRAM

6 - 2
–+ELEC

12
3
456
7
0
98

A
B
F
EC
D

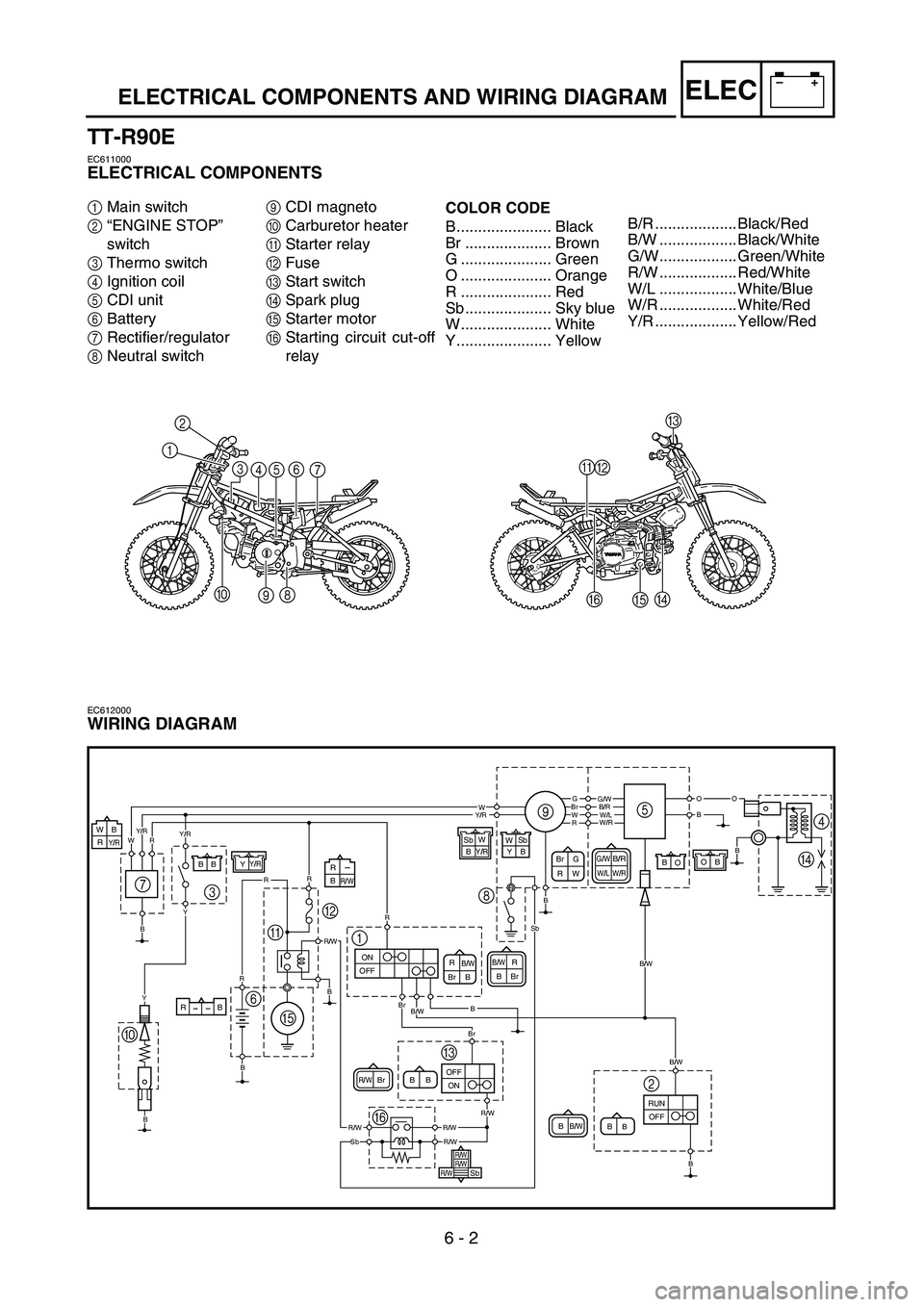

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
TT-R90E
EC611000
ELECTRICAL COMPONENTS
1
Main switch
2
“ENGINE STOP”
switch
3
Thermo switch
4
Ignition coil
5
CDI unit
6
Battery
7
Rectifier/regulator
8
Neutral switch
9
CDI magneto
0
Carburetor heater
A
Starter relay
B
Fuse
C
Start switch
D
Spark plug
E
Starter motor
F
Starting circuit cut-off
relay
COLOR CODE
B ...................... Black
Br .................... Brown
G ..................... Green
O ..................... Orange
R ..................... Red
Sb .................... Sky blue
W ..................... White
Y ...................... Yellow
EC612000
WIRING DIAGRAM
G/WB/RW/LW/RBr G
RW
B/WBr BRB/WBBrR
B/WB BB
BR/WBr B
GG/W
B/W
B/W
BrB/RWWOO
B
BW/LY/RR
W
B
B
R
W/RY/R
OFF RUNB
Y/R
Y
Y
OBO BY/RYB B
Sb
W W
Sb
ON OFF
OFFON
Y
BBY/R
Br
Br
B
B
R
RR
R
B
R/WR/W
R/WR/W
R/W
Sb
Sb
RB
R/WB R
Y/RRB W
B/WB
R/W
R/W
R/W
Sb
9
8
1 B5
4
D
2 3
=A
E 6
C
F 7

B/R ................... Black/Red
B/W .................. Black/White
G/W.................. Green/White
R/W .................. Red/White
W/L .................. White/Blue
W/R .................. White/Red
Y/R ................... Yellow/Red

6 - 7
–+ELEC
ELECTRIC STARTING SYSTEM
(TT-R90E)
STARTING CIRCUIT CUT-OFF SYSTEM
OPERATION
If the main switch is set to “ON”, the starter
motor can only operate if the following condi-
tion is met:
The transmission is in neutral (the neutral
switch is closed).
The starting circuit cut-off relay prevents the
starter motor from operating when this condi-
tion has not been met. In this instance, the
starting circuit cut-off relay is open so current
cannot reach the starter motor. When the
above condition has been met the starting cir-
cuit cut-off relay is closed and the engine can
be started by pressing the start switch.
WHEN THE TRANSMISSION IS
IN NEUTRAL
1Battery
2Main fuse
3Main switch
4Start switch
5Starting circuit cut-off relay
6Neutral switch
7Starter relay
8Starter motor
12
M
3
7
54
6 8
ELECTRIC STARTING SYSTEM (TT-R90E)

–+ELEC
6 - 8 INSPECTION STEPS

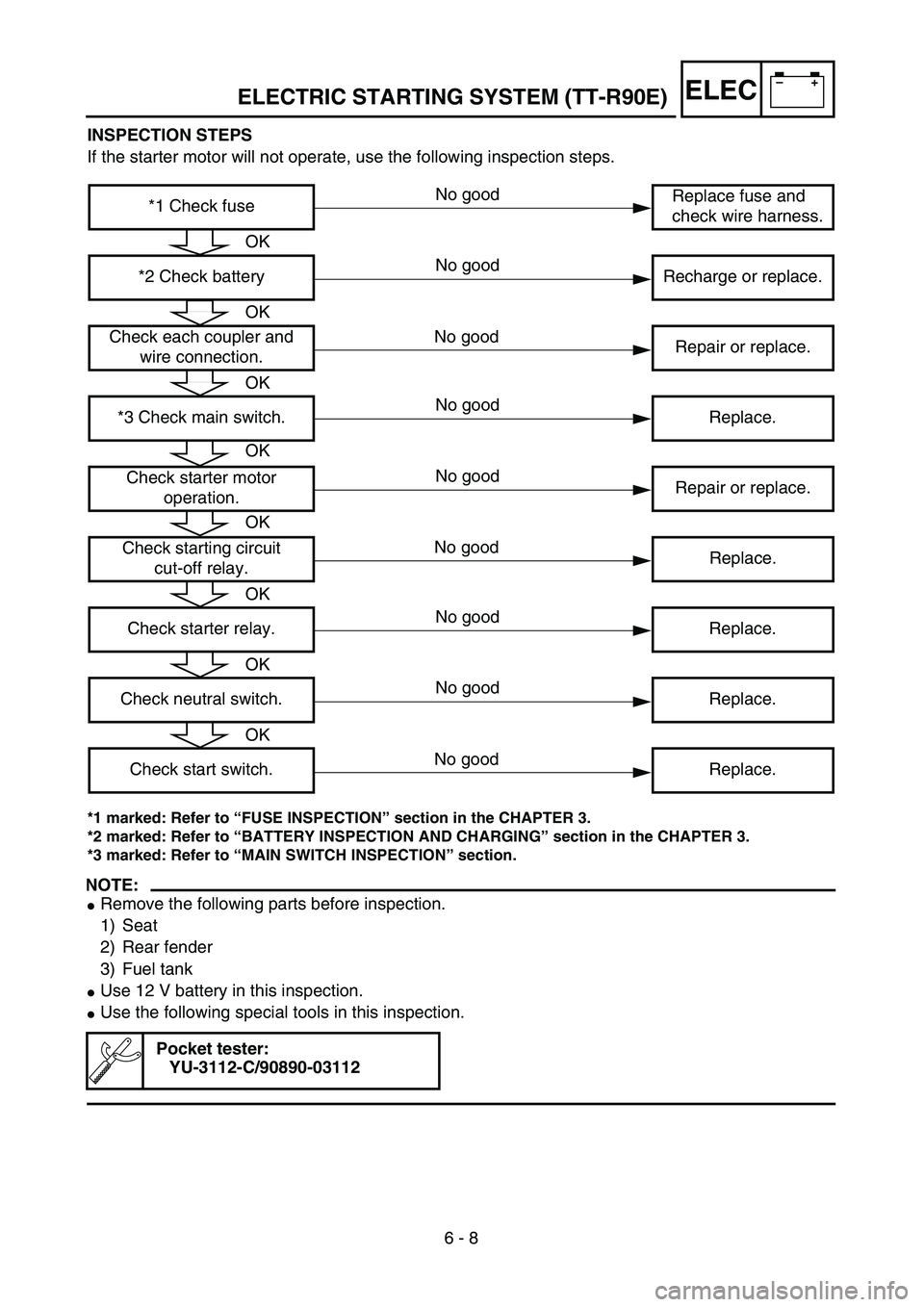

If the starter motor will not operate, use the following inspection steps.
*1 marked: Refer to “FUSE INSPECTION” section in the CHAPTER 3.
*2 marked: Refer to “BATTERY INSPECTION AND CHARGING” section in the CHAPTER 3.
*3 marked: Refer to “MAIN SWITCH INSPECTION” section.
NOTE:
Remove the following parts before inspection.
1) Seat
2) Rear fender
3) Fuel tank
Use 12 V battery in this inspection.
Use the following special tools in this inspection.
Pocket tester:
YU-3112-C/90890-03112
*1 Check fuseReplace fuse and
check wire harness.
*2 Check battery Recharge or replace.
Check each coupler and
wire connection.Repair or replace.
*3 Check main switch. Replace.
Check starter motor
operation.Repair or replace.
Check starting circuit
cut-off relay.Replace.
Check starter relay. Replace.
Check neutral switch. Replace.
Check start switch. Replace.
OK
OK
OK
OK
OK
OK
OK
OK
No good
No good
No good
No good
No good
No good
No good
No good
No good
ELECTRIC STARTING SYSTEM (TT-R90E)

6 - 9
–+ELEC
EC624000

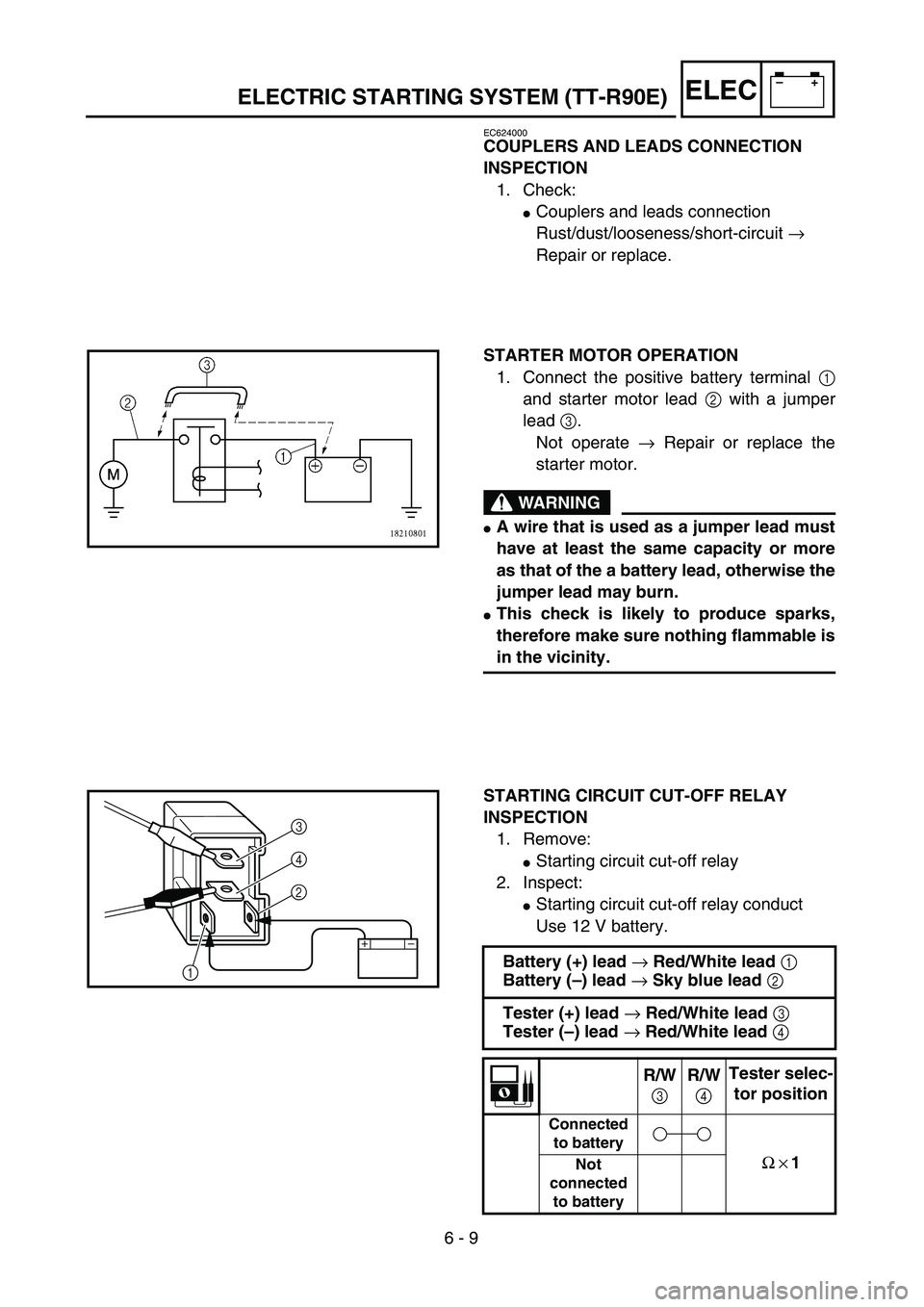

COUPLERS AND LEADS CONNECTION
INSPECTION
1. Check:
Couplers and leads connection
Rust/dust/looseness/short-circuit →
Repair or replace.
STARTER MOTOR OPERATION
1. Connect the positive battery terminal 1
and starter motor lead 2 with a jumper
lead 3.
Not operate → Repair or replace the
starter motor.
WARNING
A wire that is used as a jumper lead must
have at least the same capacity or more
as that of the a battery lead, otherwise the
jumper lead may burn.
This check is likely to produce sparks,
therefore make sure nothing flammable is
in the vicinity.
STARTING CIRCUIT CUT-OFF RELAY
INSPECTION
1. Remove:
Starting circuit cut-off relay
2. Inspect:
Starting circuit cut-off relay conduct
Use 12 V battery.
Battery (+) lead → Red/White lead 1
Battery (–) lead → Sky blue lead 2
Tester (+) lead → Red/White lead 3
Tester (–) lead → Red/White lead 4
R/W
3R/W
4Tester selec-
tor position
Connected
to battery
Ω × 1Not
connected
to battery
2 4
3
1
ELECTRIC STARTING SYSTEM (TT-R90E)

6 - 10
–+ELEC

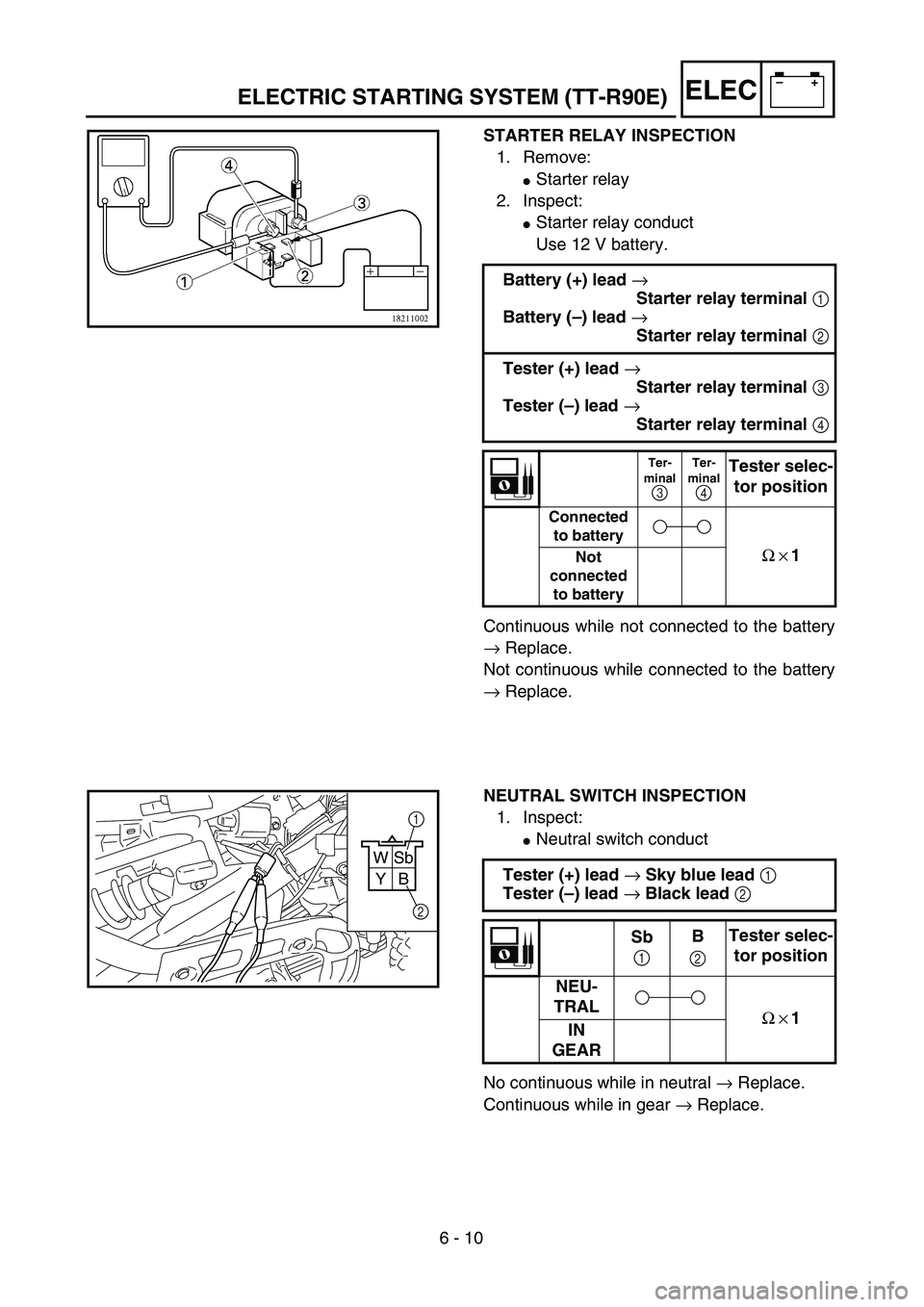

STARTER RELAY INSPECTION
1. Remove:
Starter relay
2. Inspect:
Starter relay conduct
Use 12 V battery.
Continuous while not connected to the battery
→ Replace.
Not continuous while connected to the battery
→ Replace.Battery (+) lead →
Starter relay terminal 1
Battery (–) lead →
Starter relay terminal 2
Tester (+) lead →
Starter relay terminal 3
Tester (–) lead →
Starter relay terminal 4
Ter-
minal
3
Ter-
minal
4Tester selec-
tor position
Connected
to battery
Ω × 1Not
connected
to battery
NEUTRAL SWITCH INSPECTION
1. Inspect:
Neutral switch conduct
No continuous while in neutral → Replace.
Continuous while in gear → Replace. Tester (+) lead → Sky blue lead 1
Tester (–) lead → Black lead 2
Sb
1B
2Tester selec-
tor position
NEU-
TRAL
Ω × 1
IN
GEAR
WSb
YB
1
2
ELECTRIC STARTING SYSTEM (TT-R90E)
