Page 60 of 364
SPEC
2 - 3 Transmission:
Primary reduction system Spur gear
Primary reduction ratio 67/18 (3.722)
Secondary reduction system Chain drive
Secondary reduction ratio 35/14 (2.500)
Transmission type Constant mesh, 3-speed
Operation Left foot operation
Gear ratio: 1st 37/13 (2.846)
2nd 33/19 (1.736)
3rd 28/23 (1.217)
Chassis:
Frame type Steel tube backbone
Caster angle 24.83˚
Trail 56.0 mm (2.2 in)
Tire:
Type With tube
Size (front) 2.50-14 4PR
Size (rear) 3.00-12 4PR
Manufacturer (front and rear) CHENG SHIN
Type (front and rear) KNOBBY
Tire pressure (front and rear) 100 kPa (1.00 kgf/cm
2
, 14.5 psi)
Brake:
Front brake type Drum brake
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 110 mm (4.33 in)
Rear wheel travel 95 mm (3.74 in)
Electrical:
Ignition system CDI
Generator system (TT-R90E) CDI magneto
Battery type (TT-R90E) GT4B-5
Battery voltage/capacity (TT-R90E) 12 V/2.5 AH
Specific gravity (TT-R90E) 1.350
GENERAL SPECIFICATIONS
Page 126 of 364
3 - 1
INSP
ADJ
MAINTENANCE INTERVALS/
PERIODIC MAINTENANCE AND LUBRICATION
EC300000
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind
that such factors as weather, terrain, geographical location, and individual usage will alter the
required maintenance and lubrication intervals. If you are a doubt as to what intervals to follow in
maintaining and lubricating your machine, consult your Yamaha dealer.
PERIODIC MAINTENANCE AND LUBRICATION
Dealer
NoteItem Checks and maintenance jobsInitial Every
10 hours
(1 month)60 hours
(6 months)120 hours
(12 months)
* Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.
Spark plugCheck condition.
Clean, regap or replace if necessary.
* ValvesCheck valve clearance.
Adjust if necessary.
Air filter Clean or replace if necessary.
* CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.
Exhaust systemsCheck for leakage.
Retighten if necessary.
Replace gasket if necessary.
Engine oilCheck oil level and vehicle for oil leakage.
Correct if necessary.
Change. (Warm engine before draining.)
ClutchCheck operation.
Adjust or replace cable.
* Front brakeCheck operation.
Adjust brake lever free play and replace brake
shoes if necessary.Every ride
* Rear brakeCheck operation.
Adjust brake pedal free play and replace brake
shoes if necessary.Every ride
* WheelsCheck balance, runout, spoke tightness and for
damage.
Tighten spokes and rebalance, replace if
necessary.
* TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.
* Wheel bearingsCheck bearing for looseness or damage.
Replace if necessary.
* SwingarmCheck swingarm pivoting point for play.
Correct if necessary.
Lubricate with lithium soap base grease.
Drive chainCheck chain slack.
Adjust if necessary. Make sure that the rear wheel
is properly aligned.
Clean and lubricate.Every ride
* Steering bearingsCheck bearing play and steering for roughness.
Correct accordingly.
Lubricate with lithium soap base grease every 120
hours.
3
Page 127 of 364
3 - 2
INSP
ADJ
PRE-OPERATION INSPECTION AND MAINTENANCE
*: Since these items requires special tools data and technical skills, they should be serviced.
*
1
: For USA
SERVICE NOTES:
No. 1. DRIVE CHAIN: In addition to tension and alignment, chain must be lubricated every
0.5 ~ 1.0 hour. If unit is subjected to extremely hard usage and wet weather riding, chain
must be checked constantly. See “Lubrication Intervals” for additional details.
No. 2. AIR FILTER: Remove and clean filter every 20 ~ 40 hours.
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating
condition.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCE
* Chassis fastenersMake sure that all nuts, bolts and screws are
properly tightened.
Tighten if necessary.
SidestandCheck operation.
Lubricate and repair if necessary.
* Spark arrester
*
1
Clean.
* Front forkCheck operation and for oil leakage.
Correct accordingly.
*Rear shock
absorber assemblyCheck operation and shock absorber for oil
leakage.
Replace shock absorber assembly if necessary.
Battery
(TT-R90E only)Check terminal for corrosion.
Clean if necessary.
Item Routine Page
Brake Check operation/adjustment. P3-11
Engine oil Change oil as required. P3-5 ~ 7
Drive chain Check alignment/adjustment/lubrication. P3-12 ~ 13
Spark plug Check color/condition. P3-20
Throttle Check for proper throttle cable operation. P3-3
Air filter Foam type – must be clean and damp oil always P3-3 ~ 4
Wheels and tires Check pressure/runout/spoke tightness/bead stopper/axle nuts. P3-14 ~ 15
Fittings/fasteners Check all – tighten as necessary. P2-13 Dealer
NoteItem Checks and maintenance jobsInitial Every
10 hours
(1 month)60 hours
(6 months)120 hours
(12 months)
3

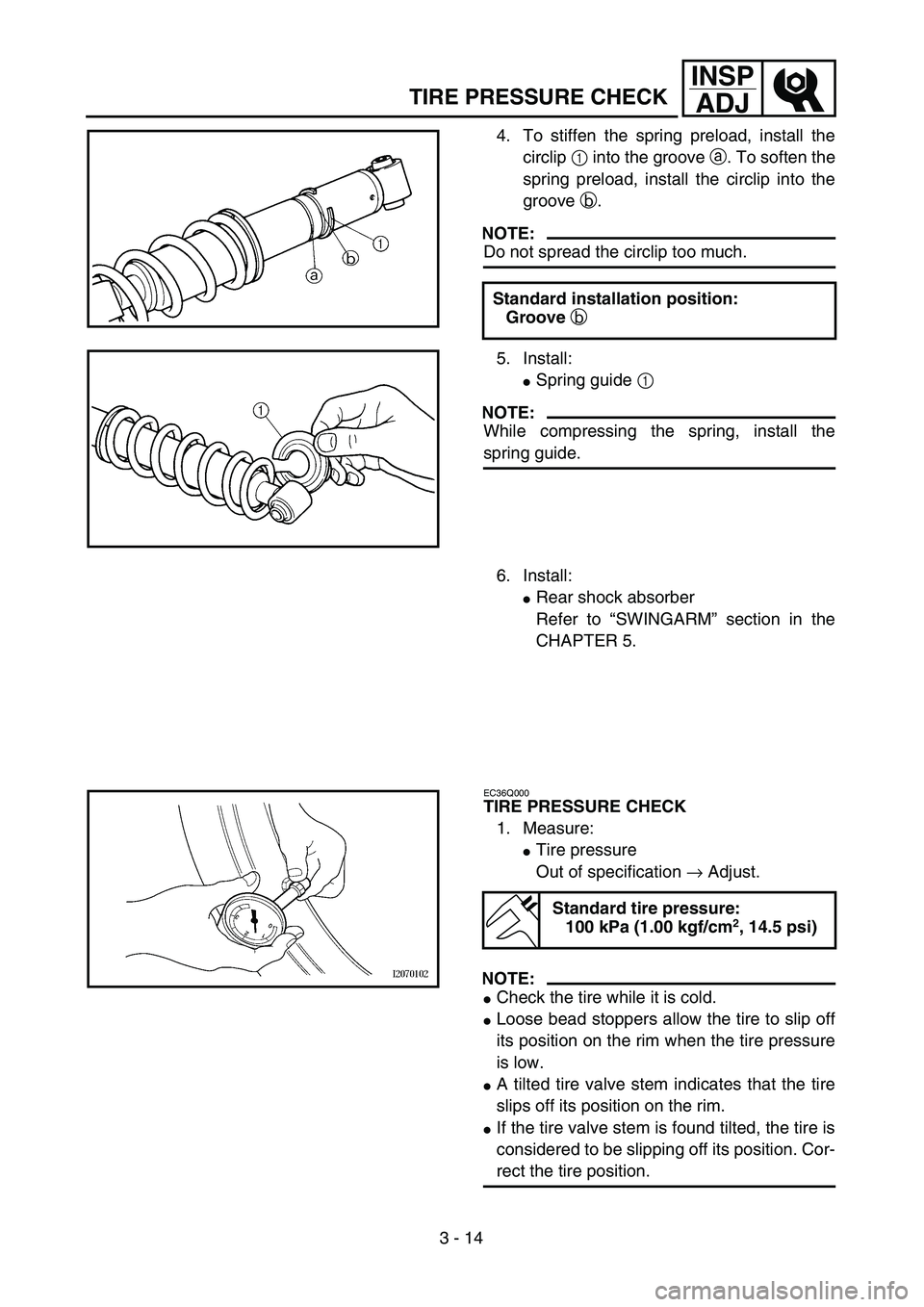

Page 154 of 364
3 - 14
INSP
ADJ
4. To stiffen the spring preload, install the
circlip 1 into the groove a. To soften the
spring preload, install the circlip into the
groove b.
NOTE:
Do not spread the circlip too much.
5. Install:
Spring guide 1
NOTE:
While compressing the spring, install the
spring guide.Standard installation position:
Groove b
6. Install:
Rear shock absorber
Refer to “SWINGARM” section in the
CHAPTER 5.
EC36Q000
TIRE PRESSURE CHECK
1. Measure:
Tire pressure
Out of specification → Adjust.
NOTE:
Check the tire while it is cold.
Loose bead stoppers allow the tire to slip off
its position on the rim when the tire pressure
is low.
A tilted tire valve stem indicates that the tire
slips off its position on the rim.
If the tire valve stem is found tilted, the tire is
considered to be slipping off its position. Cor-
rect the tire position.
Standard tire pressure:
100 kPa (1.00 kgf/cm2, 14.5 psi)
TIRE PRESSURE CHECK
