key YAMAHA TTR90 2007 Owners Manual

IMPORTANT MANUAL INFORMATION
EAU41090
Particularly important information is distinguished in this manual by the following notations:NOTE:

This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle
is subsequently sold.


Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your motorcycleand this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.WARNING
EWA10030
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death
to the
motorcycle operator, a bystander or a person inspecting or repairing the motor-
cycle.
A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:
NOTE:
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

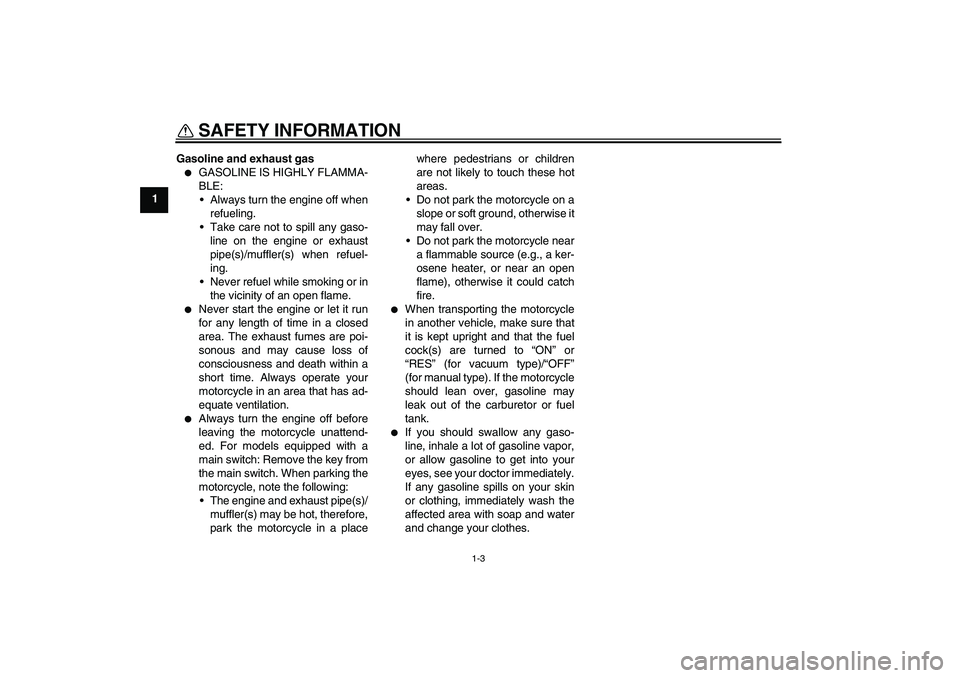

SAFETY INFORMATION
1-3
1Gasoline and exhaust gas


GASOLINE IS HIGHLY FLAMMA-
BLE:
Always turn the engine off when
refueling.
Take care not to spill any gaso-
line on the engine or exhaust
pipe(s)/muffler(s) when refuel-
ing.
Never refuel while smoking or in
the vicinity of an open flame.


Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.


Always turn the engine off before
leaving the motorcycle unattend-
ed. For models equipped with a
main switch: Remove the key from
the main switch. When parking the
motorcycle, note the following:
The engine and exhaust pipe(s)/
muffler(s) may be hot, therefore,
park the motorcycle in a placewhere pedestrians or children
are not likely to touch these hot
areas.
Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.
Do not park the motorcycle near
a flammable source (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.


When transporting the motorcycle
in another vehicle, make sure that
it is kept upright and that the fuel
cock(s) are turned to “ON” or
“RES” (for vacuum type)/“OFF”
(for manual type). If the motorcycle
should lean over, gasoline may
leak out of the carburetor or fuel
tank.


If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediately.
If any gasoline spills on your skin
or clothing, immediately wash the
affected area with soap and water
and change your clothes.
U3P281E0.book Page 3 Monday, April 17, 2006 11:26 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU40340
Main switch [TT-R90E(W)]The main switch controls the ignition
system. The main switch positions are
described below.
EAU10630
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU12346
Handlebar switches Left
Right [TT-R90E(W)]
EAU41890
Engine stop switch “/”
[TT-R90(W)]
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine.
EAU12660
Engine stop switch “/”
[TT-R90E(W)]
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “” [TT-R90E(W)]
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-2 for starting instruc-tions prior to starting the engine.
1. Engine stop switch “/”
1. Start switch “”
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES
NOTE:
a warmed-up engine.
NO
The system is OK. The motorcycle can be ridden.
YES
NO
This check is most reliable if performed with
U3P281E0.book Page 9 Monday, April 17, 2006 11:26 AM

OPERATION AND IMPORTANT RIDING POINTS
5-2
5
EAU40090
Starting and warming up a
cold engine [TT-R90E(W)]1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410


Be sure to shift the transmis-
sion into neutral before starting
the engine.


Never ride with the sidestanddown.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 3-6.)
5. Start the engine by pushing the
start switch.
6. After starting the engine, move the
starter (choke) back halfway.
CAUTION:
ECA11130
For maximum engine life, always
warm the engine up before starting
off. Never accelerate hard when theengine is cold!
7. When the engine is warm, turn the
starter (choke) off.NOTE:The engine is warm when it responds
normally to the throttle with the starter(choke) turned off.
EAU16640
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

OPERATION AND IMPORTANT RIDING POINTS
5-5
5
EAU17170
Parking [TT-R90E(W)]When parking, stop the engine, remove
the key from the main switch, and then
turn the fuel cock lever to “OFF”.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
U3P281E0.book Page 5 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU23490
Replacing the fuse
[TT-R90E(W)]The fuse box is located under the seat.
(See page 3-7.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Fuse
2. Spare fuseSpecified fuse:
TT-R90E 10.0 A
U3P281E0.book Page 26 Monday, April 17, 2006 11:26 AM

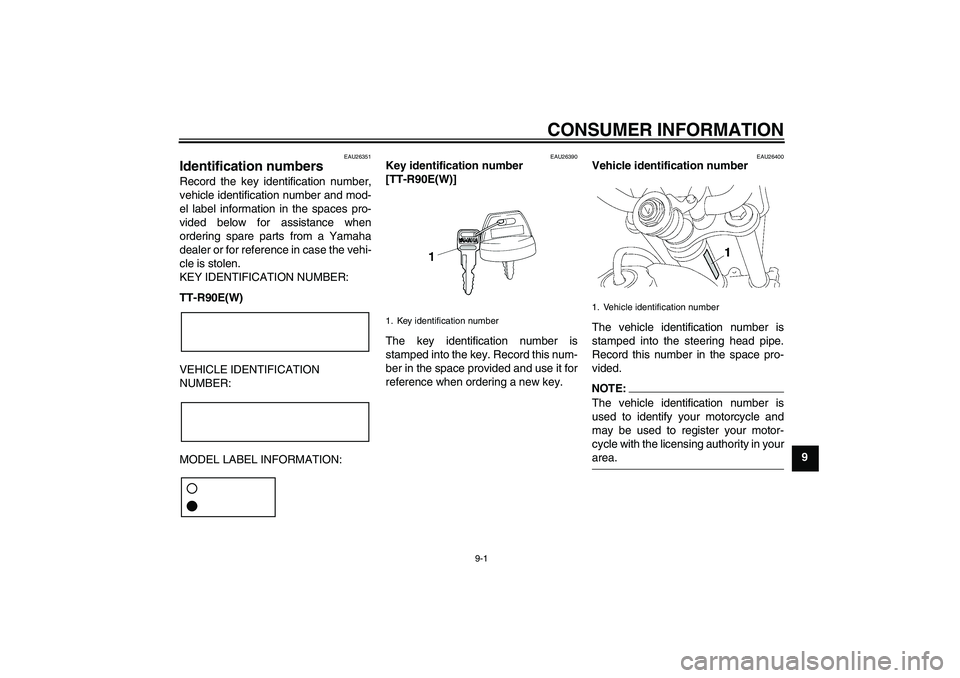

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
TT-R90E(W)
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26390
Key identification number
[TT-R90E(W)]
The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

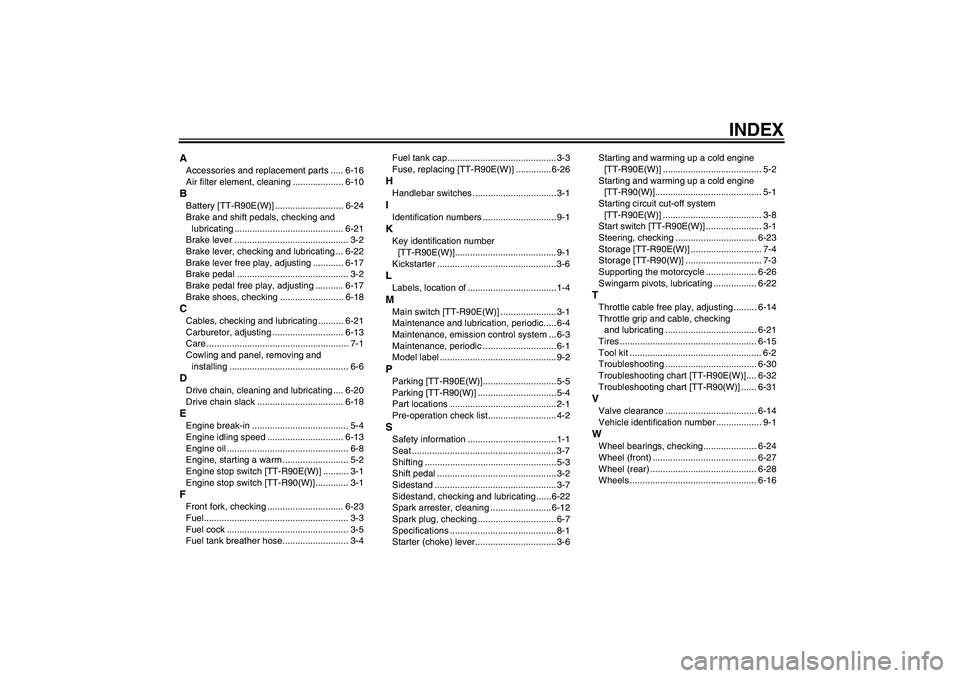

INDEX
AAccessories and replacement parts ..... 6-16
Air filter element, cleaning .................... 6-10BBattery [TT-R90E(W)] ........................... 6-24
Brake and shift pedals, checking and
lubricating ........................................... 6-21
Brake lever ............................................. 3-2
Brake lever, checking and lubricating ... 6-22
Brake lever free play, adjusting ............ 6-17
Brake pedal ............................................ 3-2
Brake pedal free play, adjusting ........... 6-17
Brake shoes, checking ......................... 6-18CCables, checking and lubricating .......... 6-21
Carburetor, adjusting ............................ 6-13
Care ........................................................ 7-1
Cowling and panel, removing and
installing ............................................... 6-6DDrive chain, cleaning and lubricating .... 6-20
Drive chain slack .................................. 6-18EEngine break-in ...................................... 5-4
Engine idling speed .............................. 6-13
Engine oil ................................................ 6-8
Engine, starting a warm .......................... 5-2
Engine stop switch [TT-R90E(W)] .......... 3-1
Engine stop switch [TT-R90(W)]............. 3-1FFront fork, checking .............................. 6-23
Fuel......................................................... 3-3
Fuel cock ................................................ 3-5
Fuel tank breather hose.......................... 3-4Fuel tank cap........................................... 3-3
Fuse, replacing [TT-R90E(W)] ..............6-26
HHandlebar switches ................................. 3-1IIdentification numbers ............................. 9-1KKey identification number
[TT-R90E(W)]........................................ 9-1
Kickstarter ............................................... 3-6LLabels, location of ...................................1-4MMain switch [TT-R90E(W)] ...................... 3-1
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Maintenance, periodic ............................. 6-1
Model label .............................................. 9-2PParking [TT-R90E(W)].............................5-5
Parking [TT-R90(W)] ...............................5-4
Part locations .......................................... 2-1
Pre-operation check list........................... 4-2SSafety information ...................................1-1
Seat ......................................................... 3-7
Shifting ....................................................5-3
Shift pedal ............................................... 3-2
Sidestand ................................................ 3-7
Sidestand, checking and lubricating...... 6-22
Spark arrester, cleaning ........................ 6-12
Spark plug, checking ...............................6-7
Specifications .......................................... 8-1
Starter (choke) lever................................ 3-6Starting and warming up a cold engine
[TT-R90E(W)] ....................................... 5-2
Starting and warming up a cold engine
[TT-R90(W)].......................................... 5-1
Starting circuit cut-off system
[TT-R90E(W)] ....................................... 3-8
Start switch [TT-R90E(W)] ...................... 3-1
Steering, checking ................................ 6-23
Storage [TT-R90E(W)] ............................ 7-4
Storage [TT-R90(W)] .............................. 7-3
Supporting the motorcycle .................... 6-26
Swingarm pivots, lubricating ................. 6-22
TThrottle cable free play, adjusting ......... 6-14
Throttle grip and cable, checking
and lubricating .................................... 6-21
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-30
Troubleshooting chart [TT-R90E(W)].... 6-32
Troubleshooting chart [TT-R90(W)] ...... 6-31VValve clearance .................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-24
Wheel (front) ......................................... 6-27
Wheel (rear) .......................................... 6-28
Wheels .................................................. 6-16
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM
